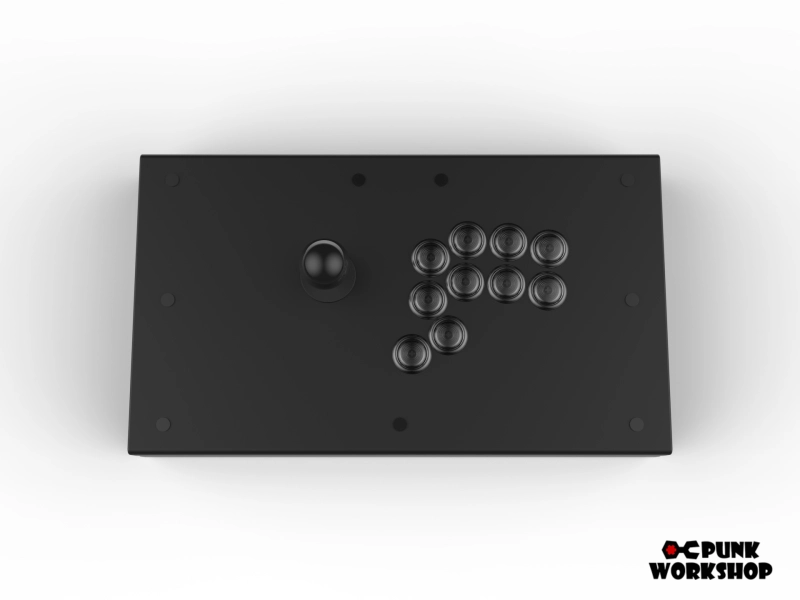

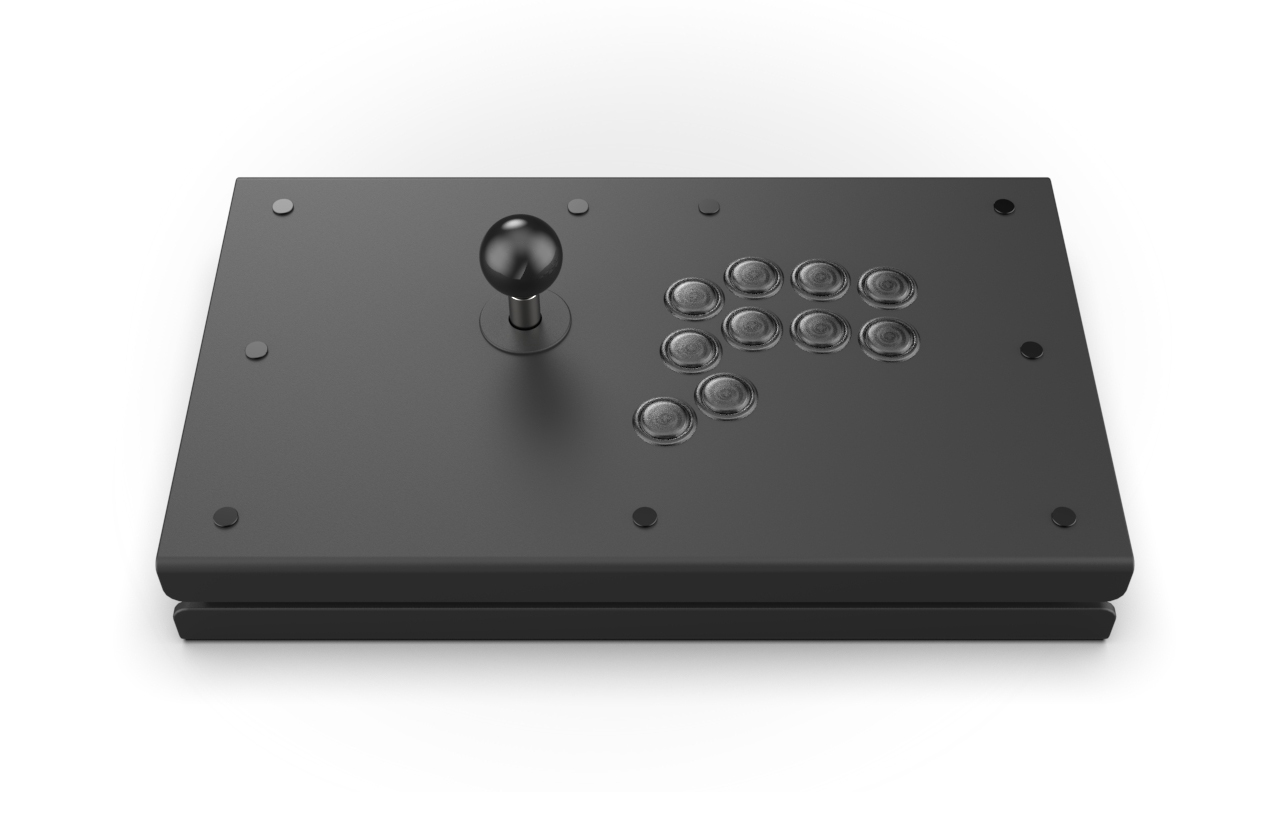

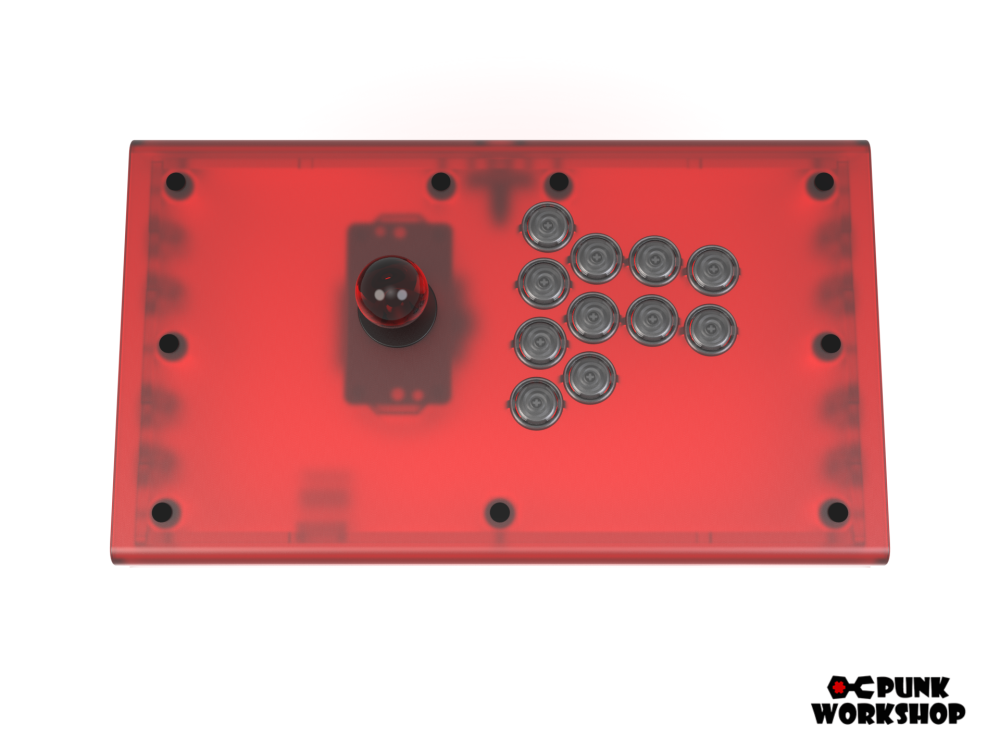

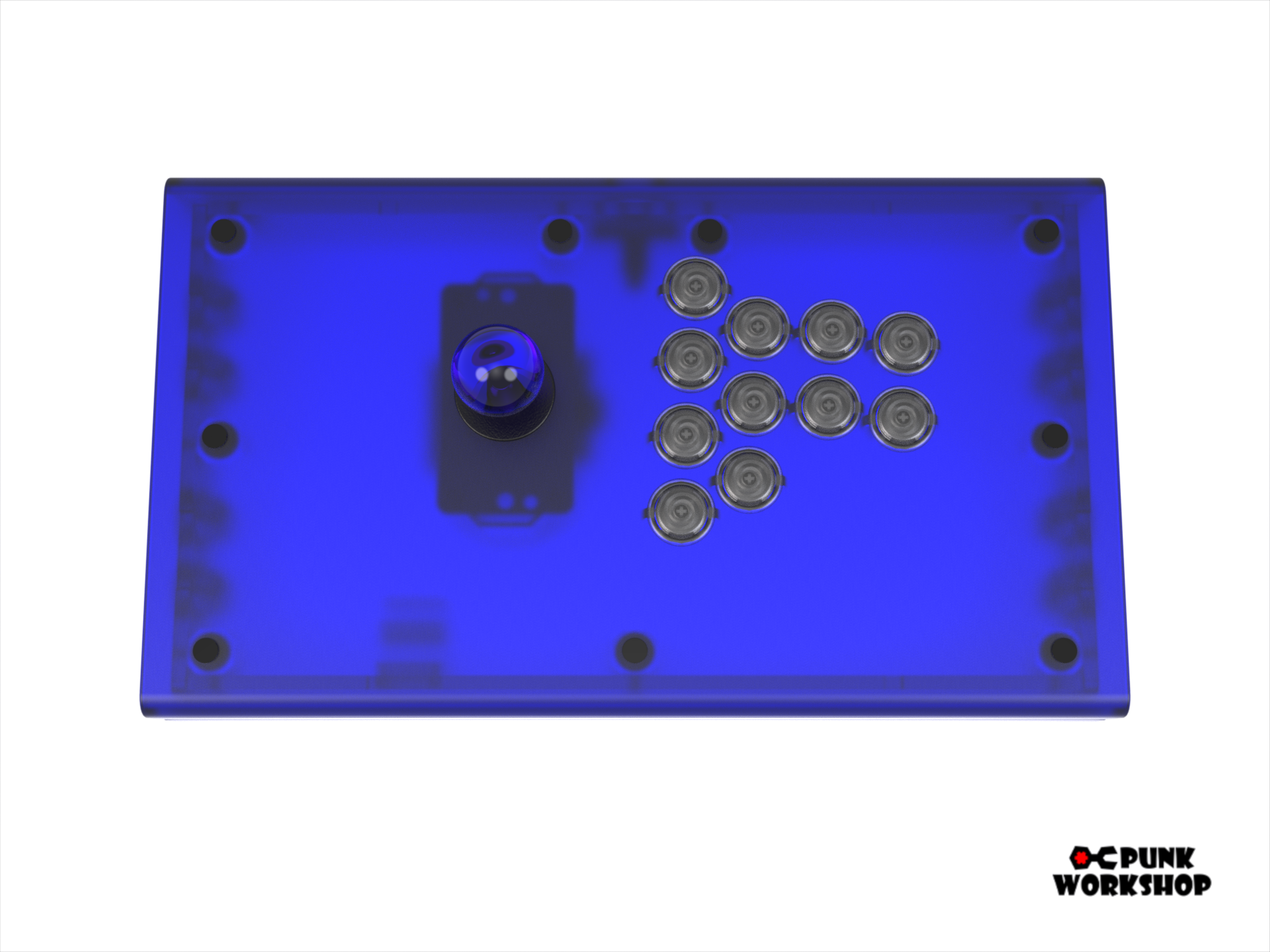

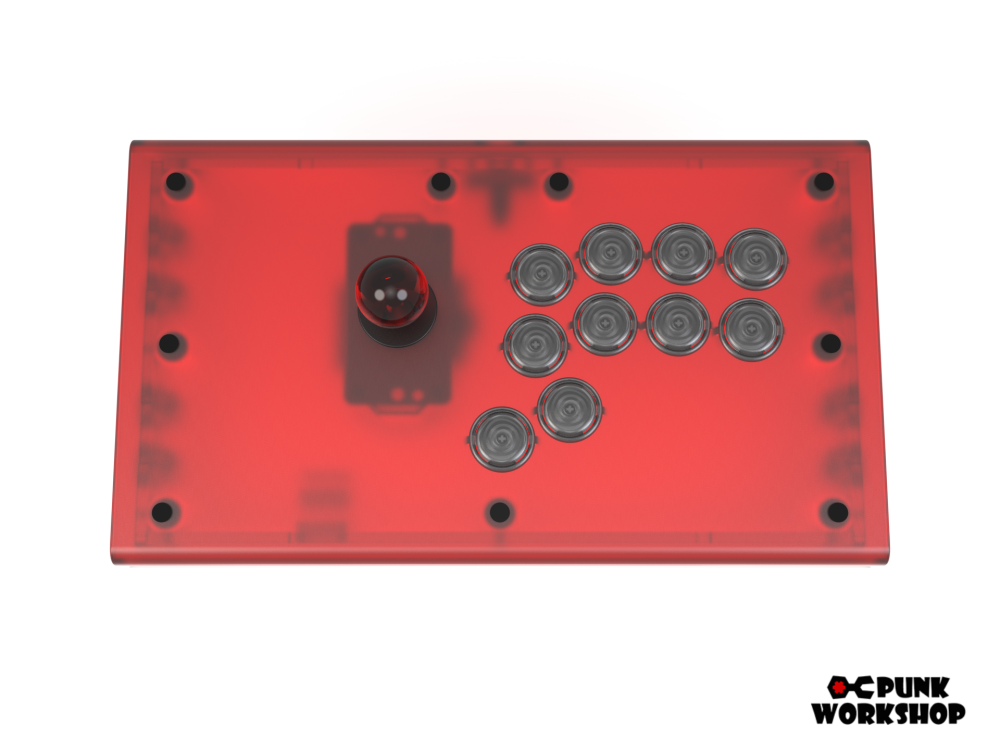

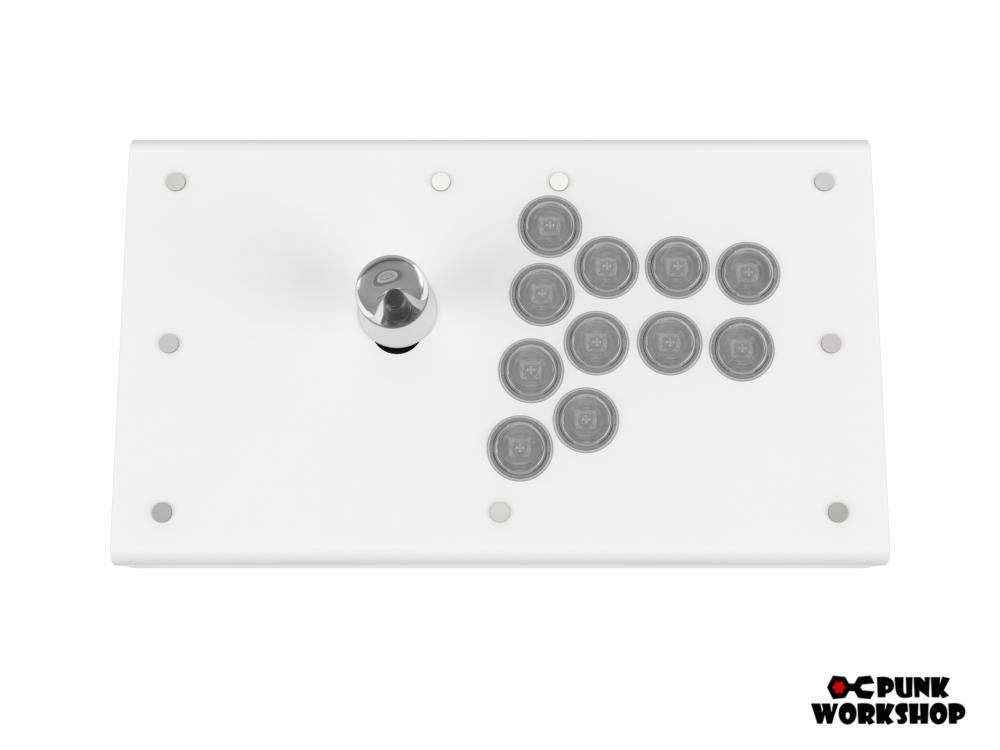

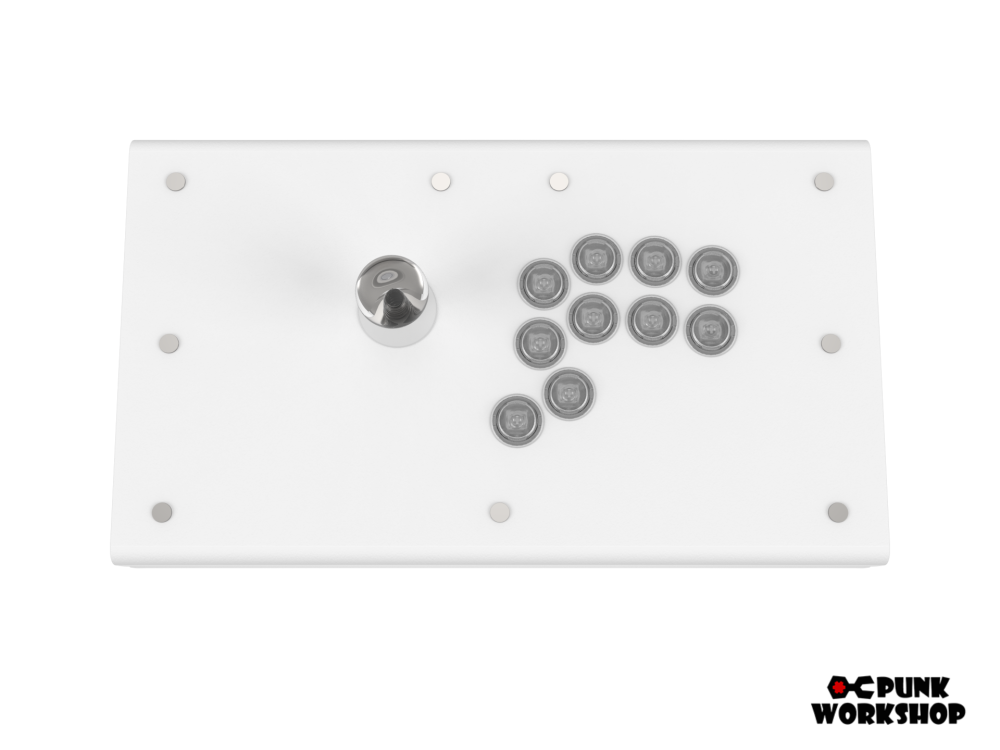

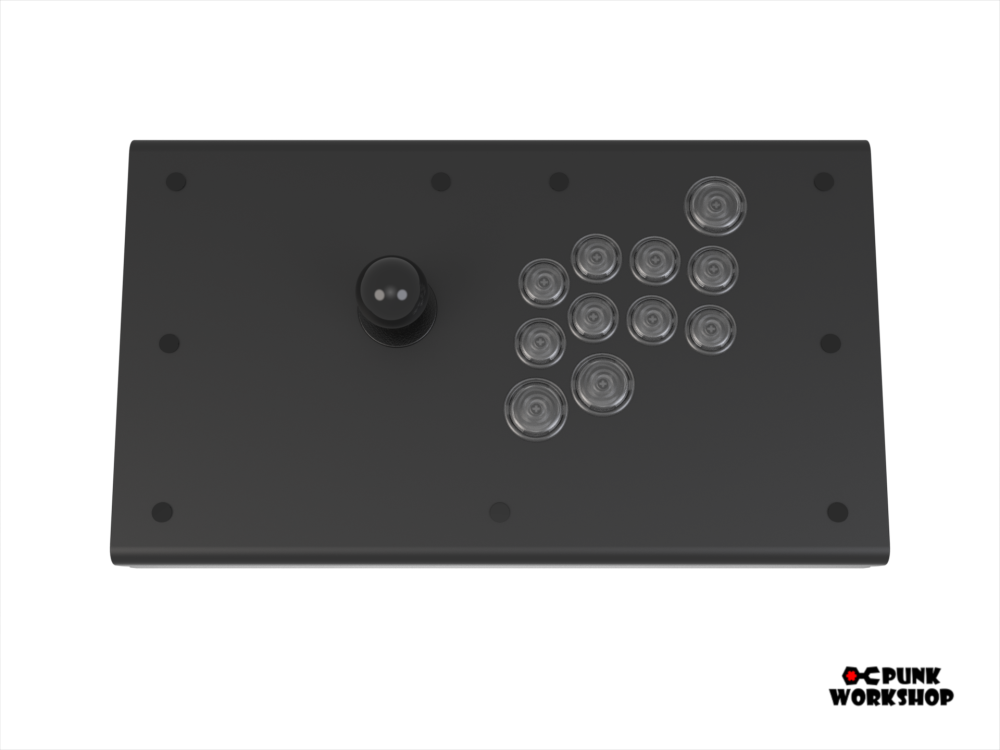

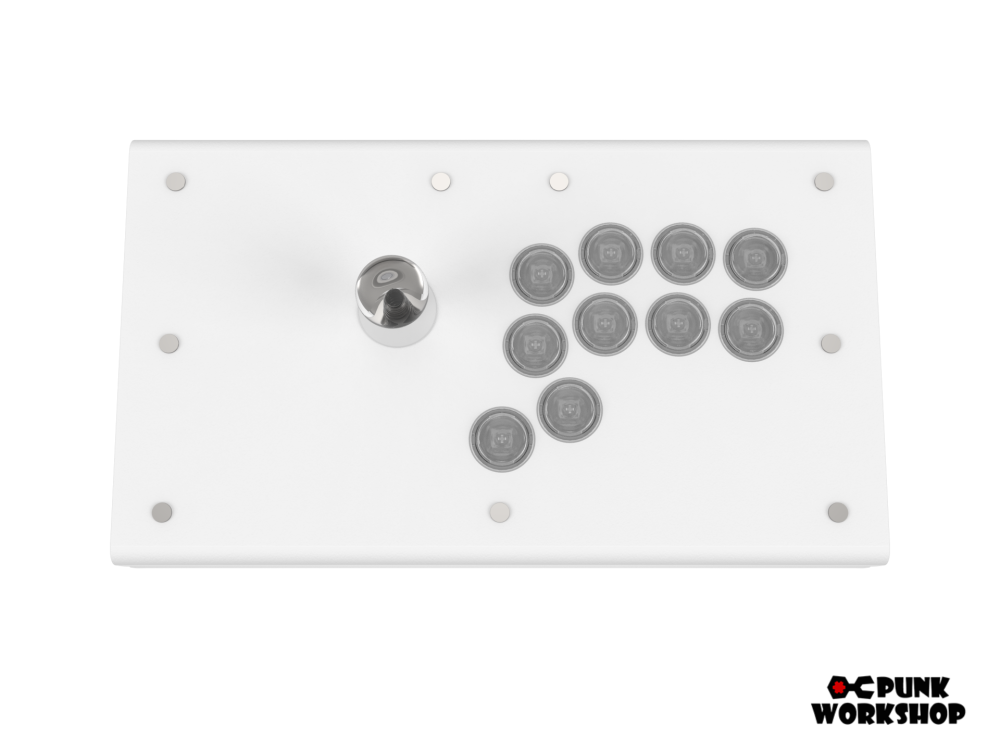

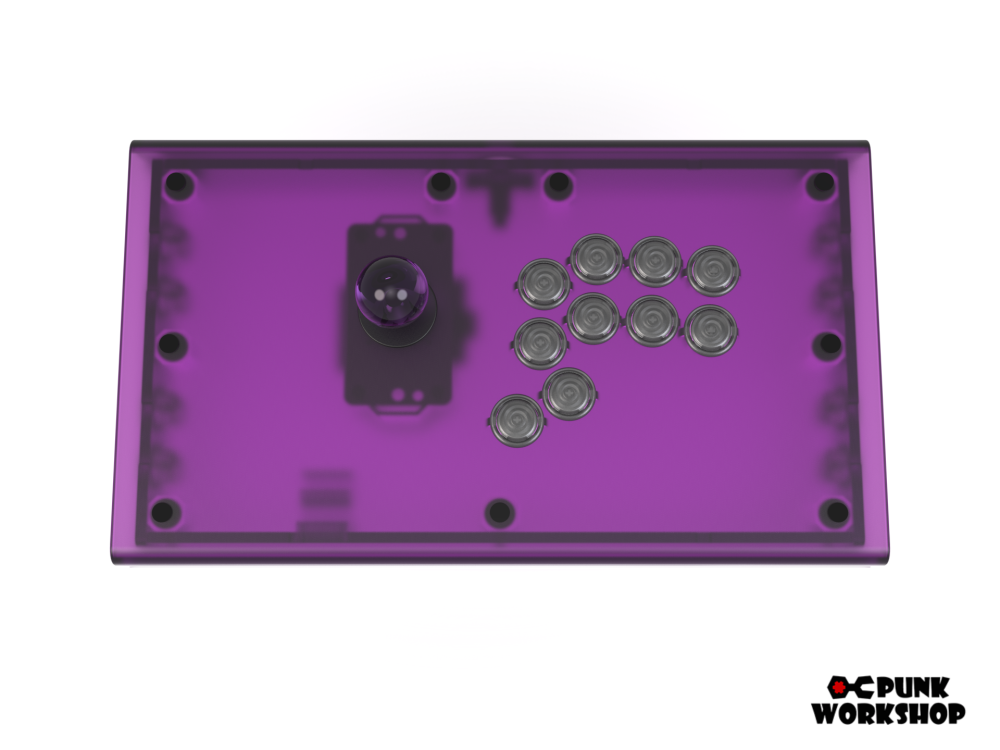

PWS FightStick

Name: PWS FightStick
Brand: PUNK WORKSHOP
Price: 167 USD
Availability: InStock

$167.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET 5% OFF ON ORDERS OVER $300.00
GET 10% OFF ON ORDERS OVER $500.00
GET 15% OFF ON ORDERS OVER $1,000.00

30/05/2024/00:00:00 - 31/05/2029/00:00:00

Please select the information you want X

mode:

24 mm

30 mm

G
colour:

art

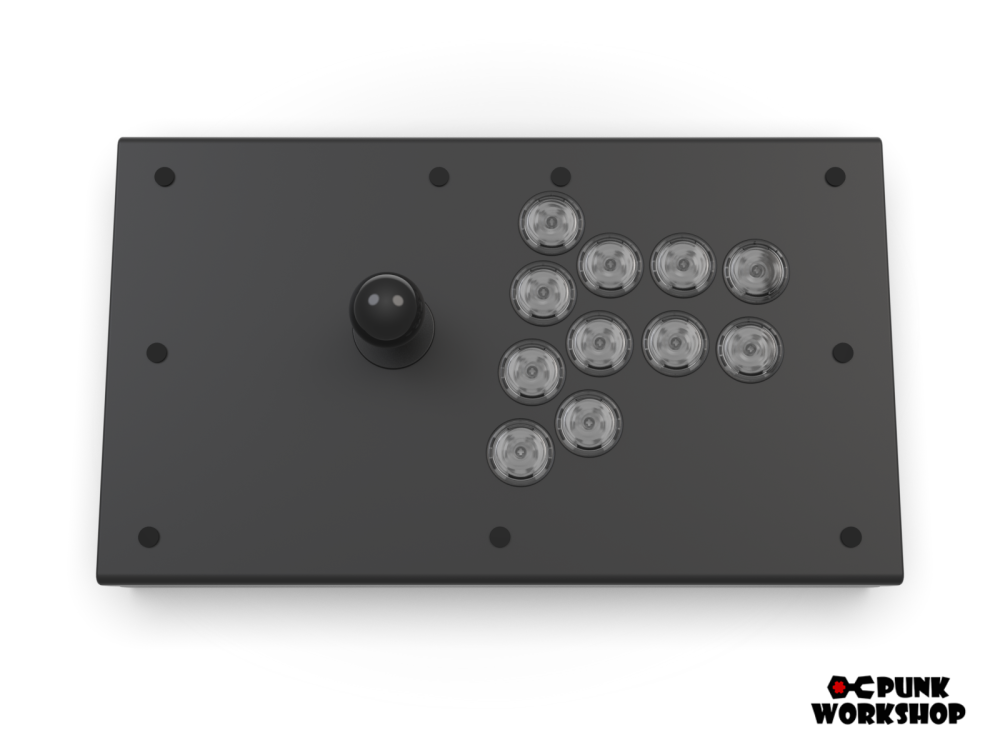

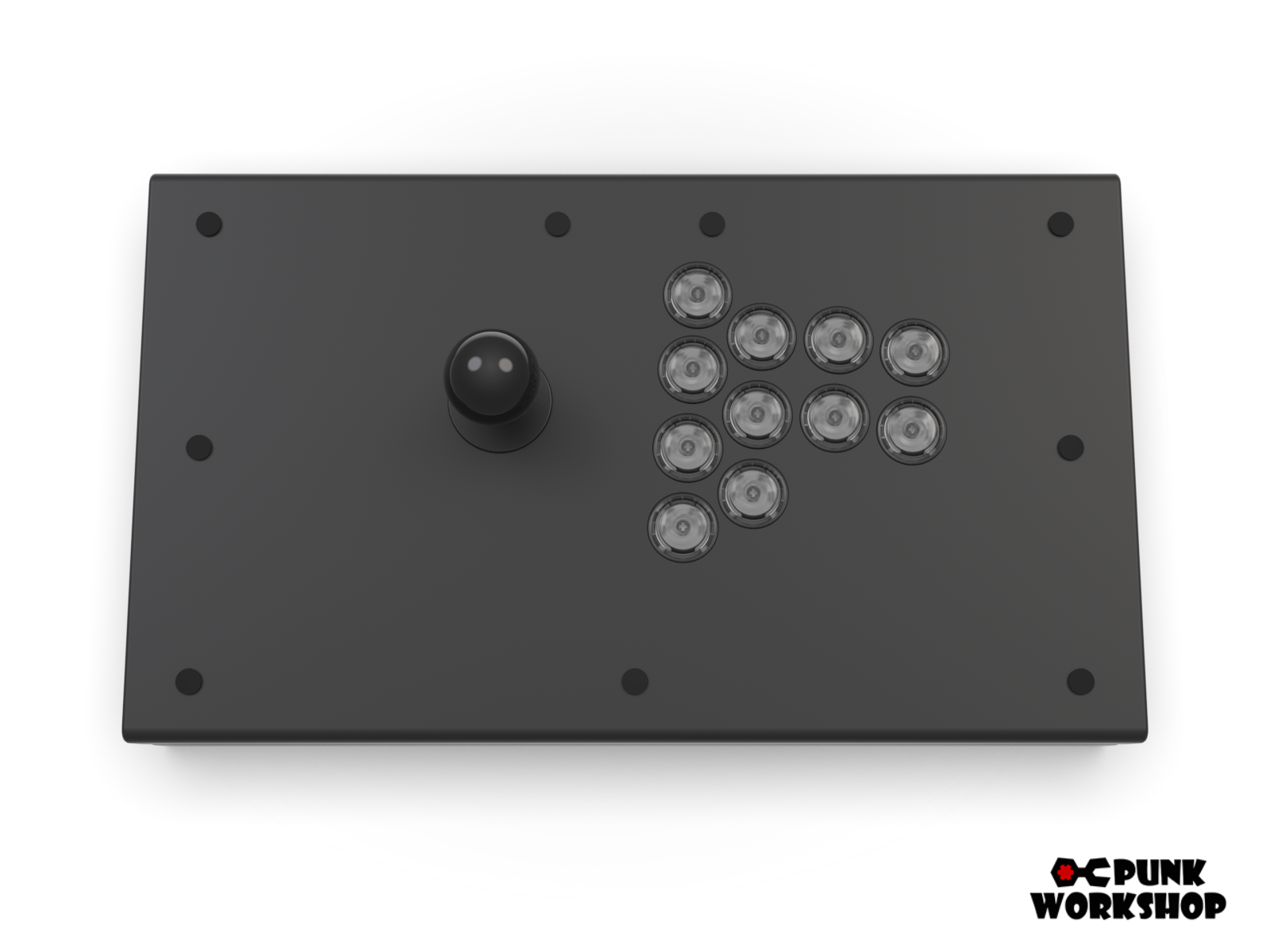

black

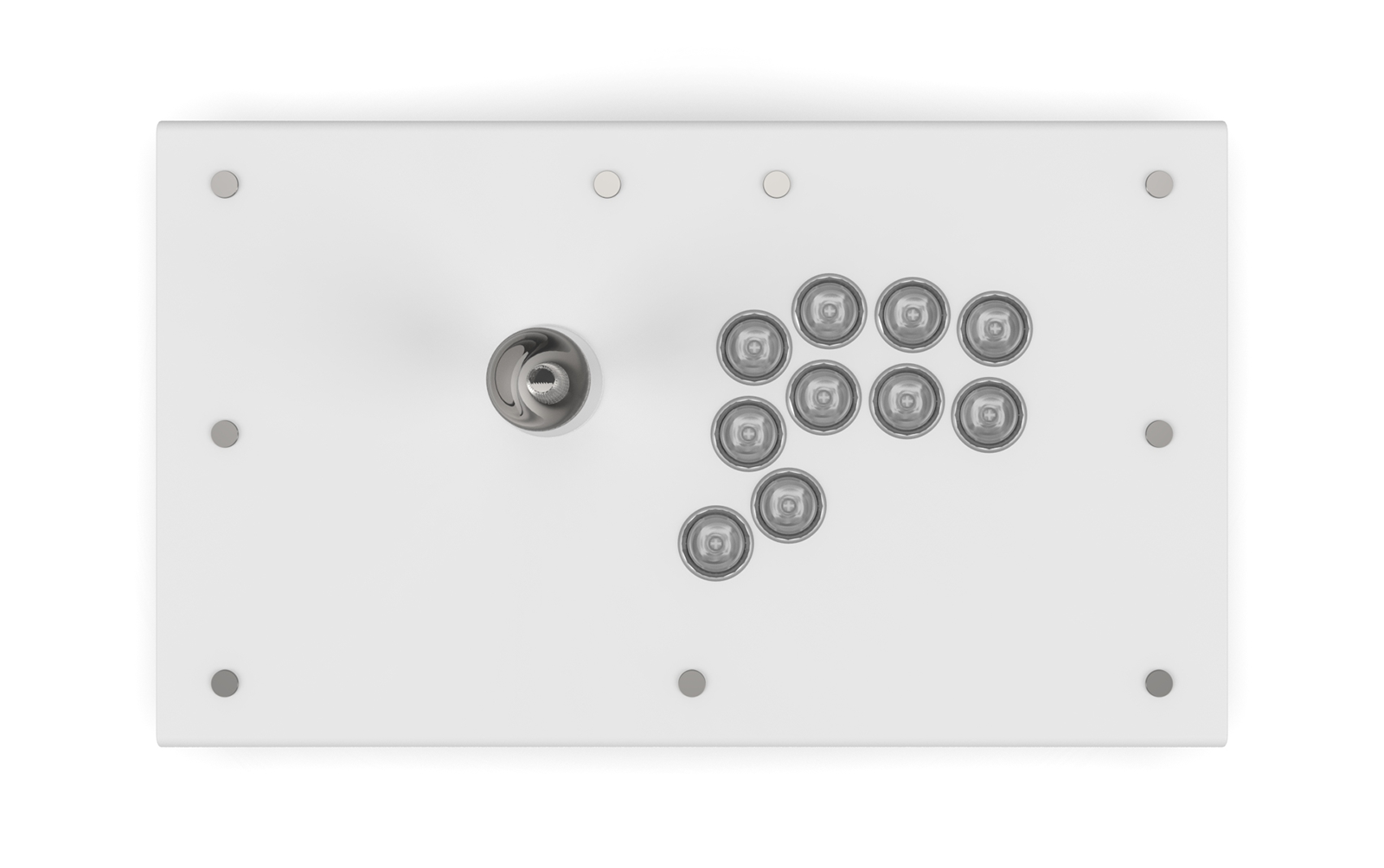

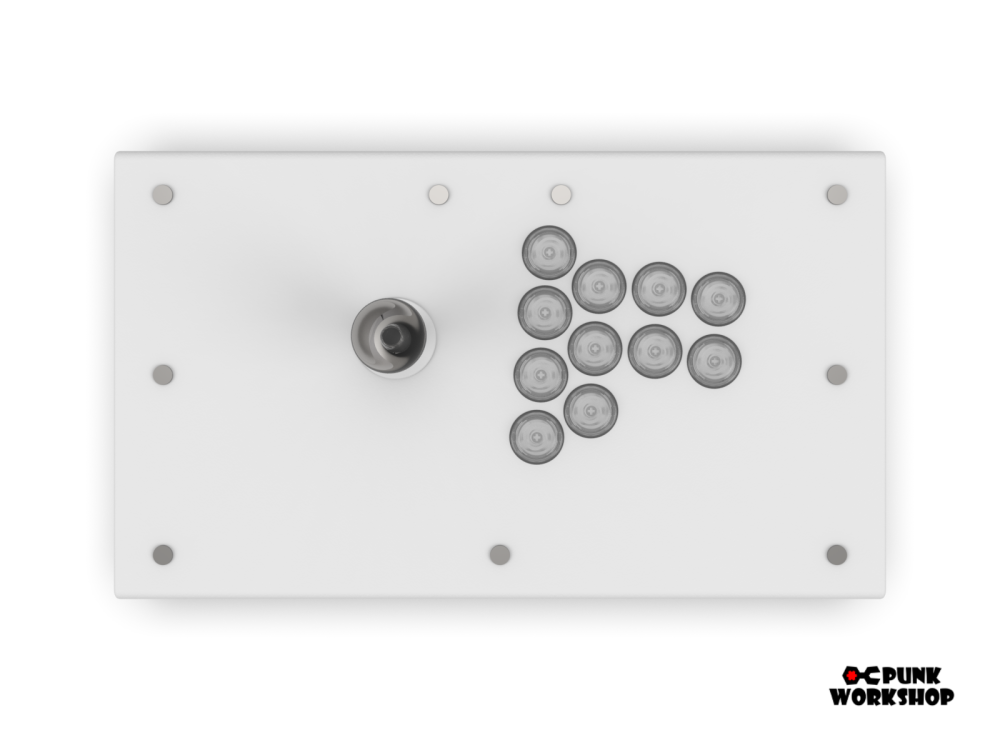

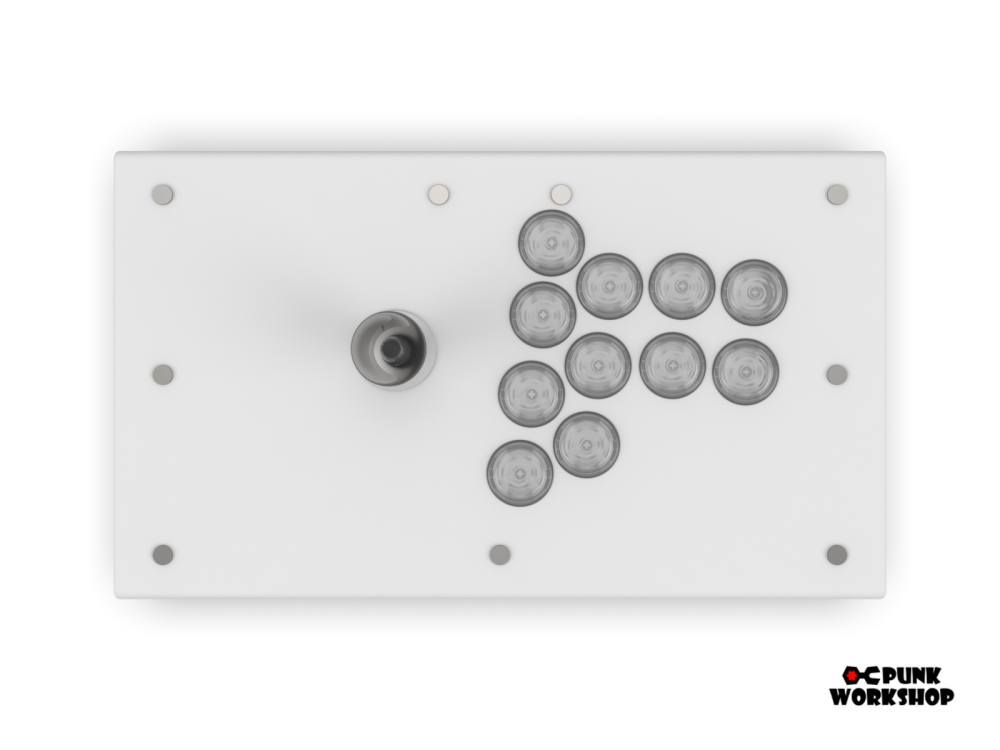

white
Joystick:

Silicone Spring Joystick

Metal Spring Joystick

Quantity:

Add to Favorites (17)

1/1

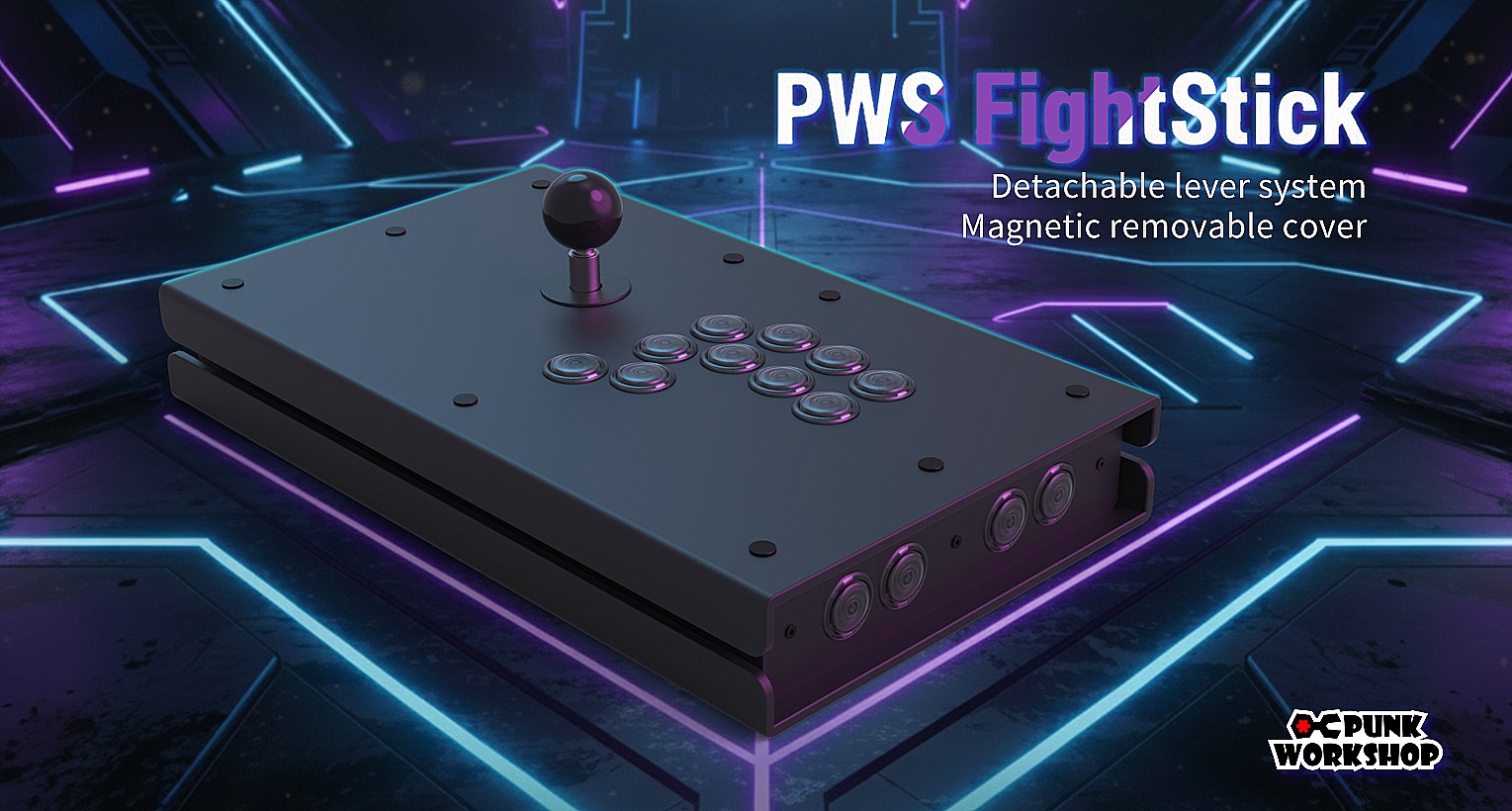

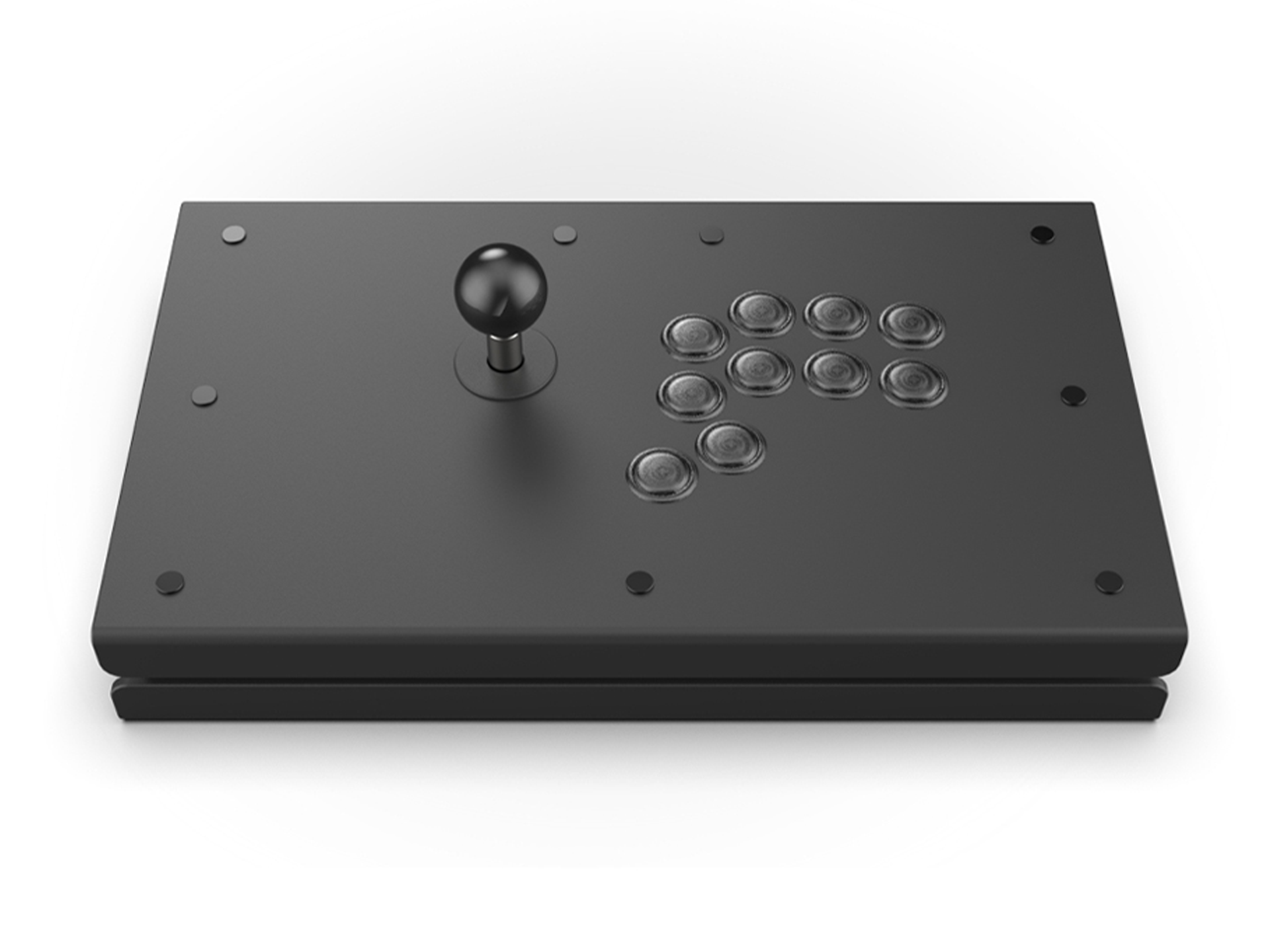

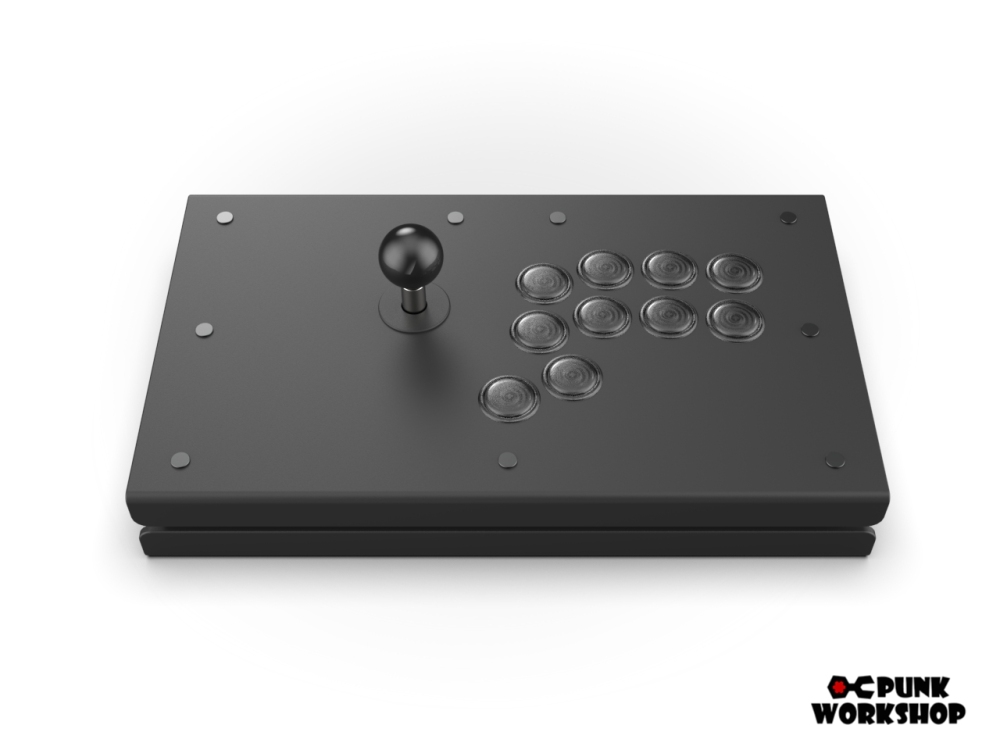

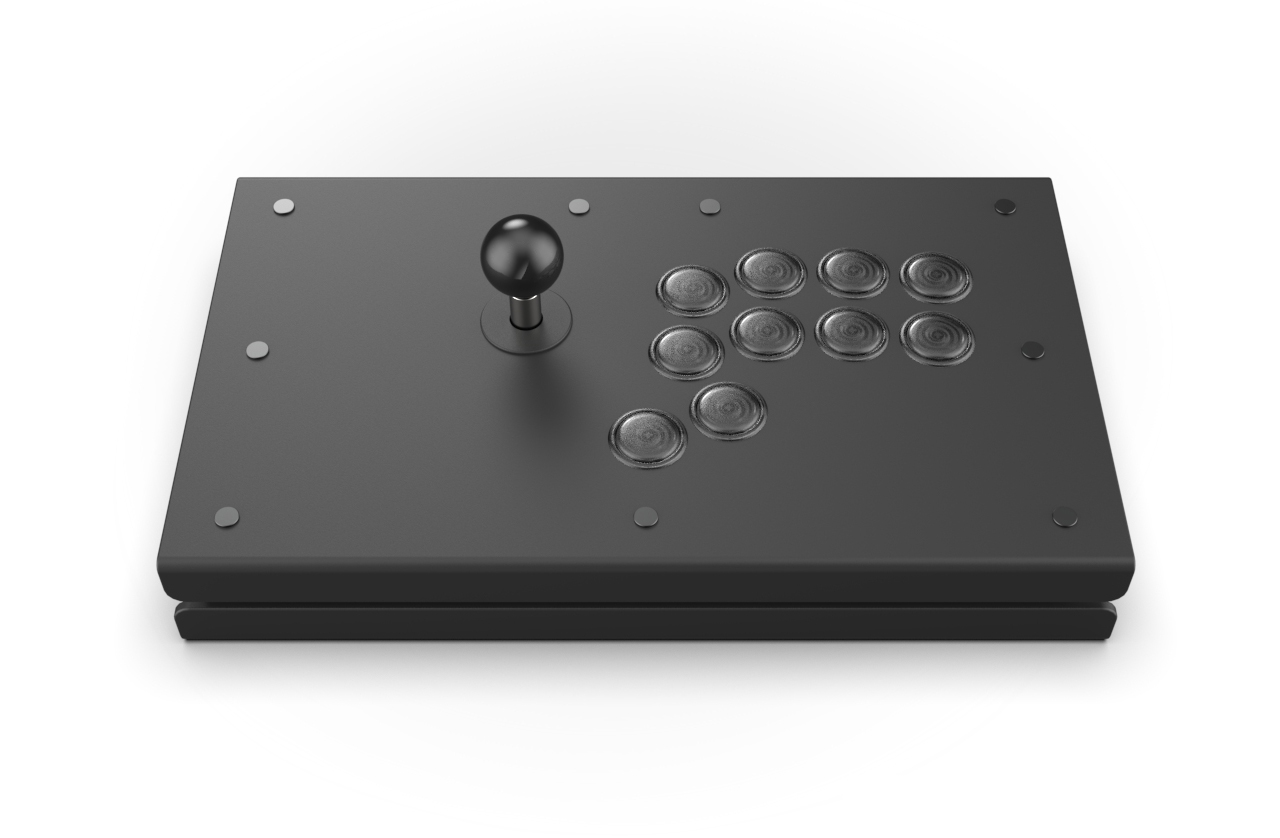

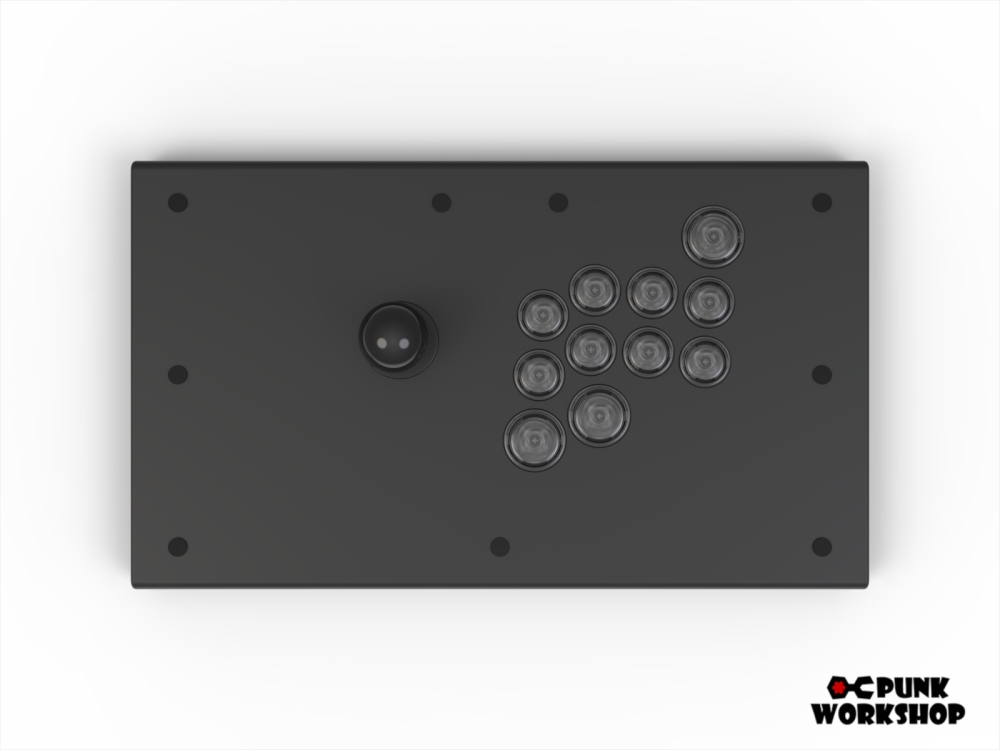

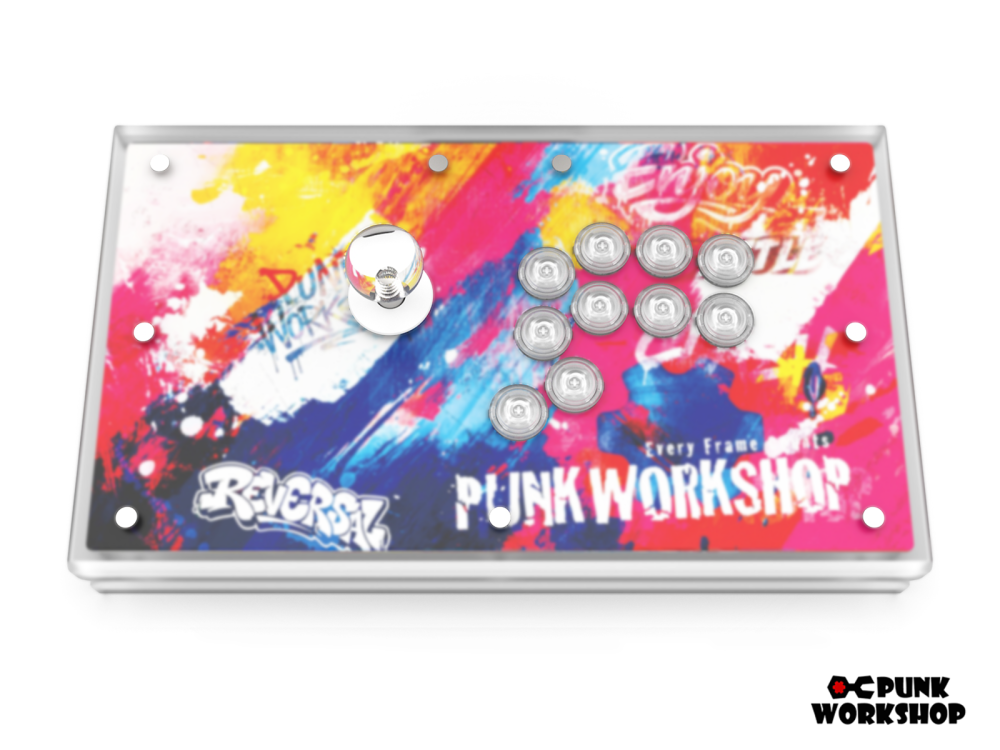

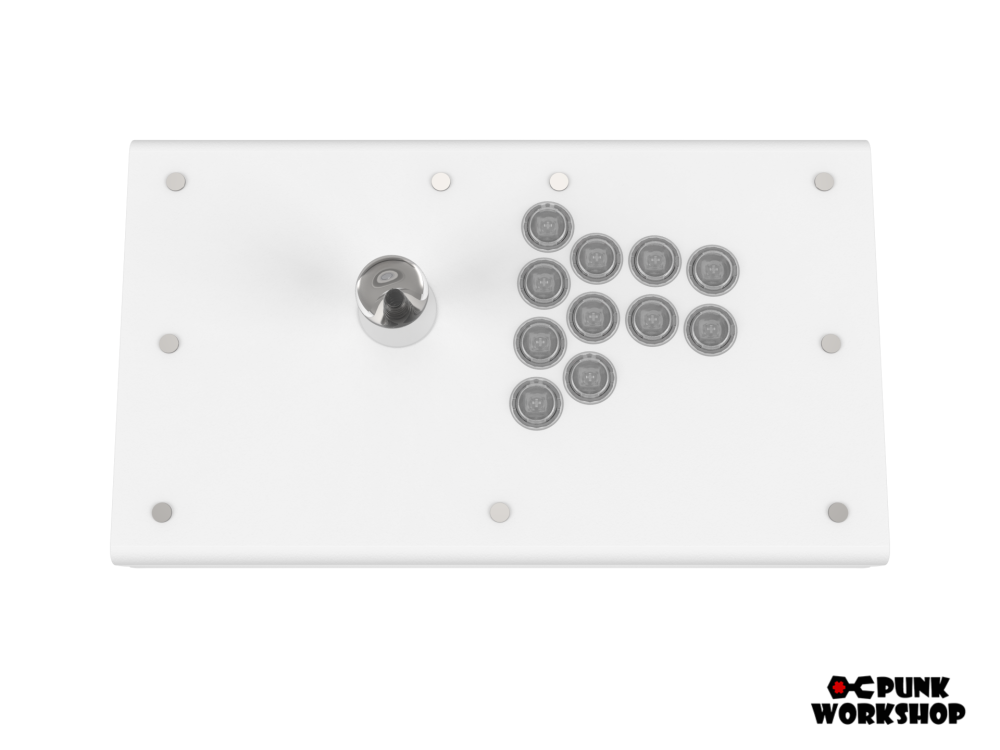

PWS FightStick – Built for Fighting Excellence

This fight stick is designed for competitive fighting game players. It focuses on precision control, easy maintenance and portability. By integrating a magnetic removable panel, detachable joystick module and self-developed fighting game buttons, it provides users with stable, accurate operation and a convenient using experience, helping them perform better in tournaments and daily practice.

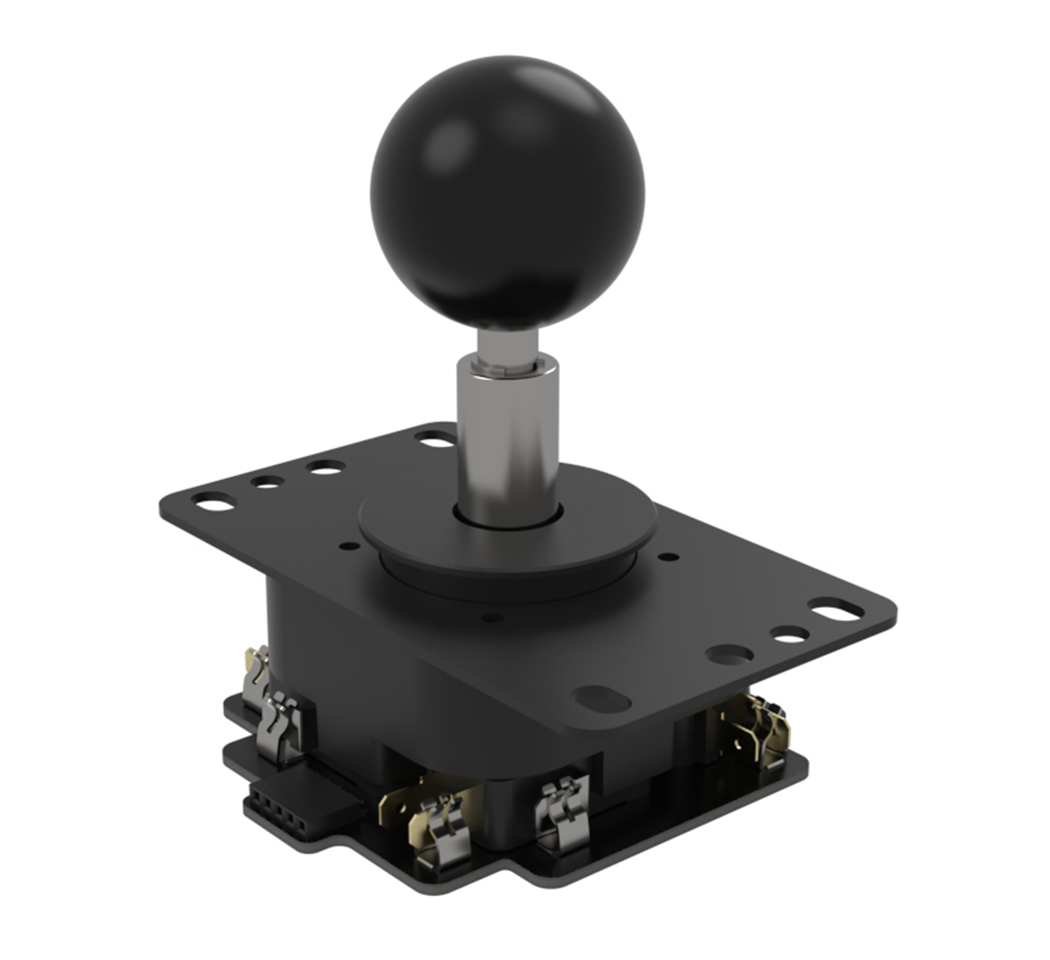

PWS Joystick

Silicone Spring Joystick

The PWS Silicone Spring Joystick is a new-type joystick specially designed by Punk Workshop. It features excellent rebound speed and a relatively small trigger angle.

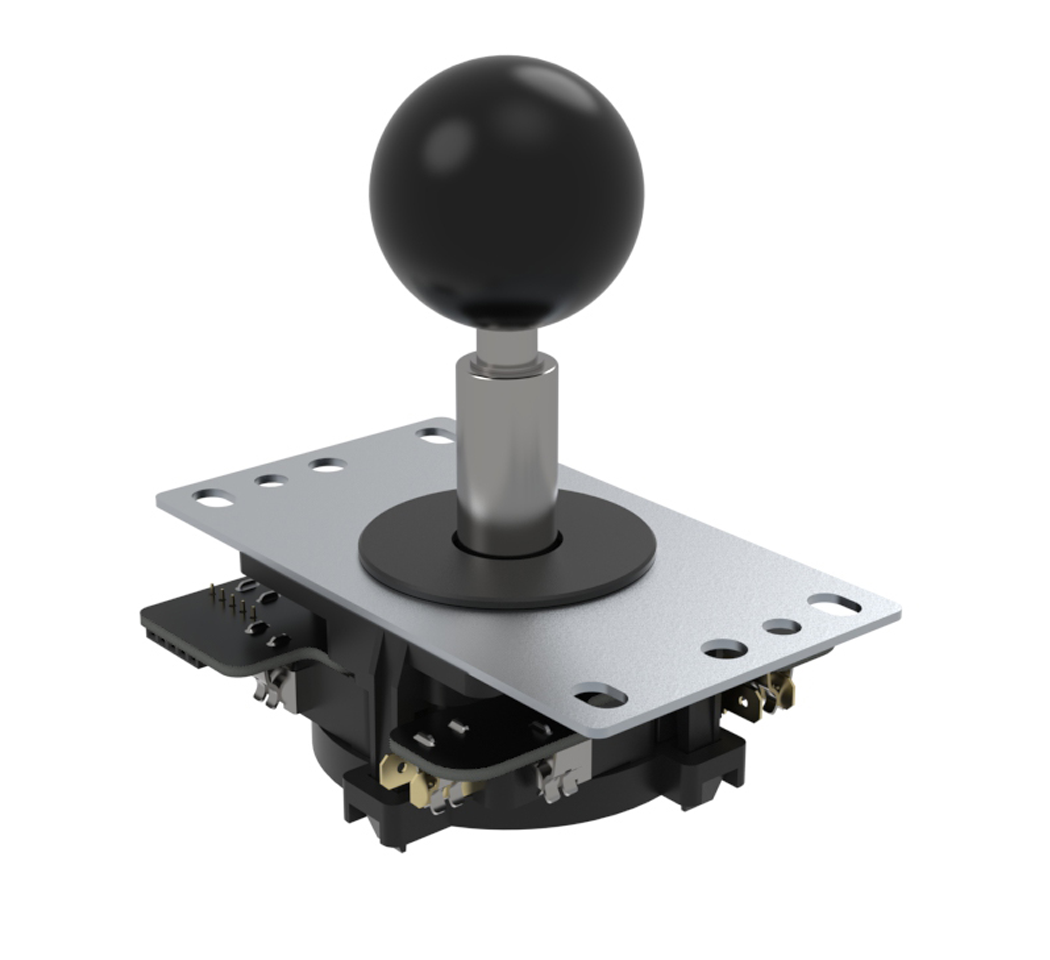

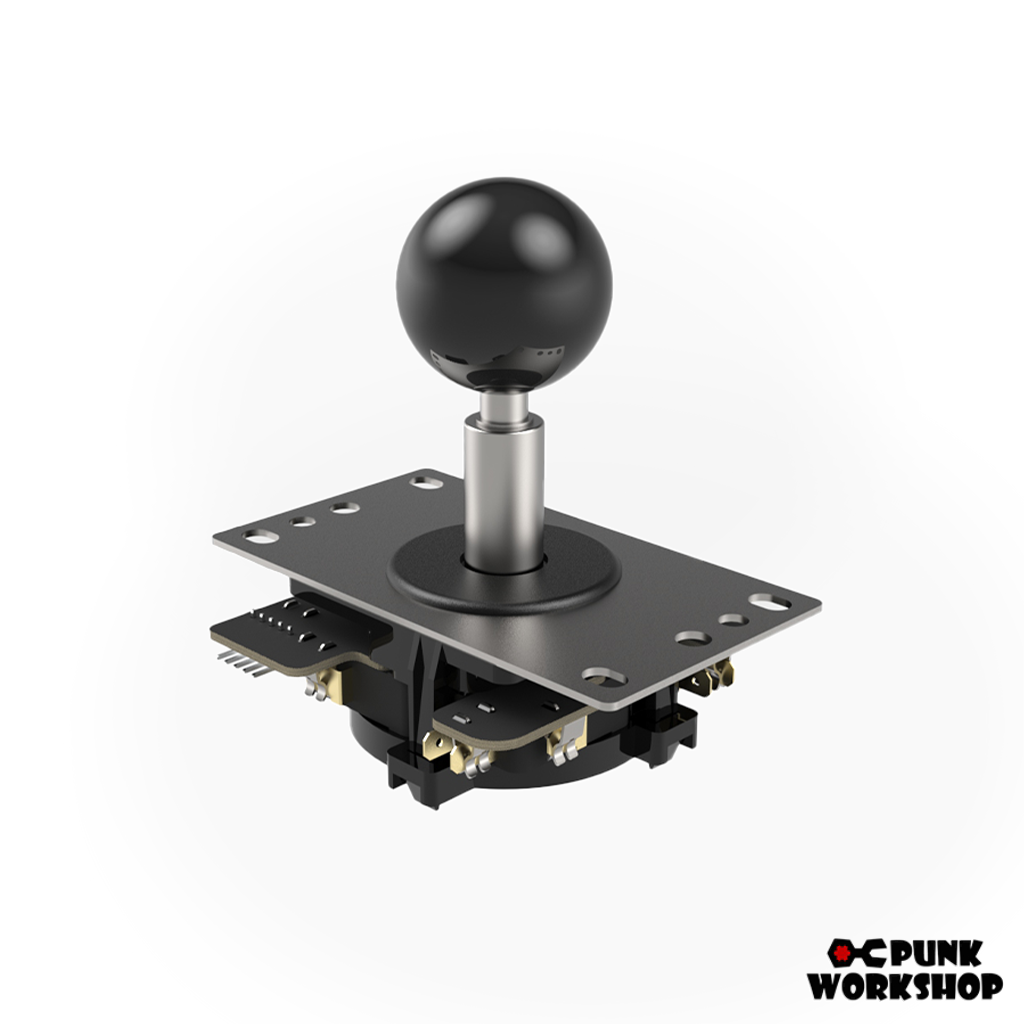

Metal Spring Joystick

The PWS Metal Spring Joystick is a joystick with a traditional structure. Players can find a wide variety of personalized accessories for it, and it is highly easy to disassemble, assemble, and modify.

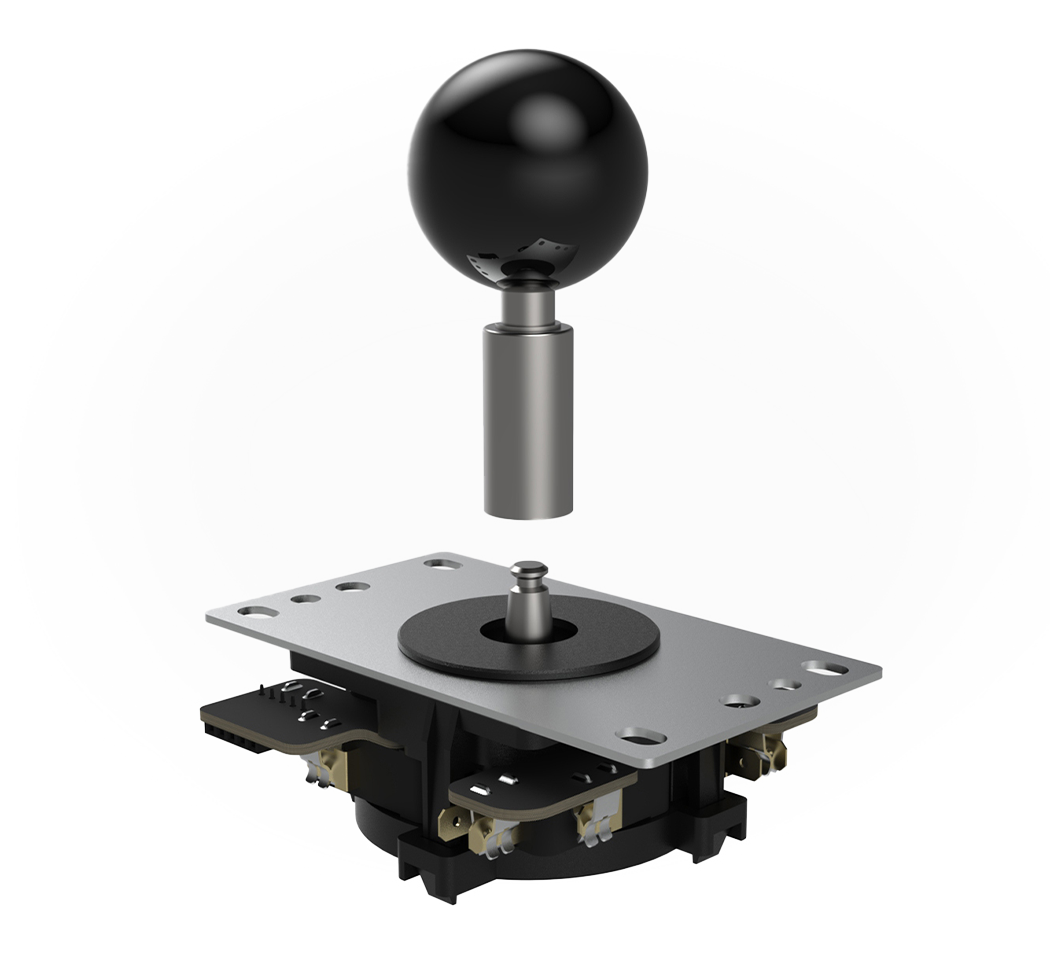

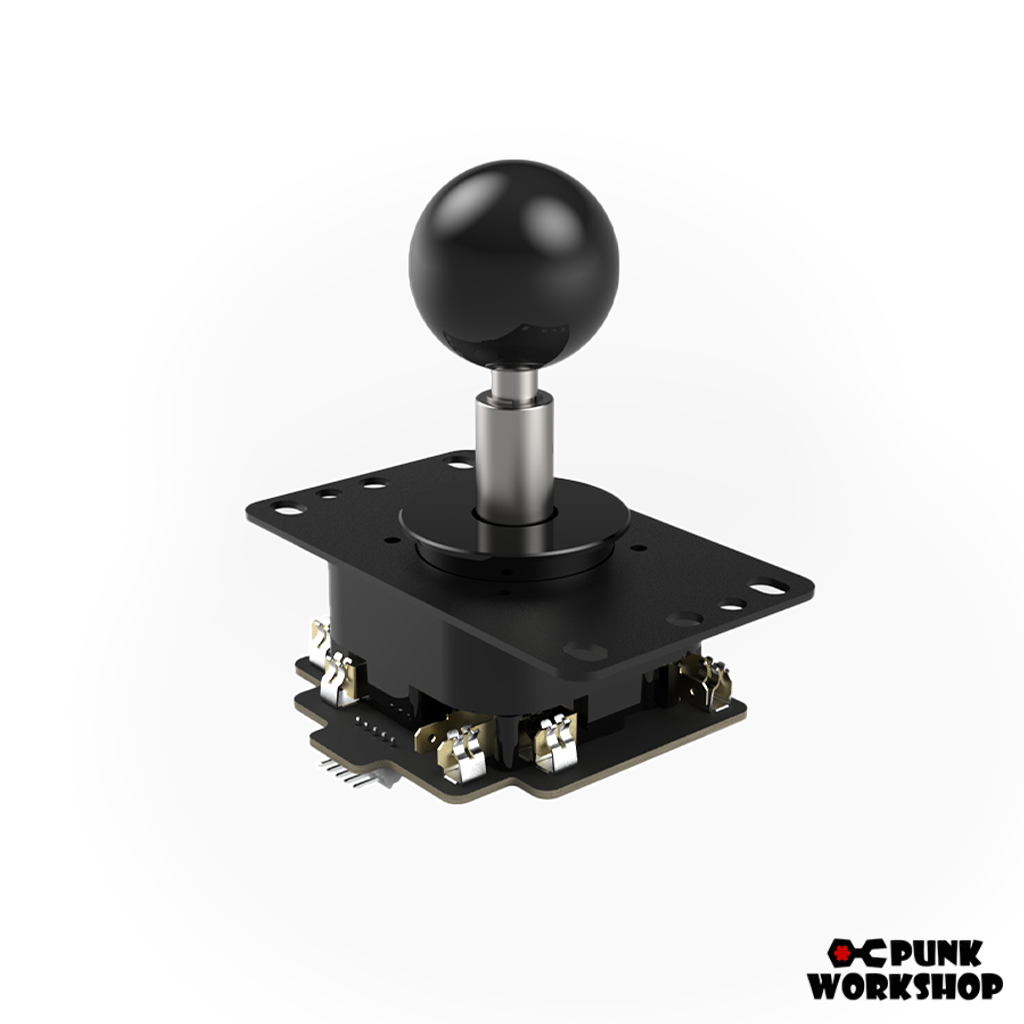

Punk Workshop's Detachable Lever

Exclusive design and development by PUNK WORKSHOP
Detachable joystick with proprietary technology
Matte stainless steel joystick for durability
Special smooth ball top free of machining marks

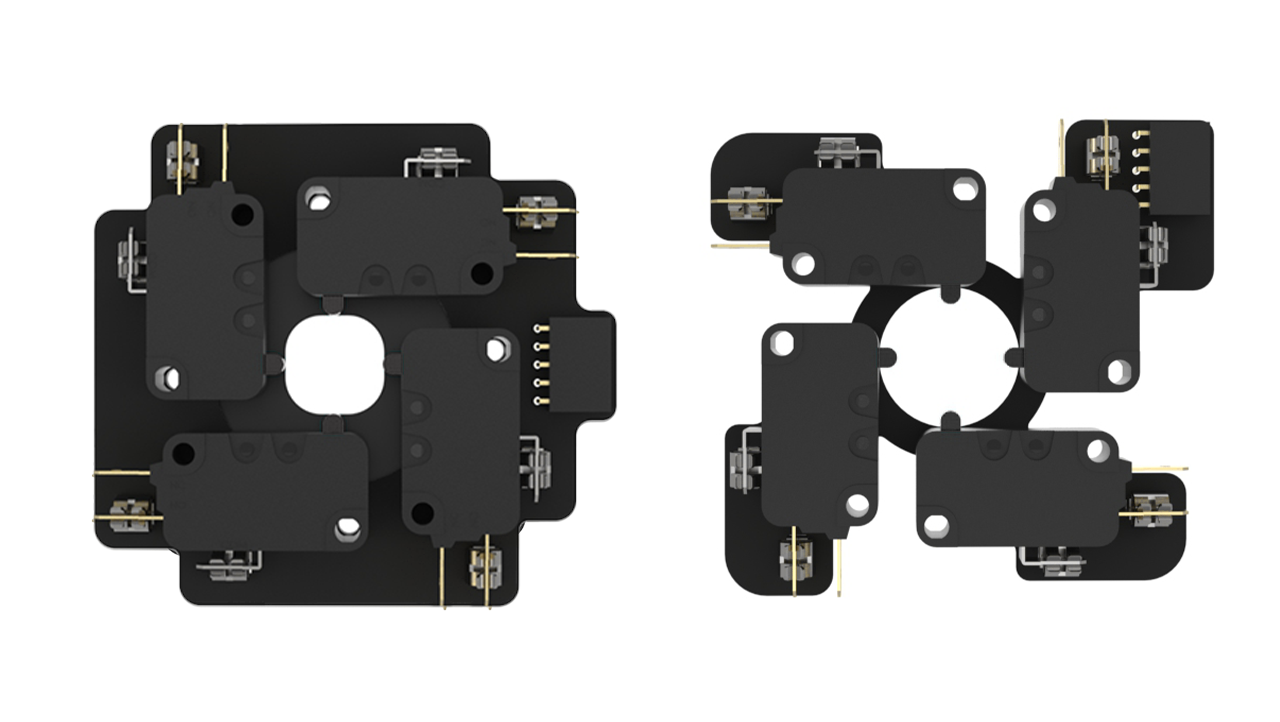

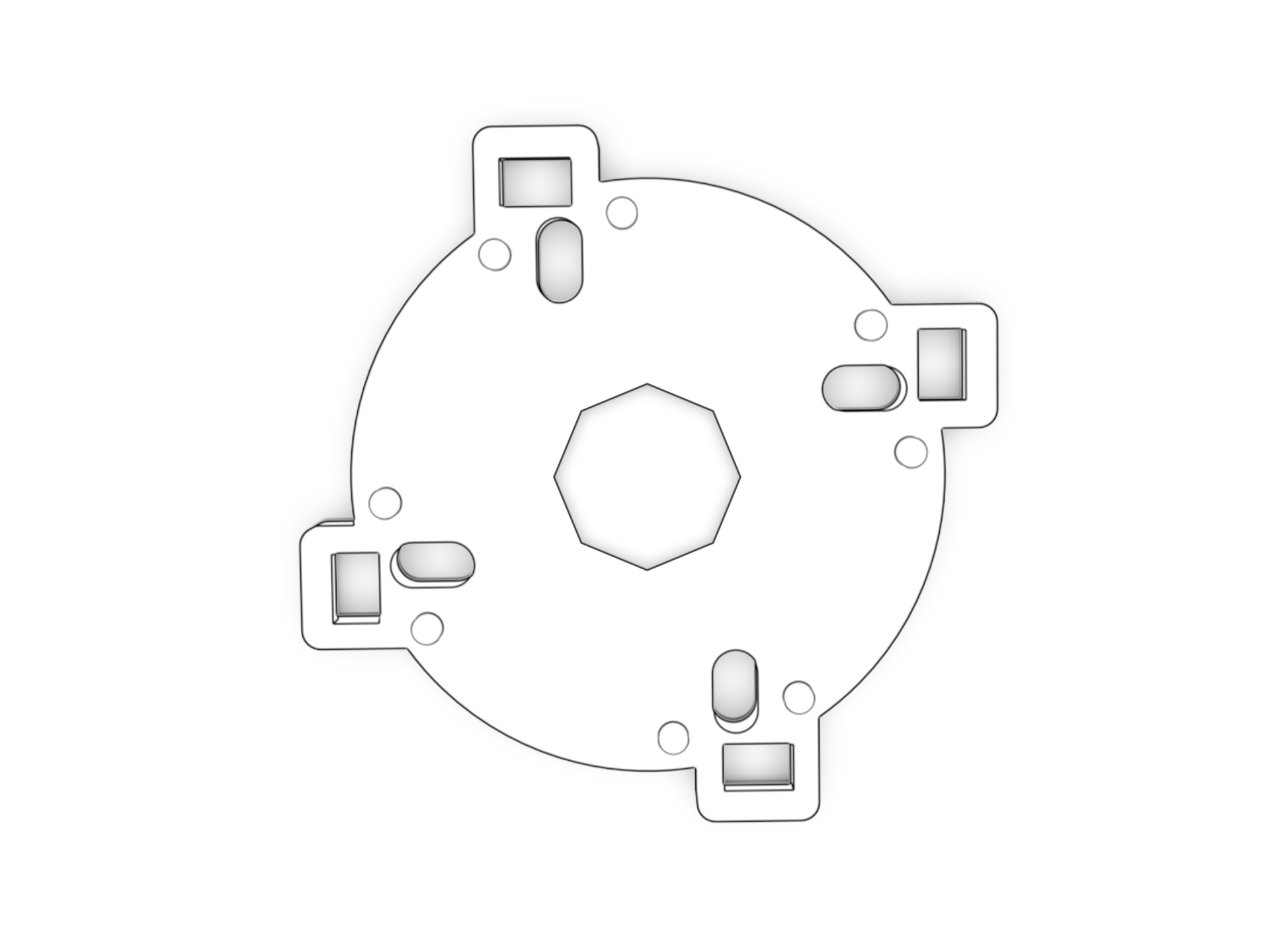

Micro Switch Board

The joystick features a detachable micro switch board for easy micro switch replacement. Default equipped with Omron V-15-1C25 micro switches.

PWS Button

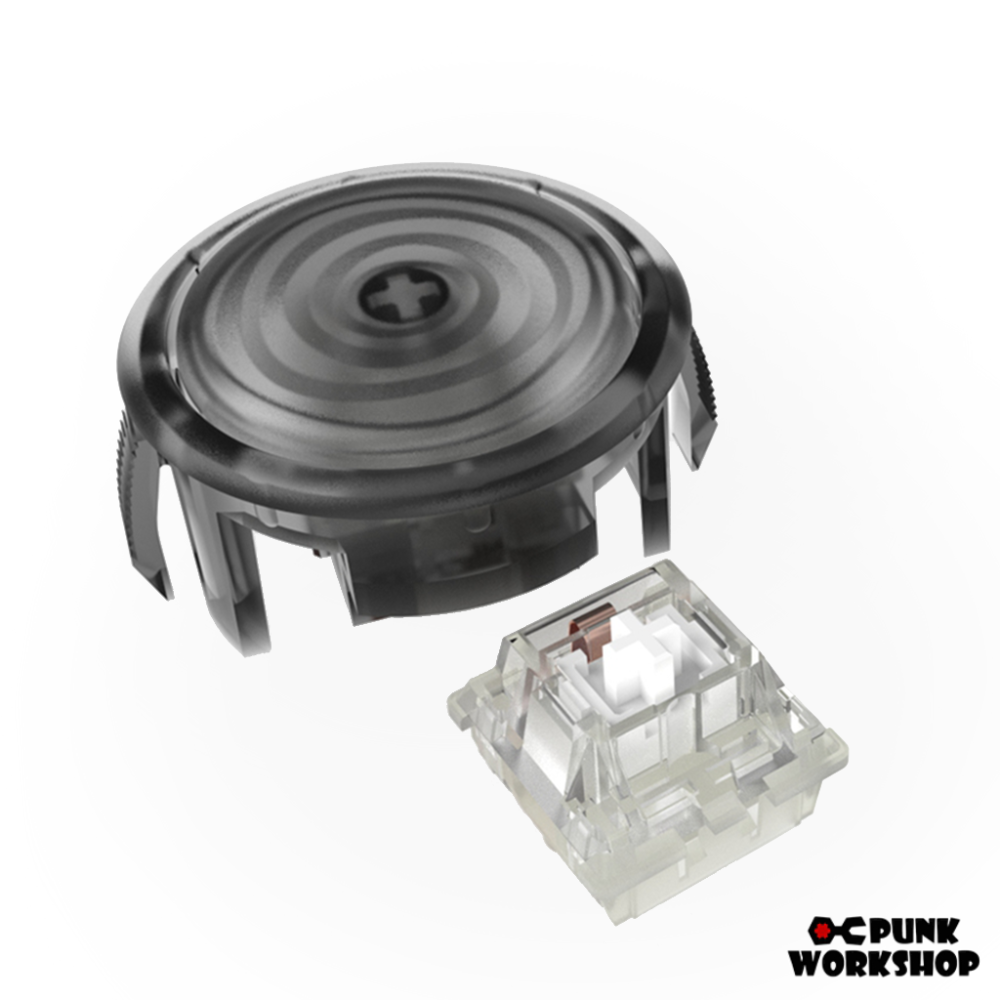

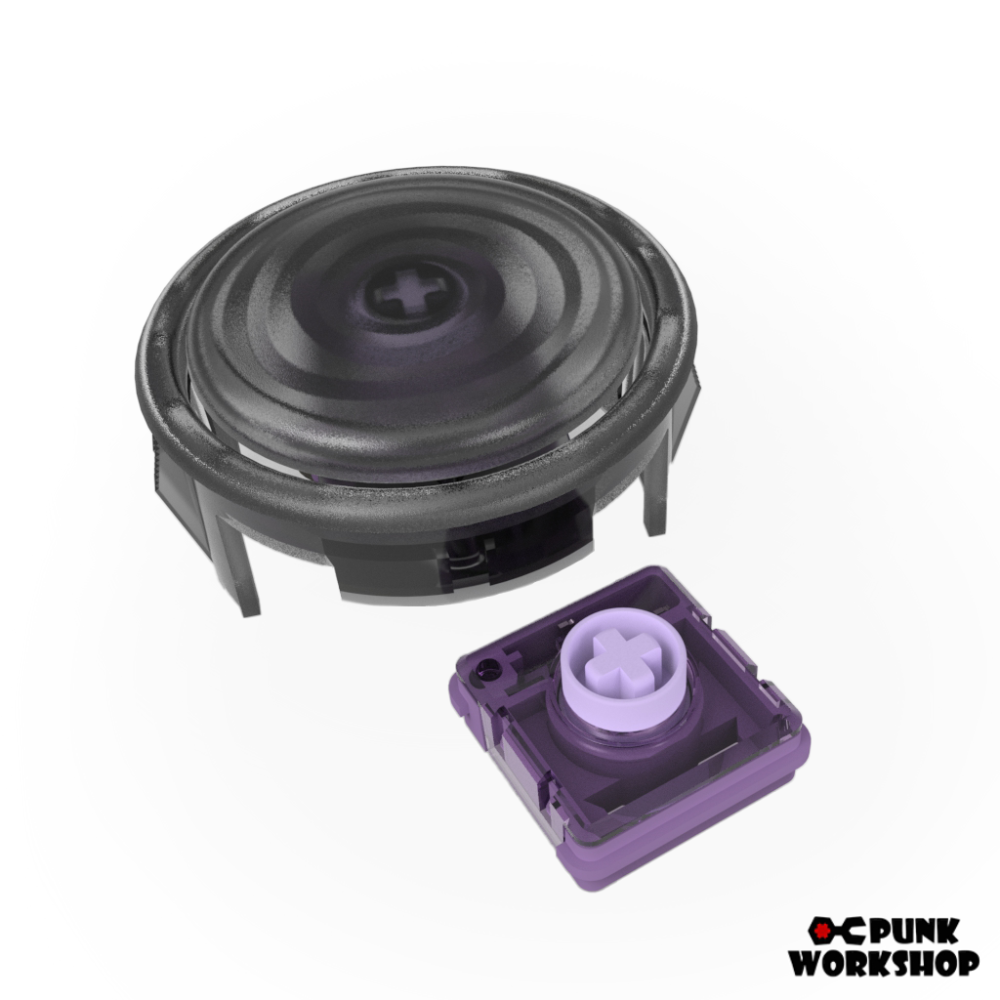

V1 Button

By optimizing the balance between tactile feel and actuation point, this button delivers precise operation and consistent feedback for peak performance in all games.

Button Specifications

Linear switching characteristics
45 cN actuation force
0.7 mm pre travel
1.5 mm total travel (mute ring)
Snap-in installation design

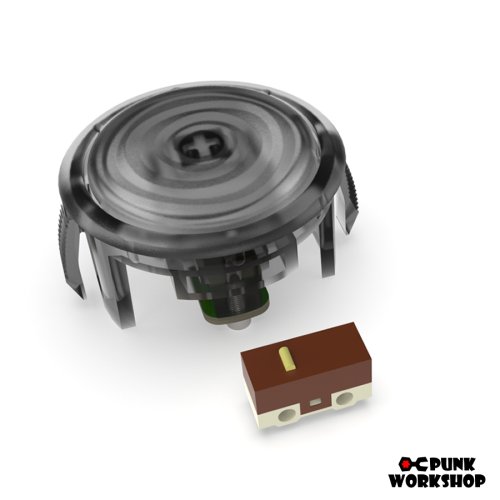

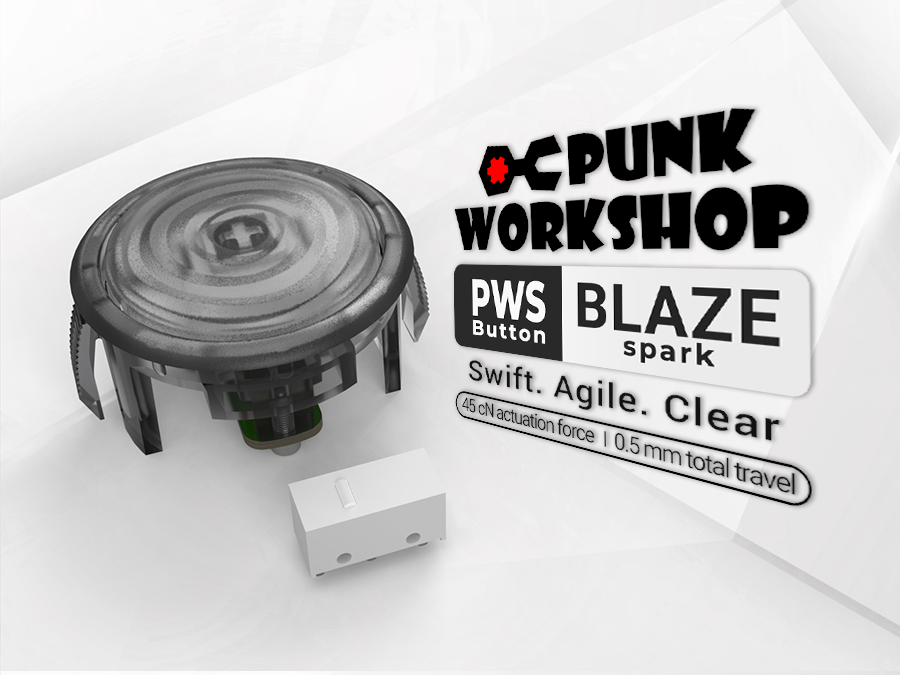

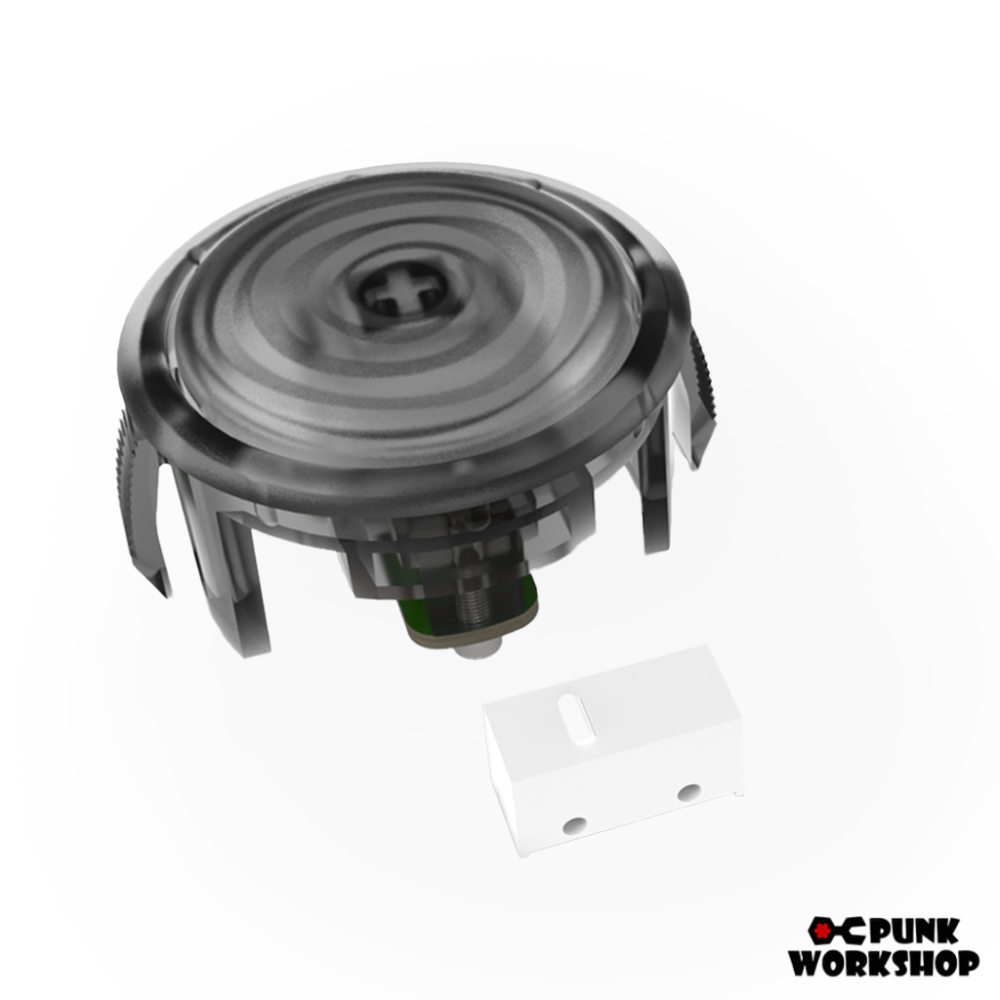

Spark Blaze

PWS Blaze is a button specially designed for competitive fighting game scenarios. By using micro-switches and a special mechanical structure, we have achieved ultra-fast responsiveness, and remarkable stability.

Button Specifications

45 cN actuation force
0.5 mm pre travel
Snap-in installation design

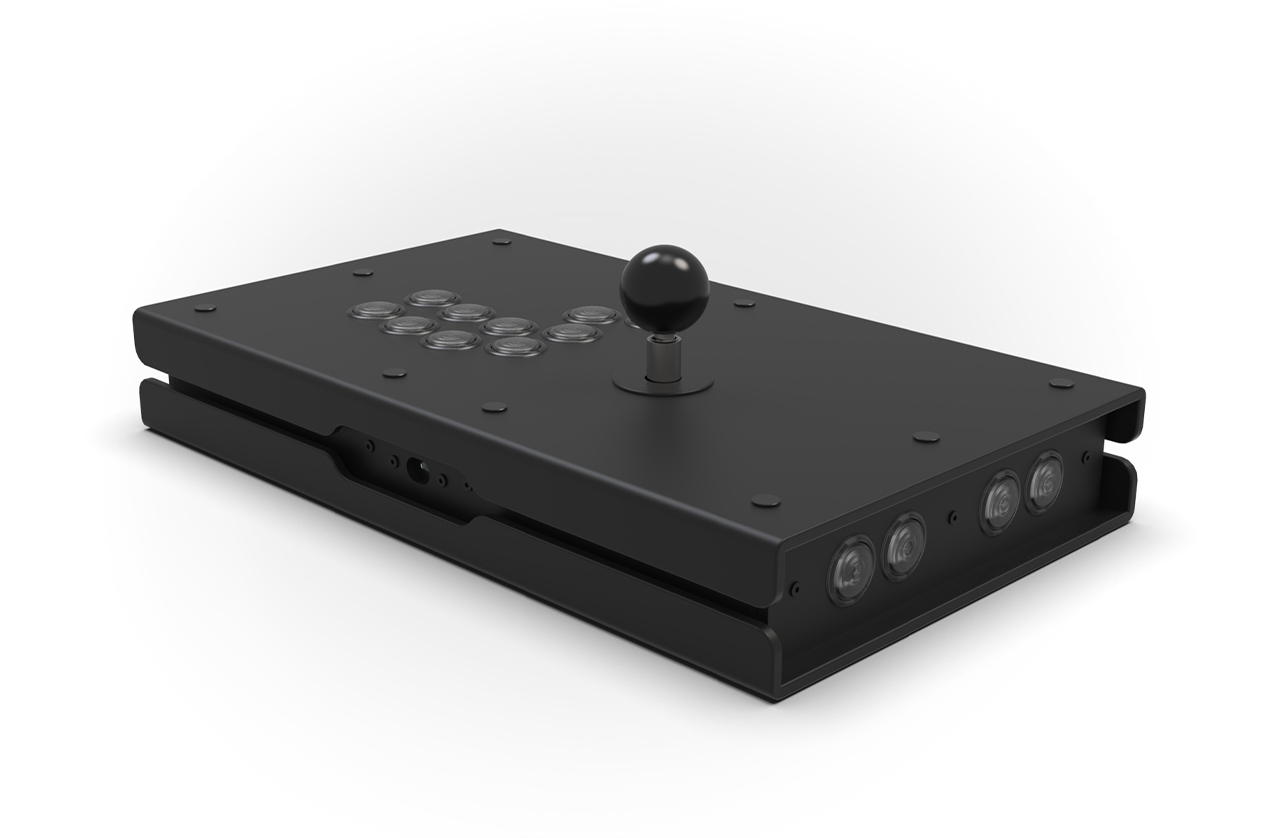

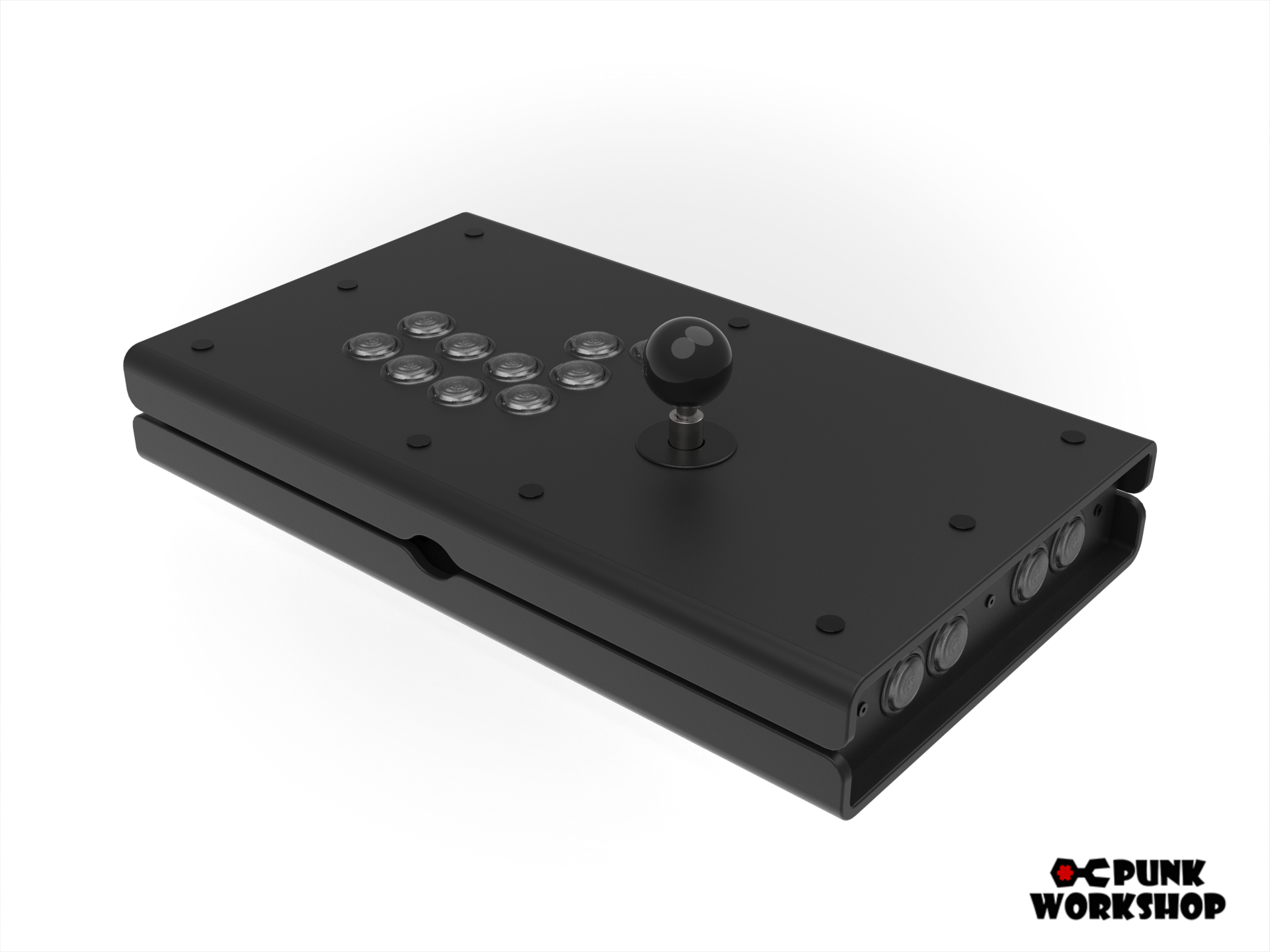

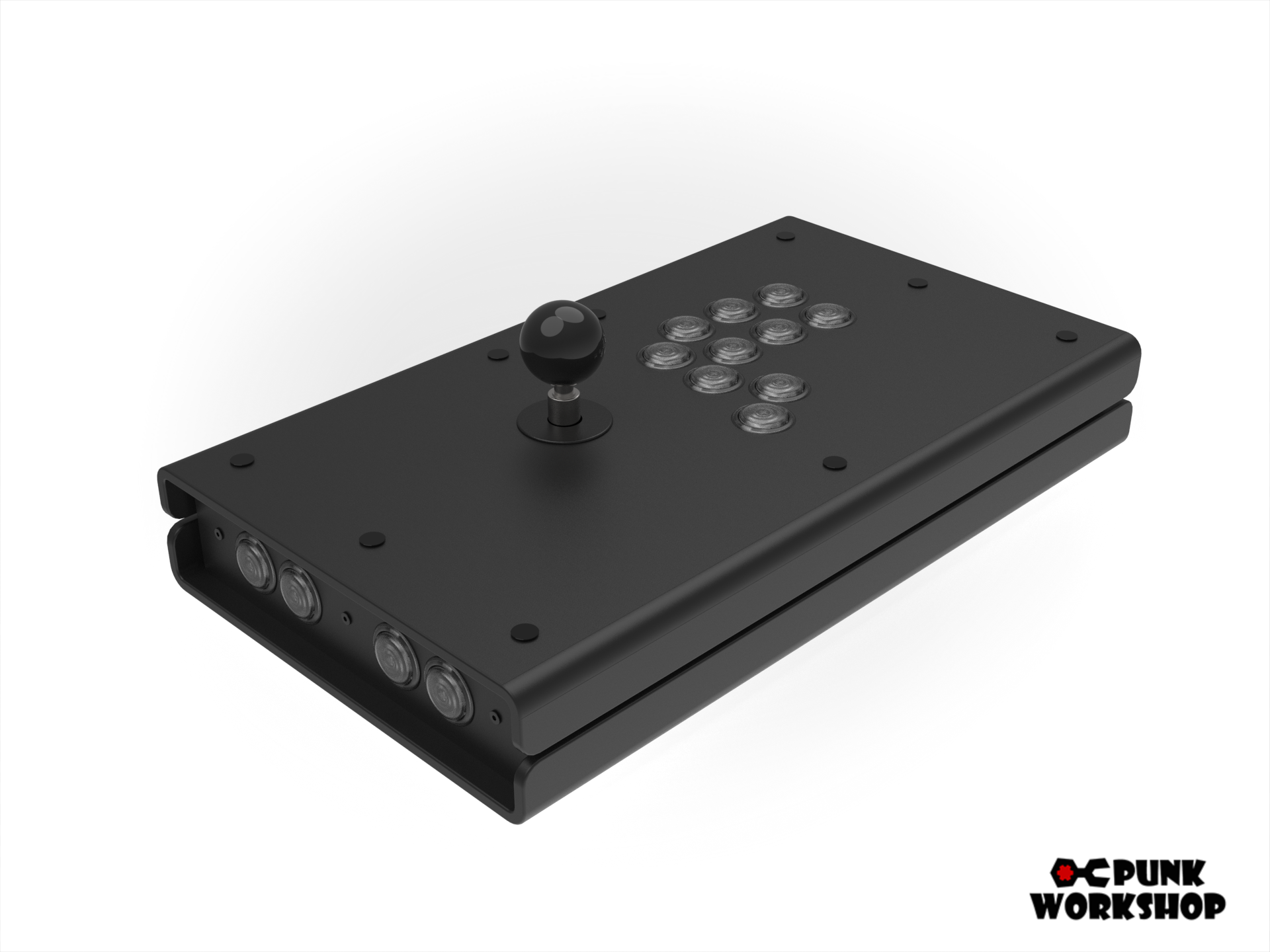

Controller Build

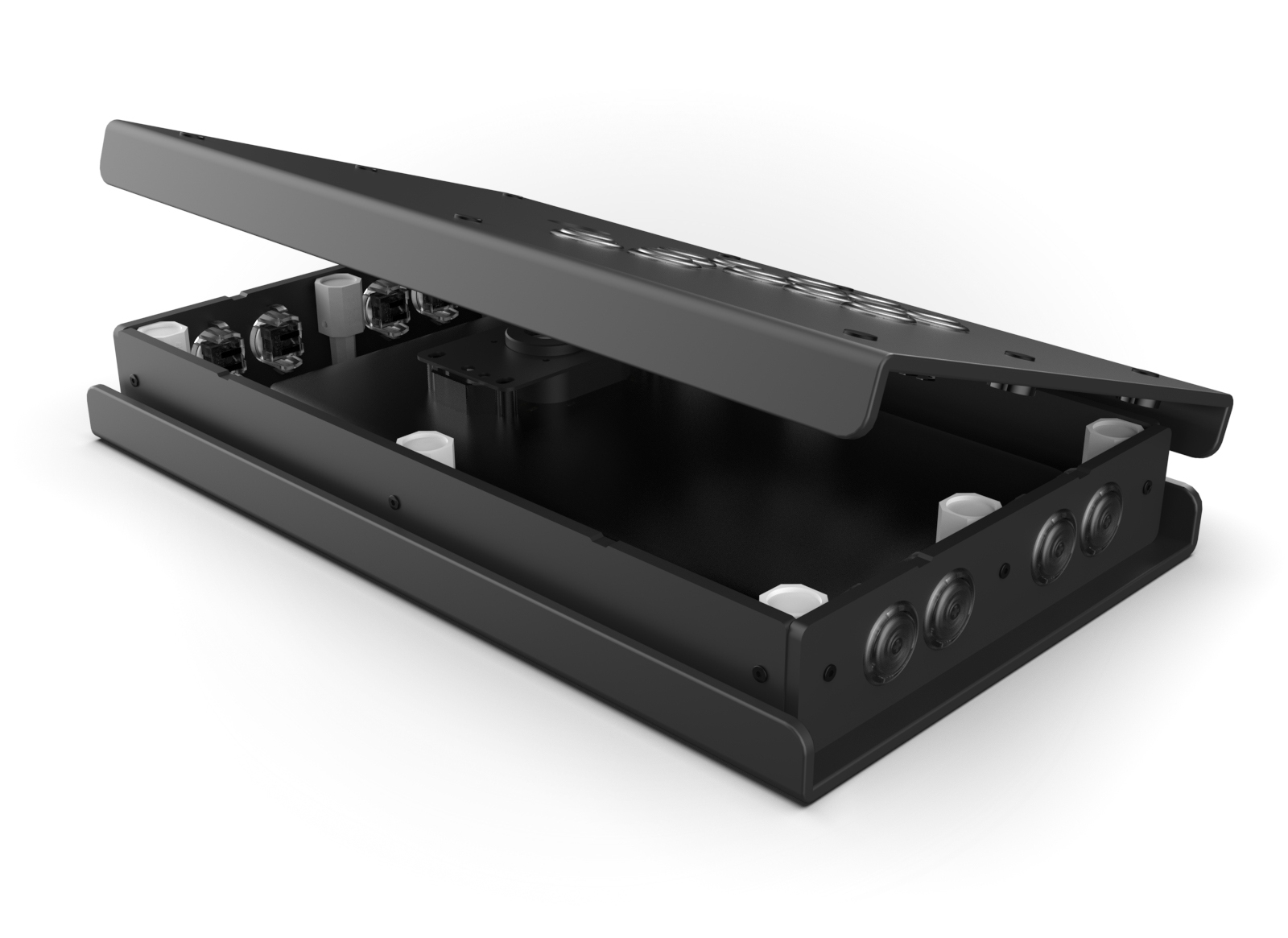

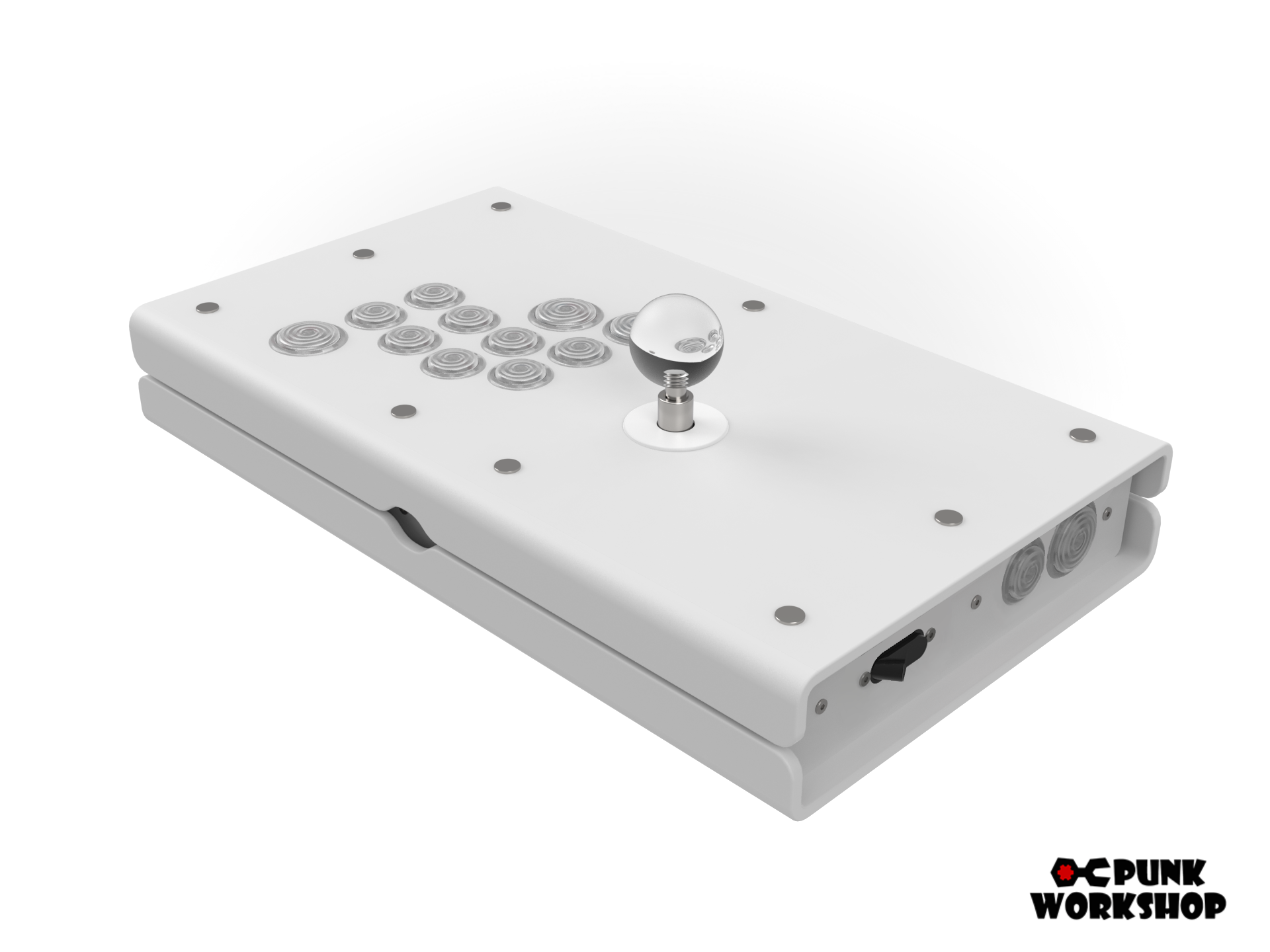

Magnetic Removable Cover

Featuring our unique magnetic construction, the cover can be easily removed for hassle-free DIY, modification and maintenance. The controller body is primarily crafted from acrylic, offering a balance of durability and lightweight portability. Despite its generous size, the unit weighs in at approximately 2.0kg, making it easy to transport for tournaments and practice.

Product Specifications

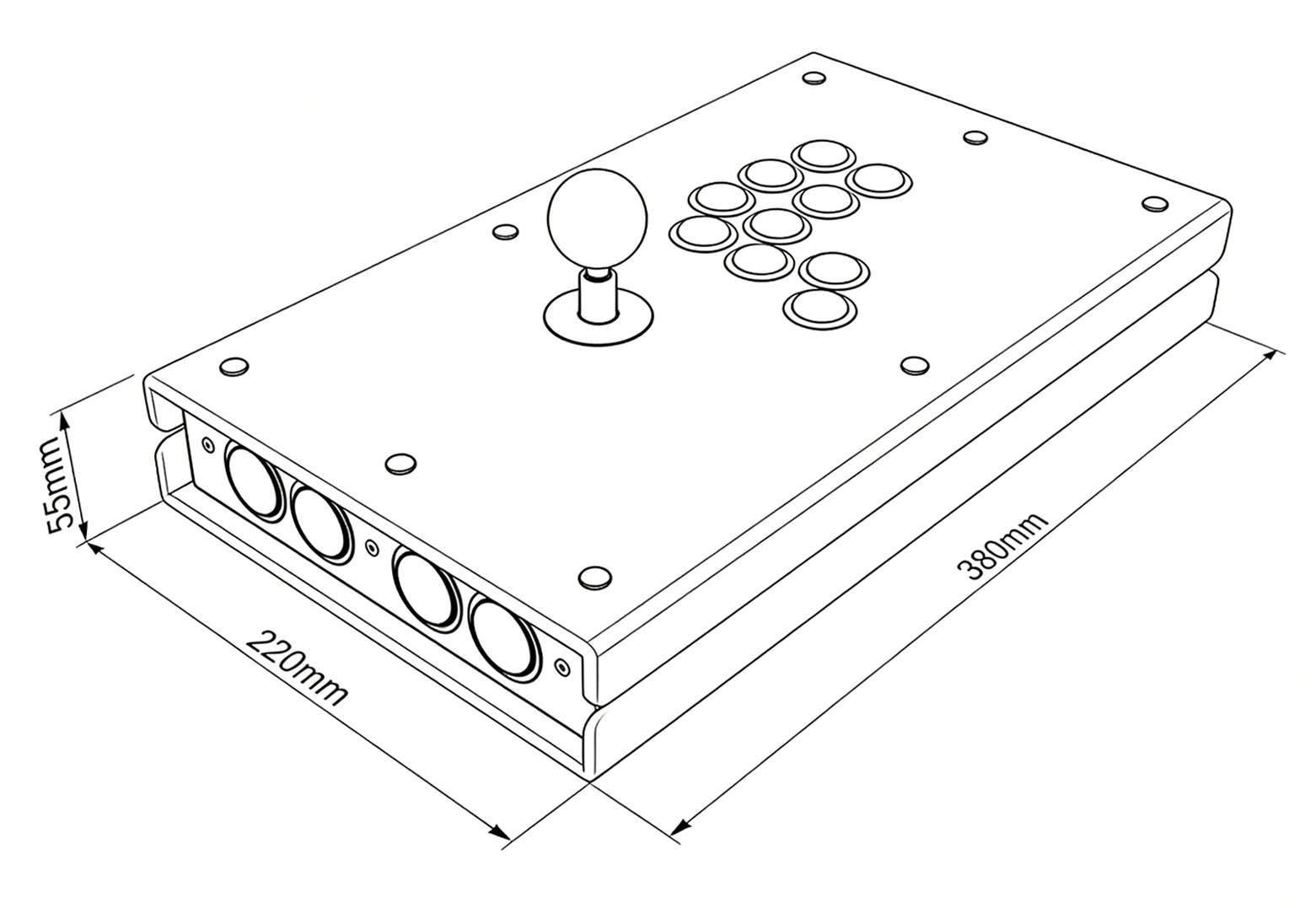

Dimensions: 380mm × 220mm × 55mm

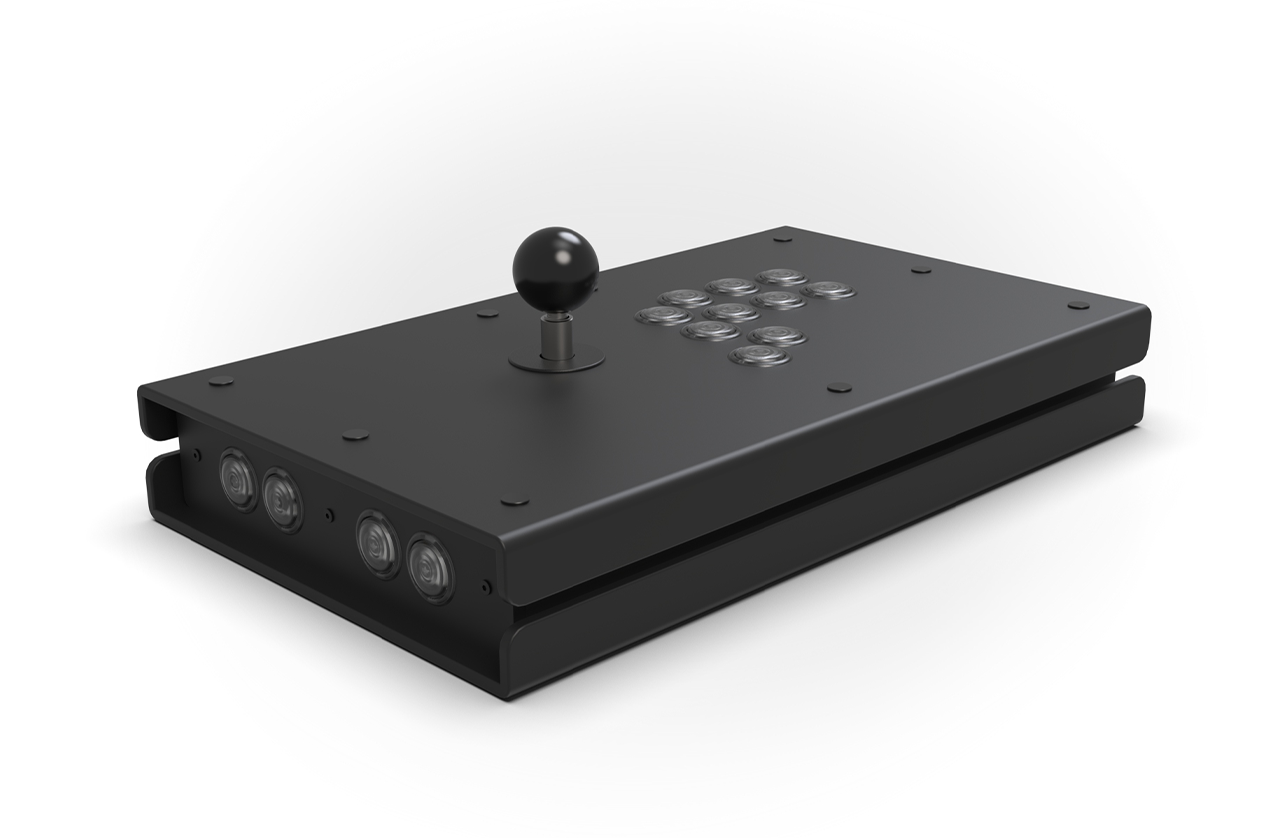

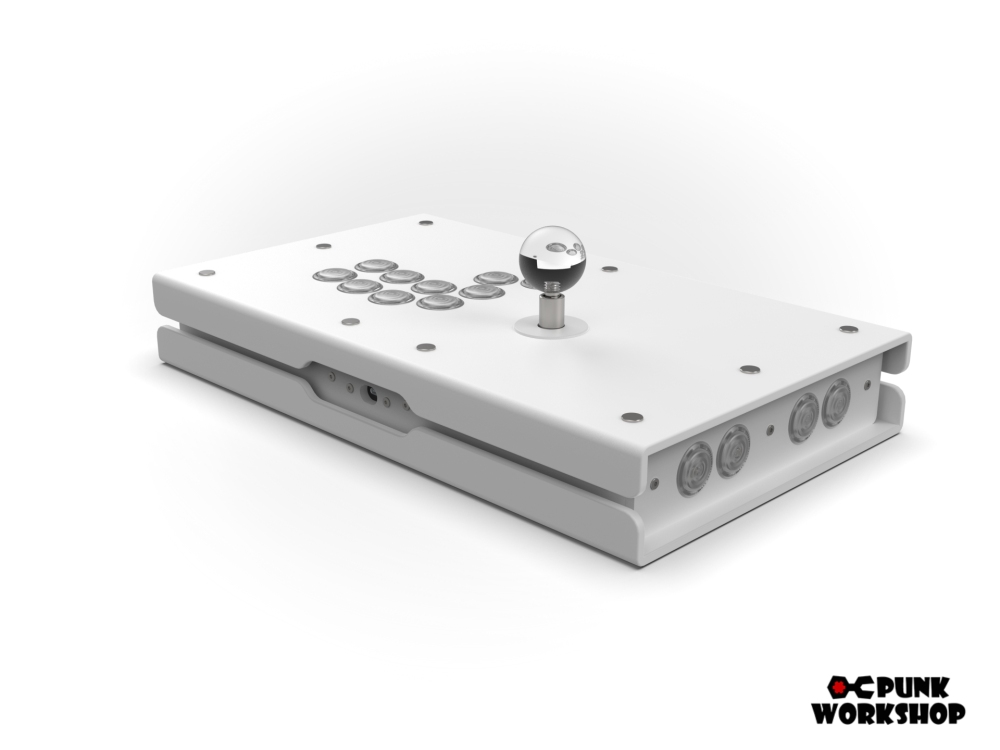

Standard Black & White Version: Approximately 2.0kg
Art Version: Approximately 2.3kg
Standard Panel Thickness: 5.5mm
Art Version Panel Thickness: 7mm (including interlayer)
Interface: USB Type-C

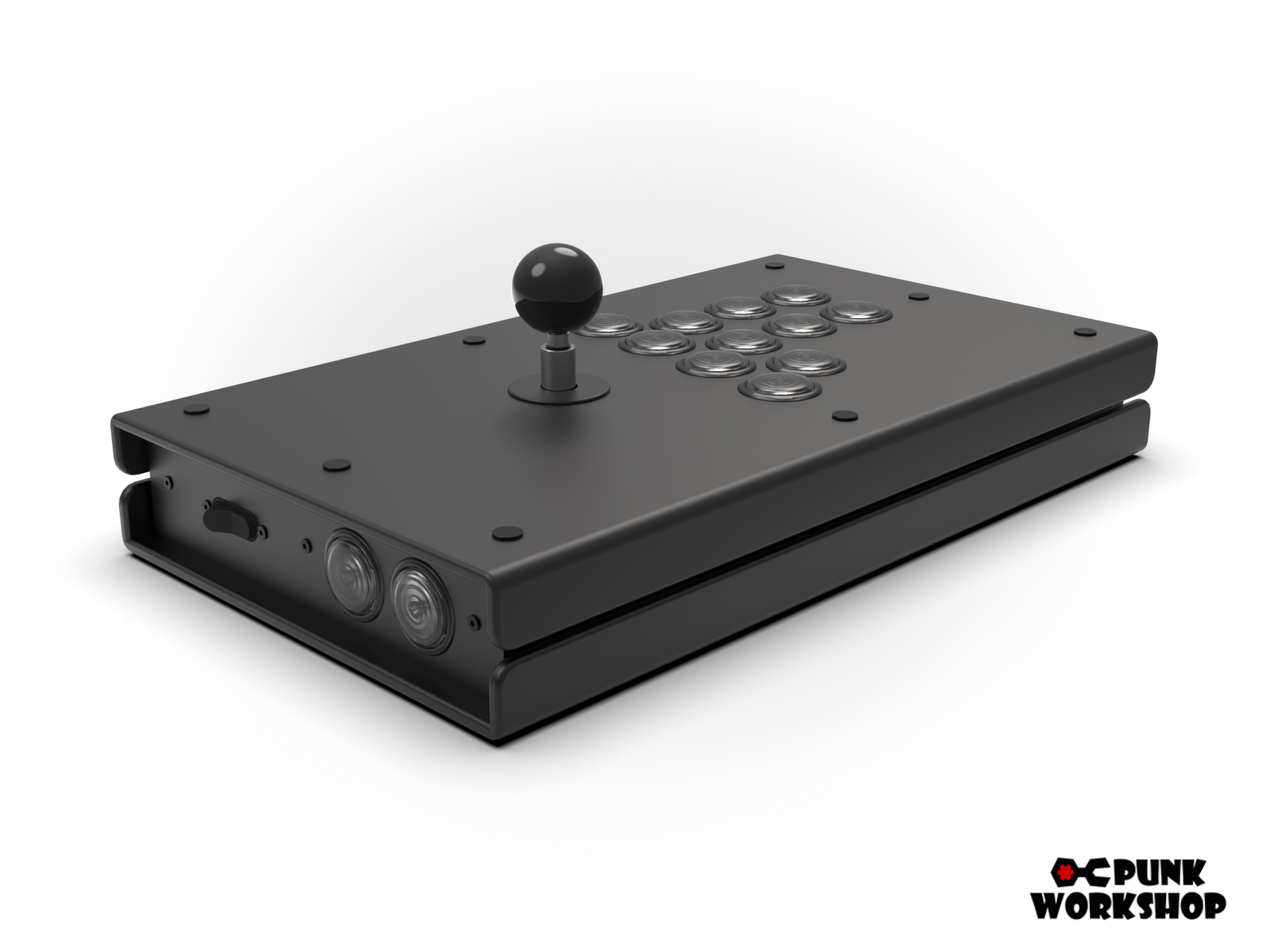

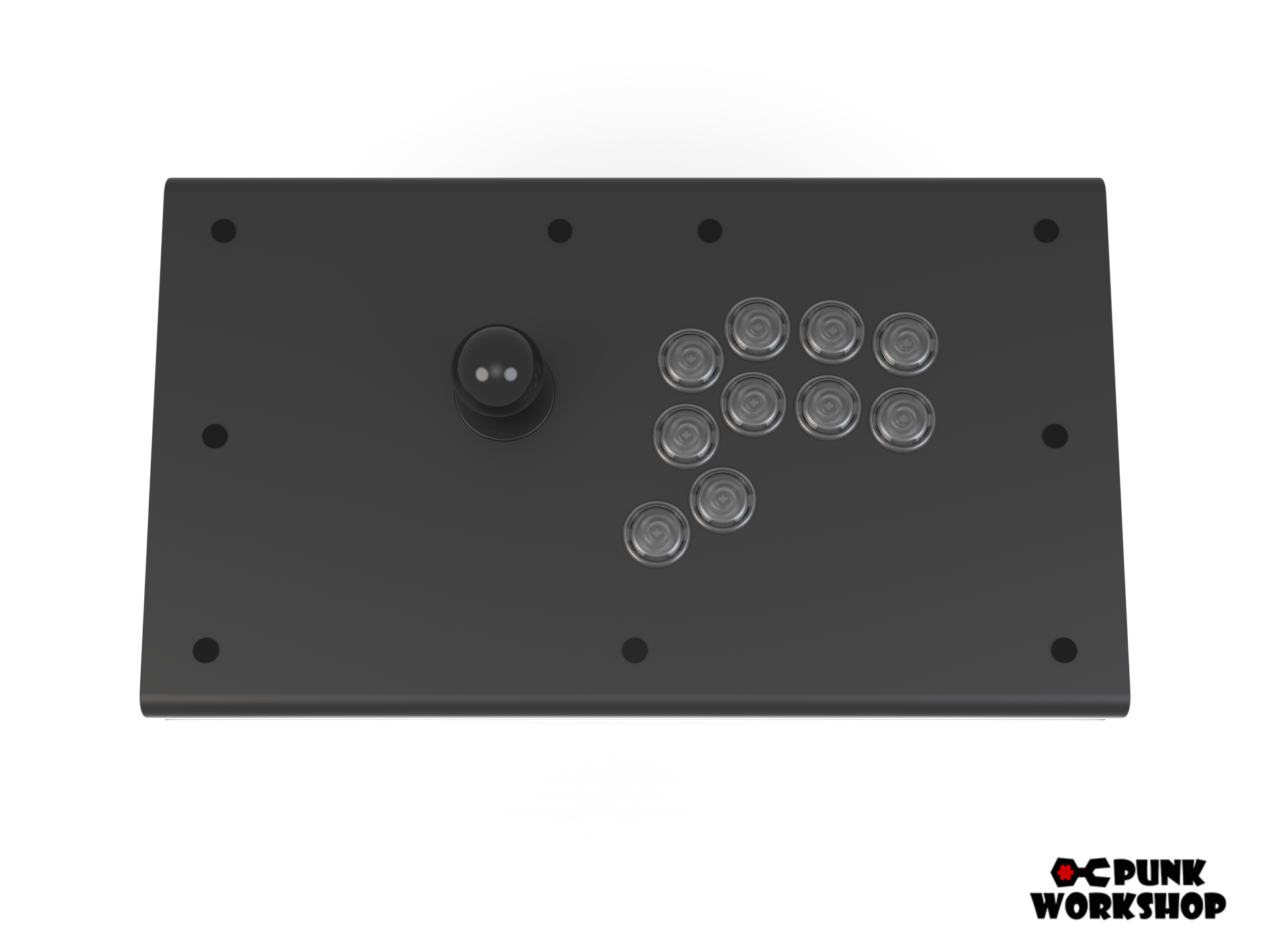

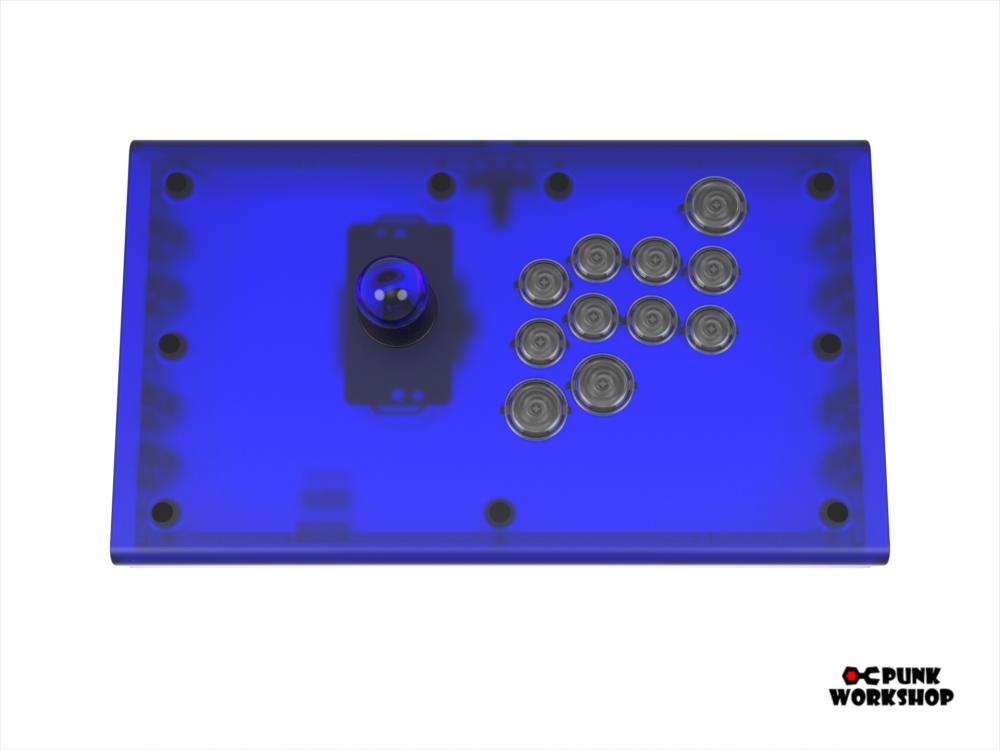

Product Showcase

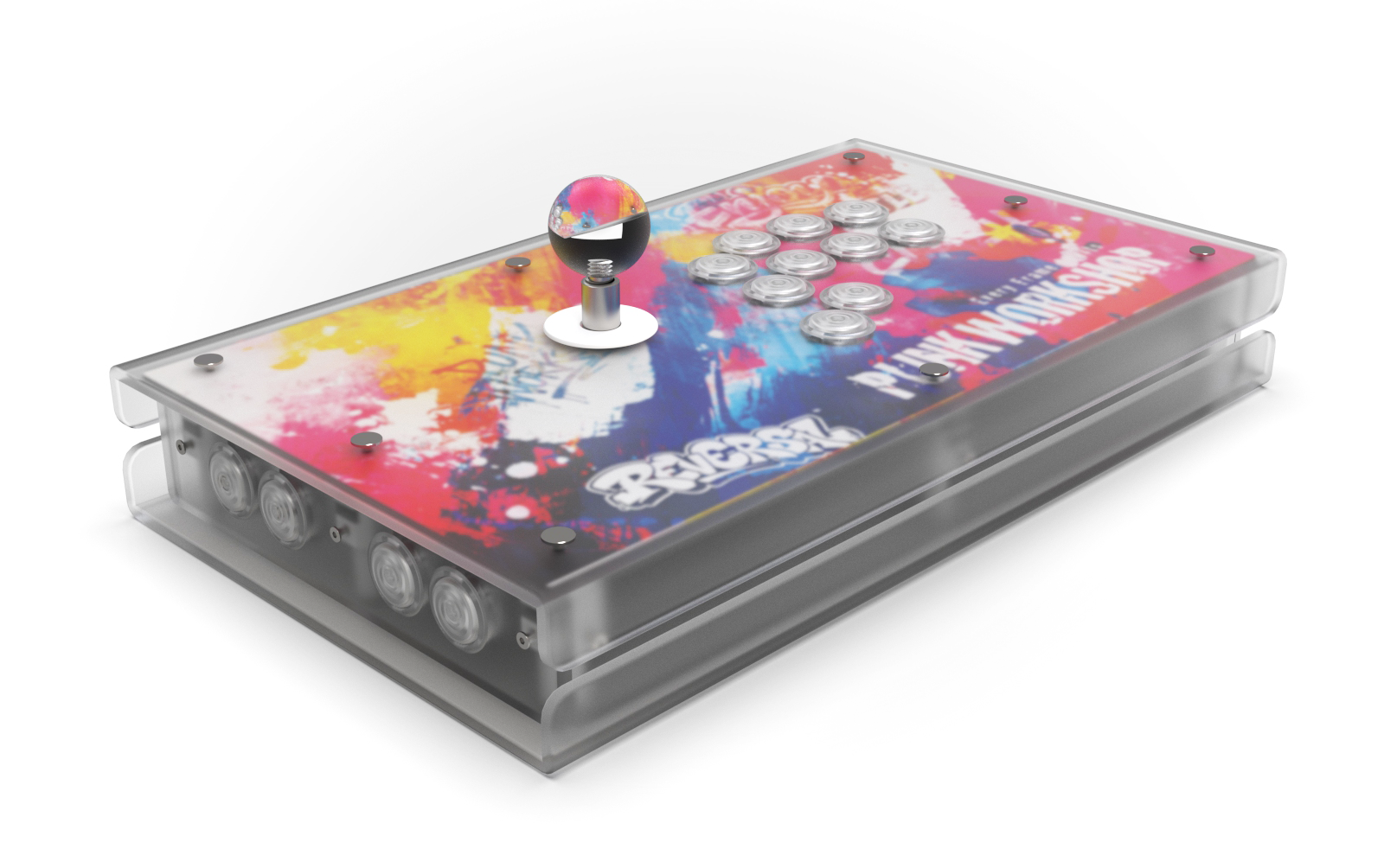

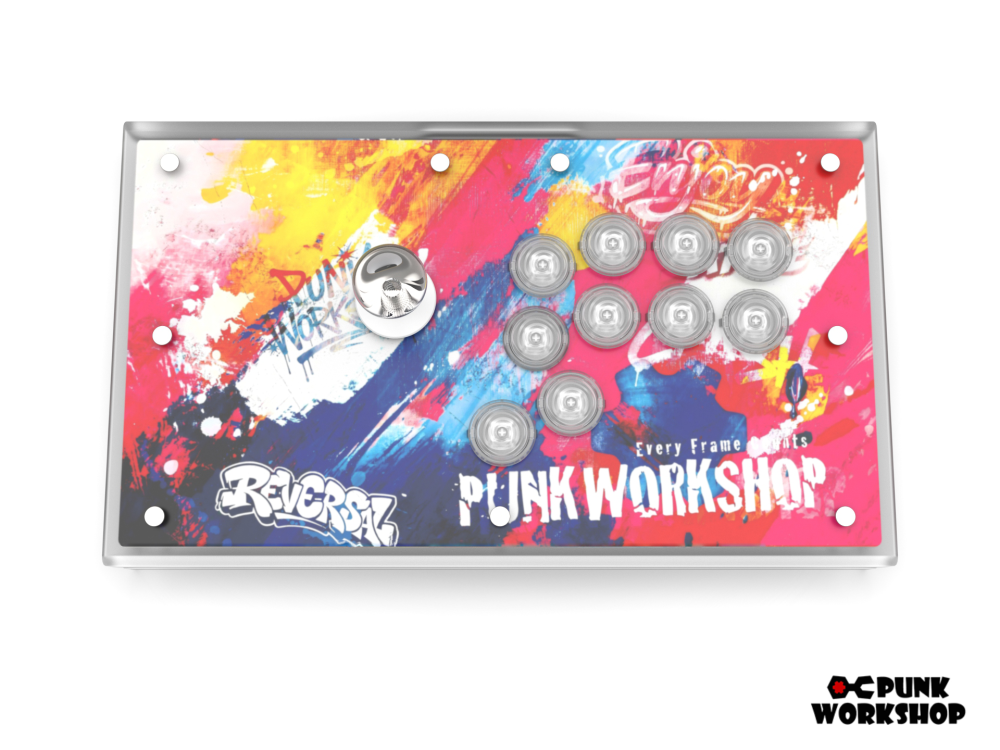

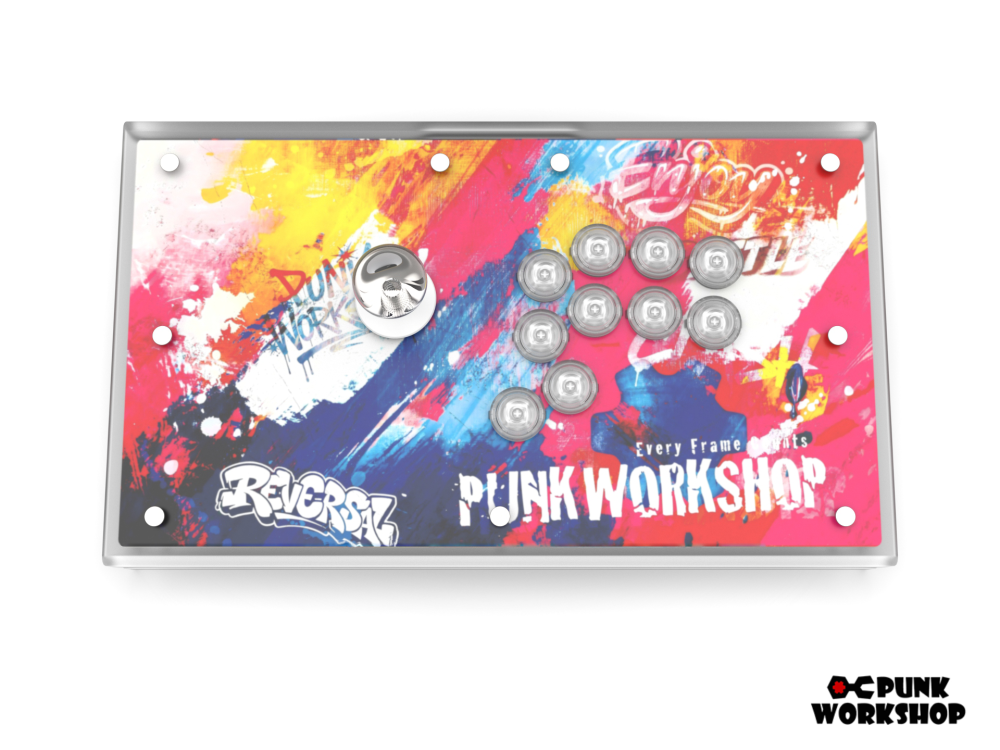

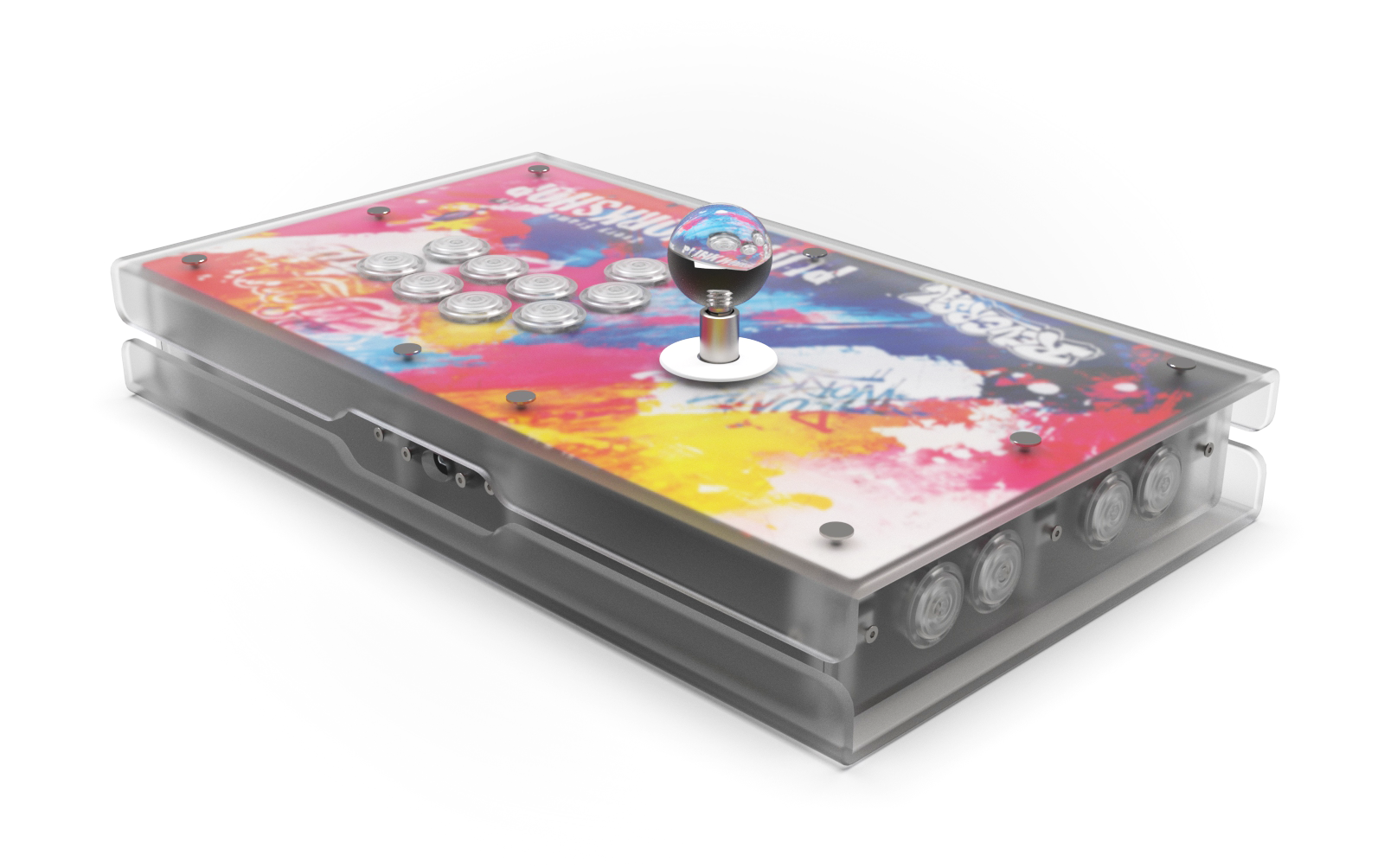

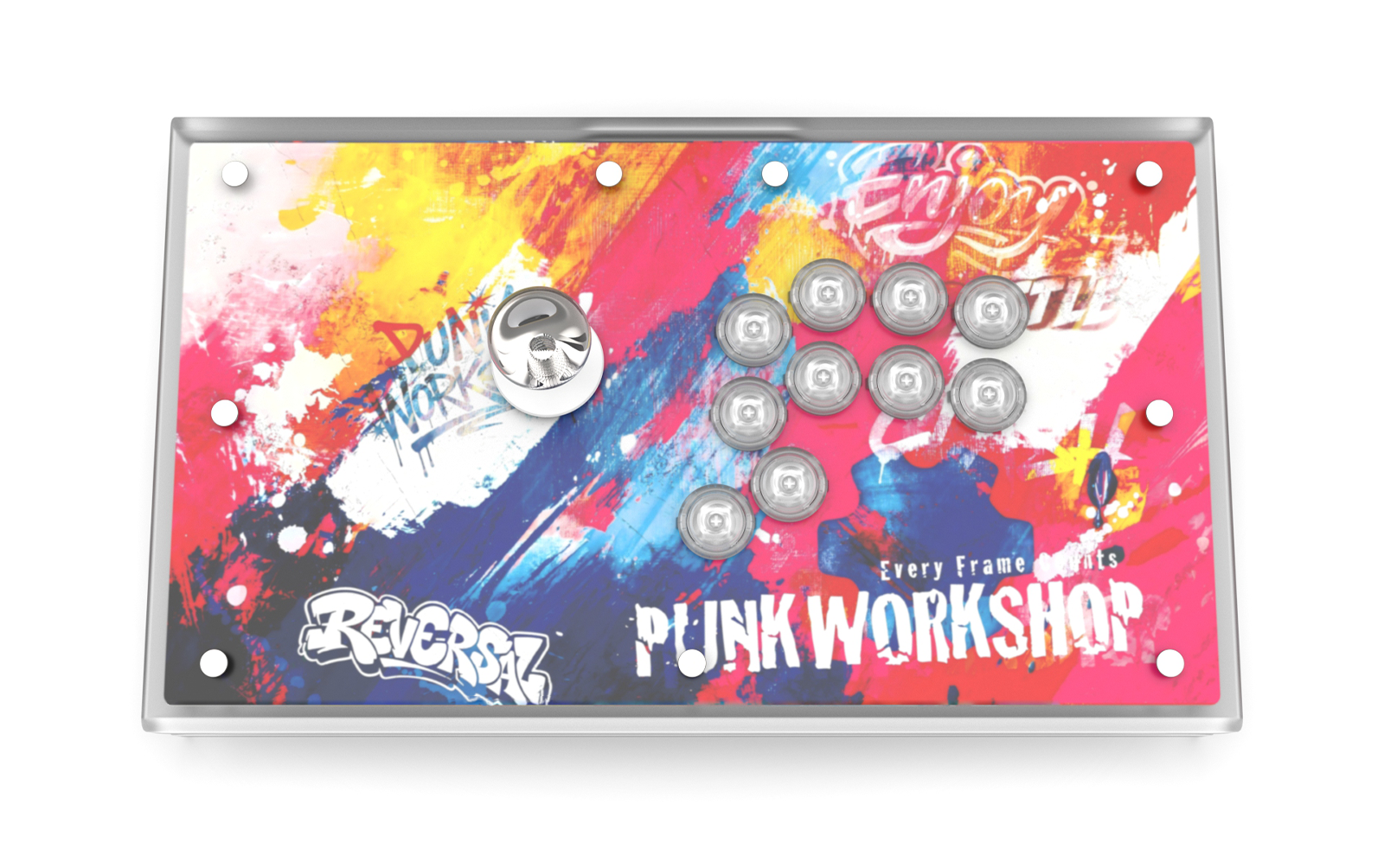

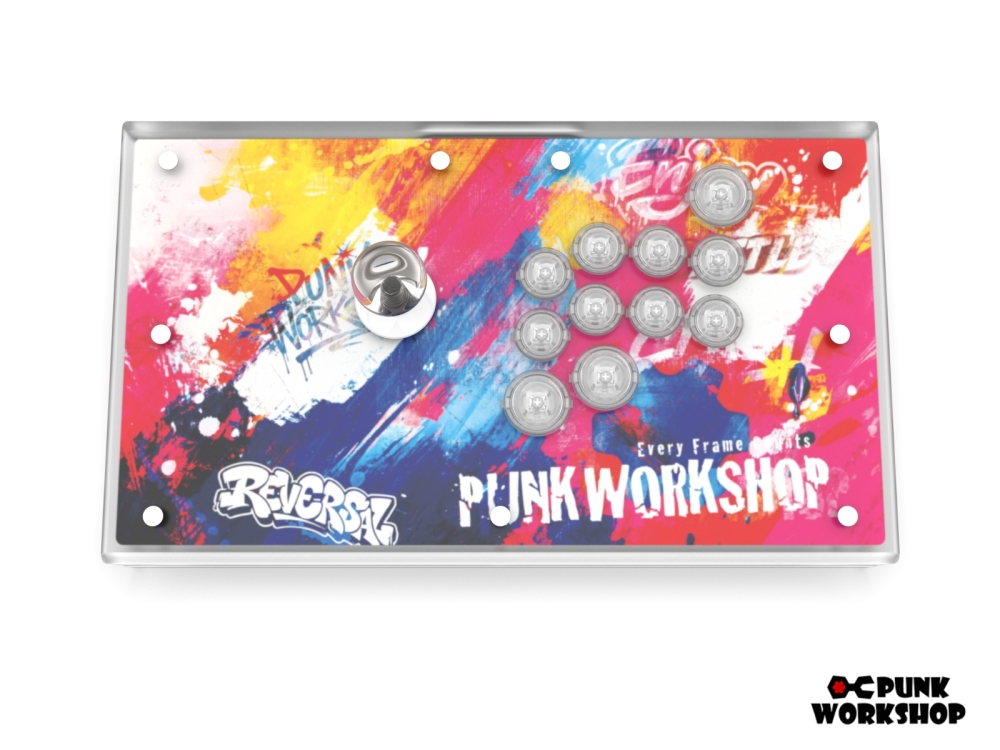

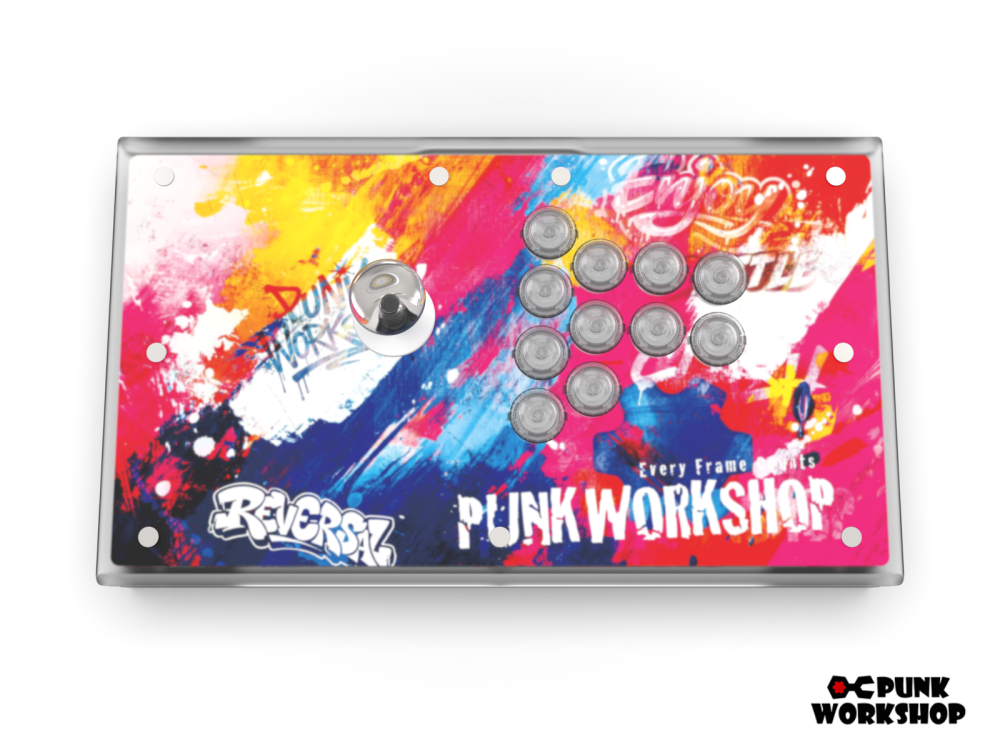

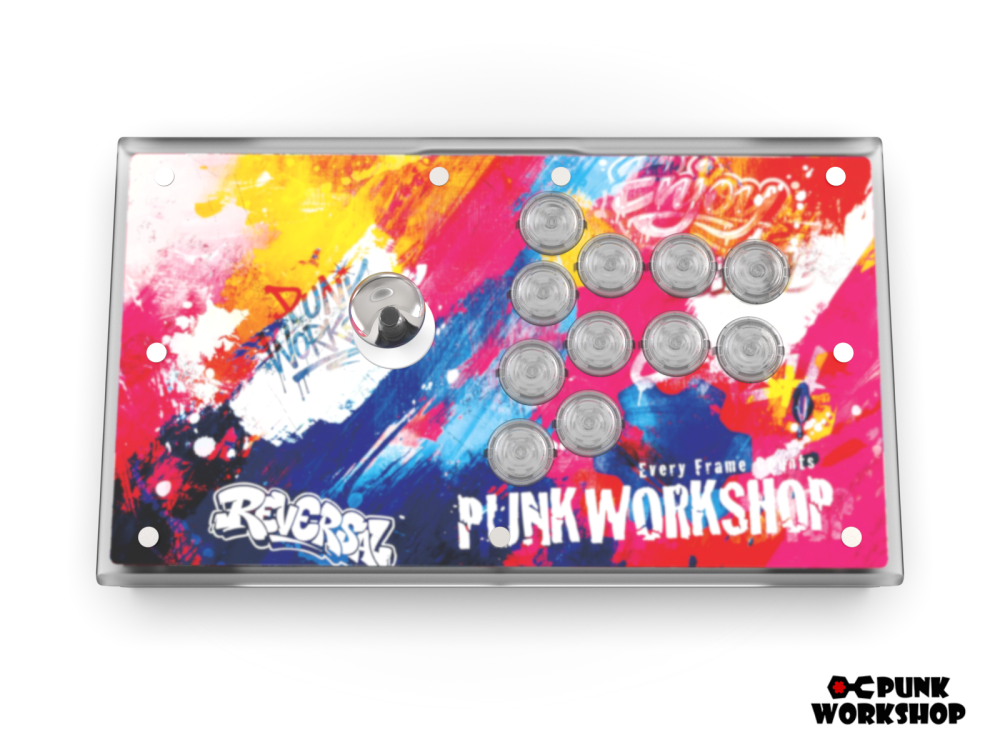

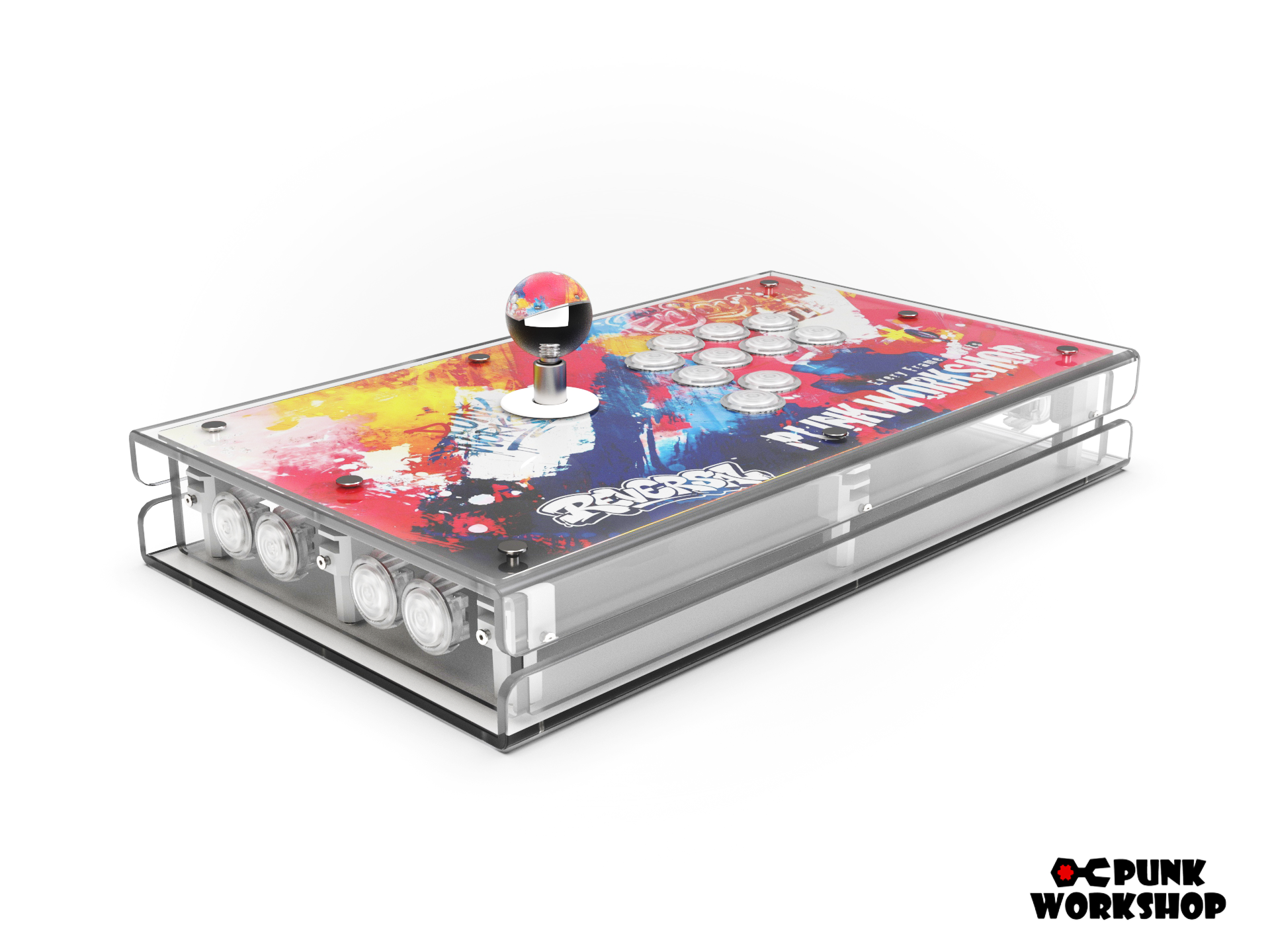

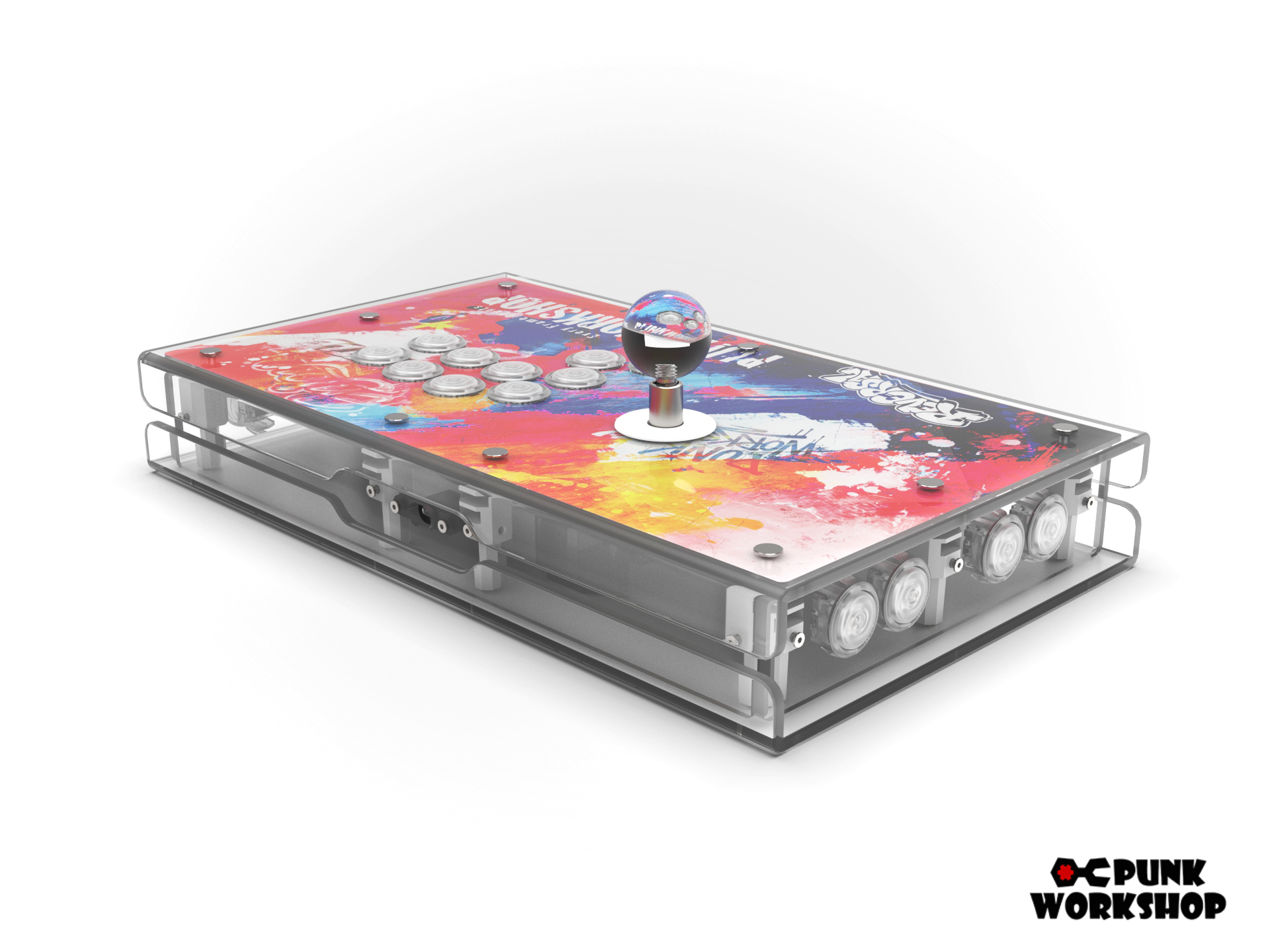

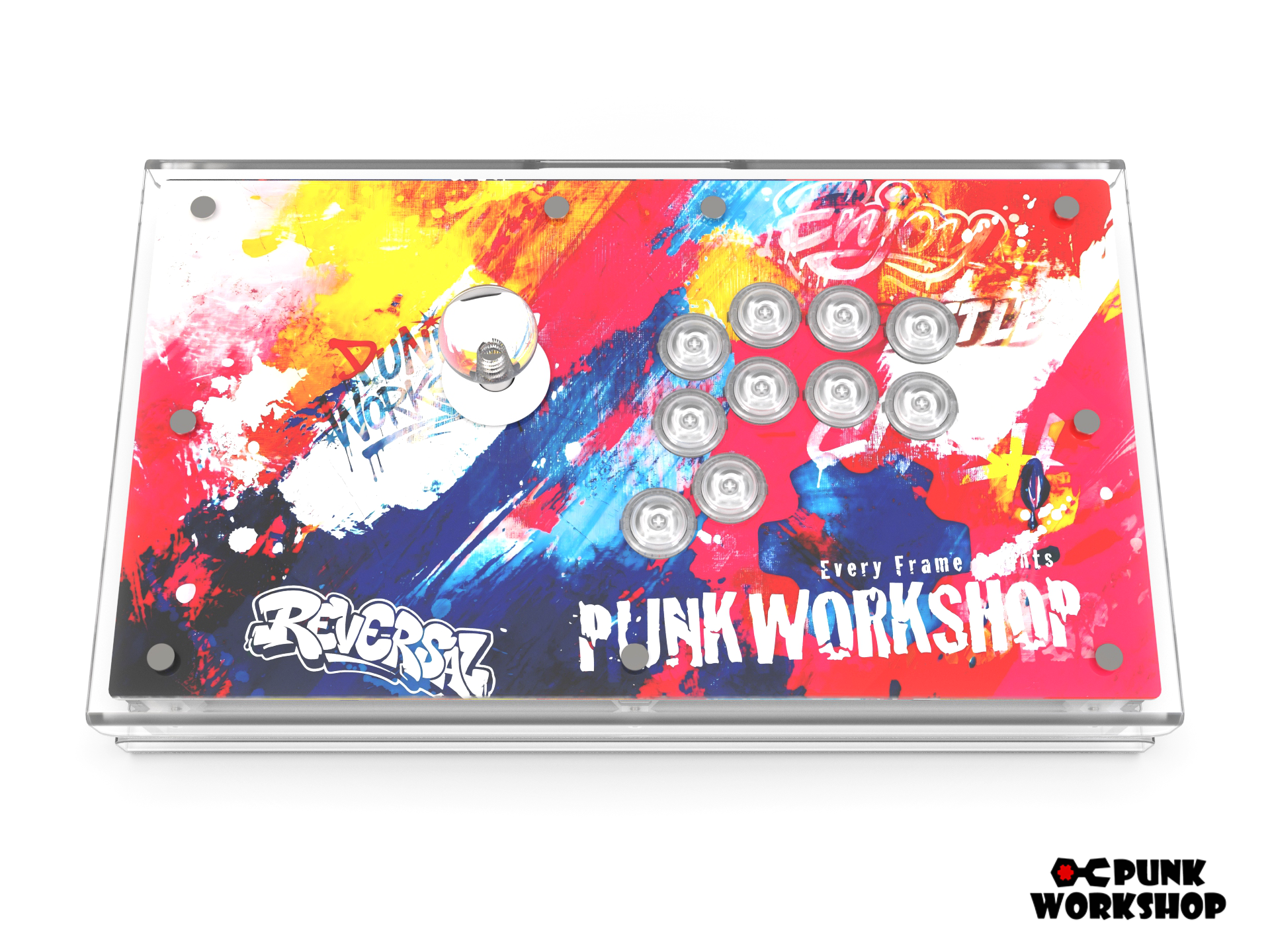

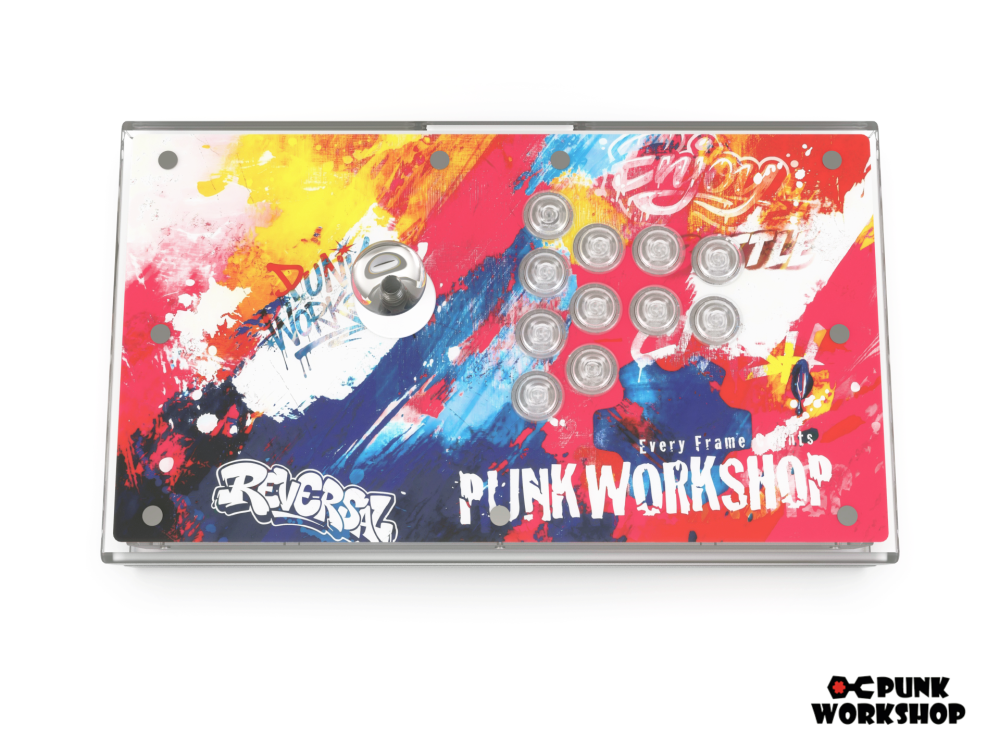

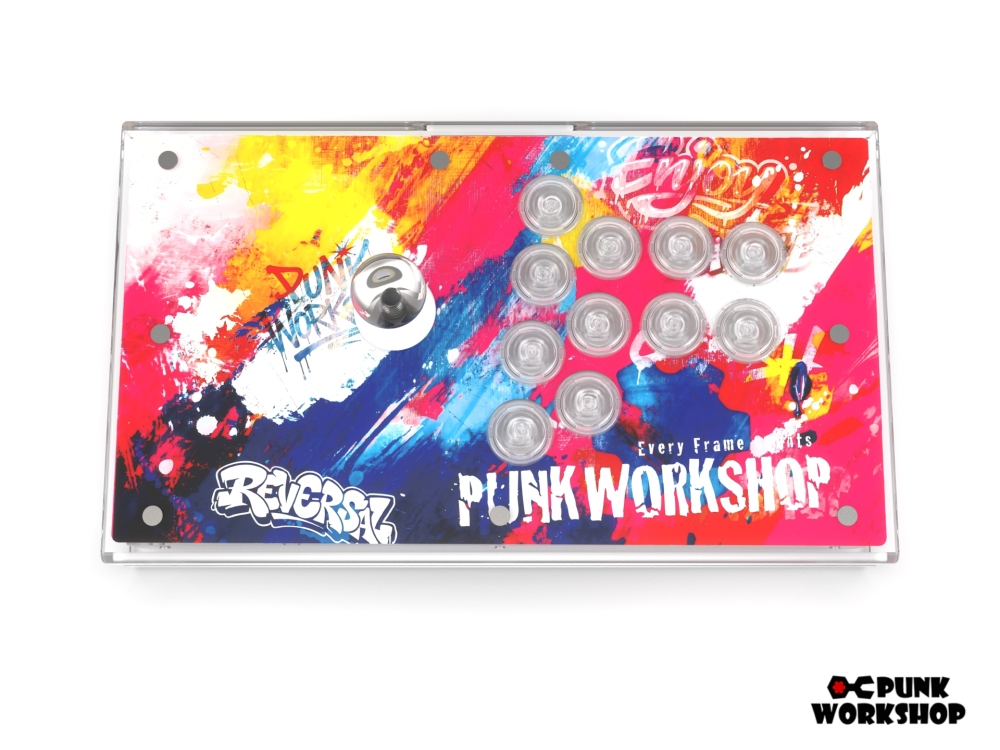

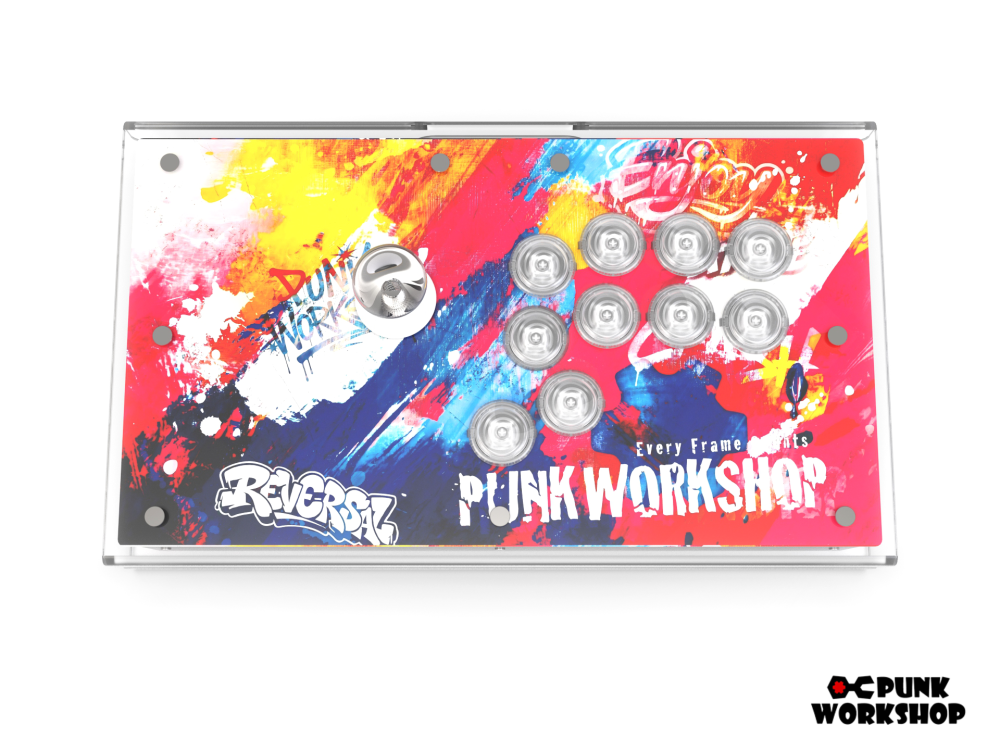

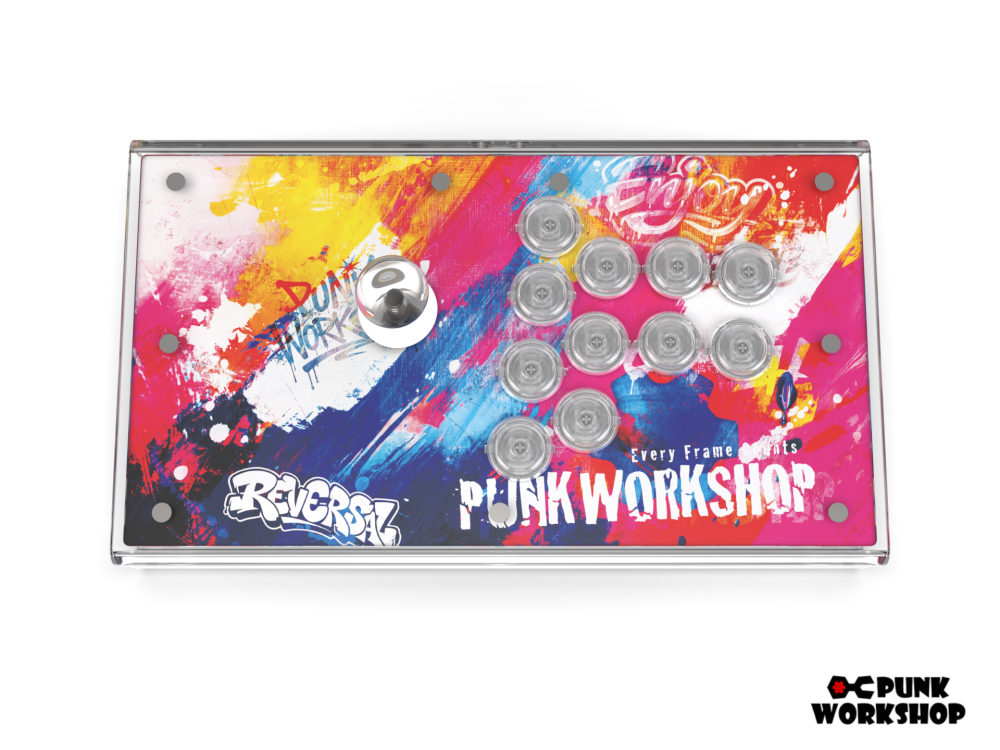

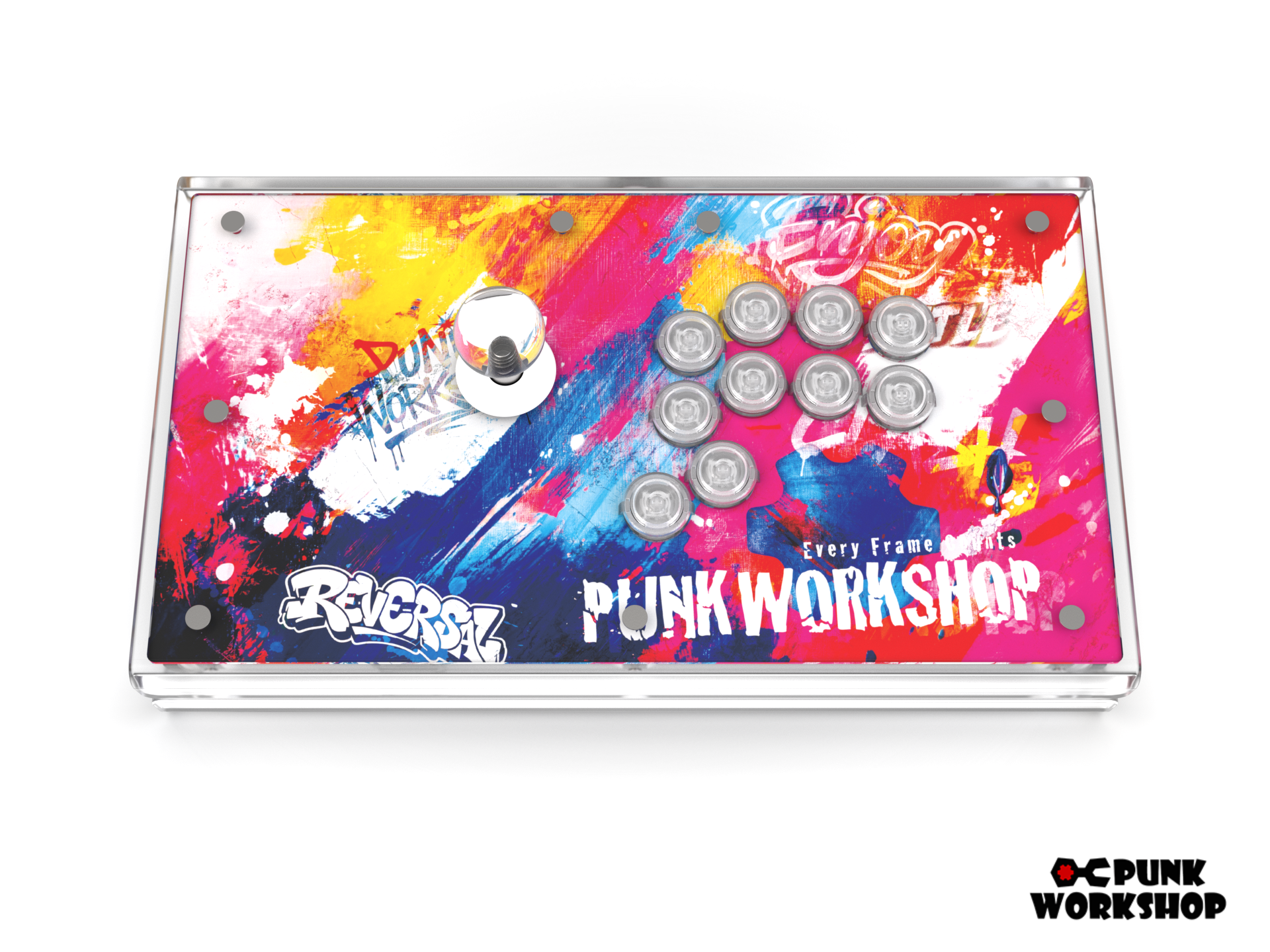

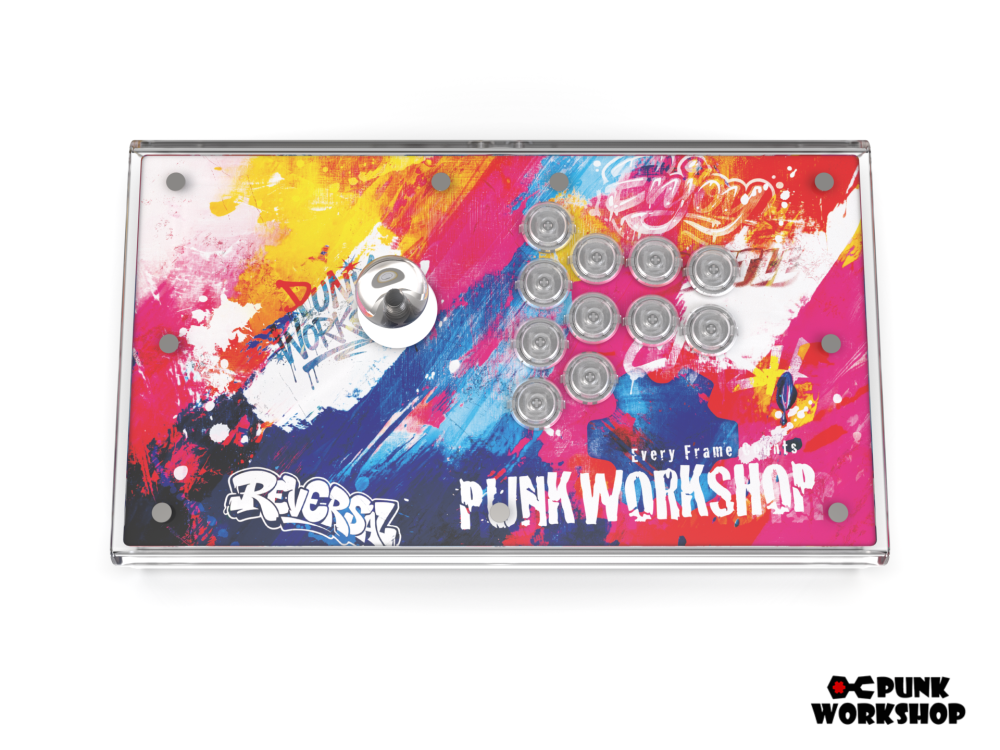

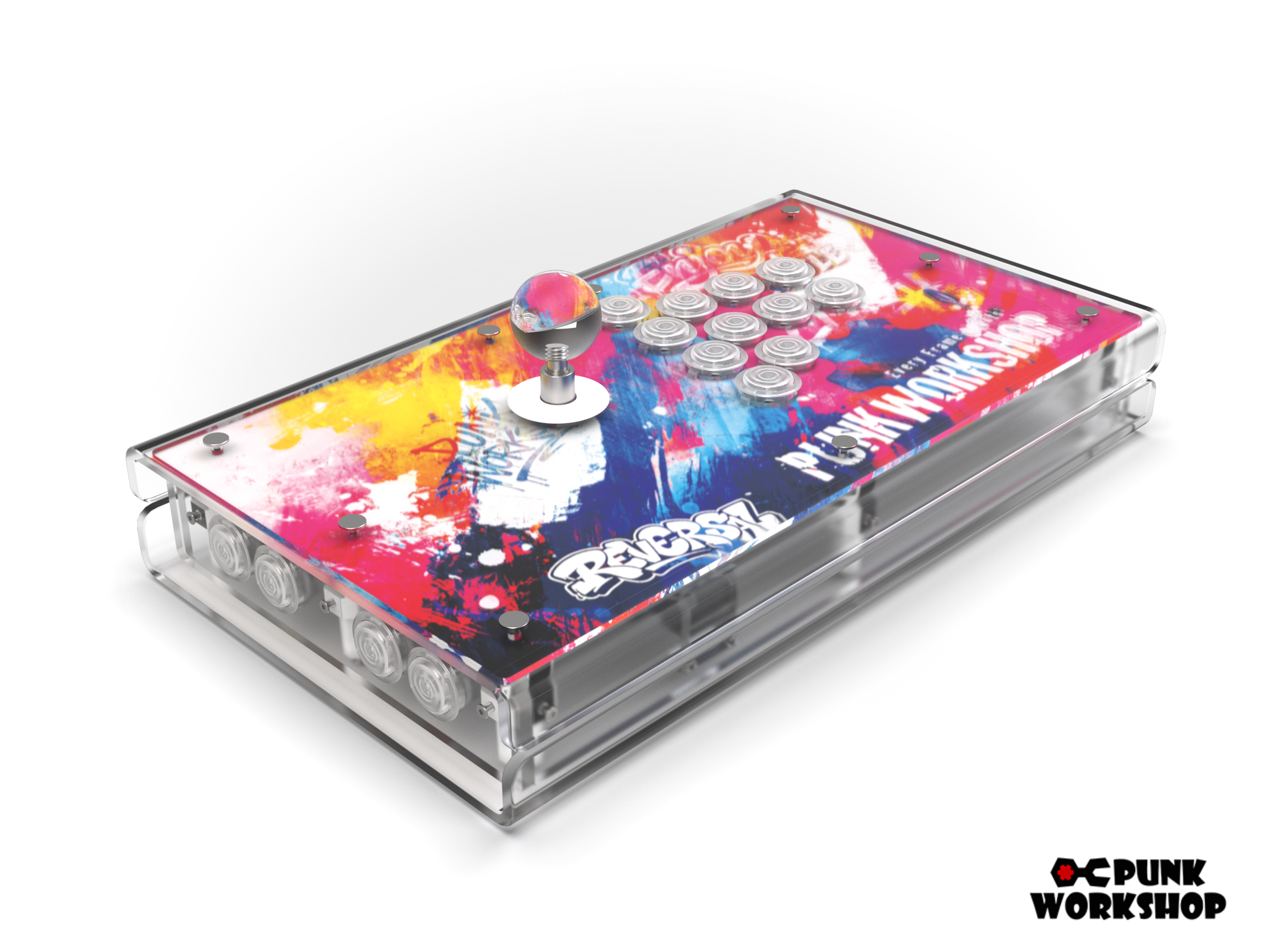

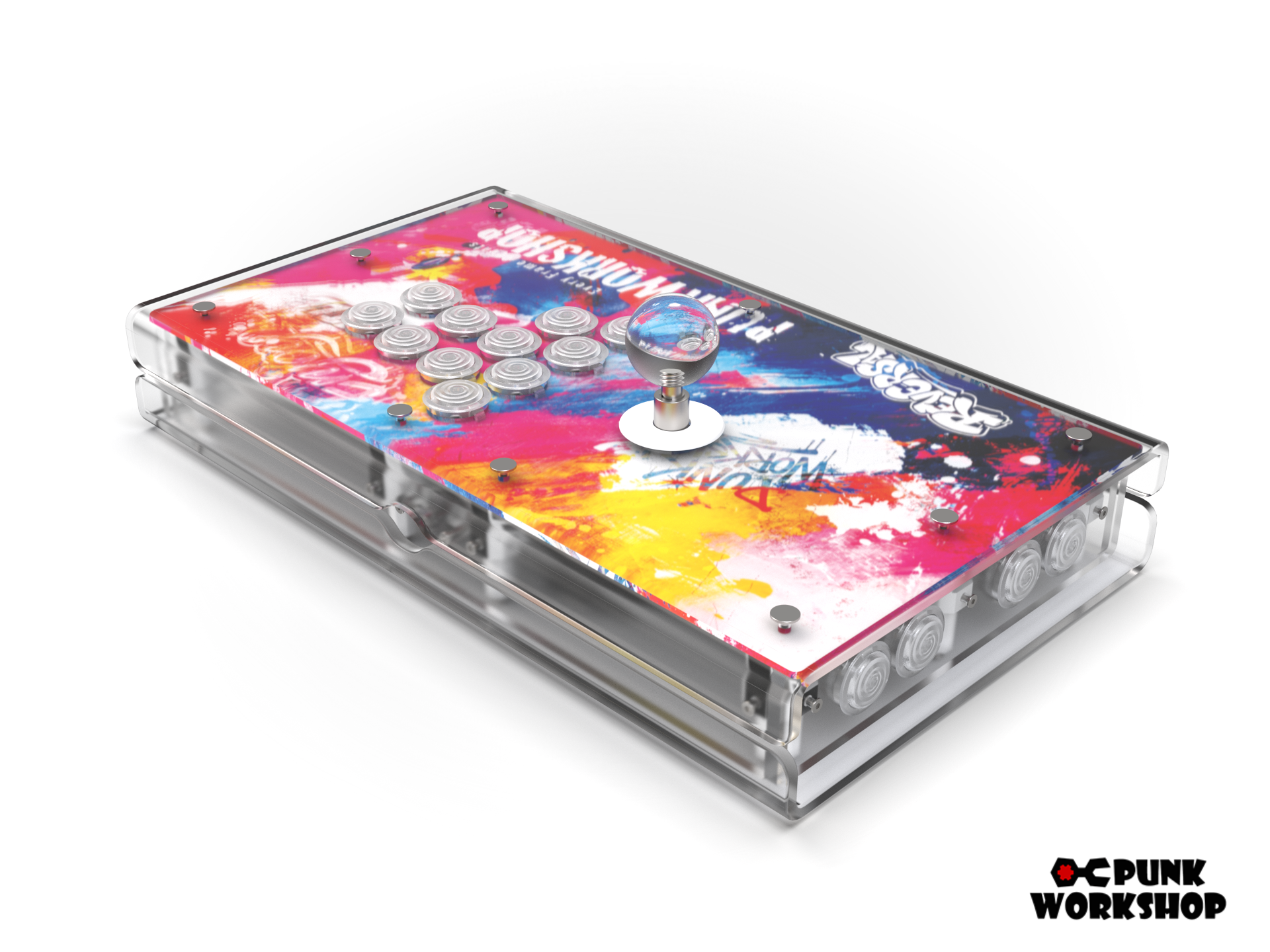

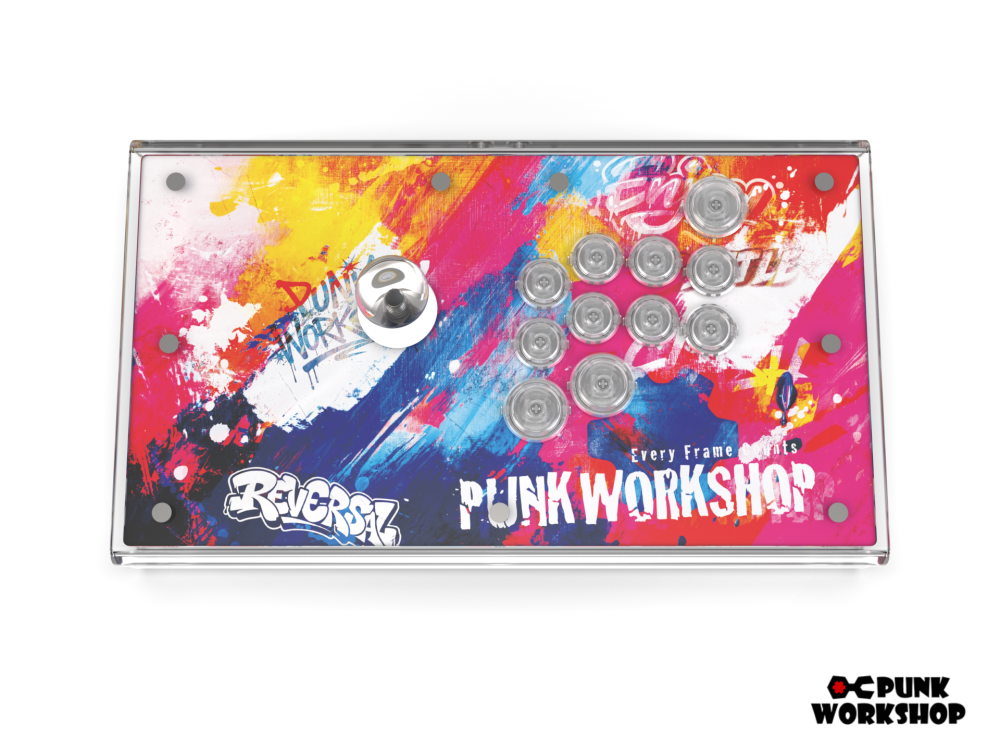

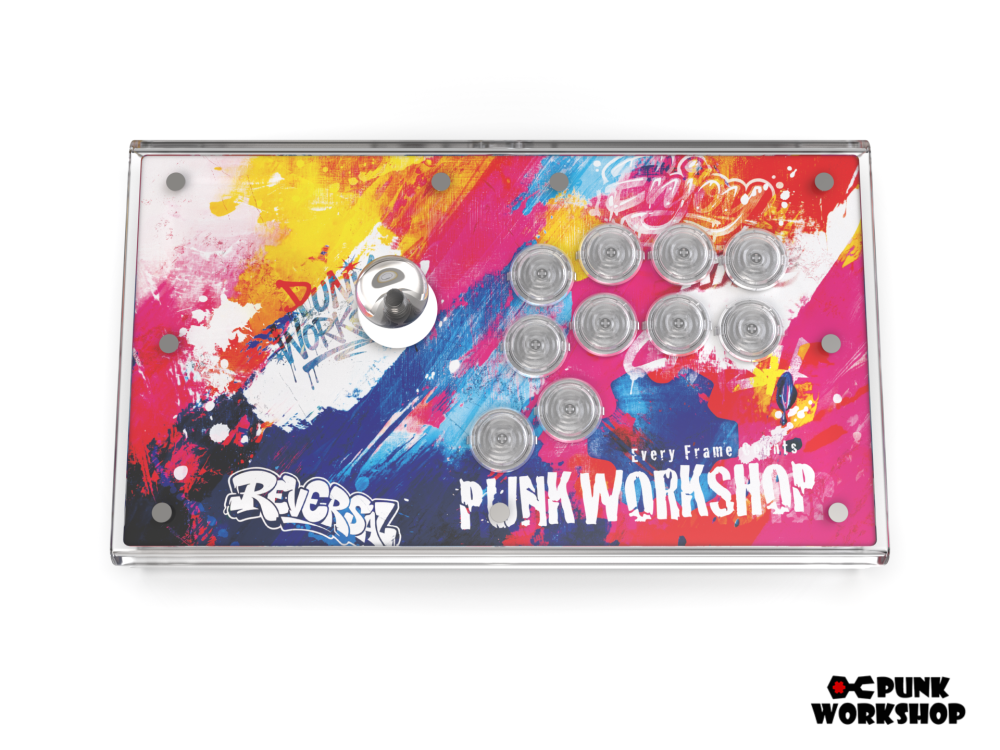

Art Version

The Art version of the joystick features a frosted surface and a built-in interlayer on the top panel, allowing players to easily replace the internal printed artwork by themselves.

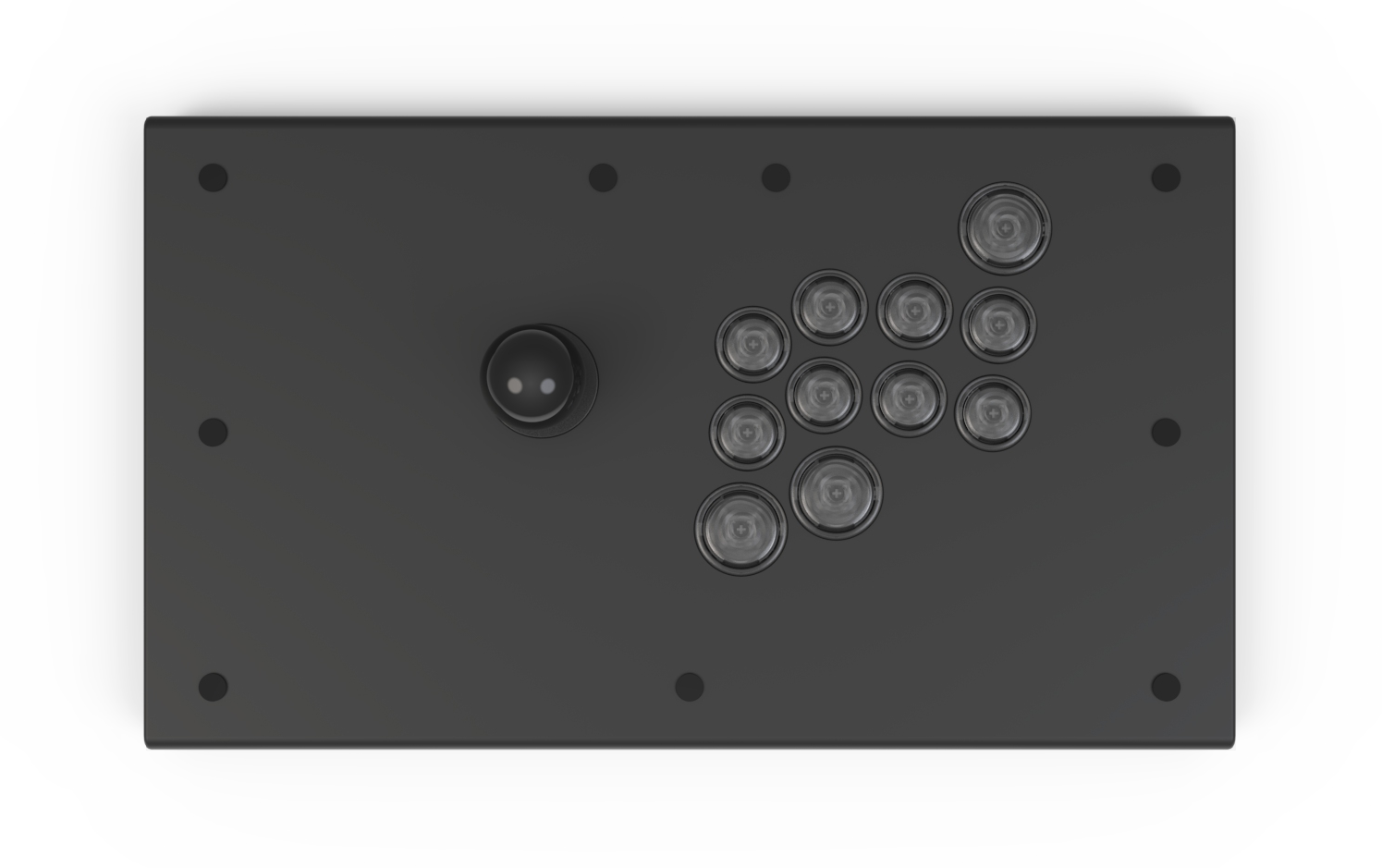

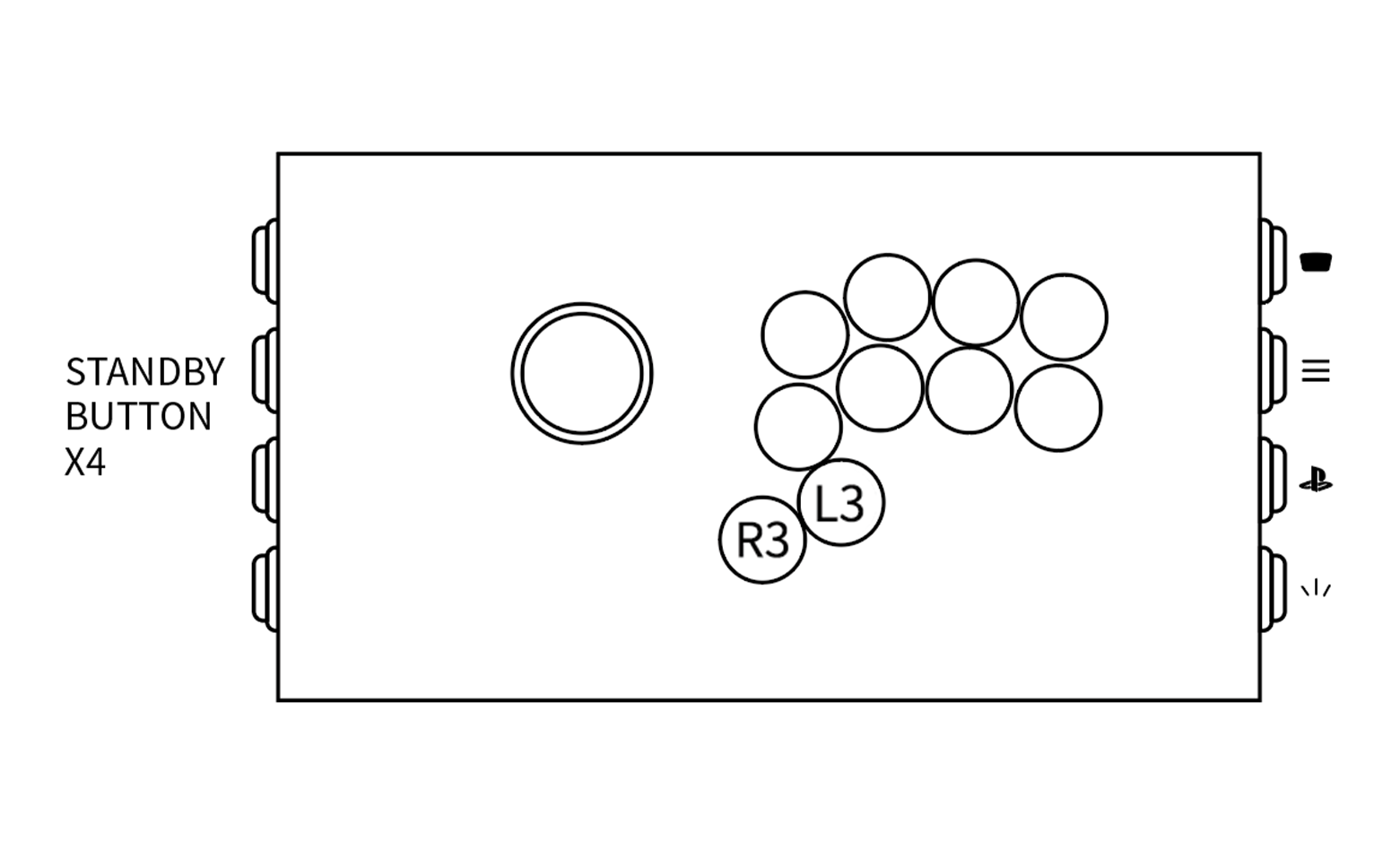

Button Layout Design

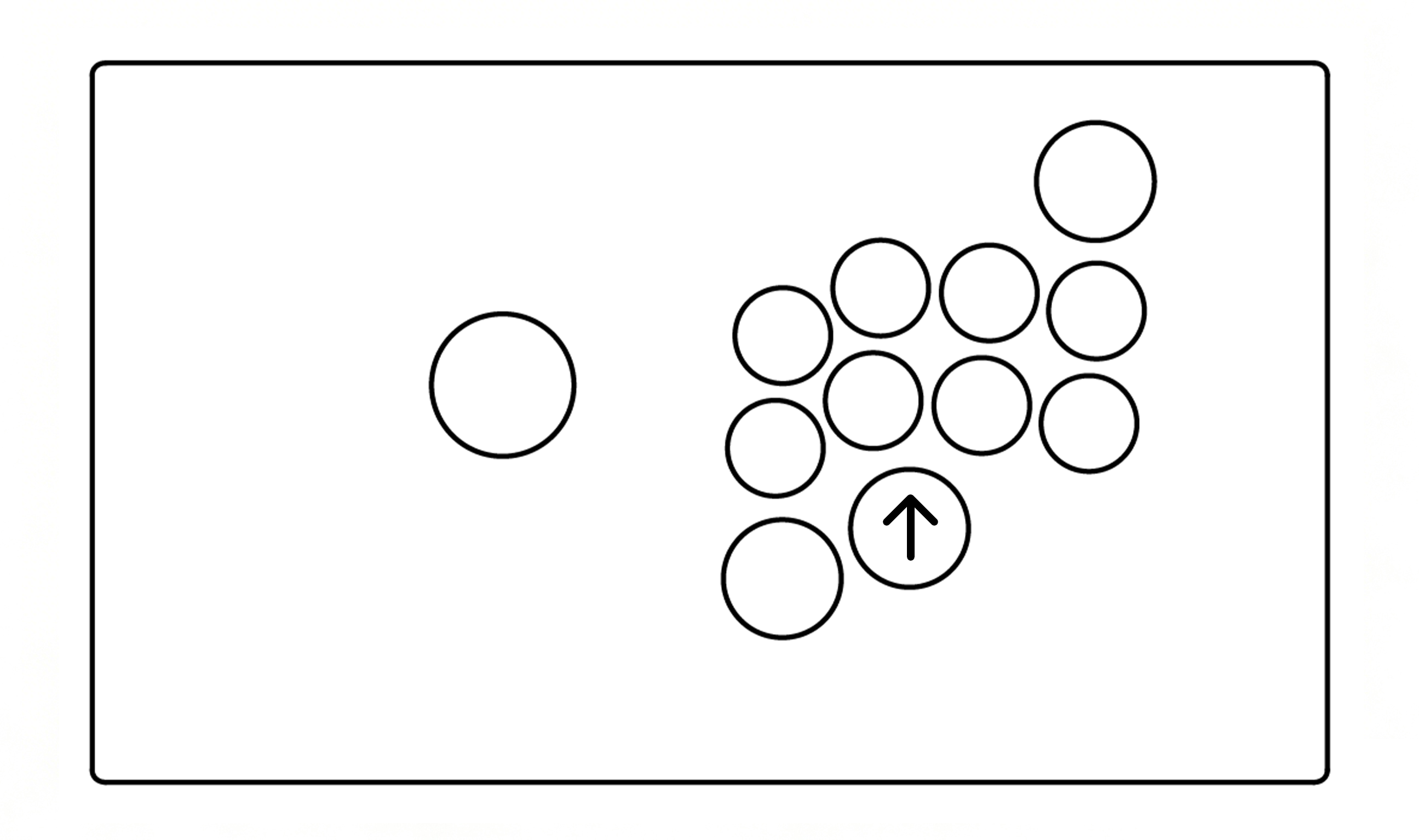

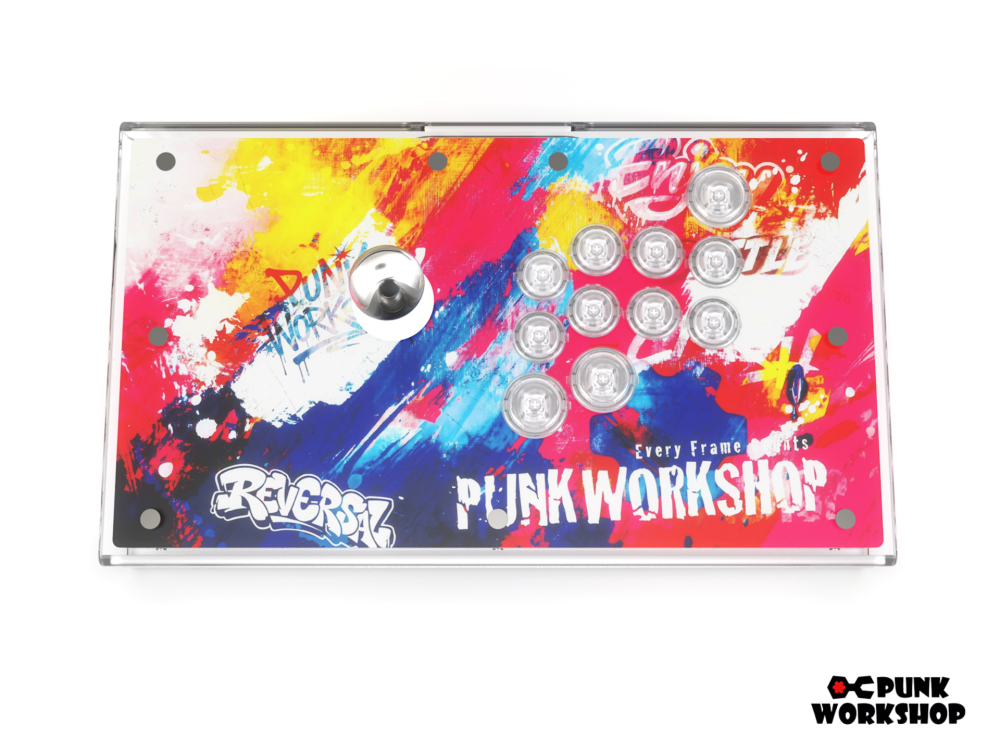

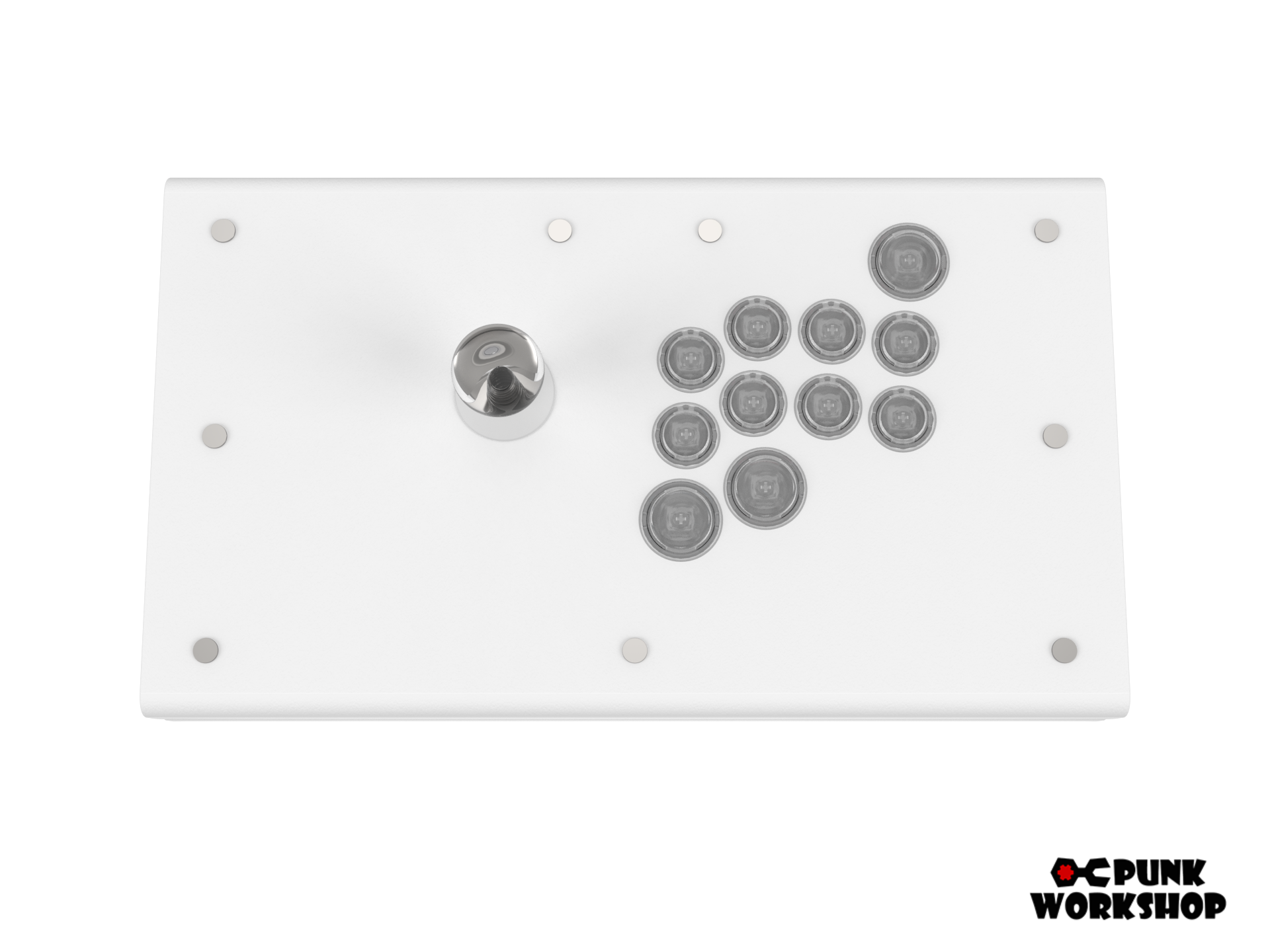

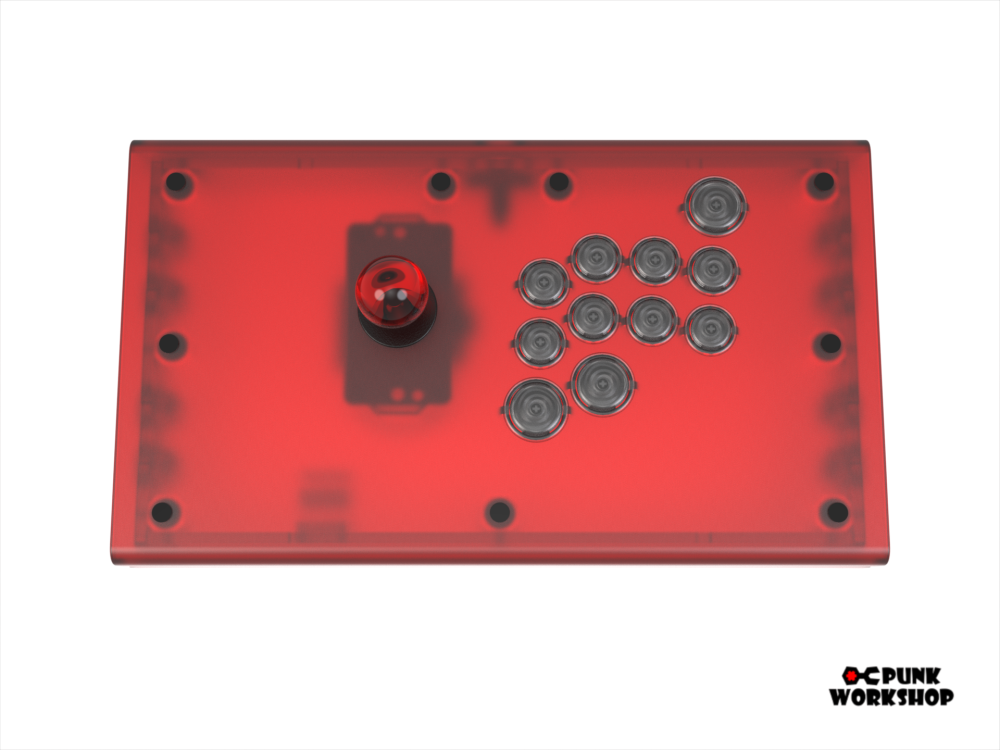

G-Layout Design

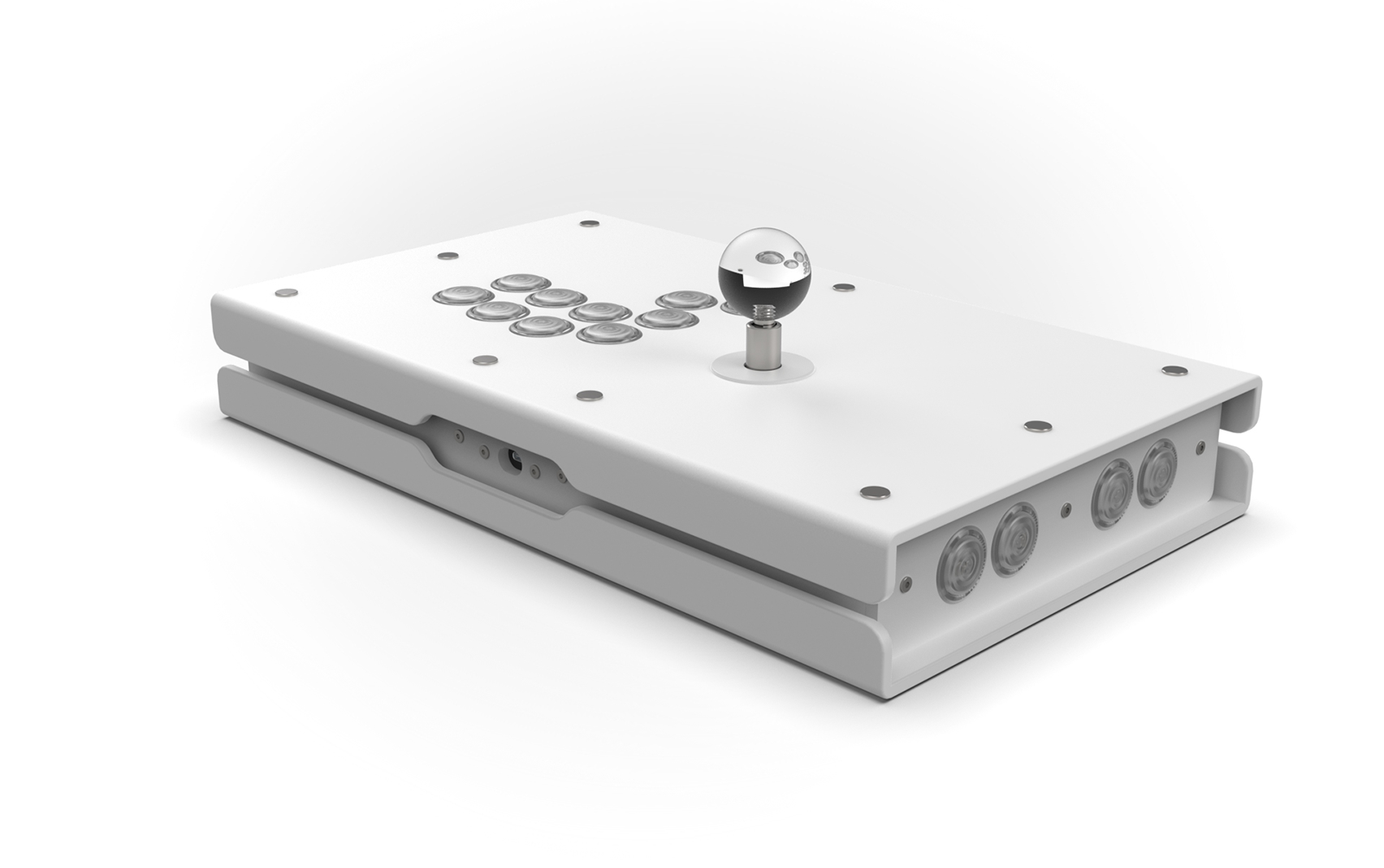

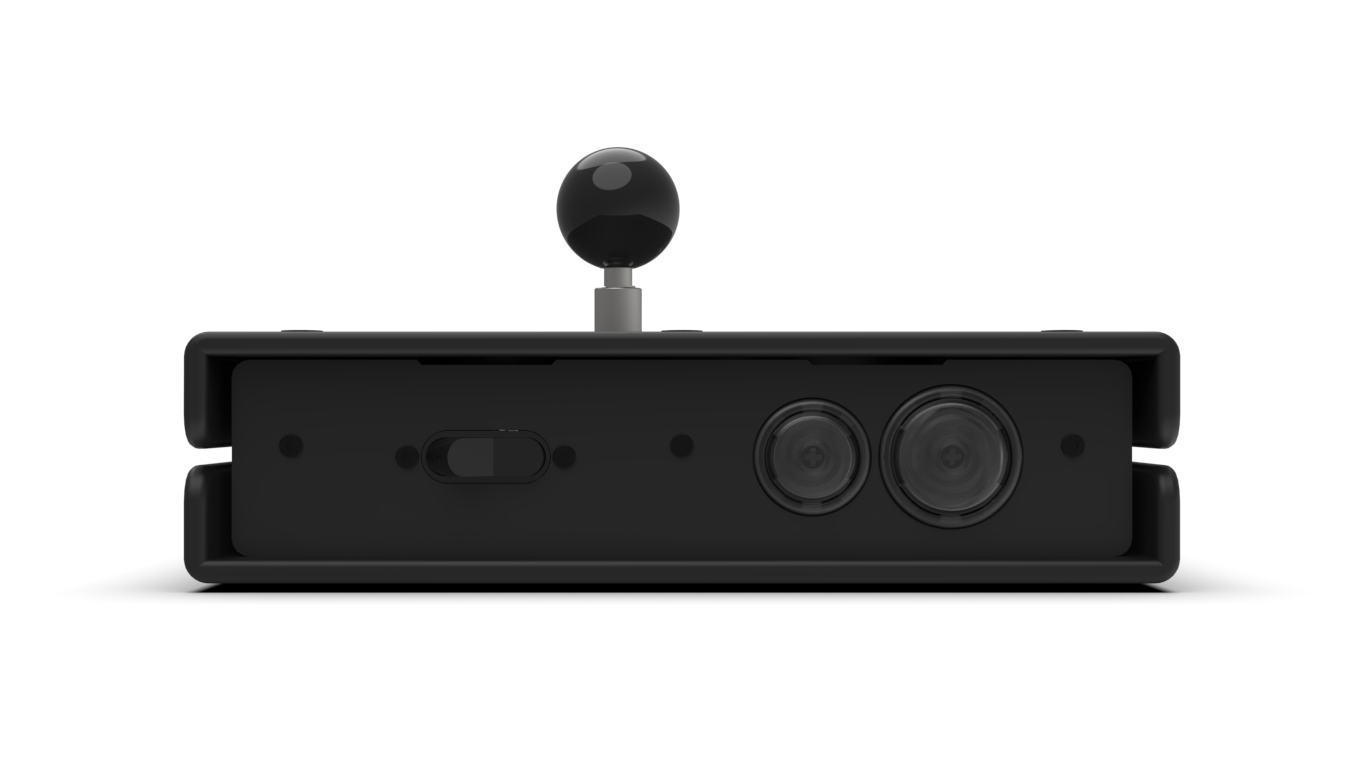

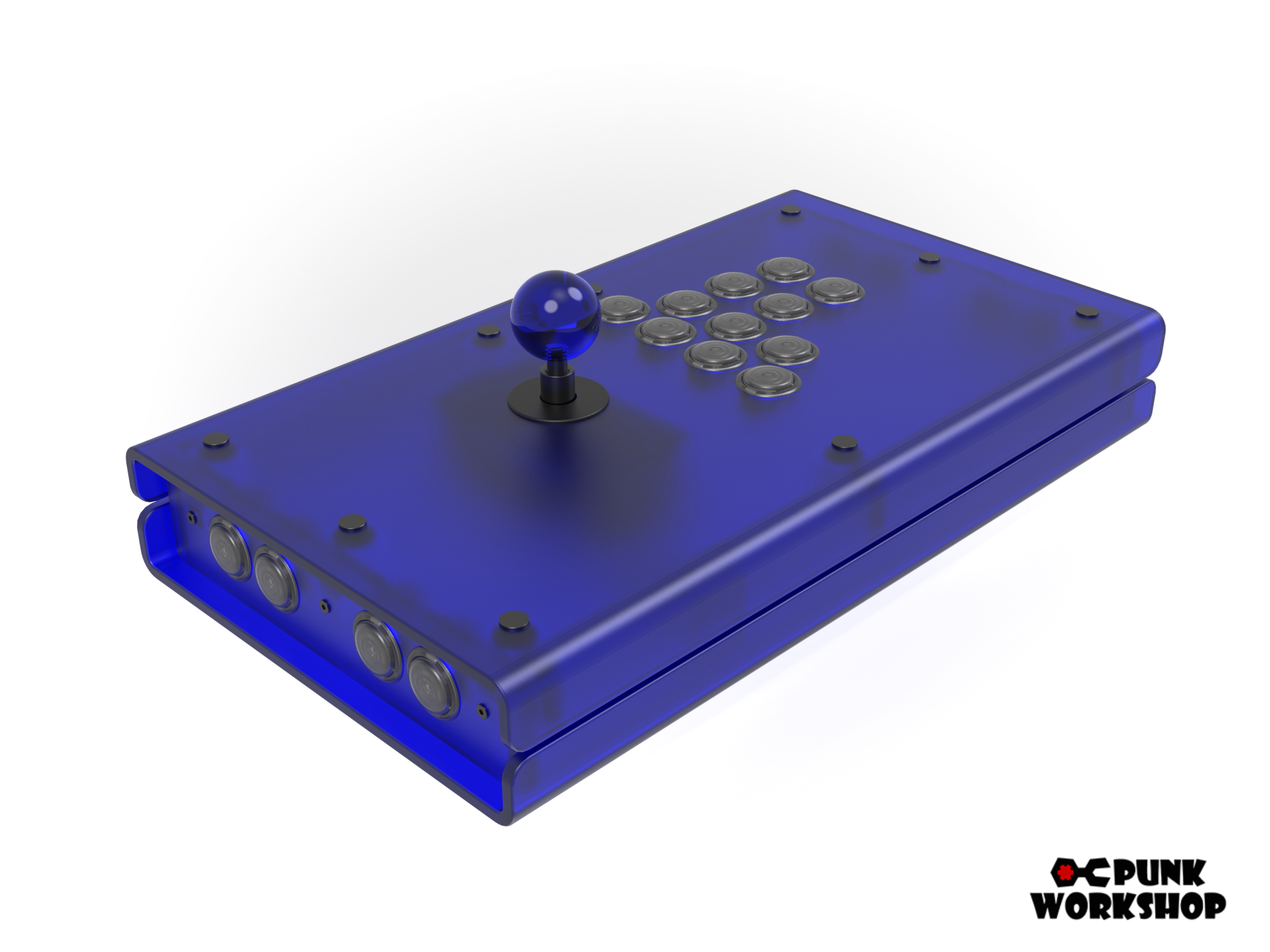

The PWS FightStick features a user-friendly button-type toggle switch on the side panel, a key highlight of its G-layout design that switches between the joystick up and button up functions, with only one active at any time.

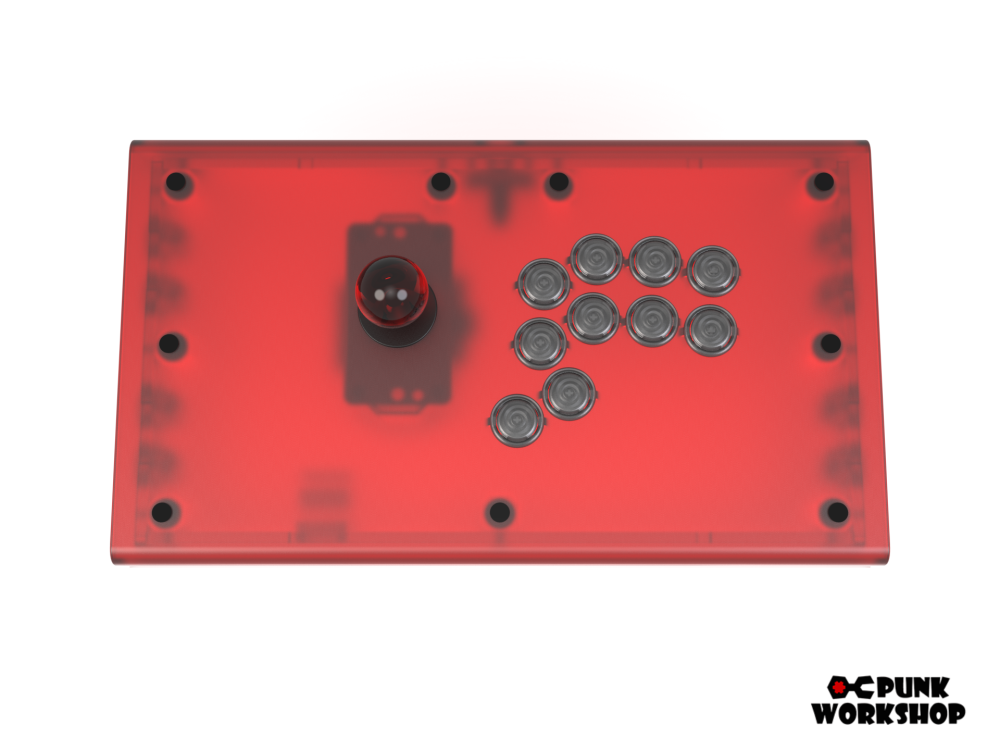

Layout Design

4 empty buttons on the left can be customized via wiring
4 system function buttons (TOUCH, OPTION, PS, SHARE) on the right
Extra R3 and L3 buttons added to traditional 8-button layout

Art Panel Customization

1. When placing an order for the Art version, please provide only JPG/PNG files. The recommended file size is above 1MB.

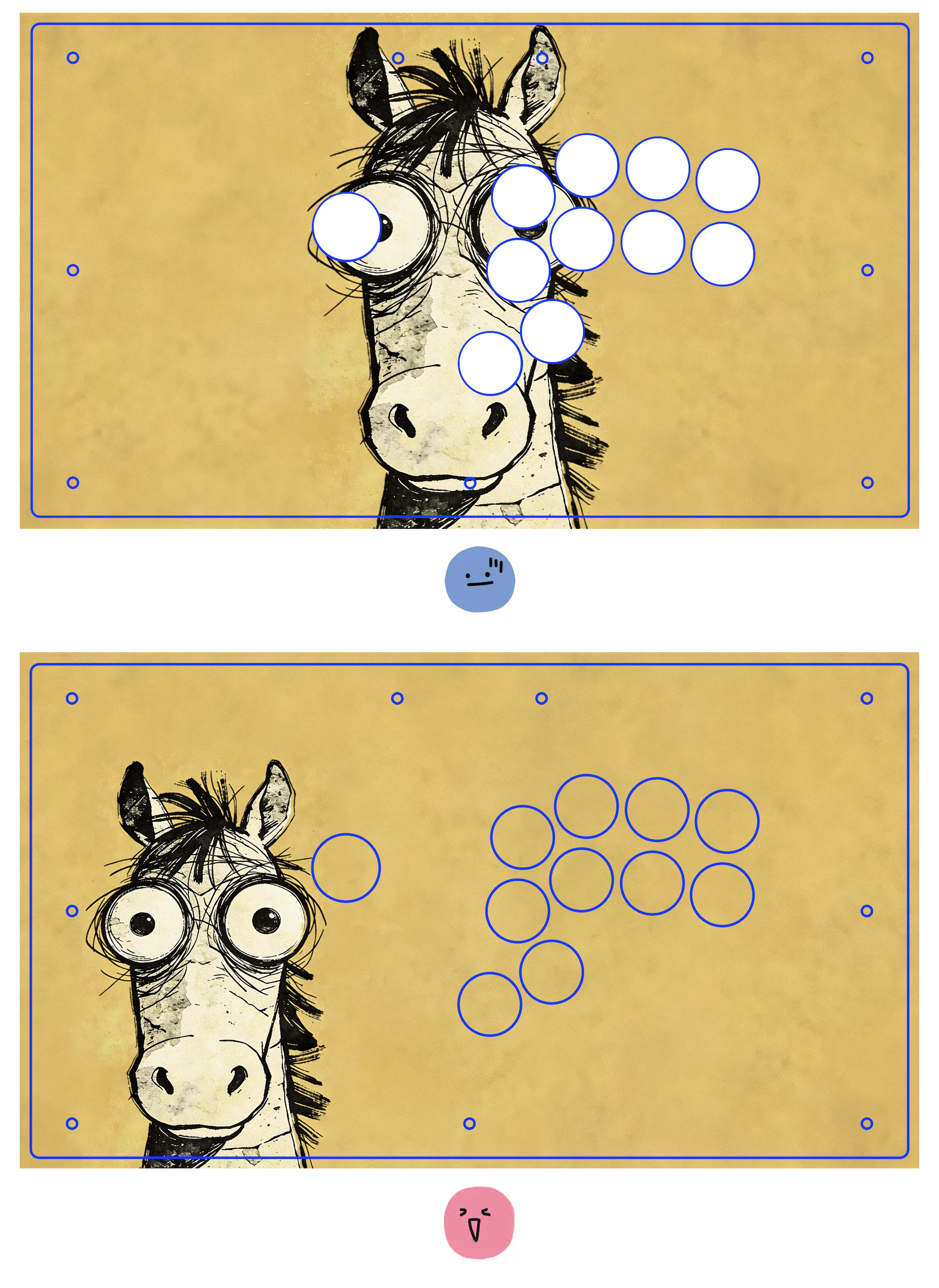

2. The recommended image ratio: 16:10 landscape (please avoid placing important content near the edges).

3. Submit the original image directly and do not leave any traces of the layout wireframe.

4. If the image contains people, avoid placing facial areas in the button zone.

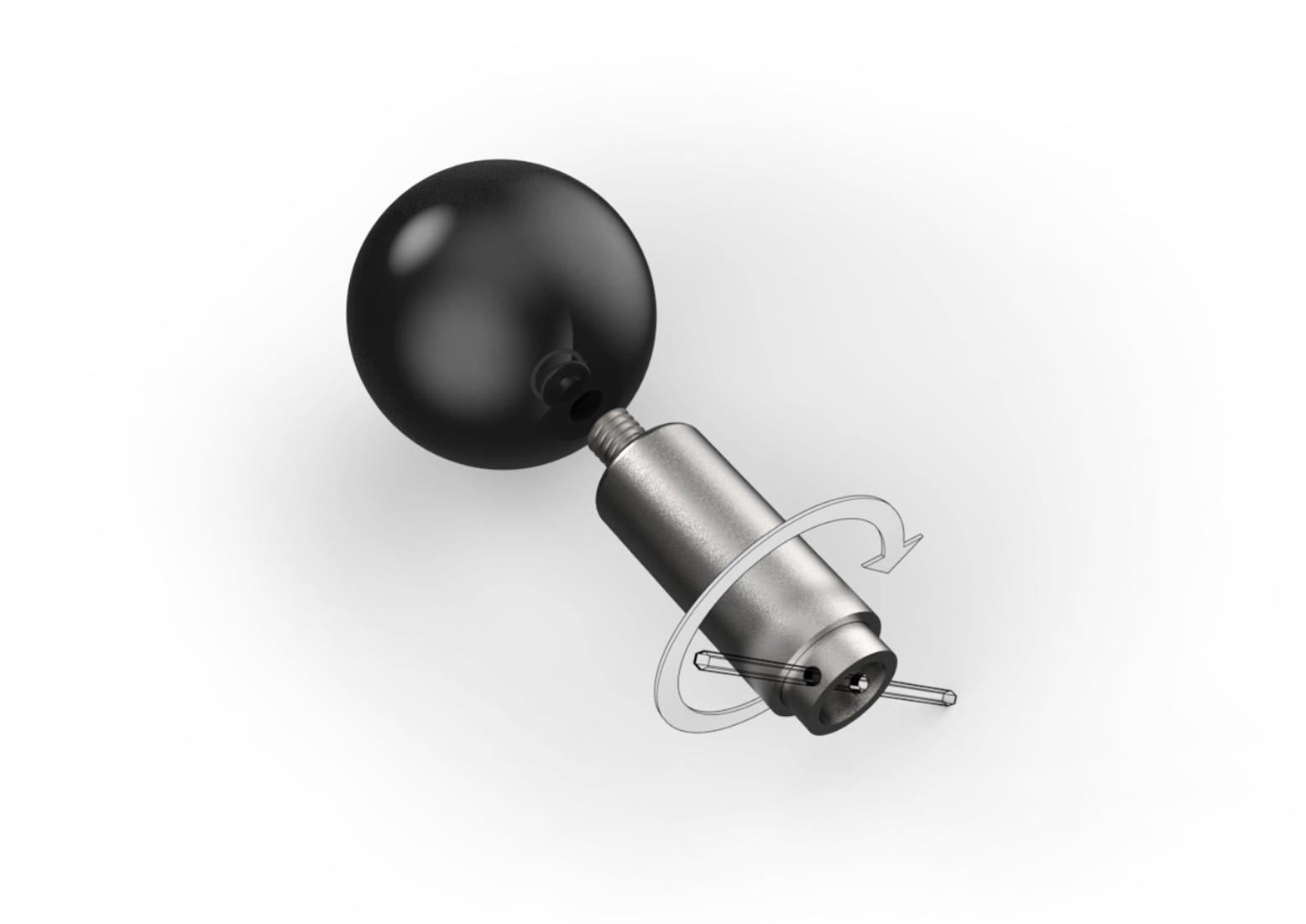

How to disassemble the Ball top:

1. Locate the small hole on the side of the joystick shaft near the base of the ball top.
2. Insert a narrow metal tool (like a small screwdriver or Allen wrench) into the hole.
3. While holding the tool in place, rotate the ball top counterclockwise until it unscrews completely.

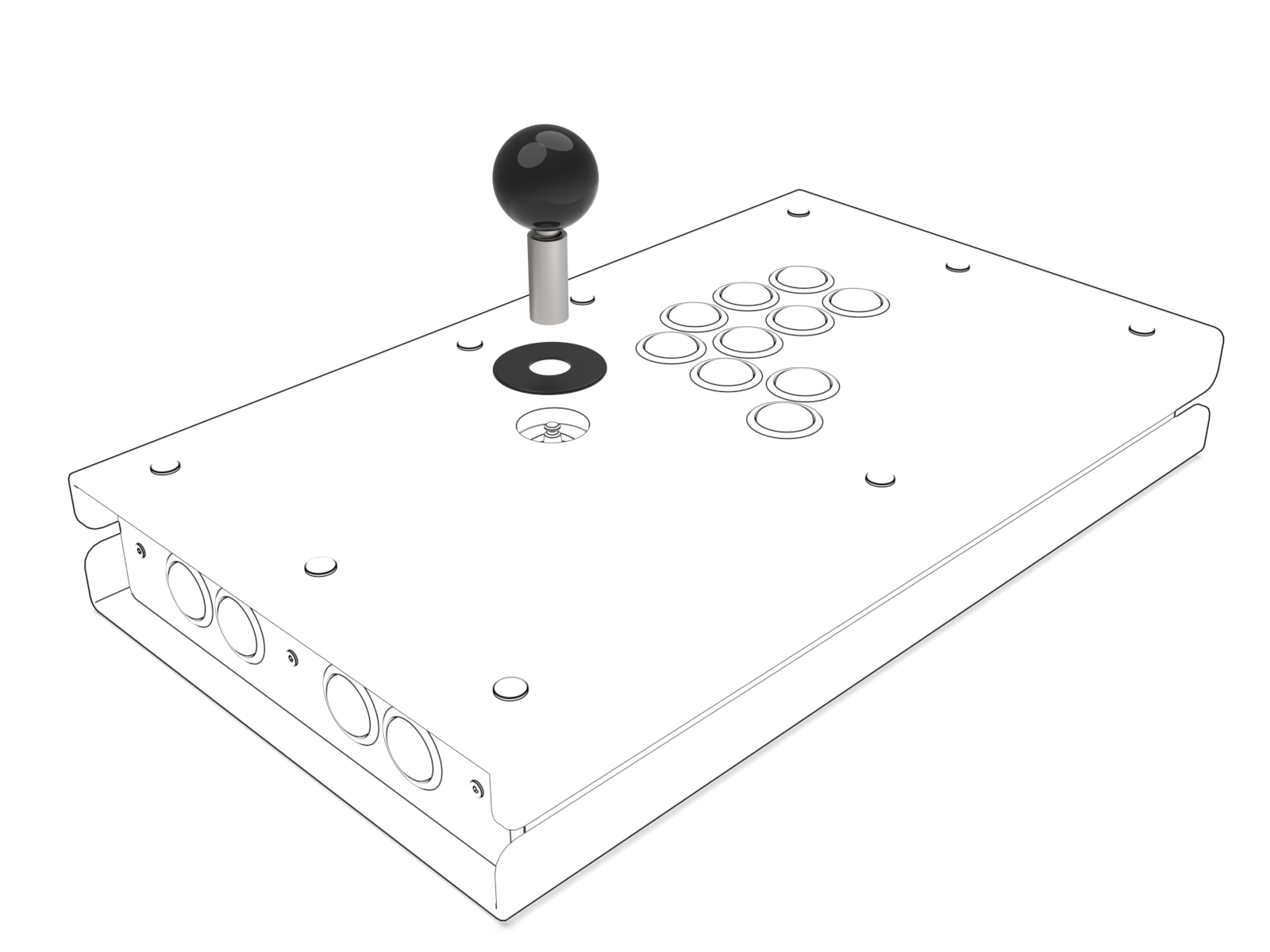

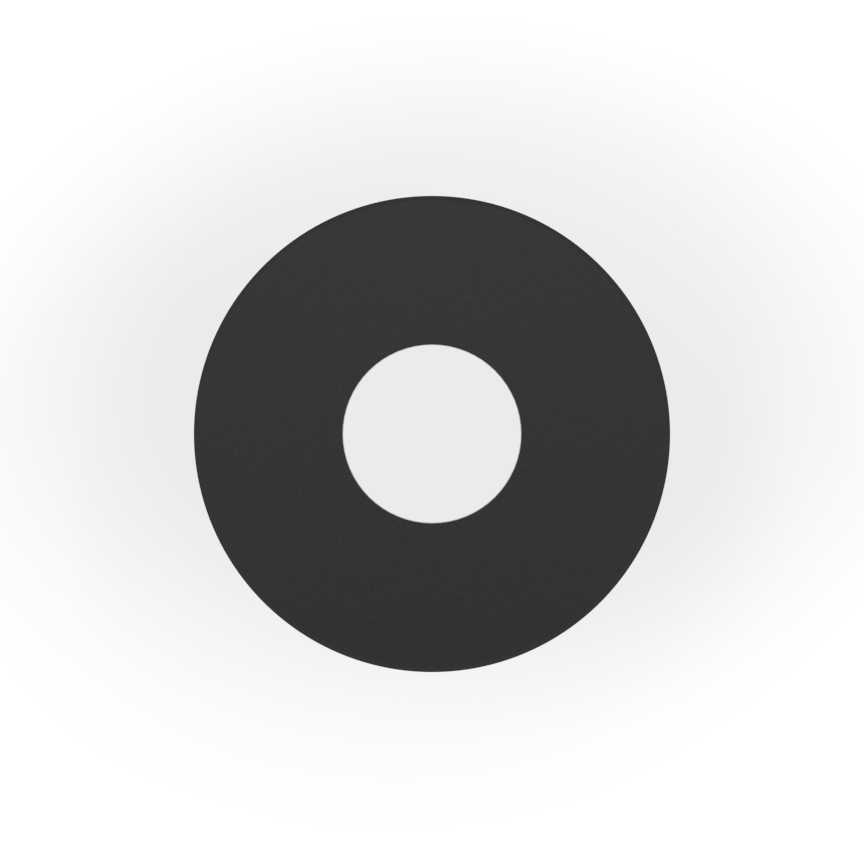

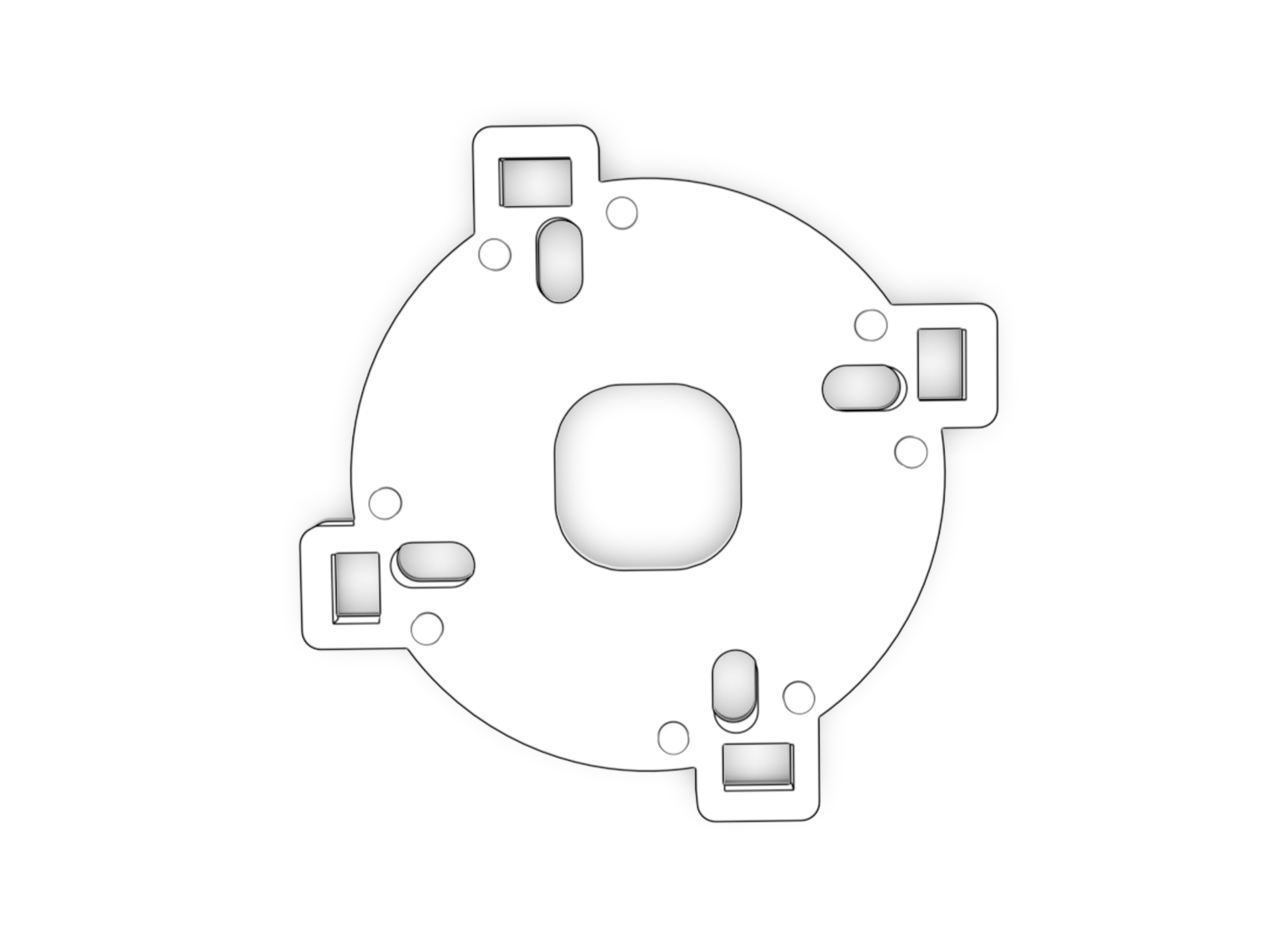

Dust Cover Installation Instructions

1.Place the dust cover over the joystick hole on the panel.
2.Install your Quick-Release Lever.

Package Contents

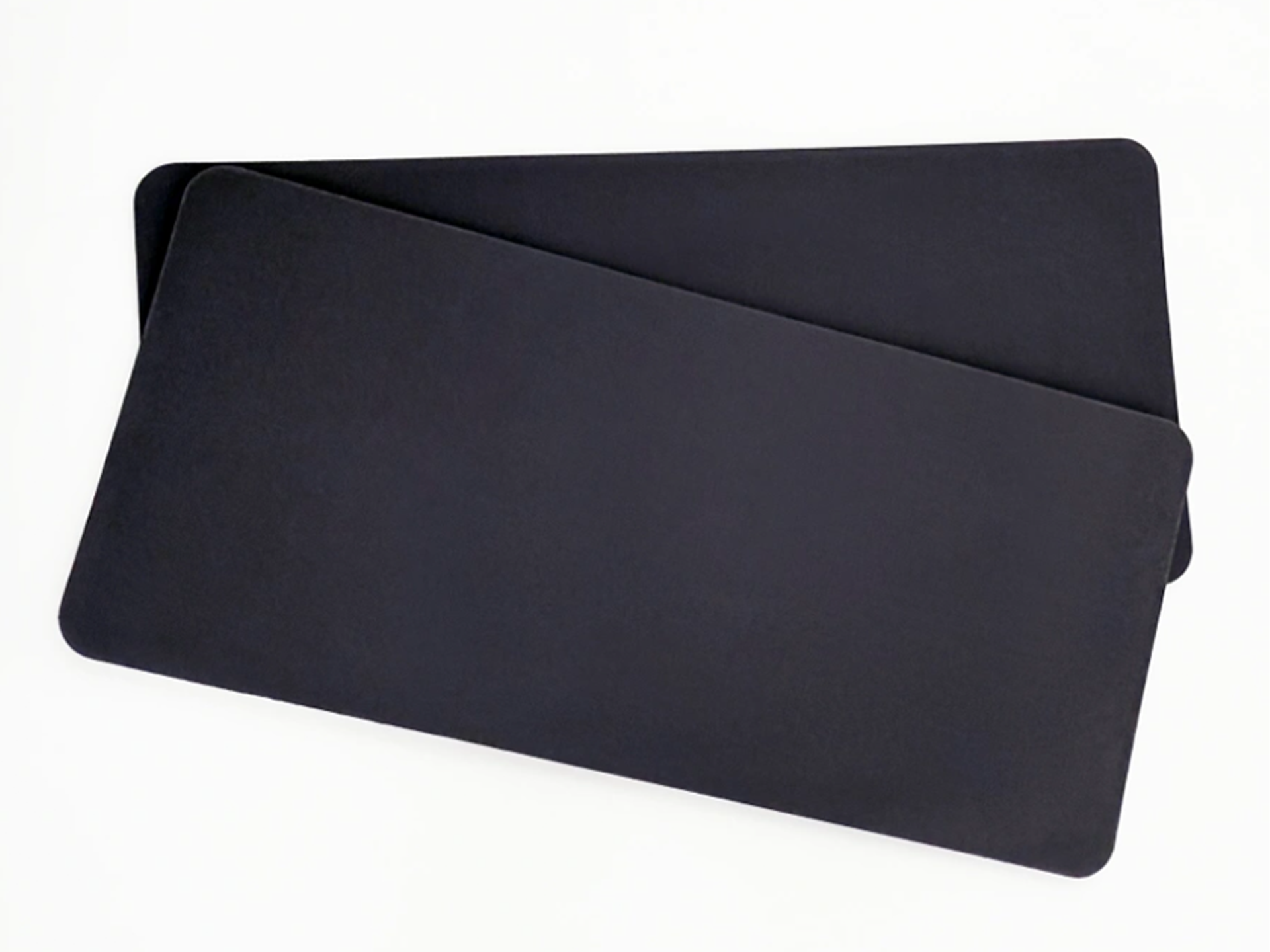

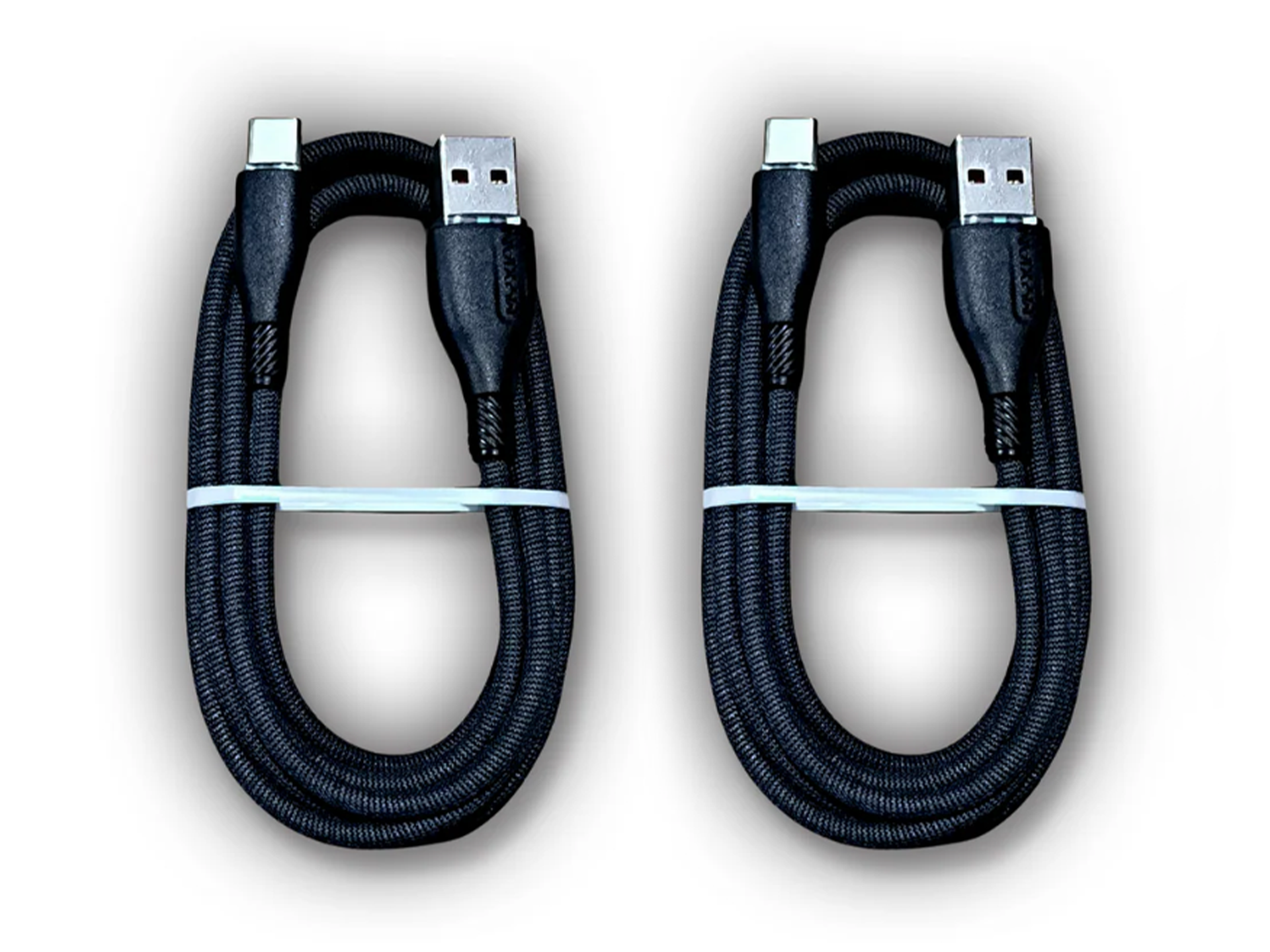

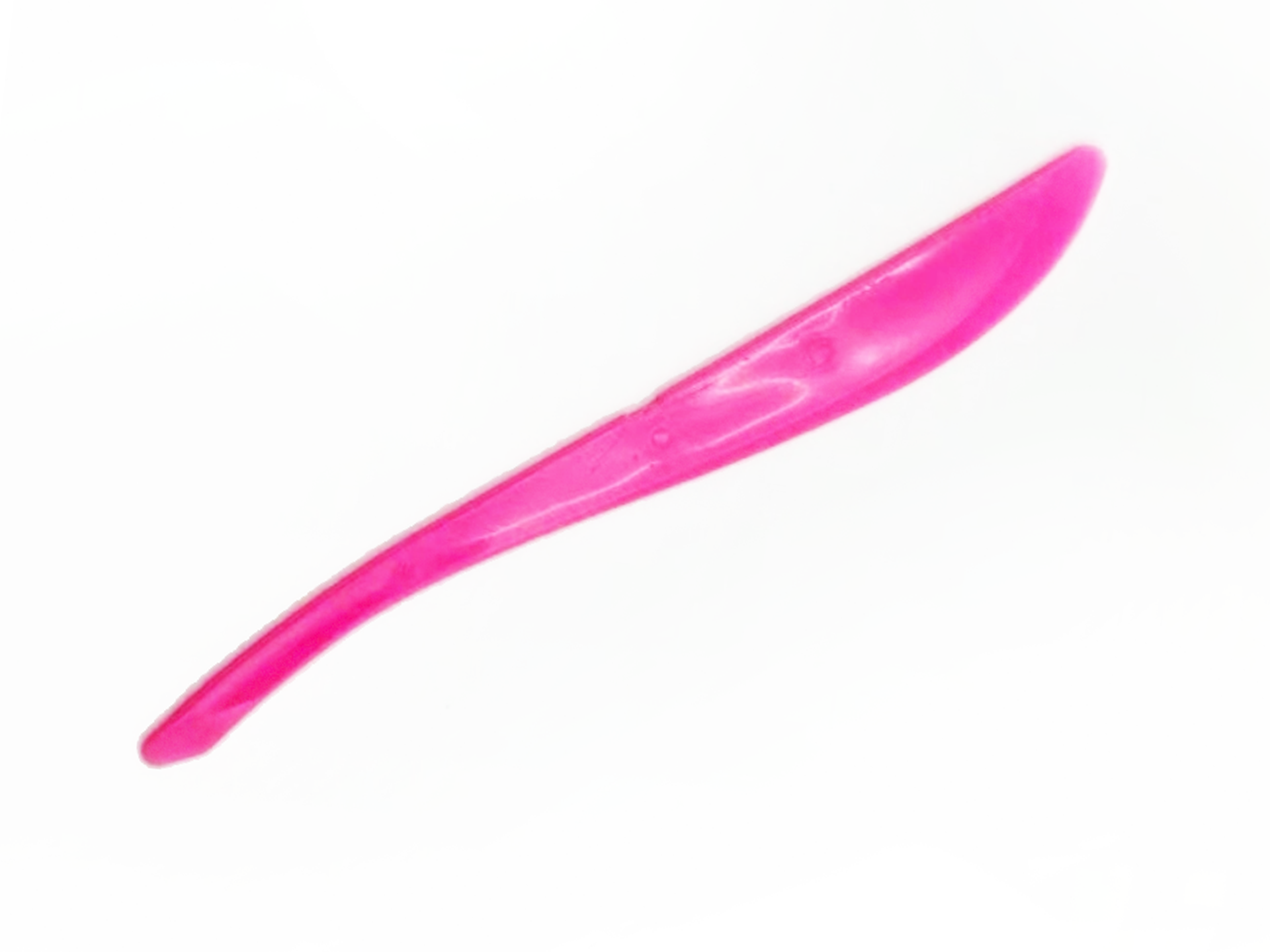

Controller Body	Cable × 2	Keycap Puller × 1	Anti-slip Pad × 2

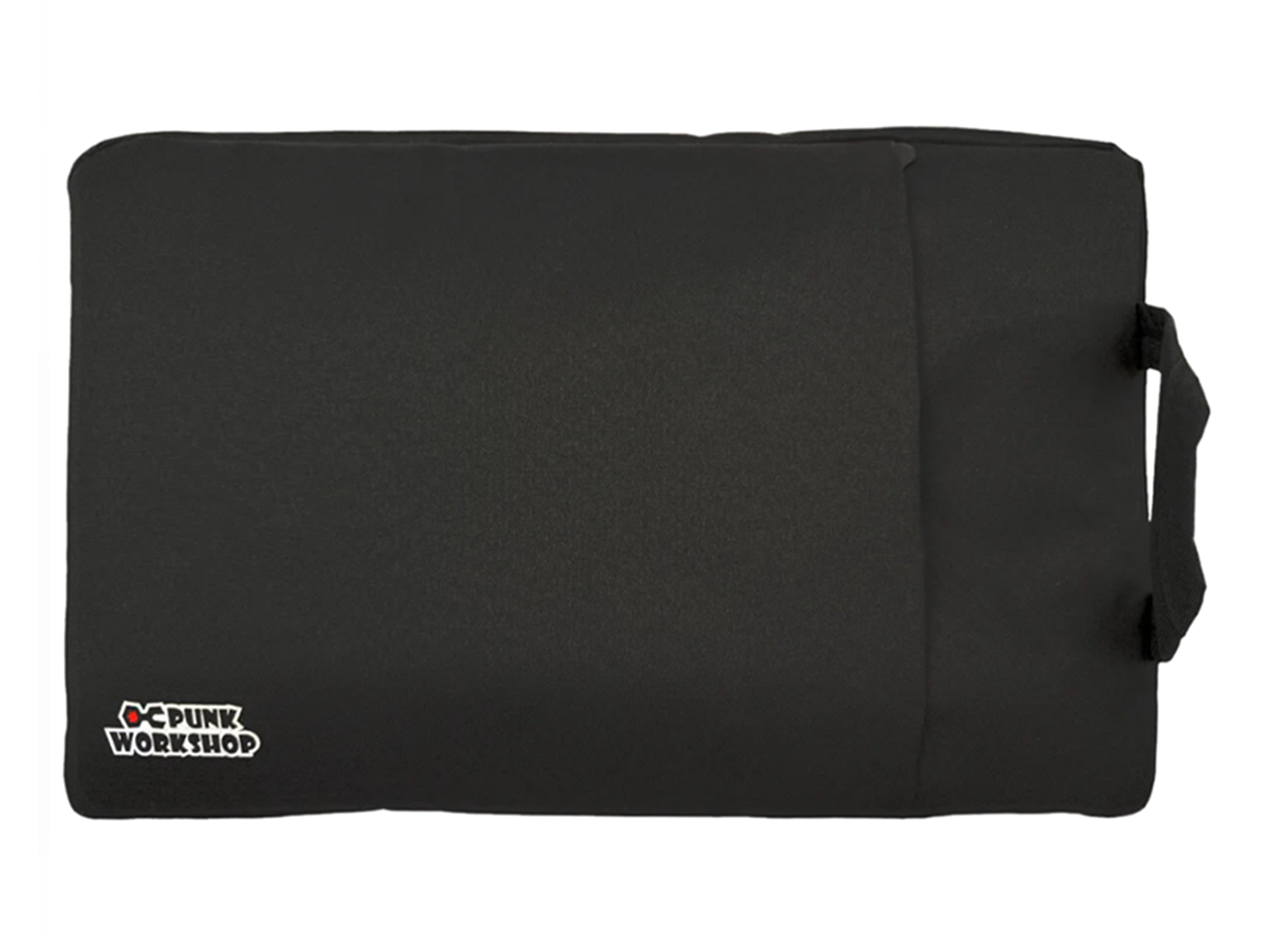

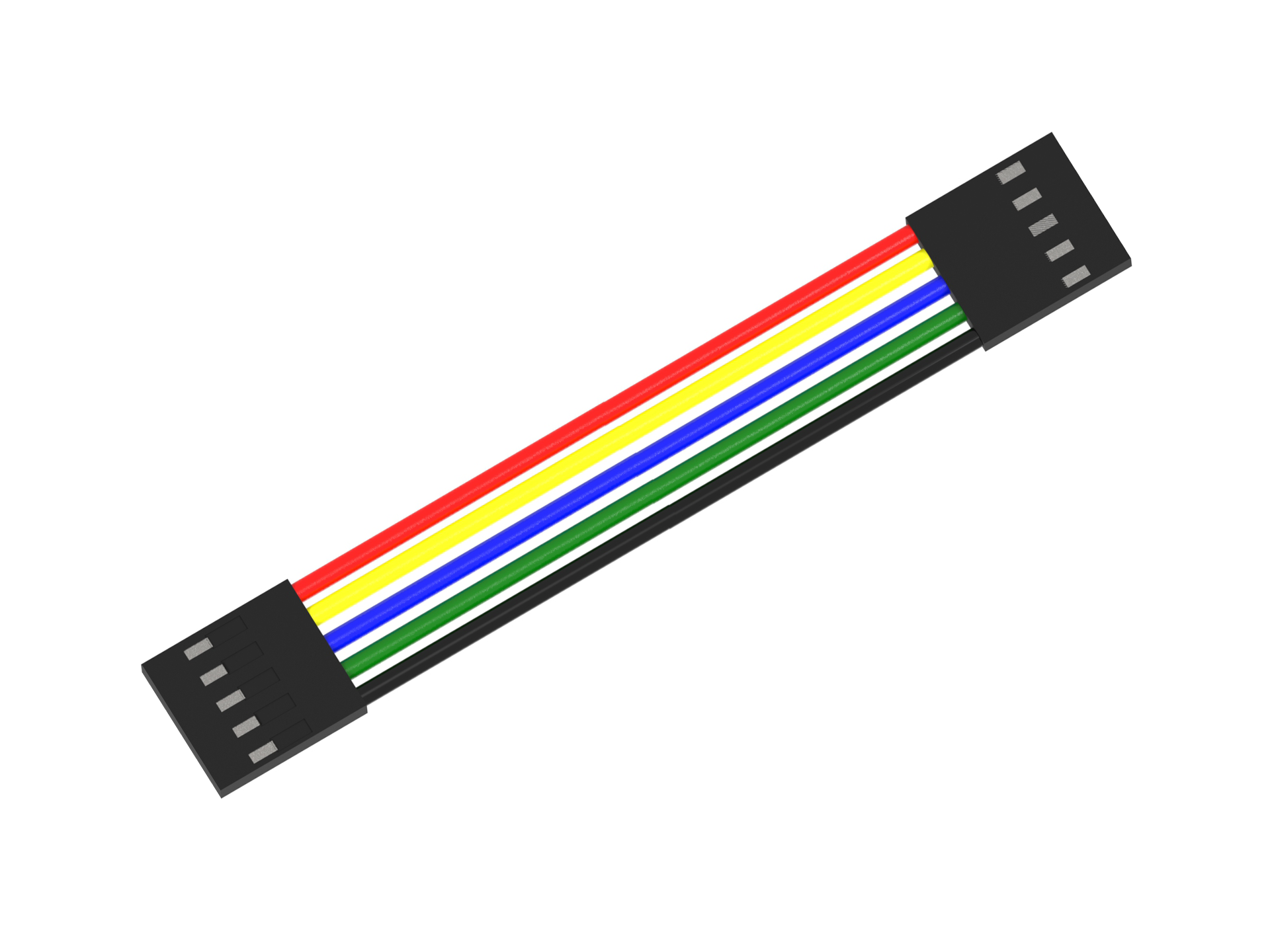

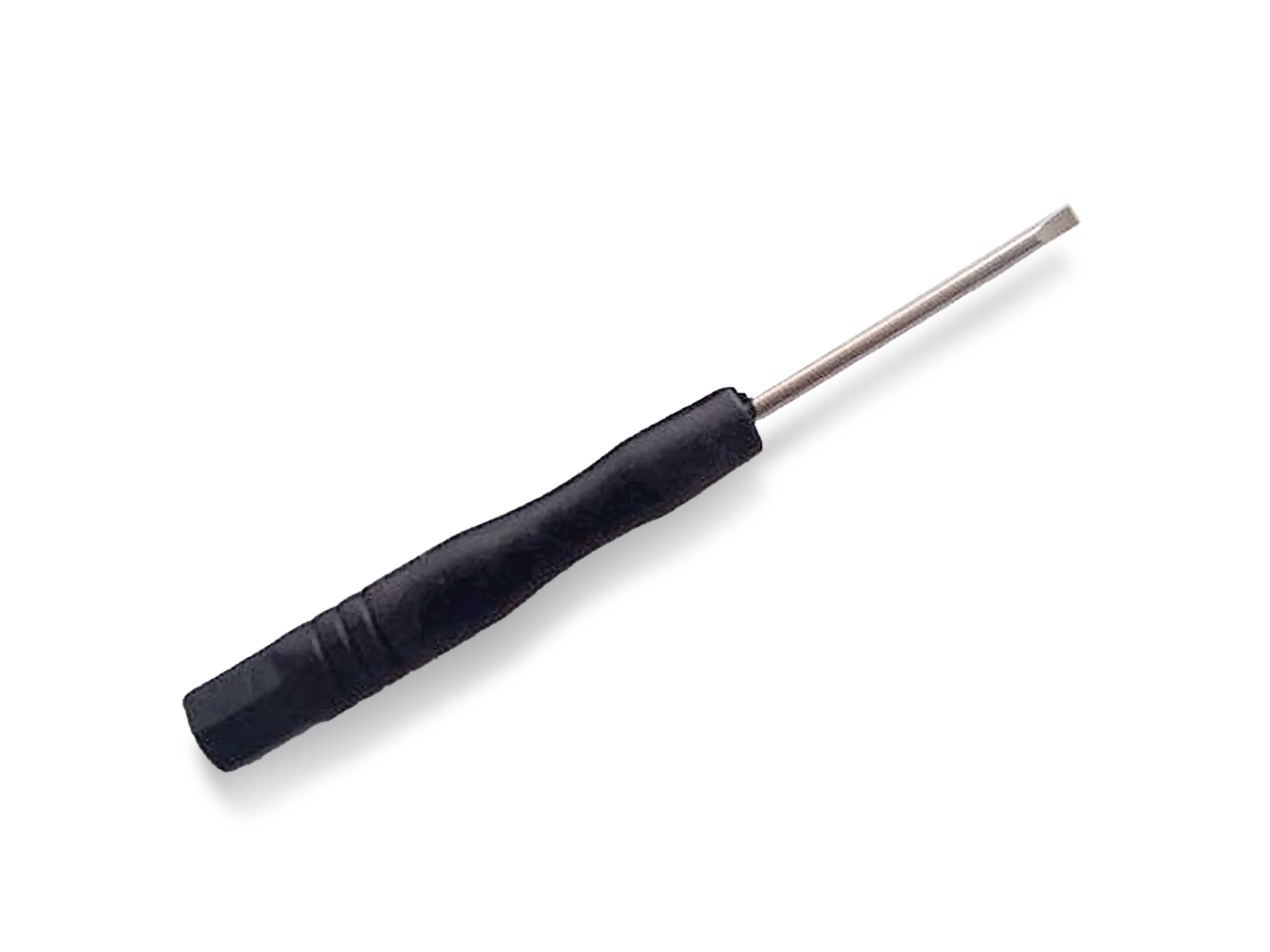

Storage Bag × 1	Gate Insert × 1 (3D printed. random color. Spring joystick only.)	Small flathead screwdriver × 1	Adapter cable × 1

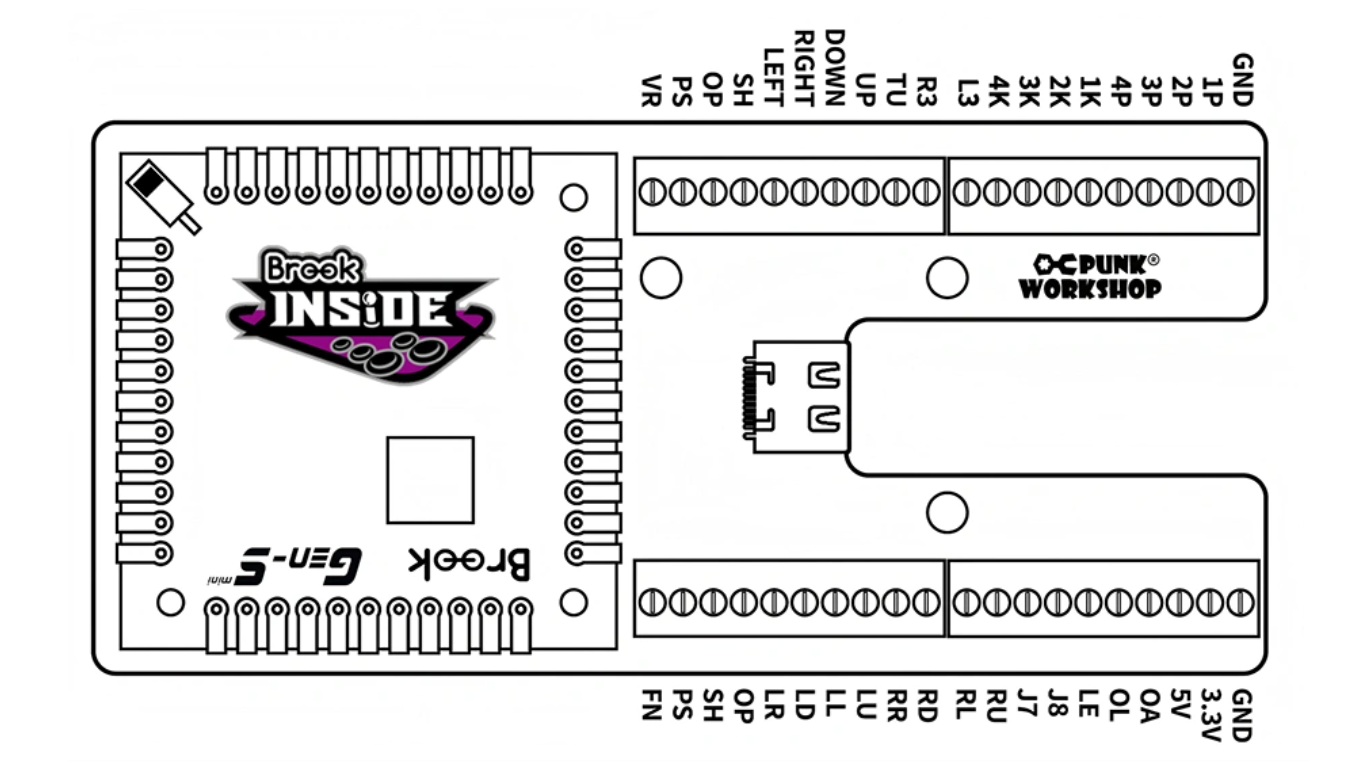

Brook Gen5mini

Optional Motherboards: Brook Gen5mini

Direct Plug & Play: PS5, PS4, PC, Switch

Chip manual available on Brook official website

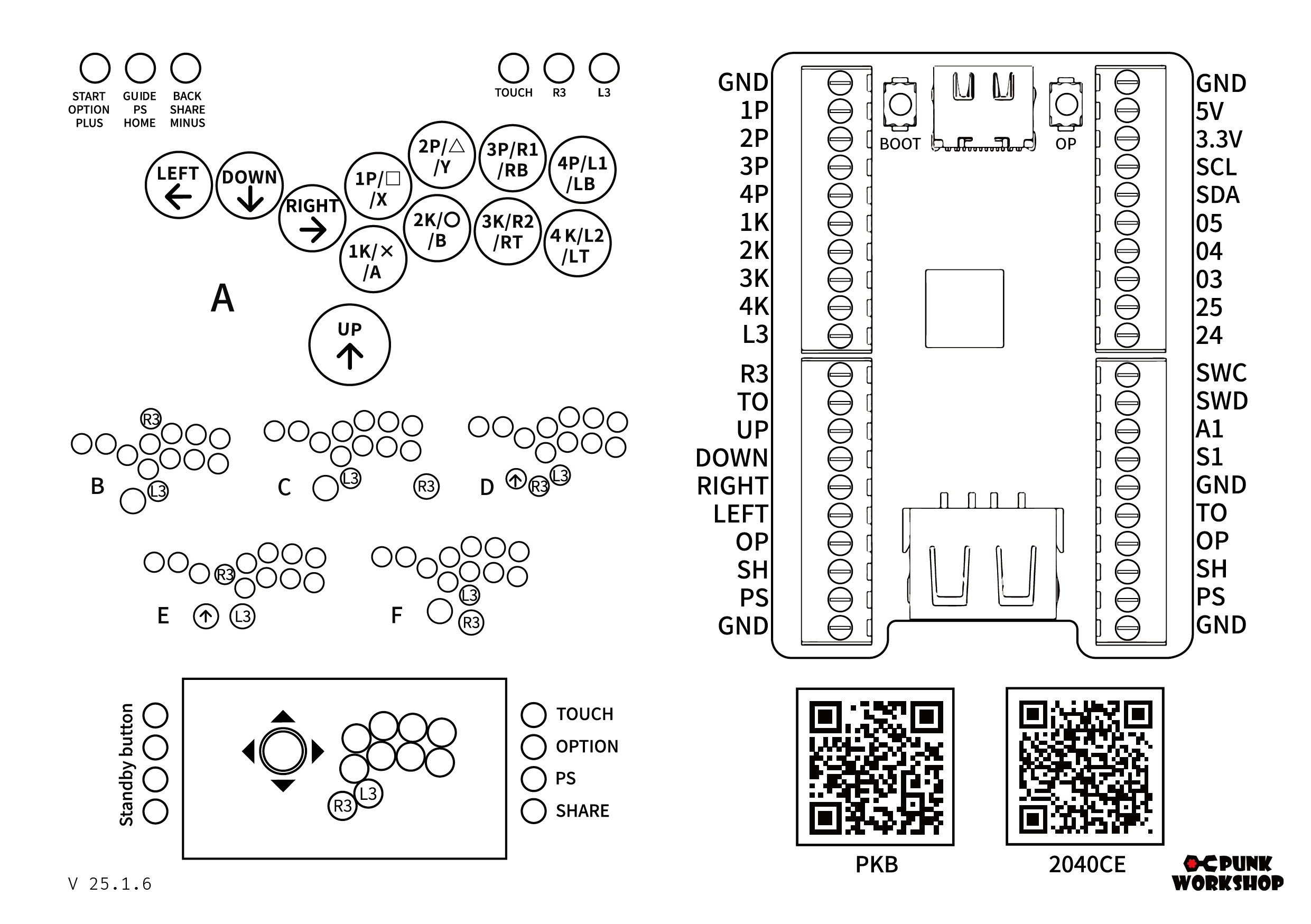

PKB 2040

Full-platform compatible. All combination key functions are disabled by default, with PS mode as default and direct USB connection supported.

Supported consoles: PC, NS, PS5, PS4, XBOX

Special cases: PS5/PS4/XBOX require a validator; NS/XBOX need Web configuration

Web setup: 1. Hold Option key while connecting power. 2. Visit 192.168.7.1 to select mode

Resource Download: https://www.123684.com/s/H7lbTd-xhjhd
Production cycle: 1~2 weeks
Transportation time: 1~2 weeks
