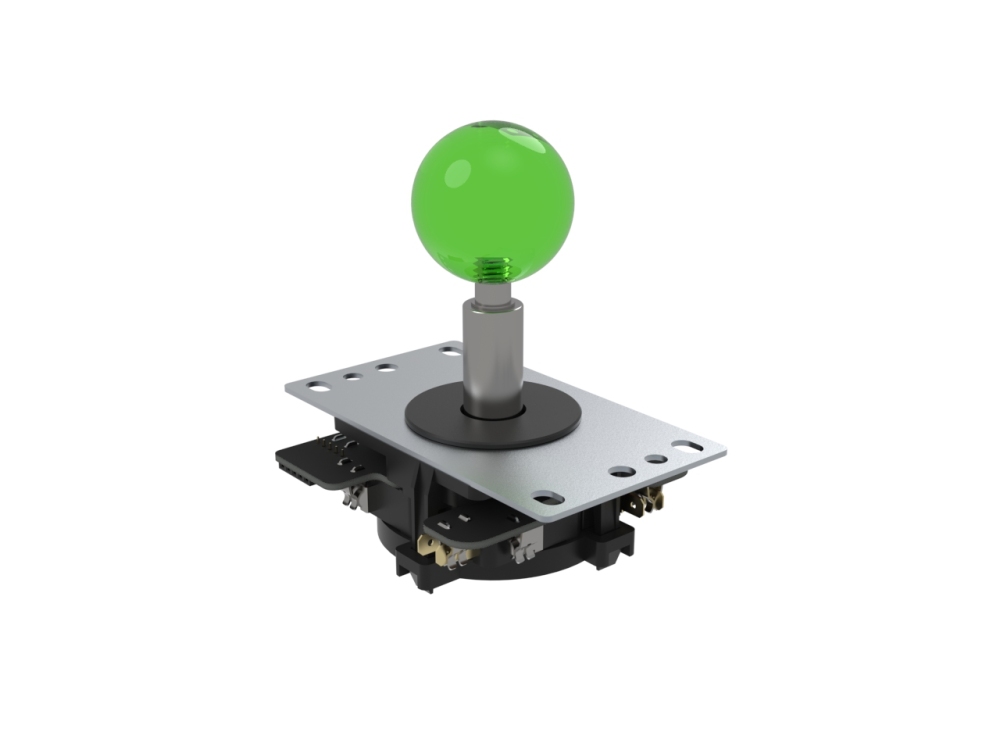

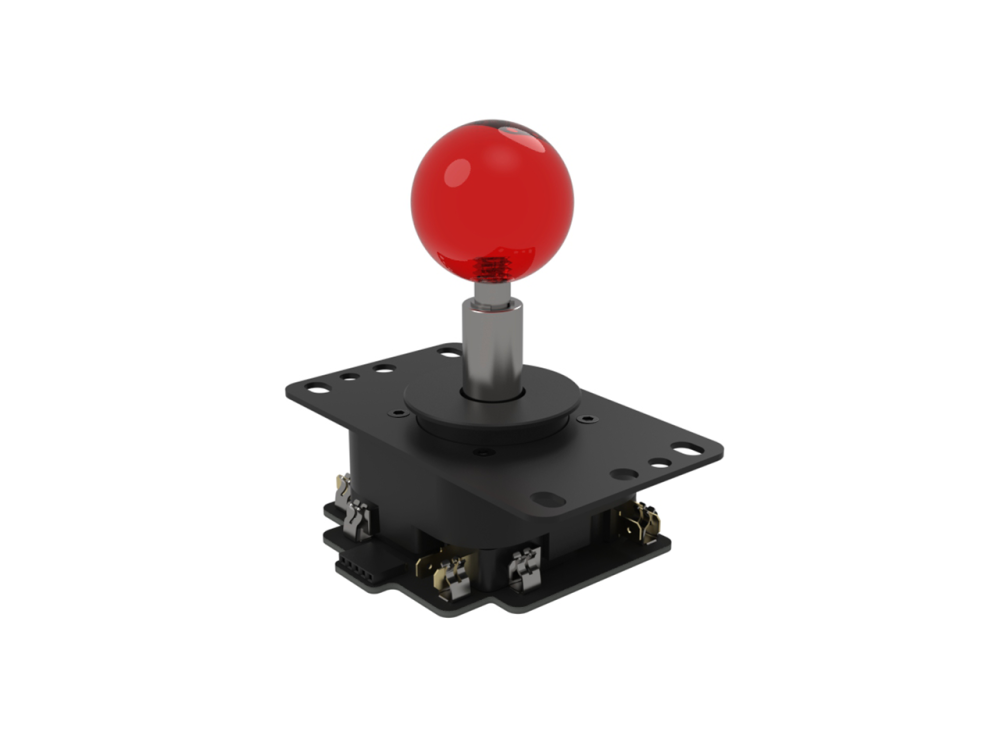

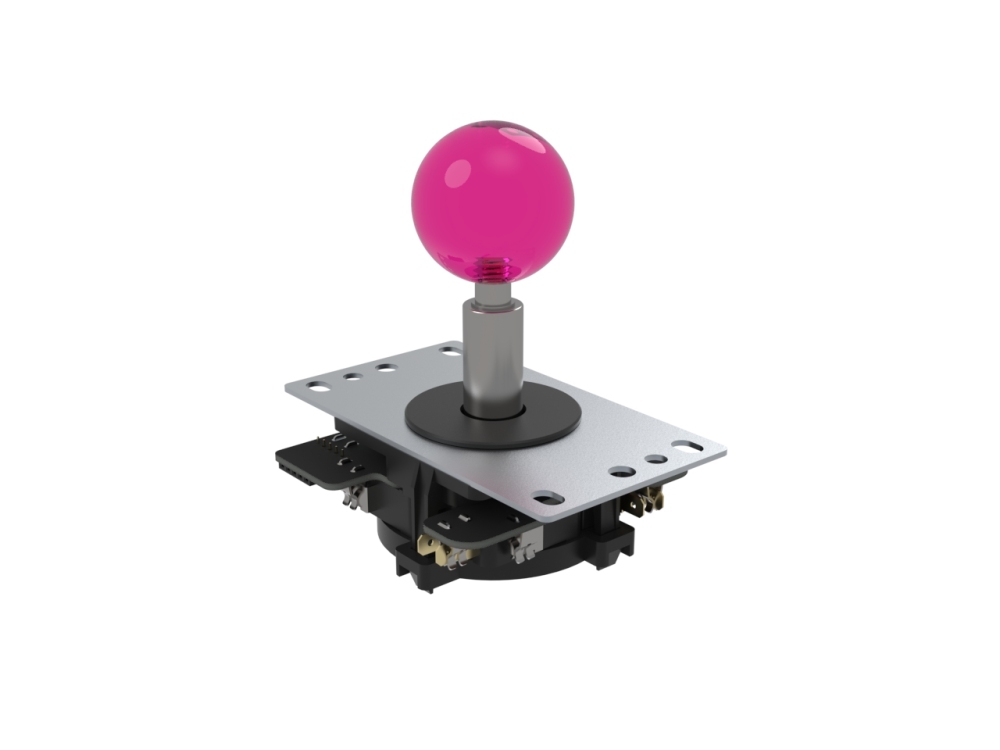

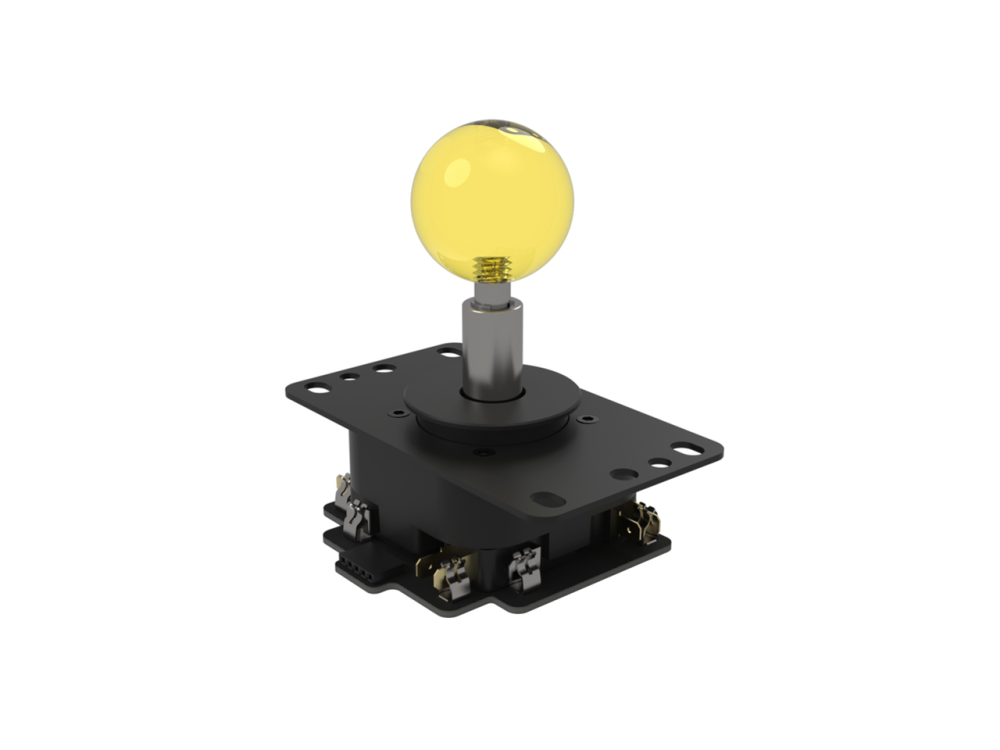

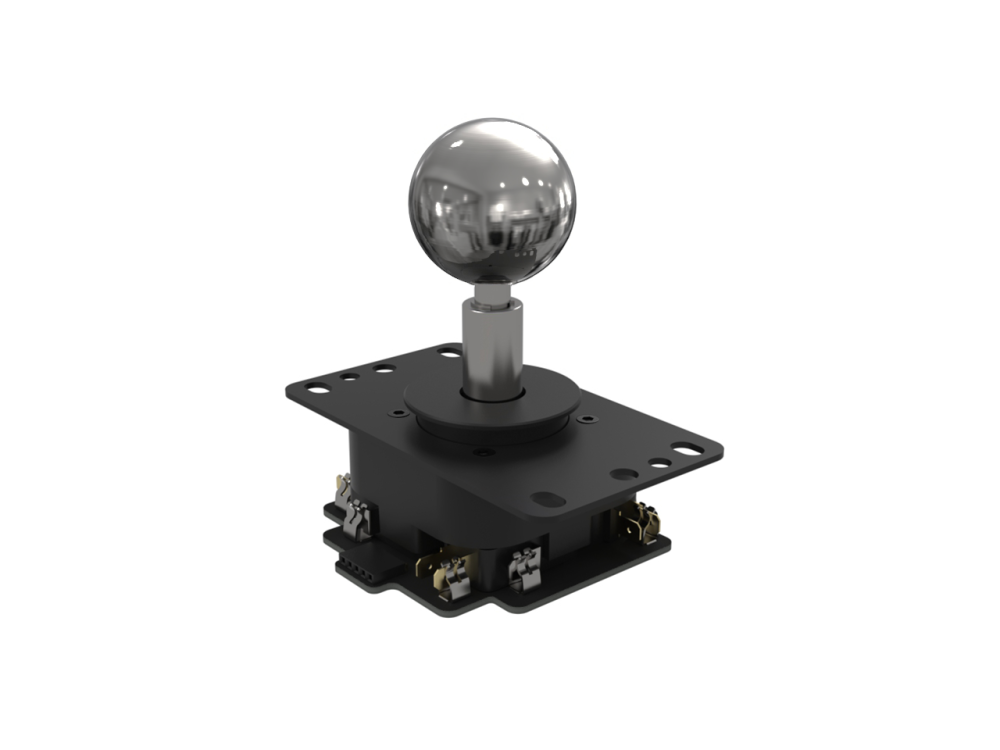

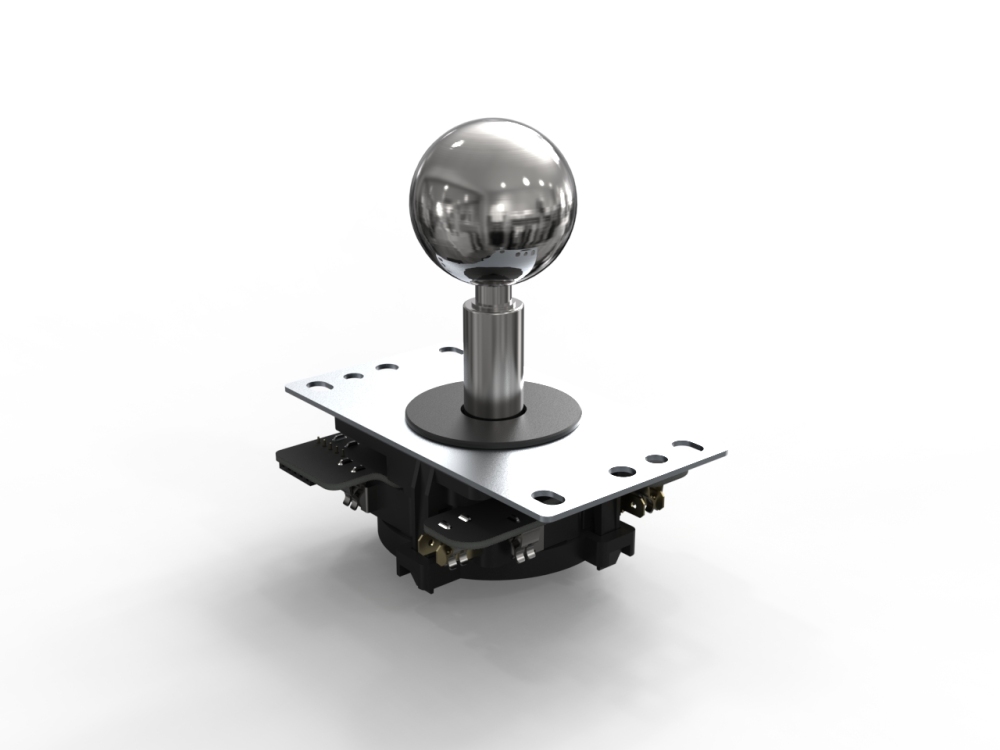

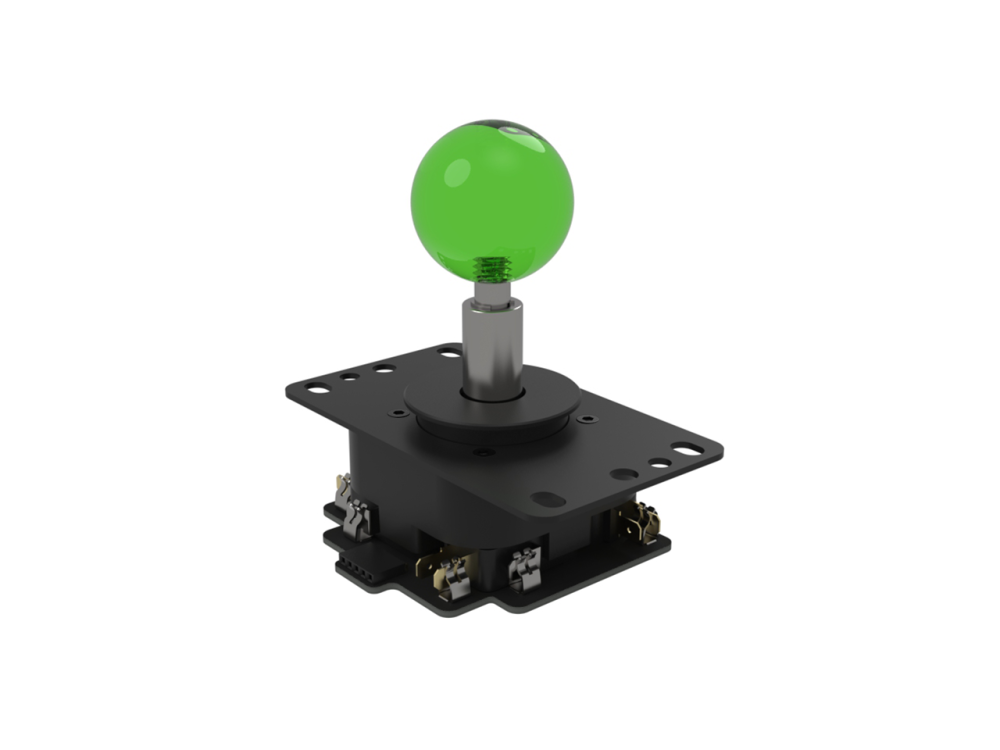

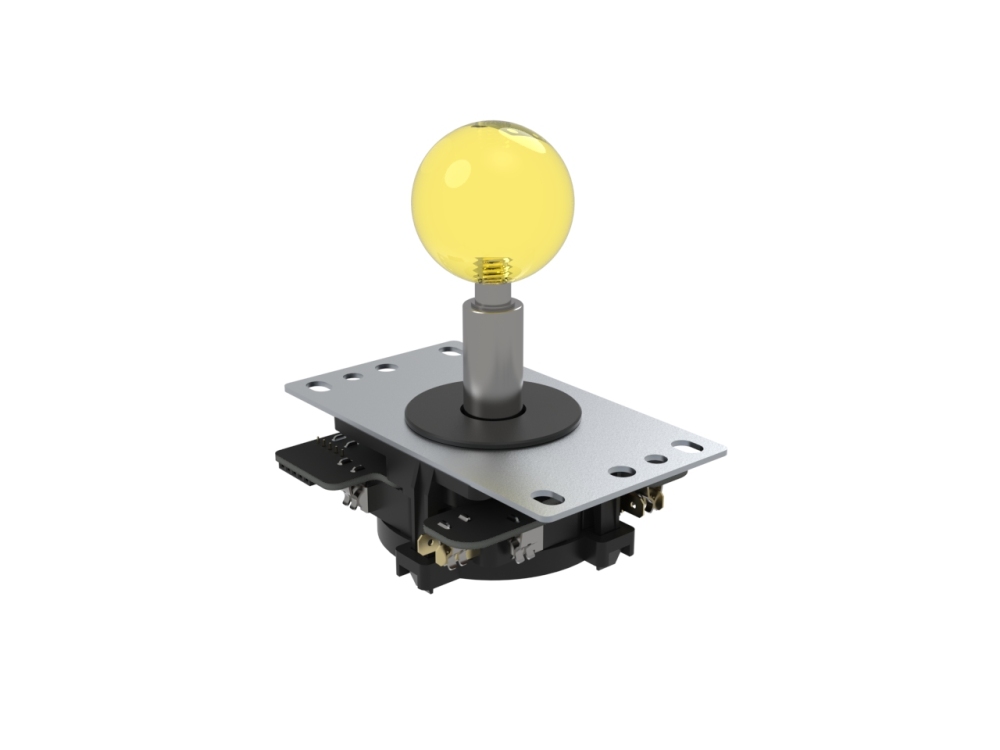

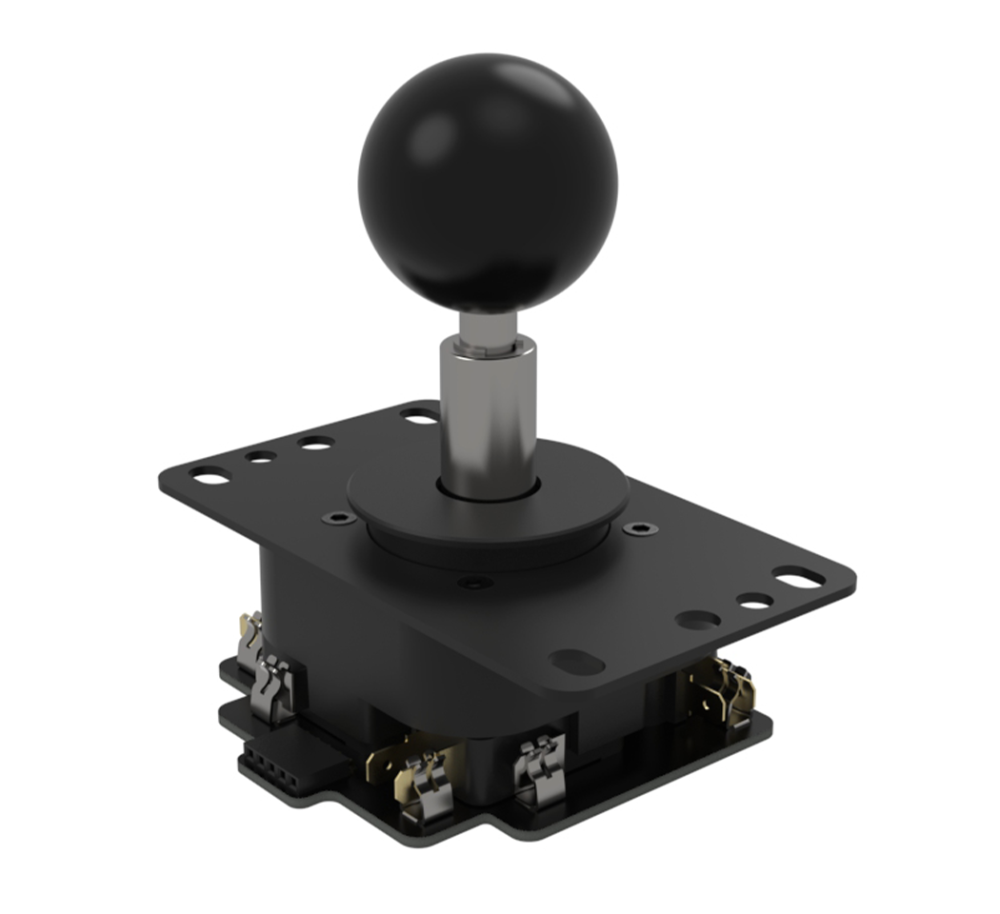

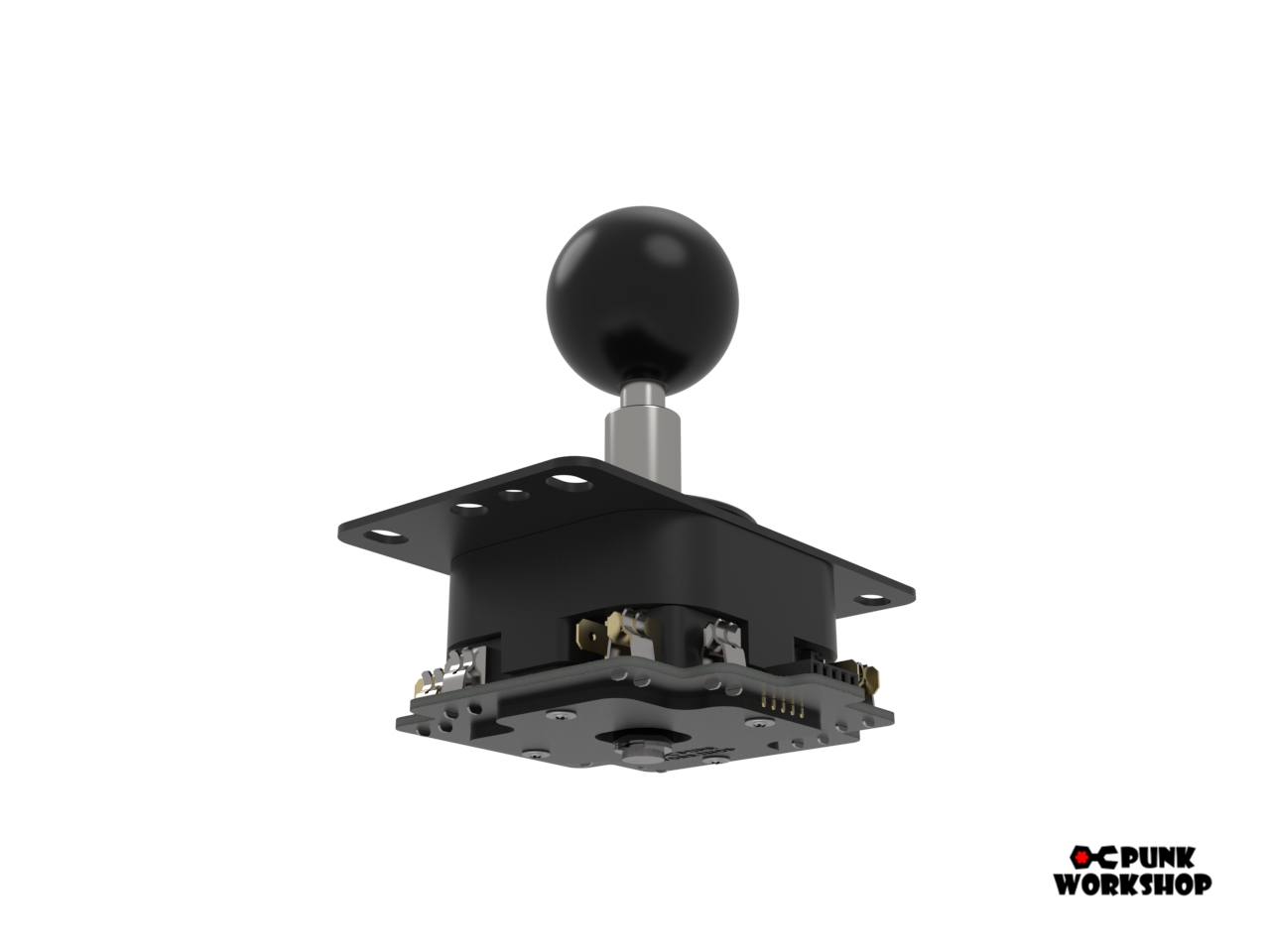

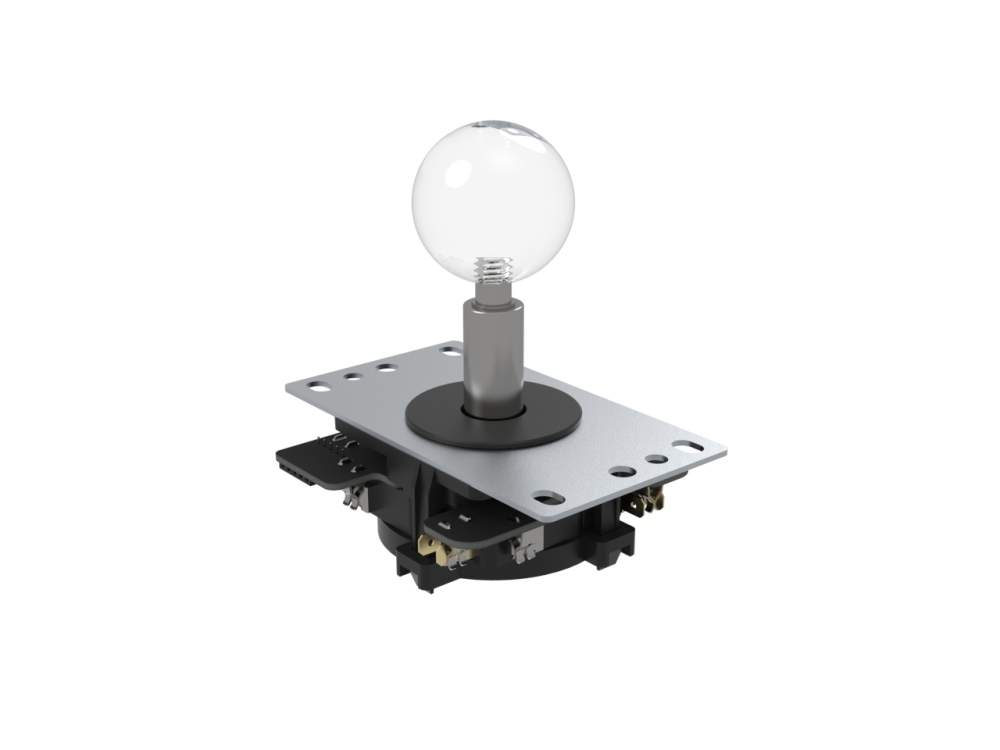

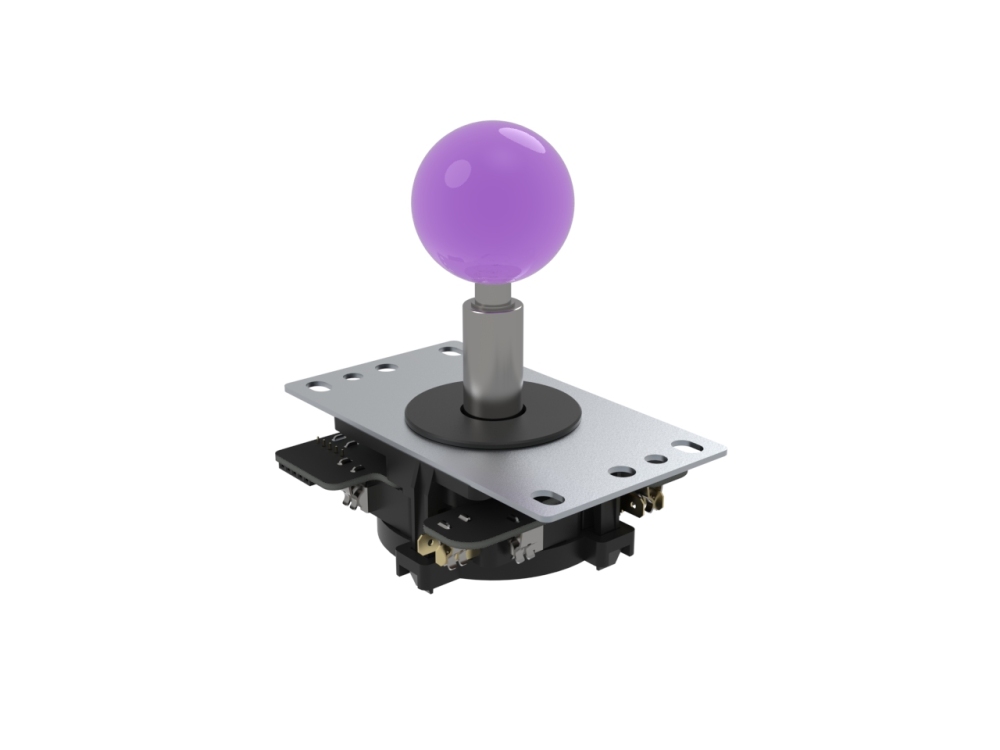

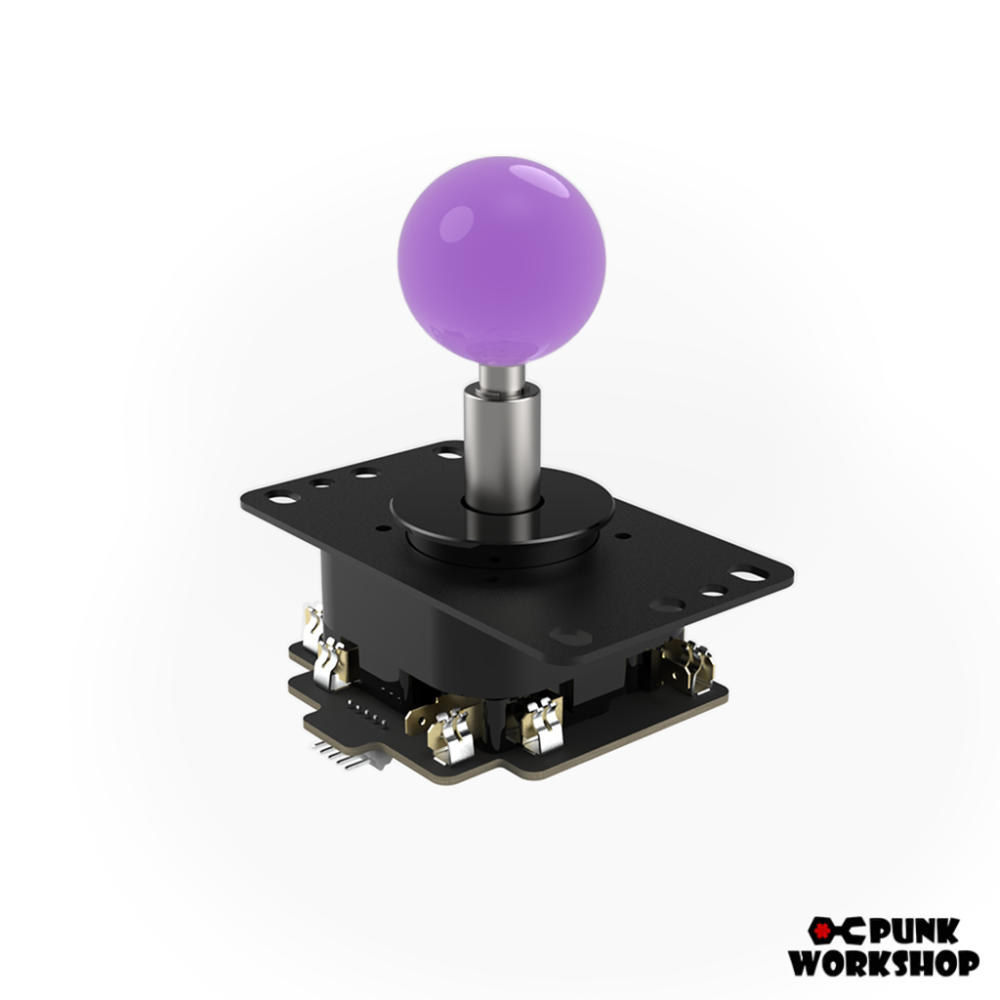

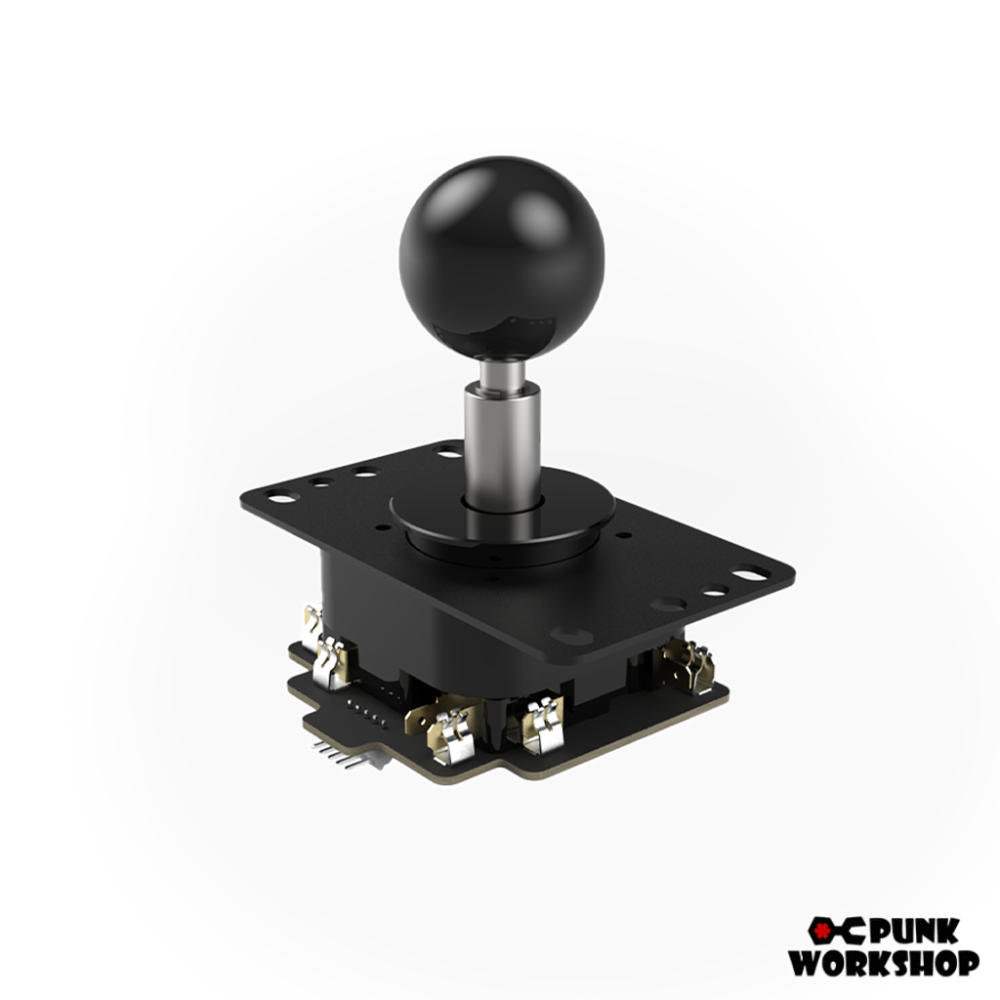

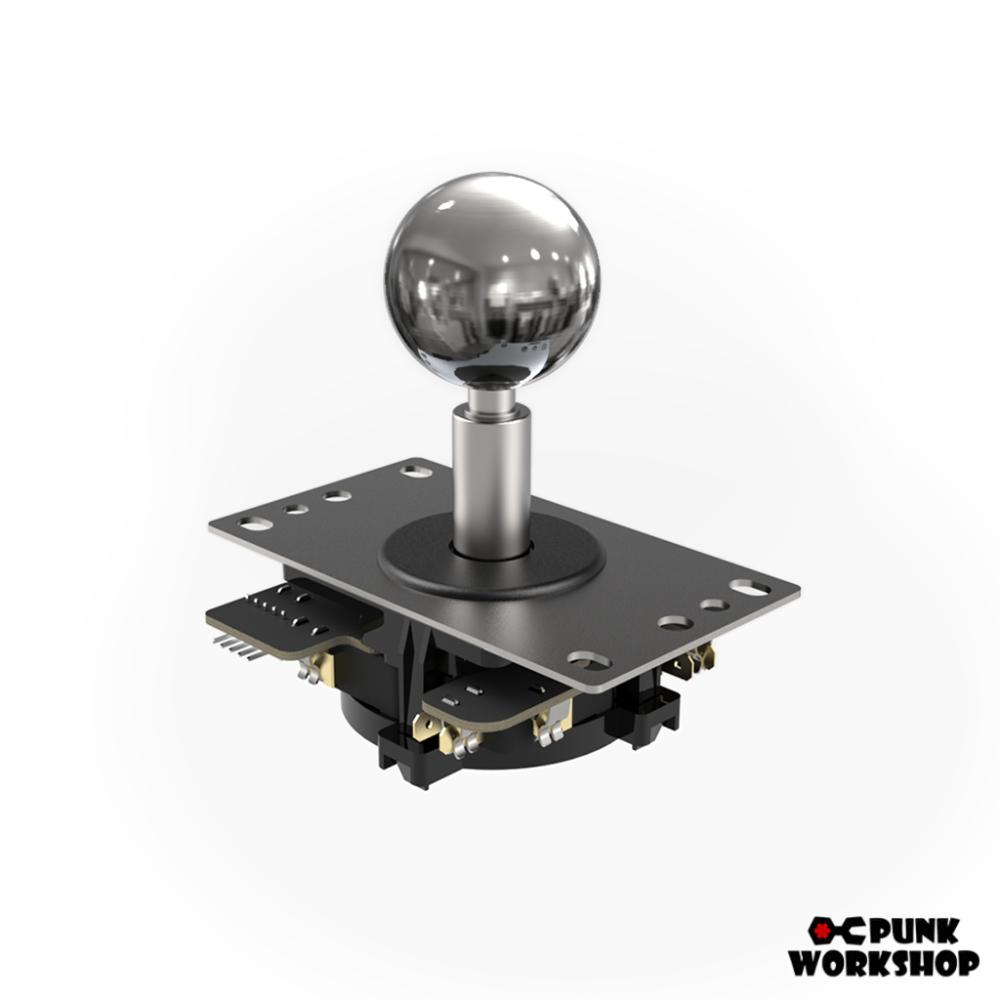

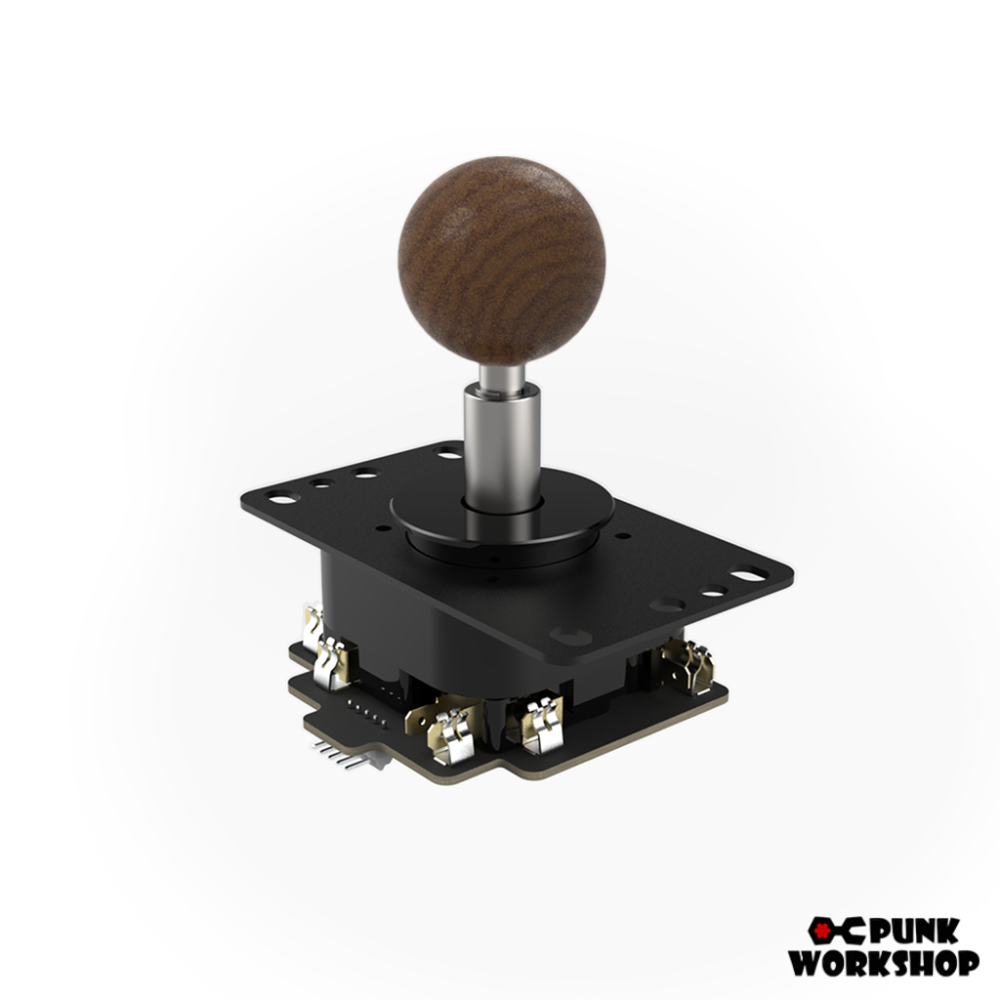

PWS joystick

Name: PWS joystick
Brand: PUNK WORKSHOP
Price: 20 USD
Availability: InStock

~~$20.00~~ $20.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET 5% OFF ON ORDERS OVER $300.00
GET 10% OFF ON ORDERS OVER $500.00
GET 15% OFF ON ORDERS OVER $1,000.00

Please select the information you want X

class:

spring

silicone rubber

Square Gate -R

Octagonal Gate -R

Square Gate -S

Octagonal Gate -S
color:

black

Transparent

Transparent red

Transparent blue

Transparent green

transparent yellow

Transparent purple

Transparent pink

Transparent orange

Walnut

Stainless steel

Quantity:

twitter

1/1

PWS joystick

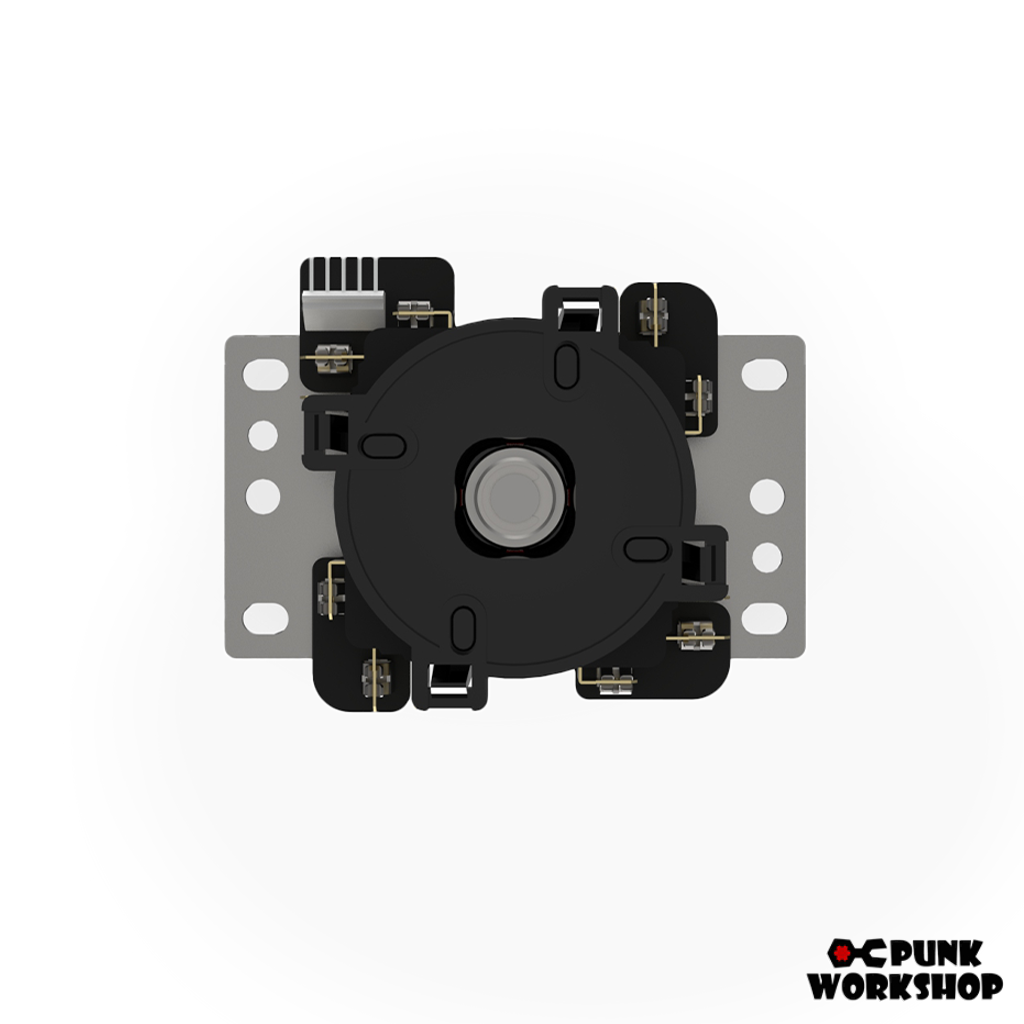

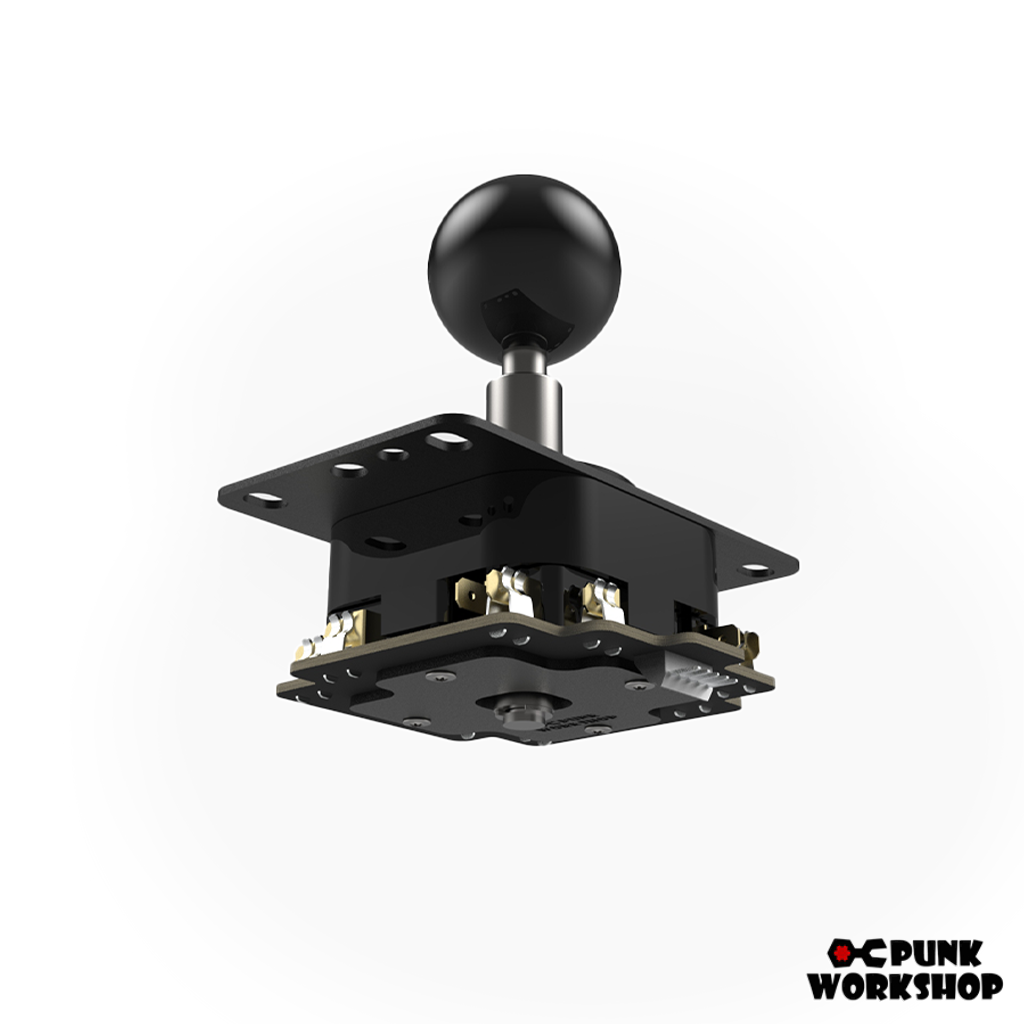

The joystick and switch can be freely disassembled
5-pin socket

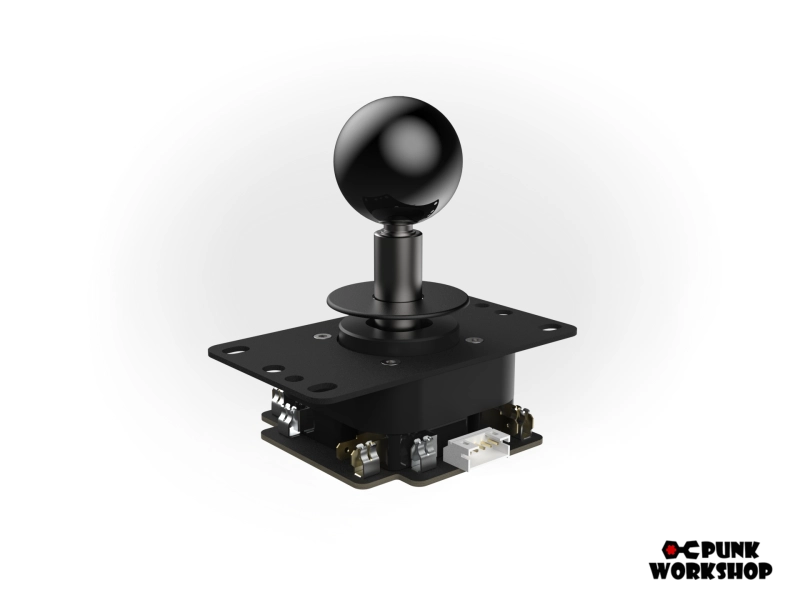

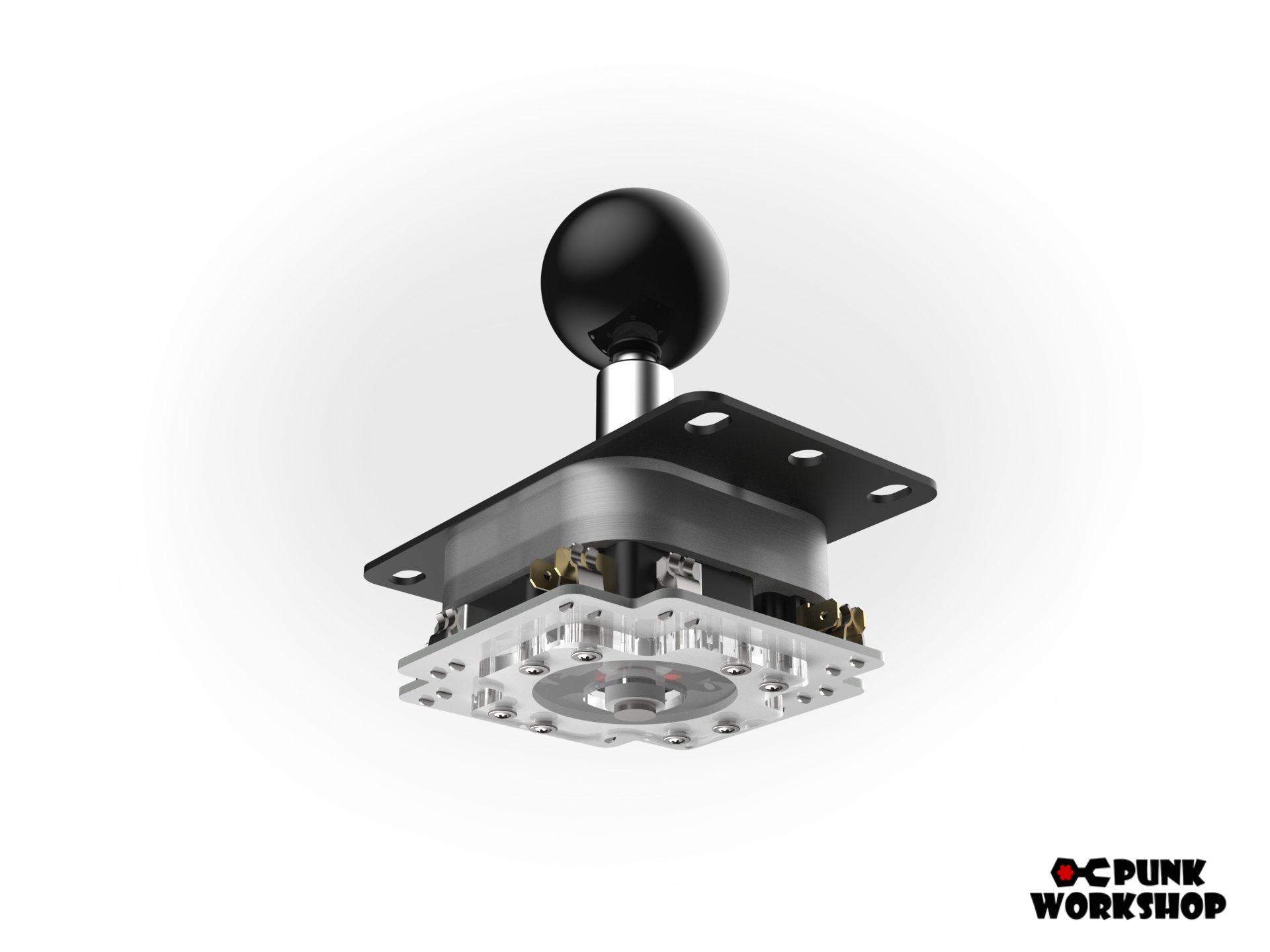

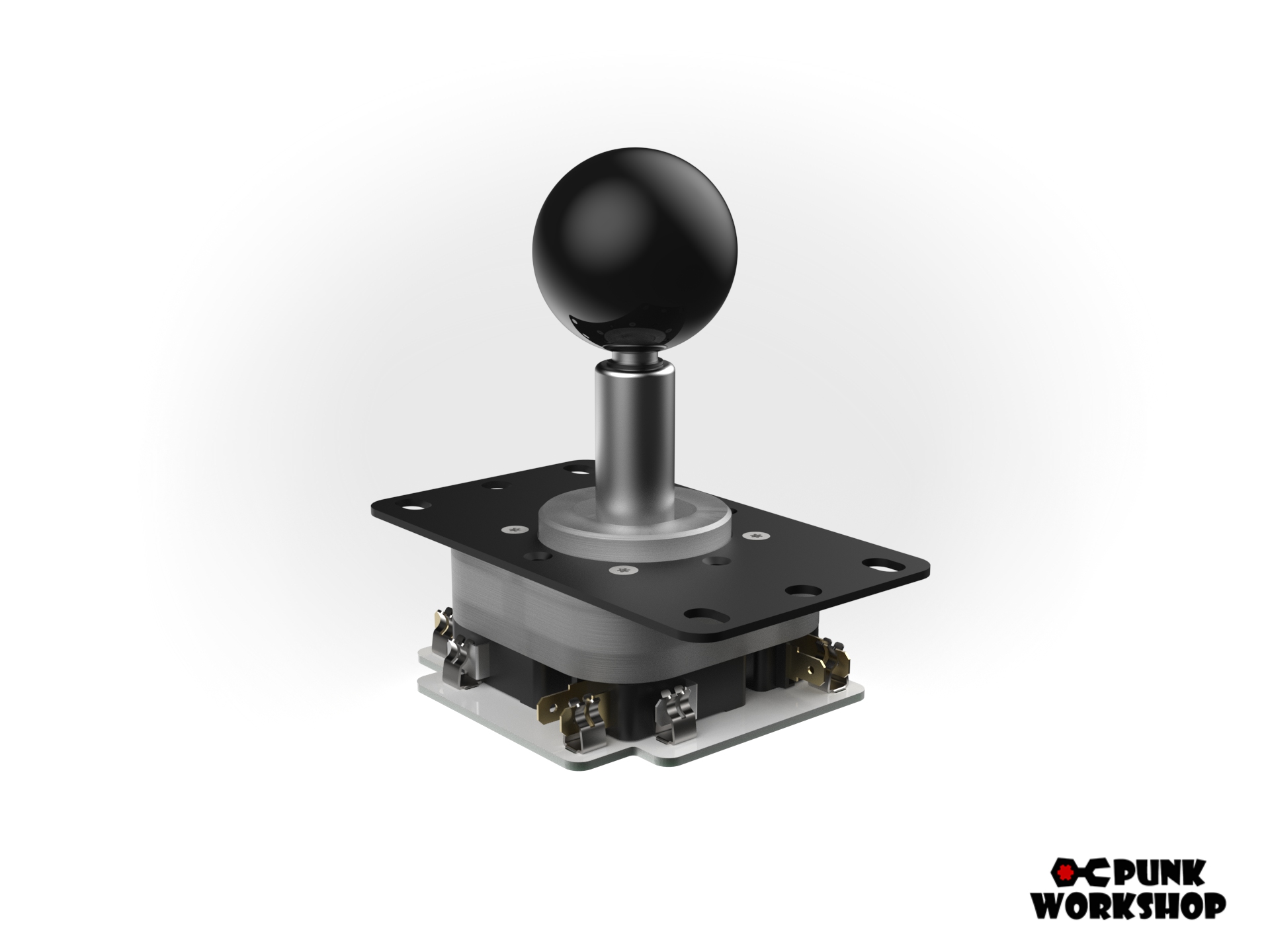

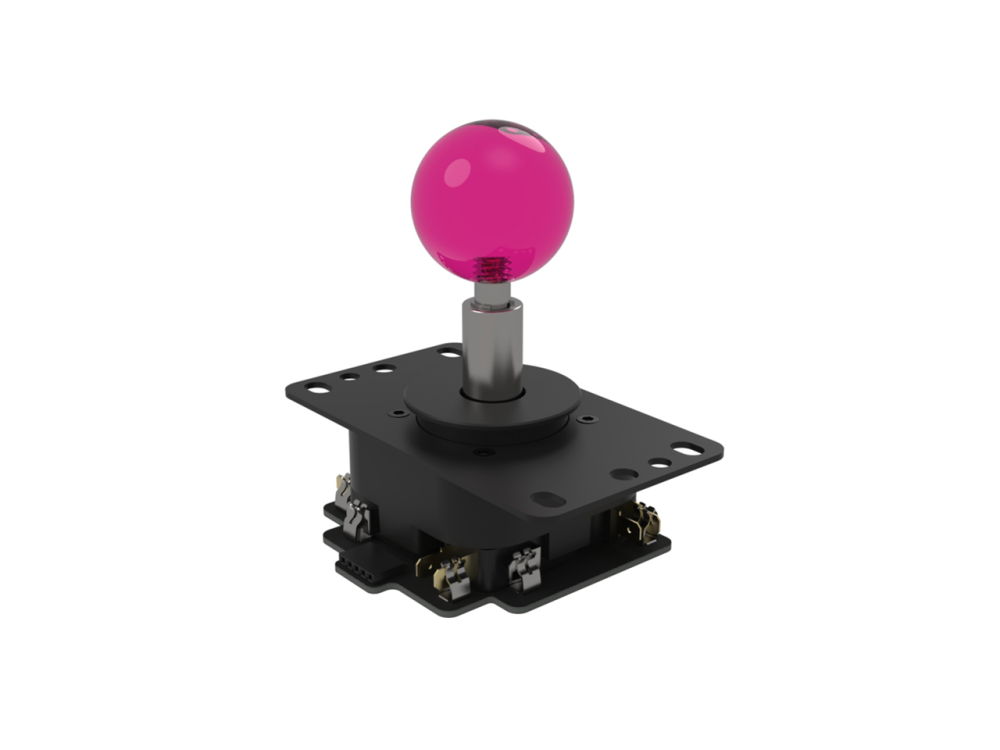

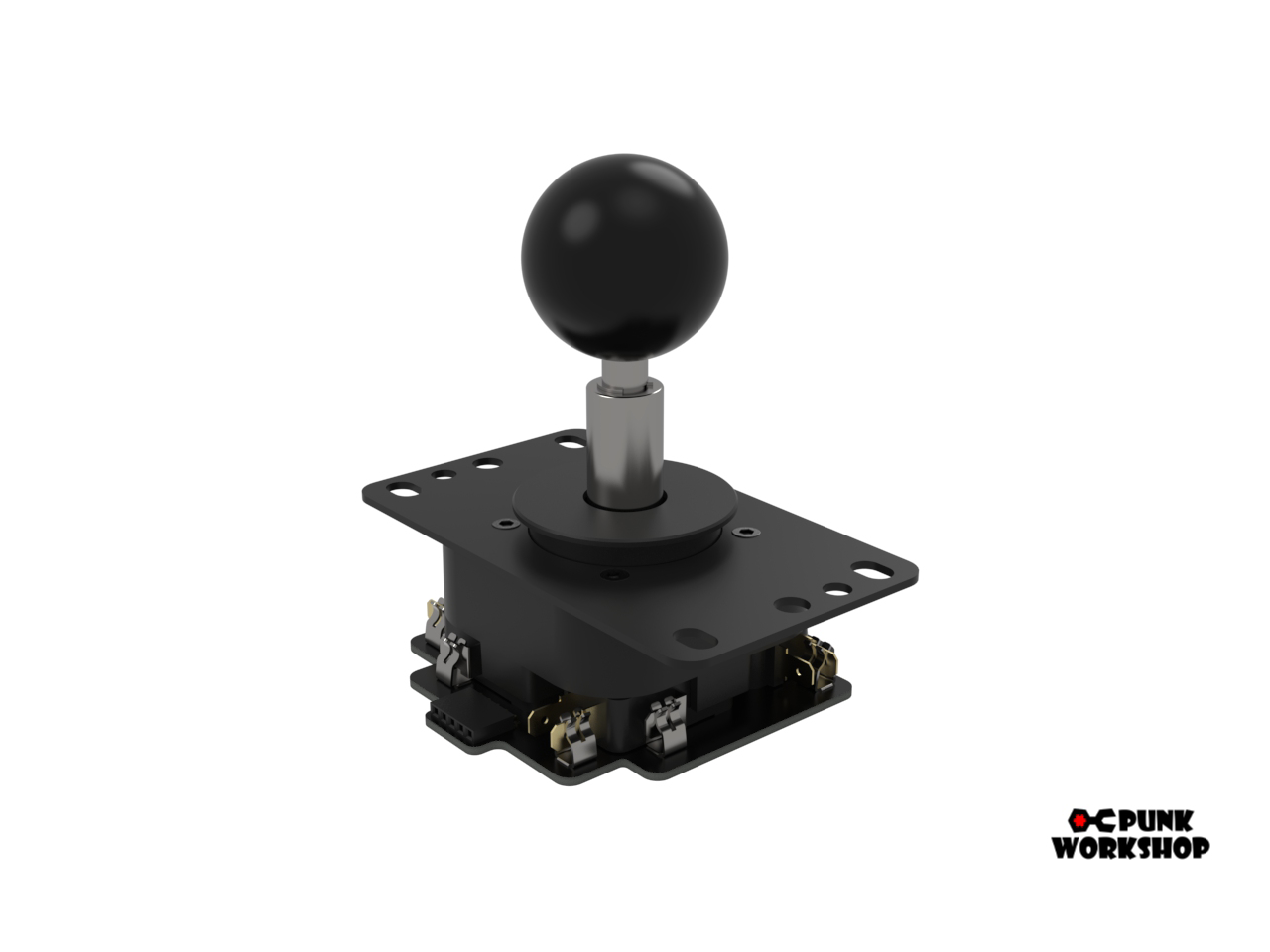

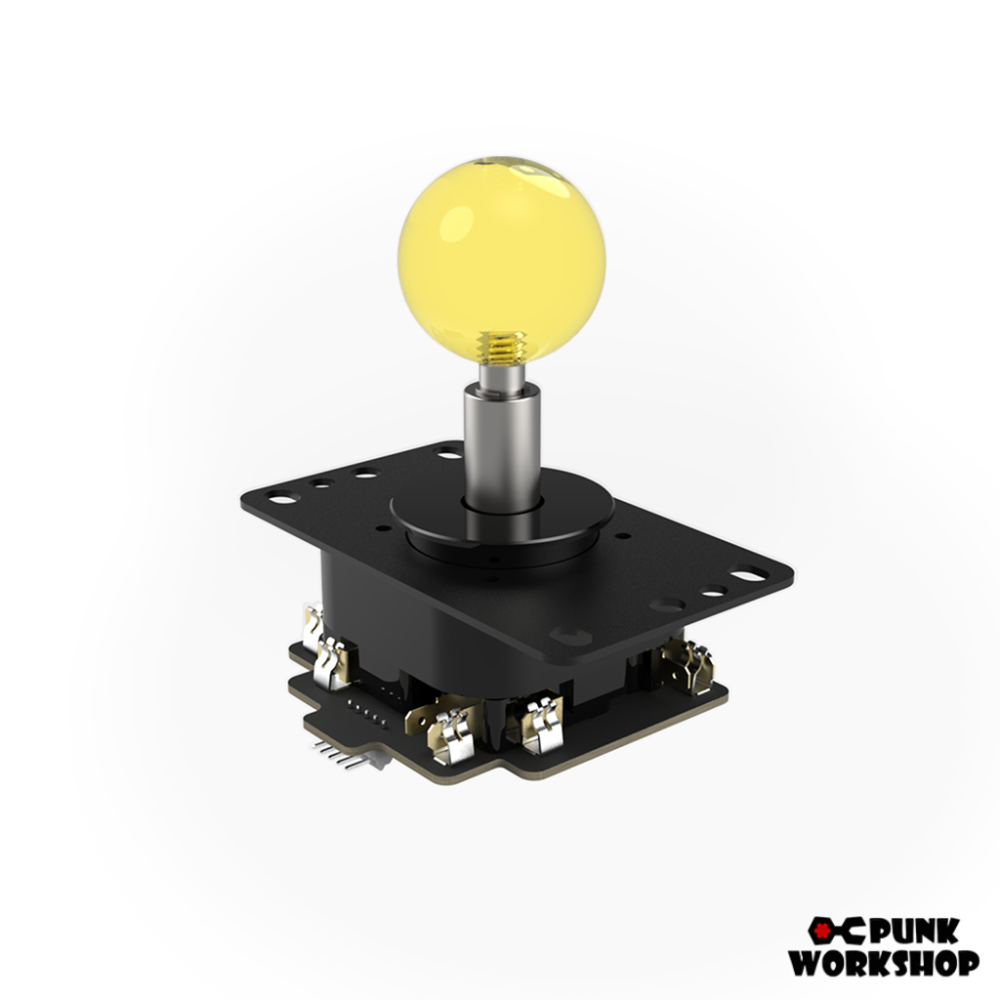

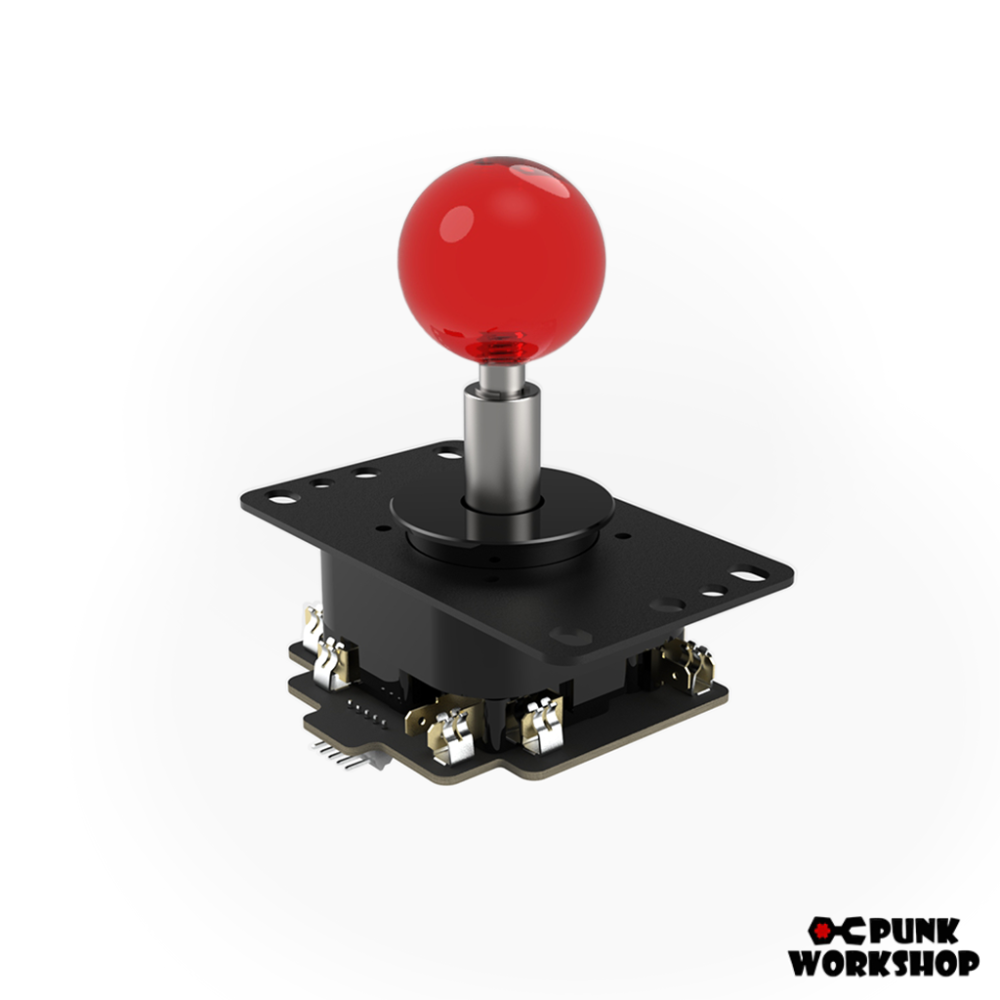

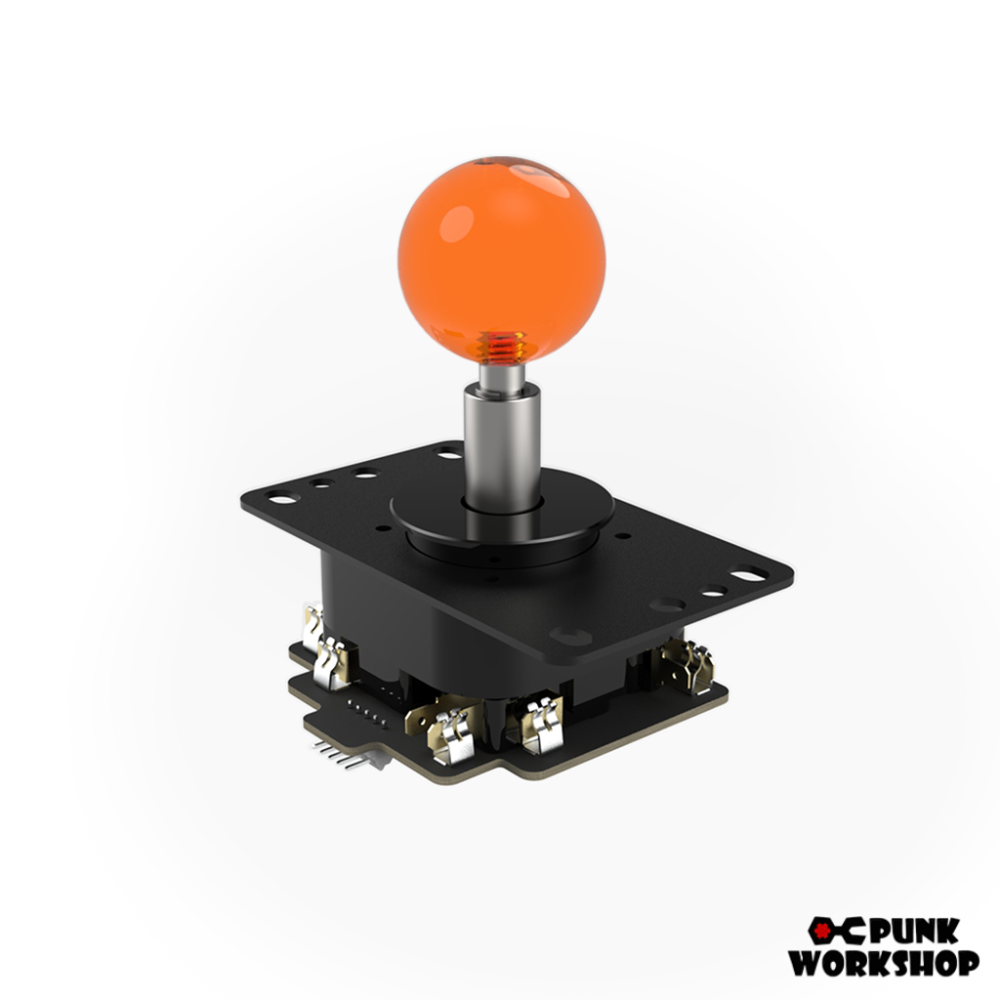

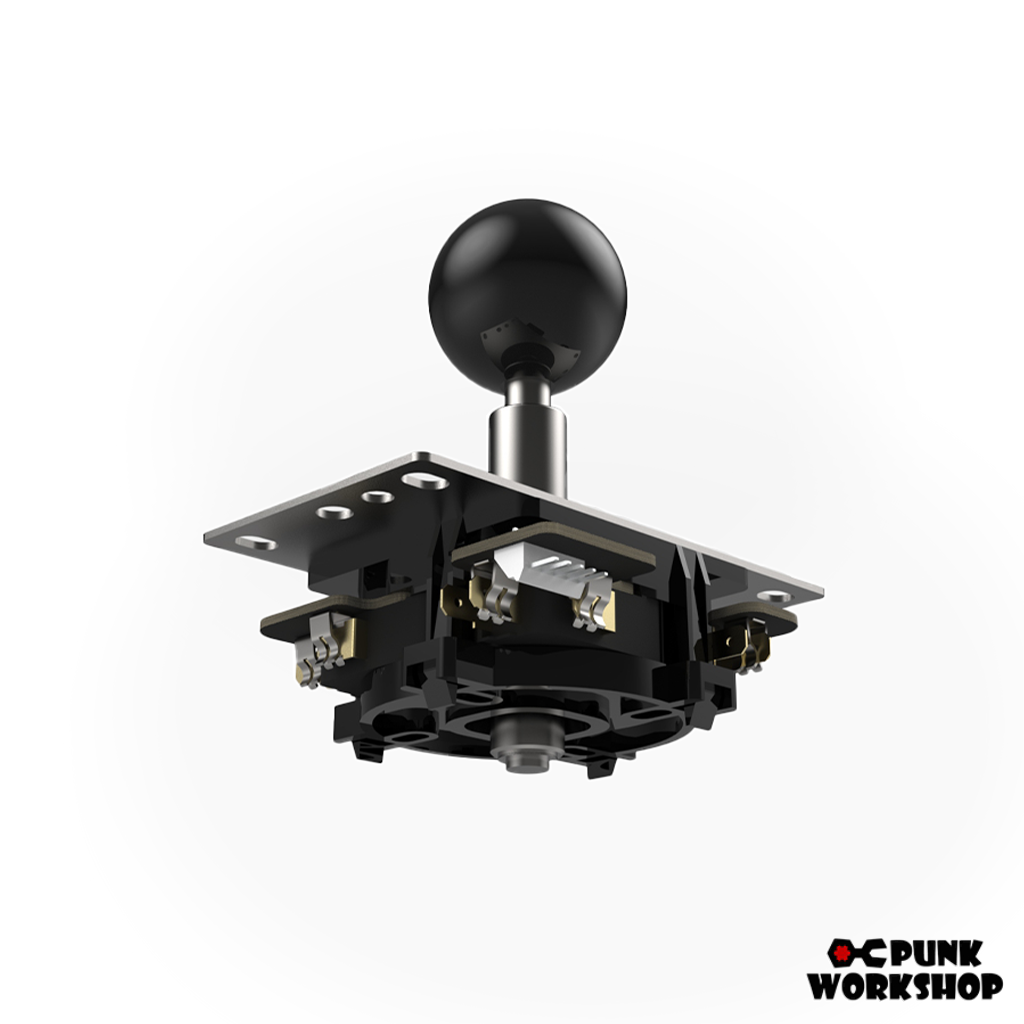

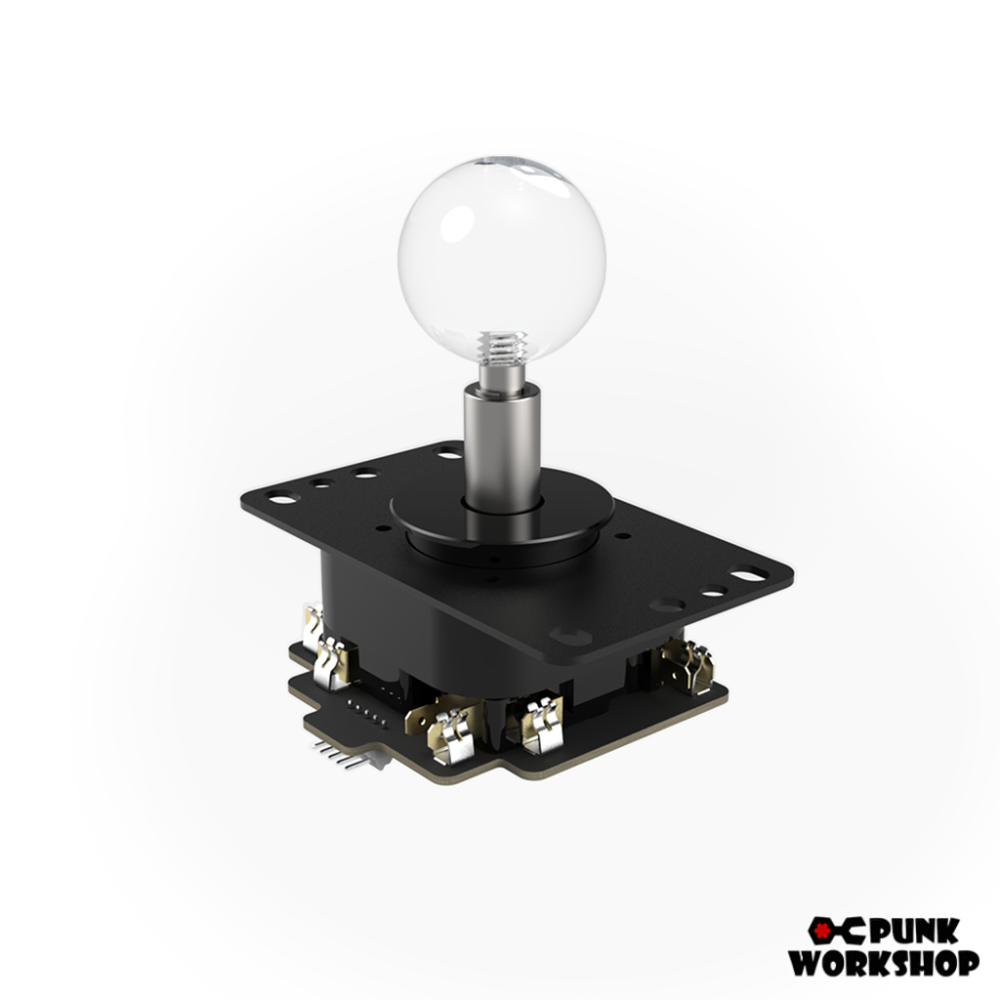

Silicone Spring Joystick
The PWS Silicone Spring Joystick is a new-type joystick specially designed by Punk Workshop. It features excellent rebound speed and a relatively small trigger angle.

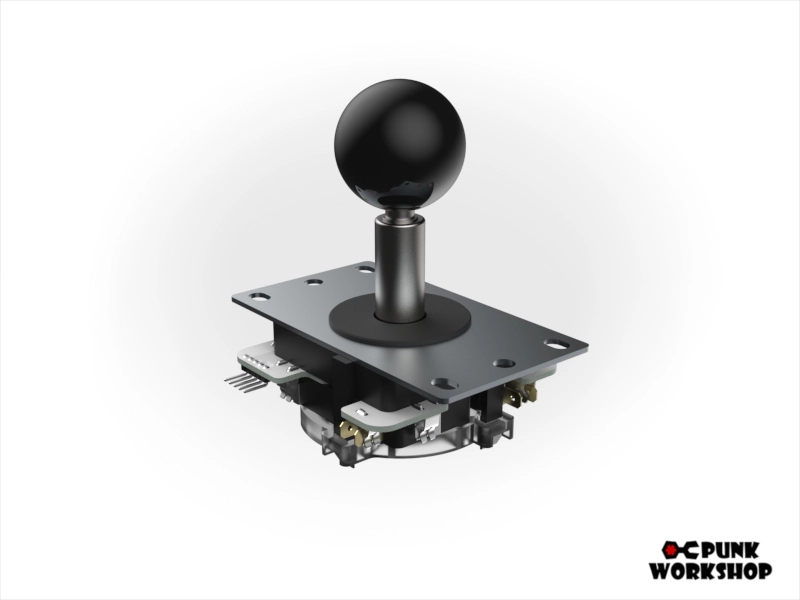

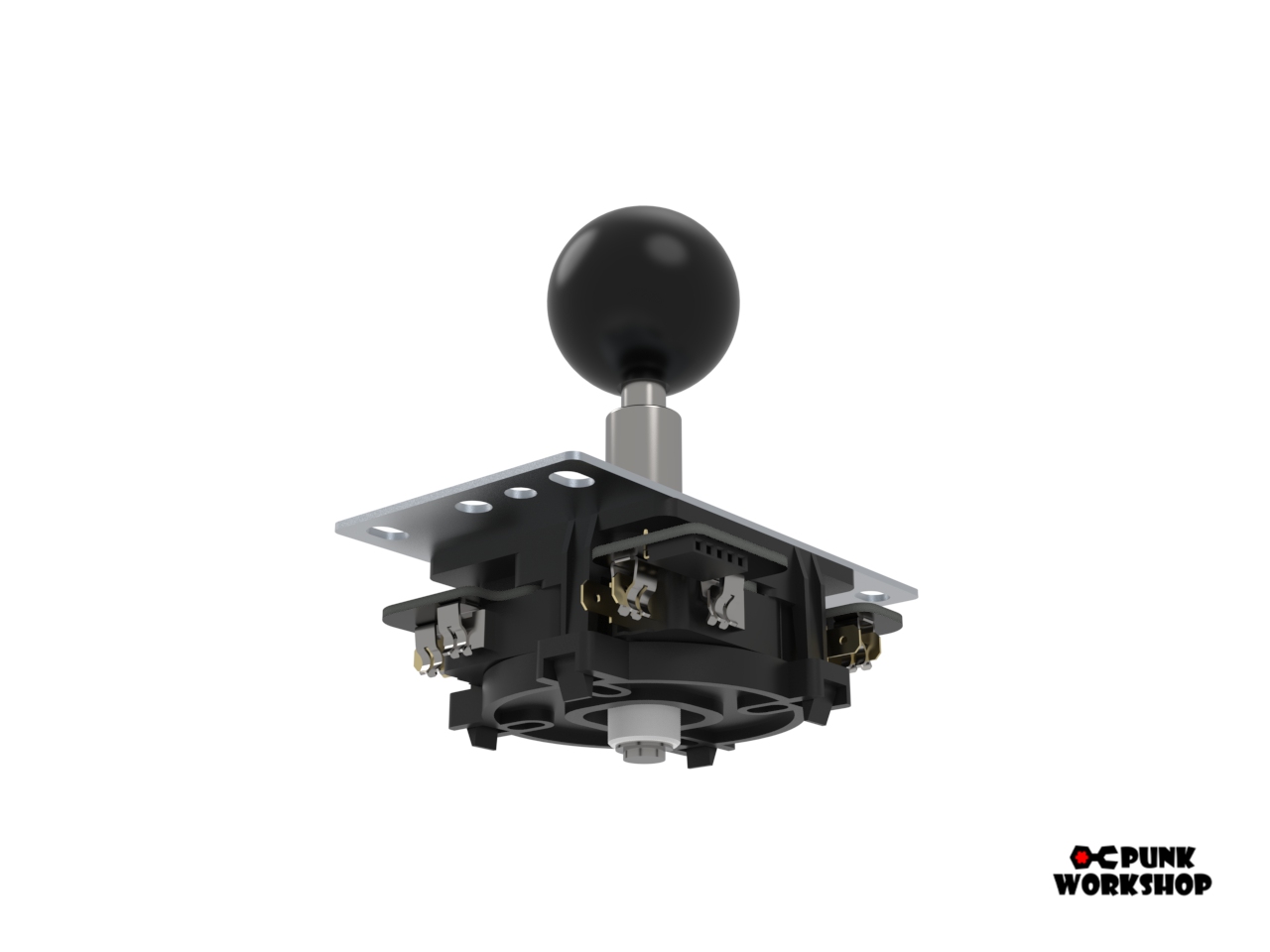

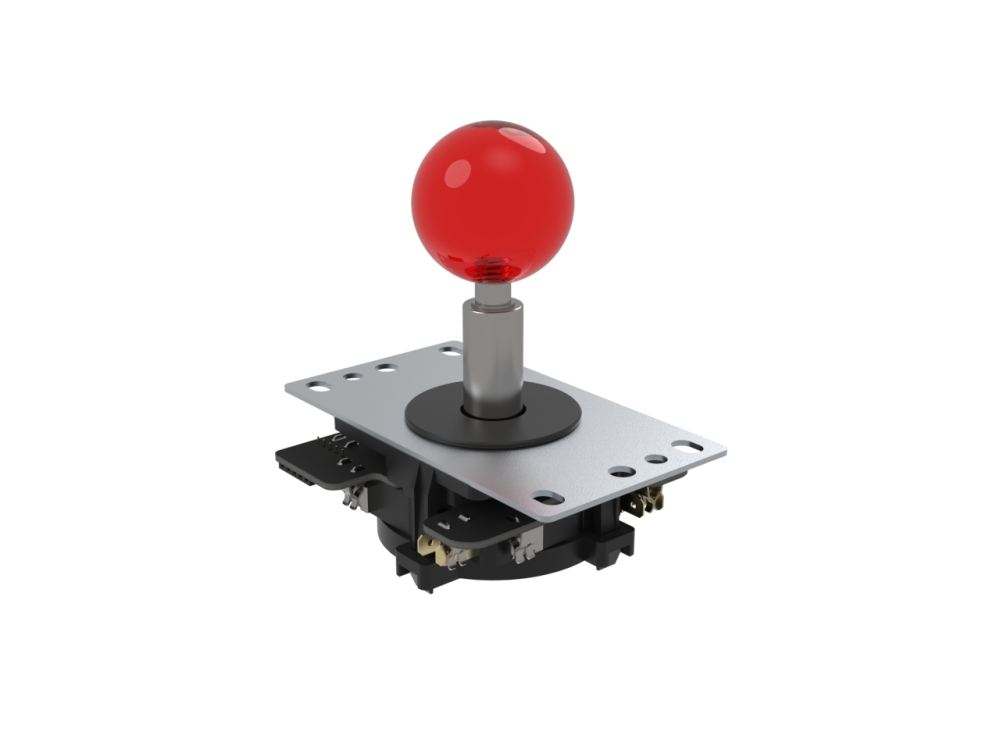

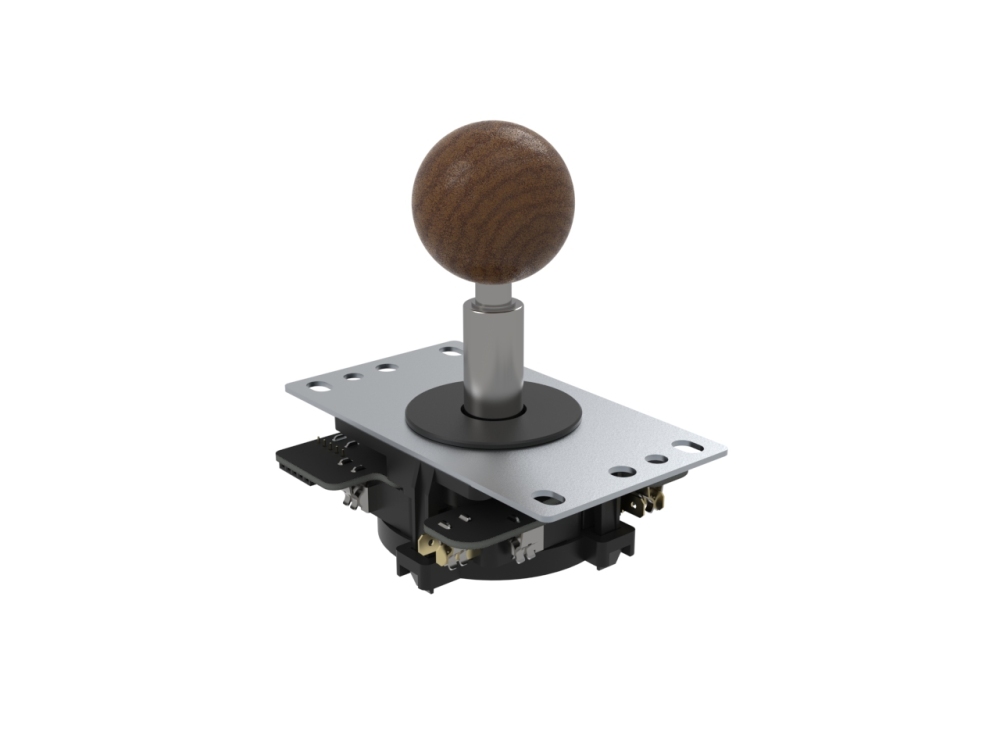

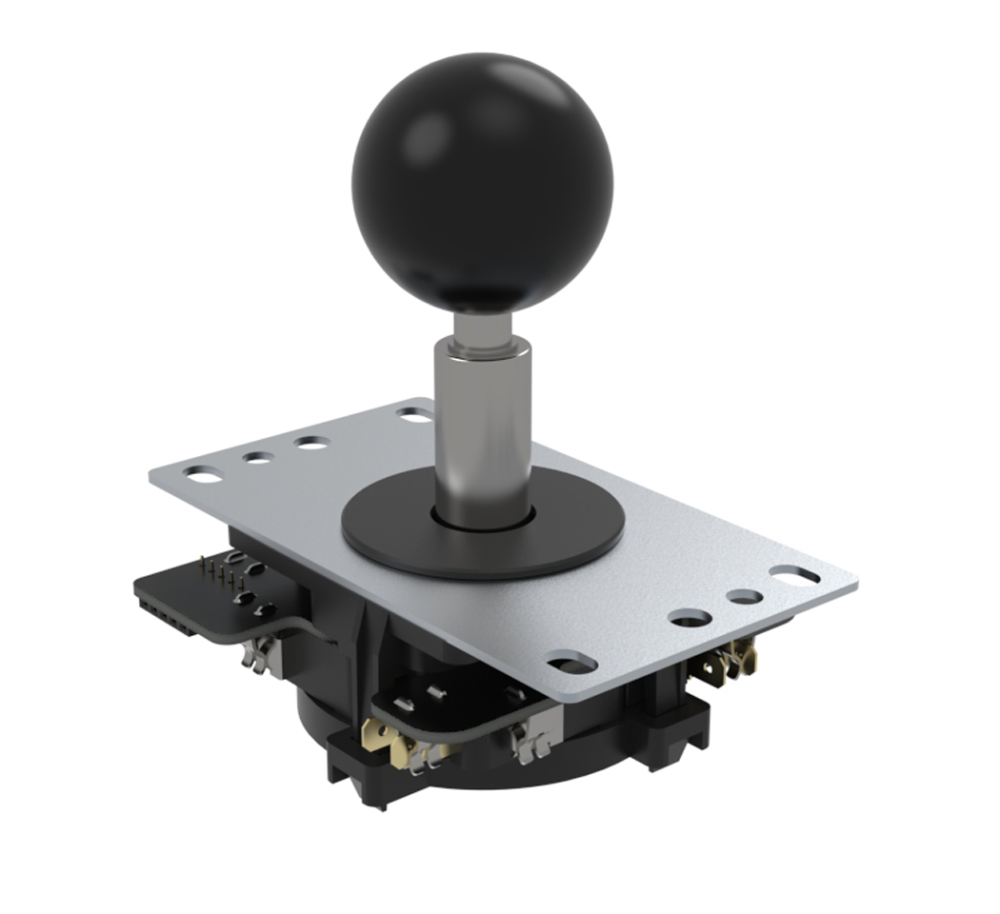

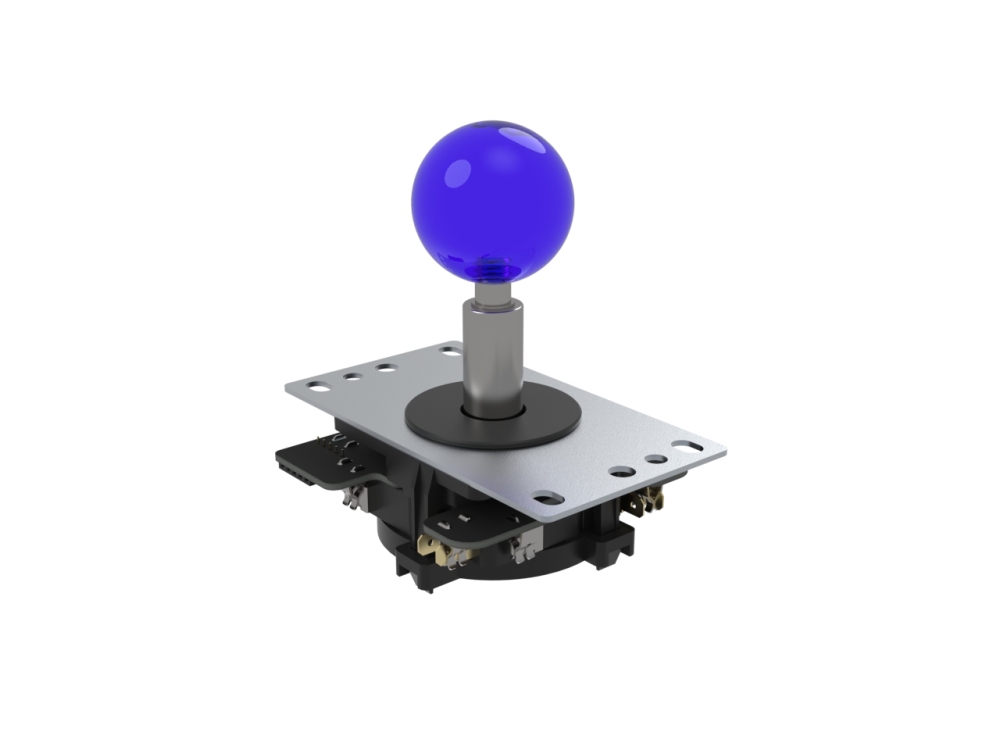

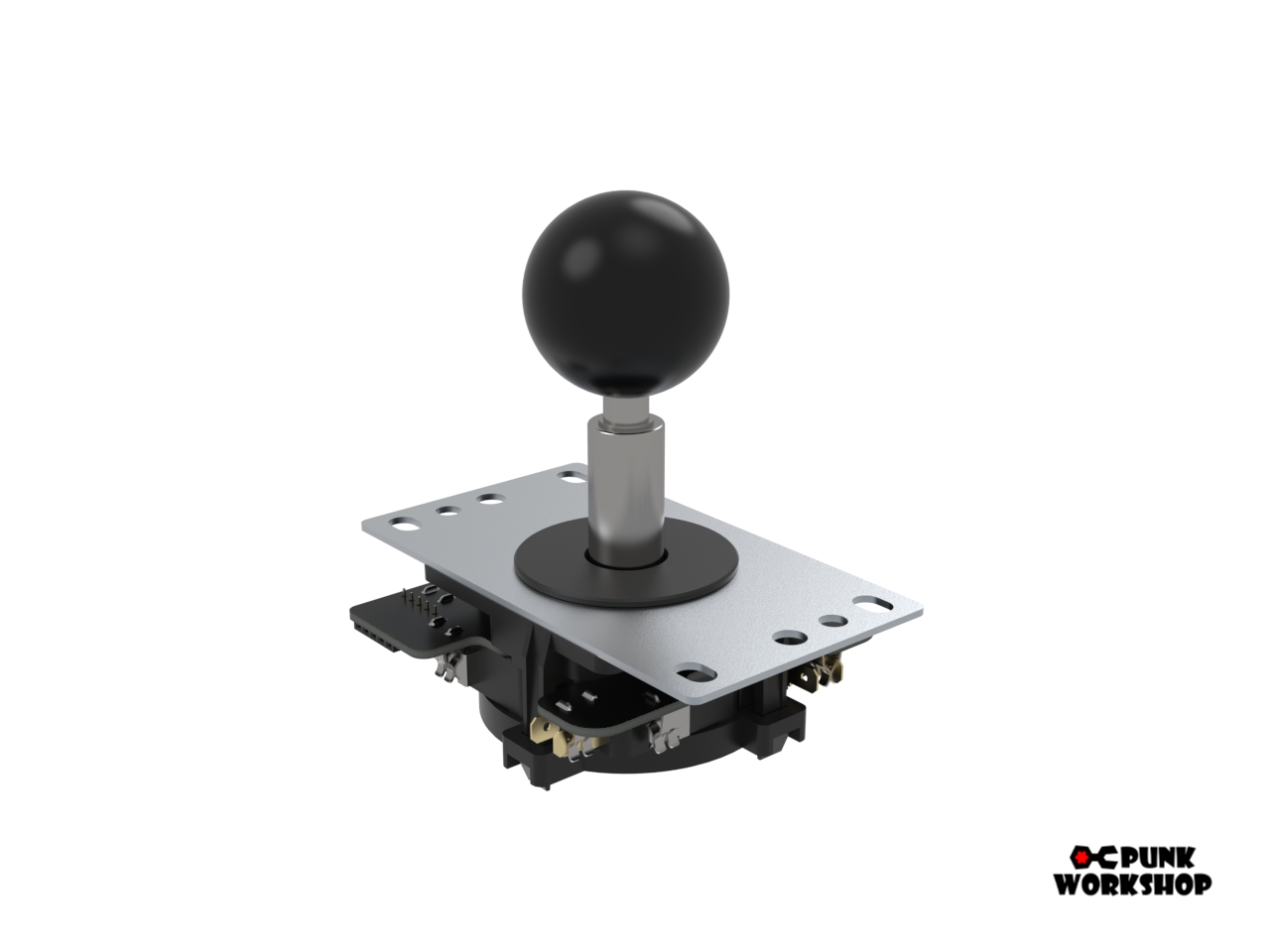

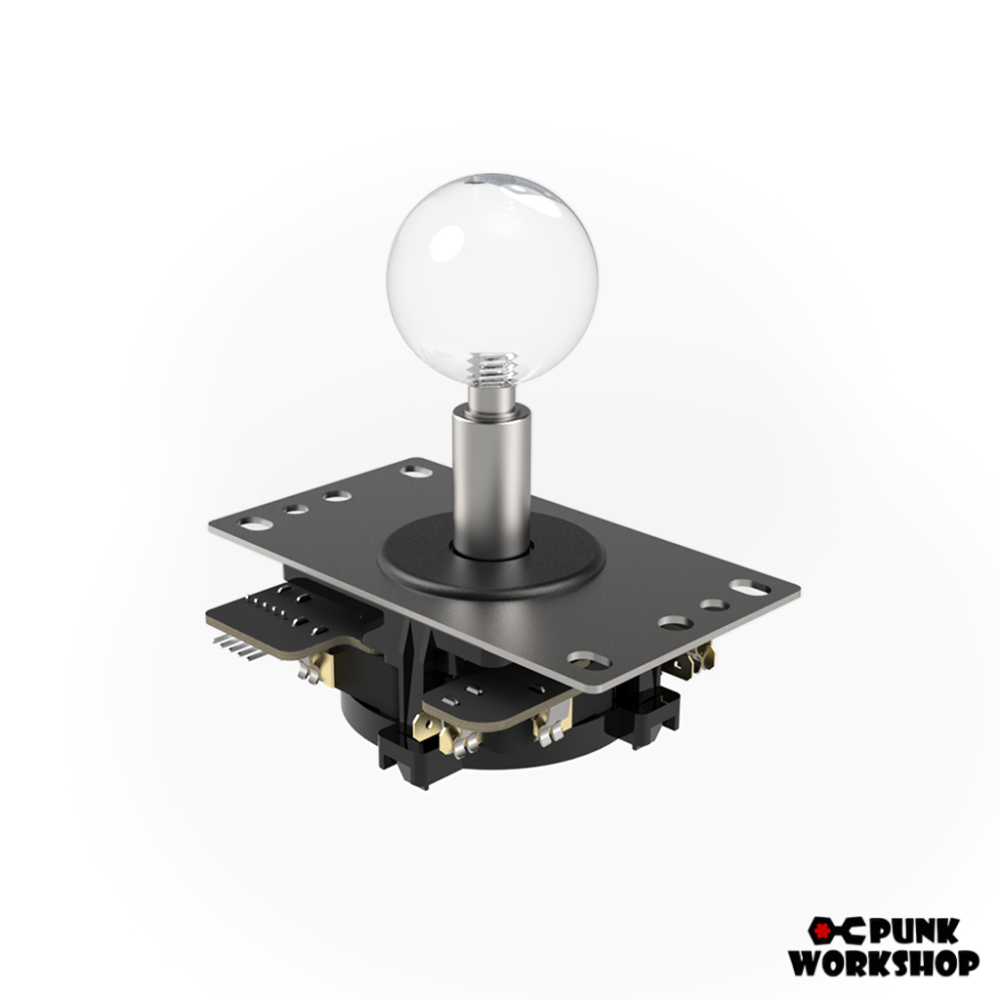

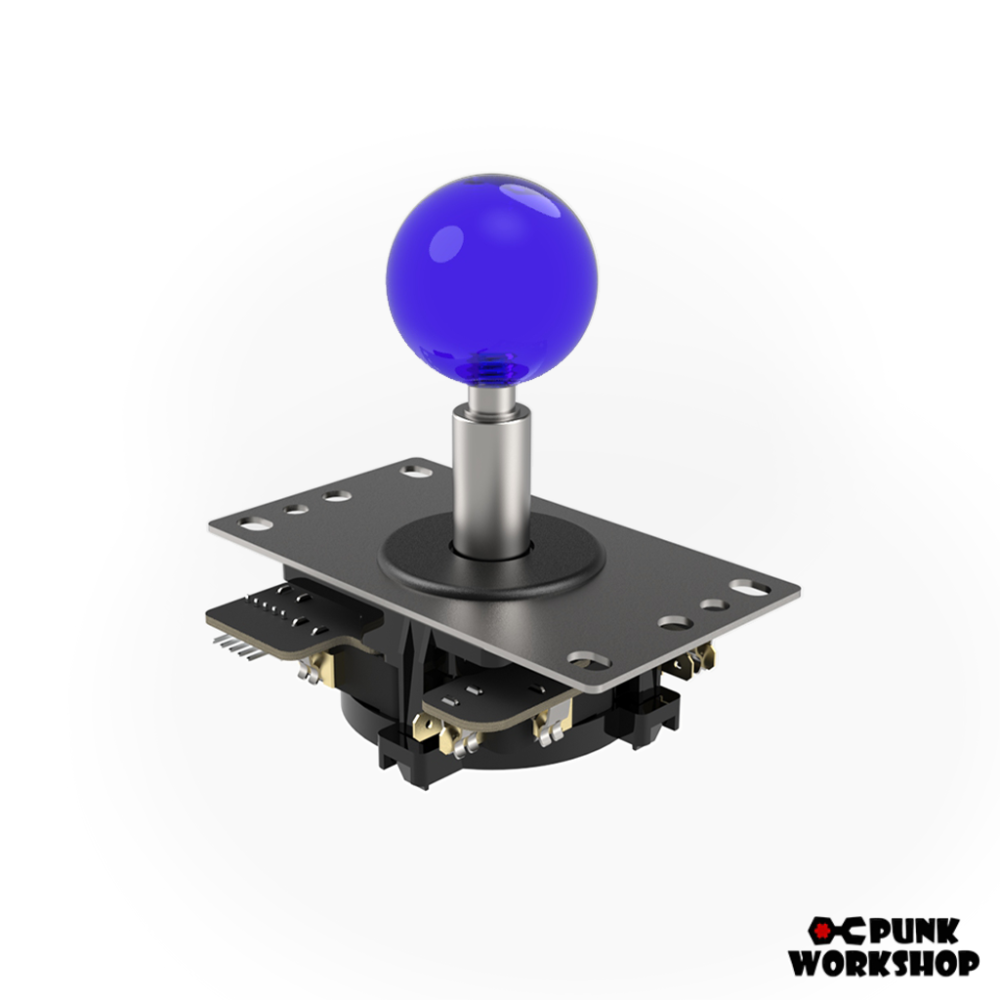

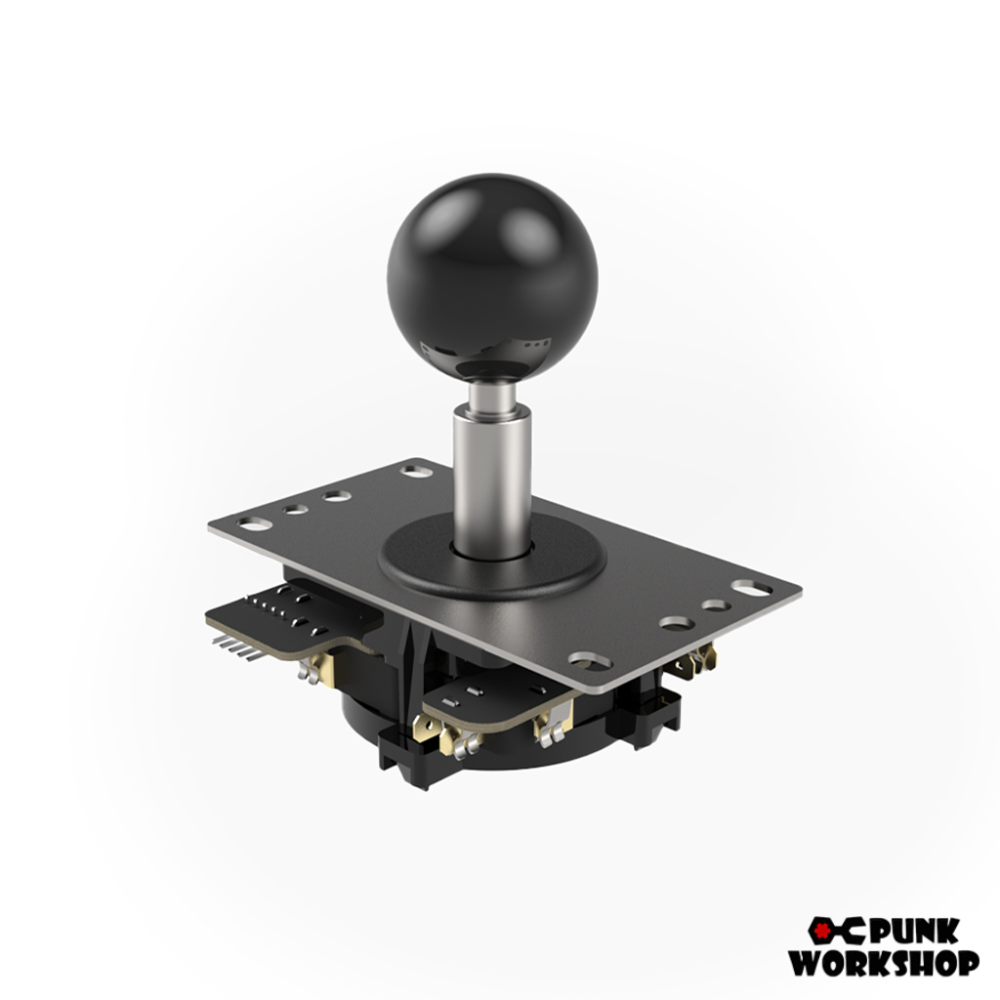

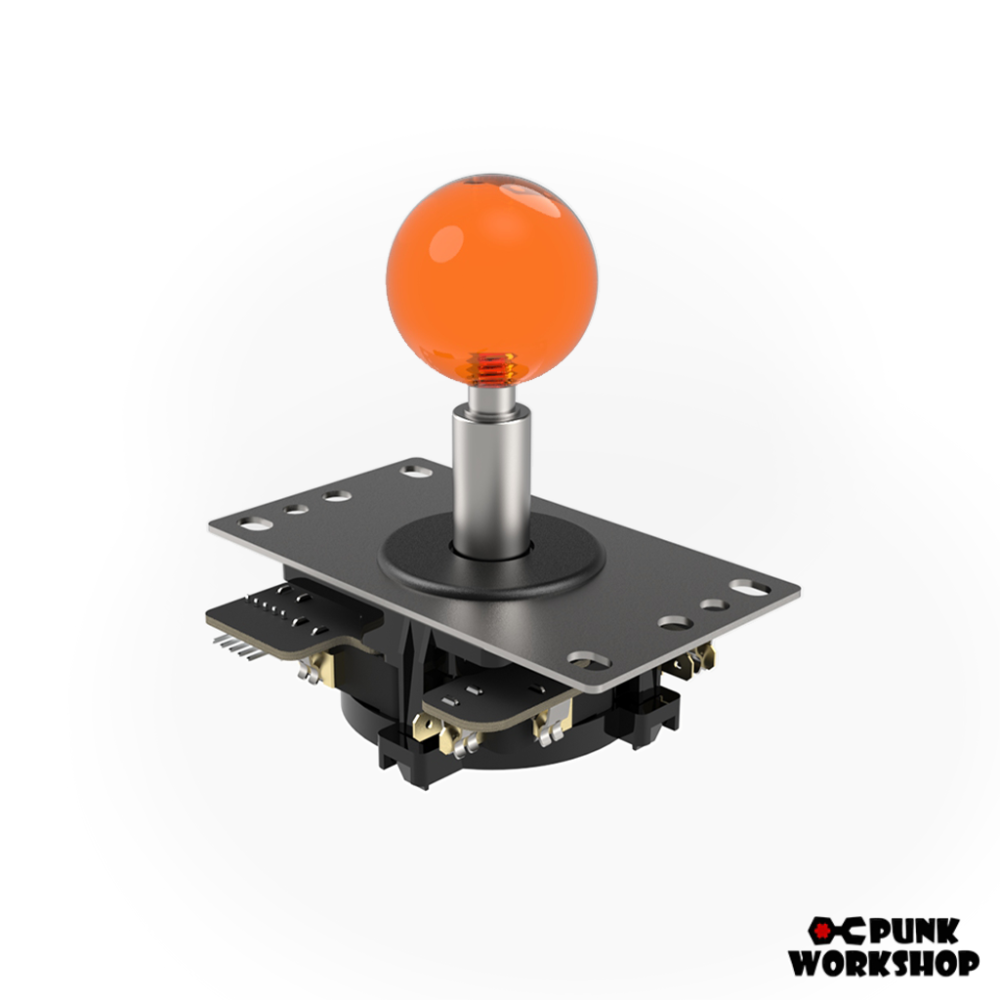

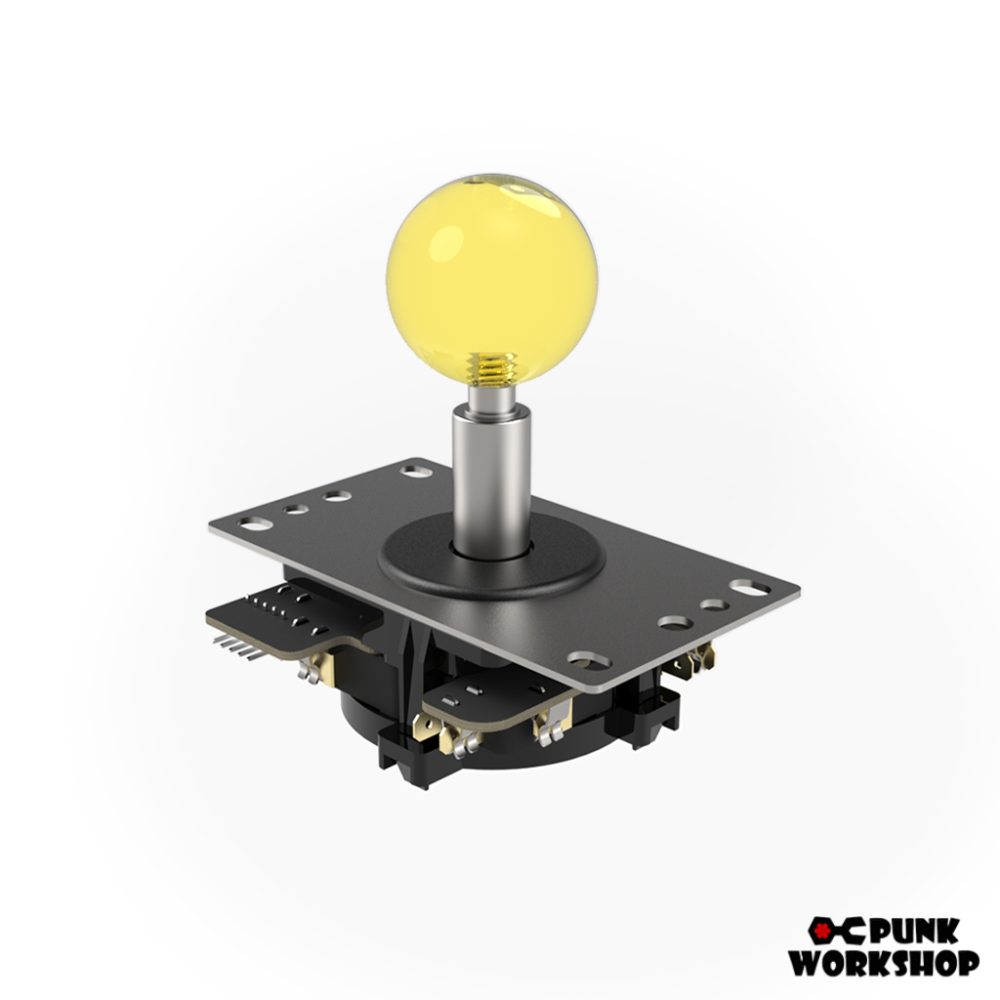

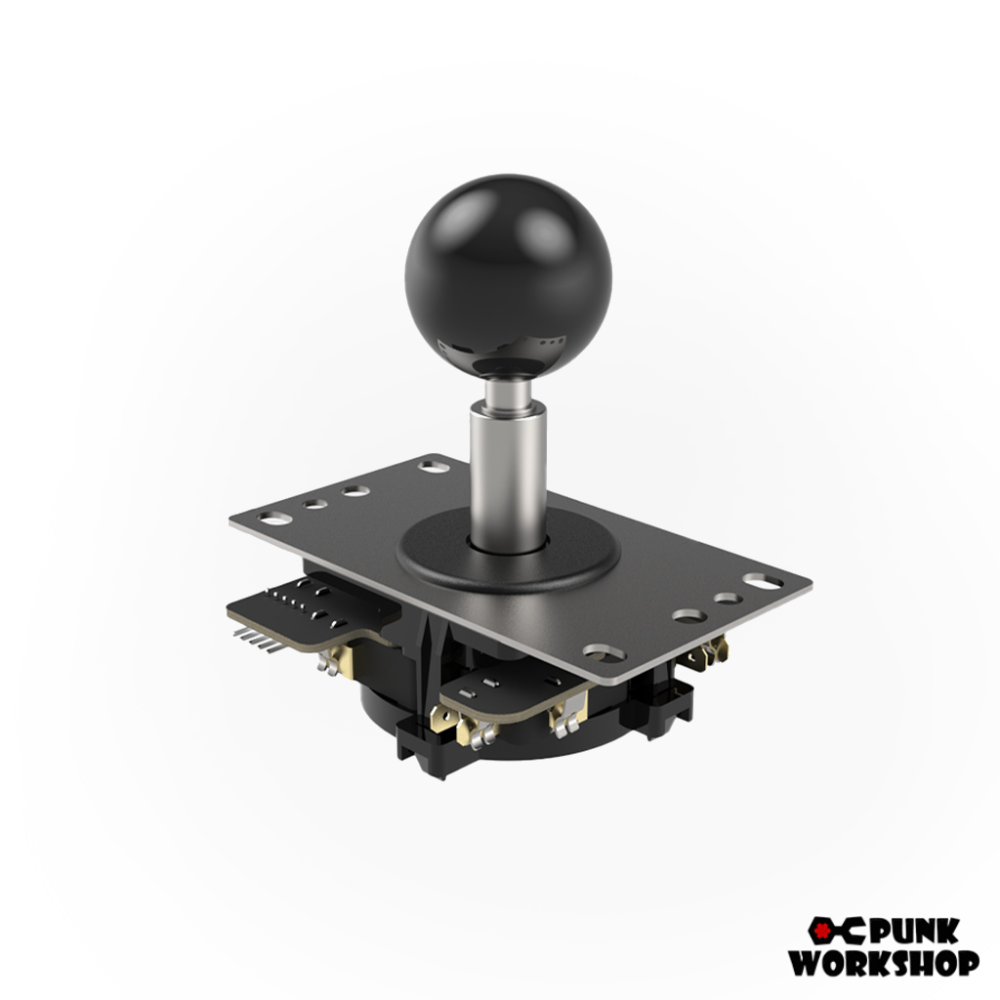

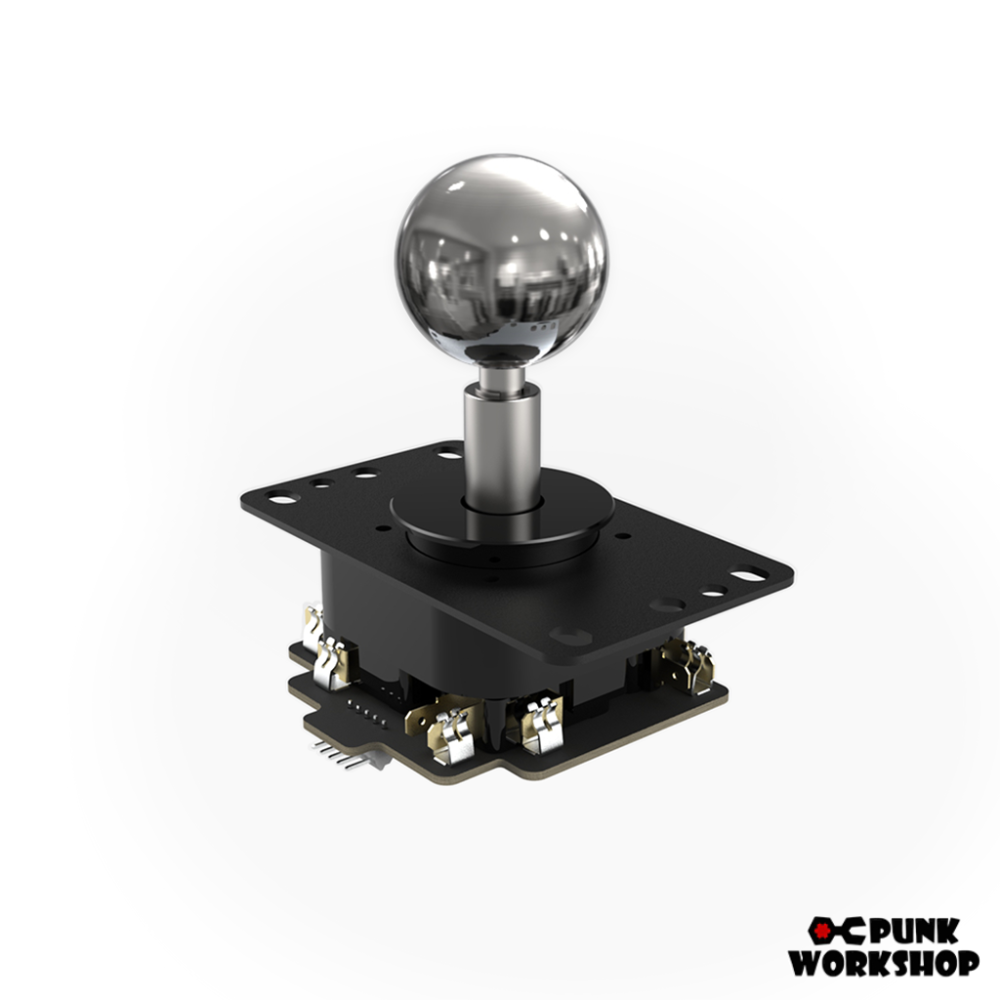

Metal Spring Joystick
The PWS Metal Spring Joystick is a joystick with a traditional structure. Players can find a wide variety of personalized accessories for it, and it is highly easy to disassemble, assemble, and modify.

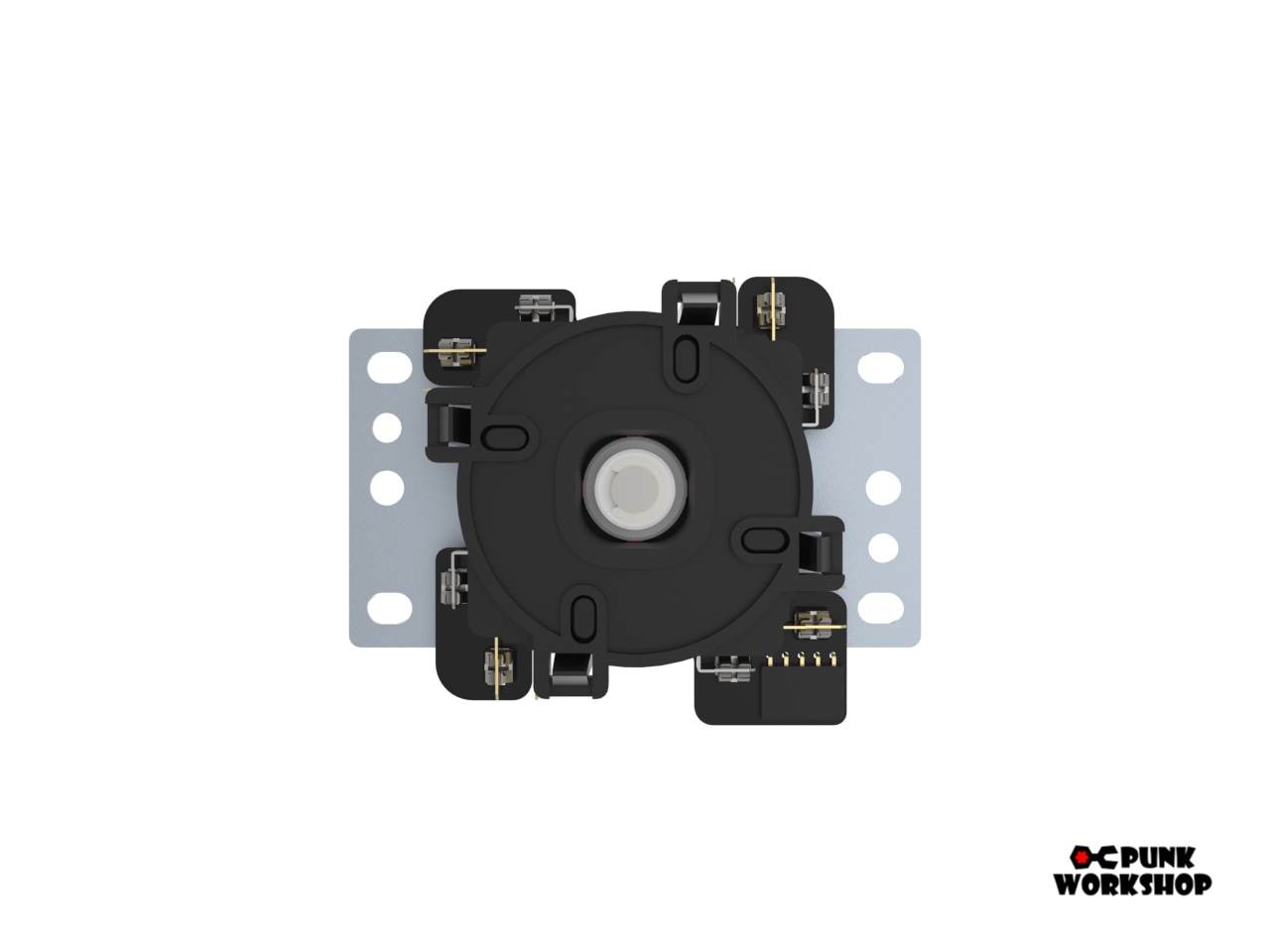

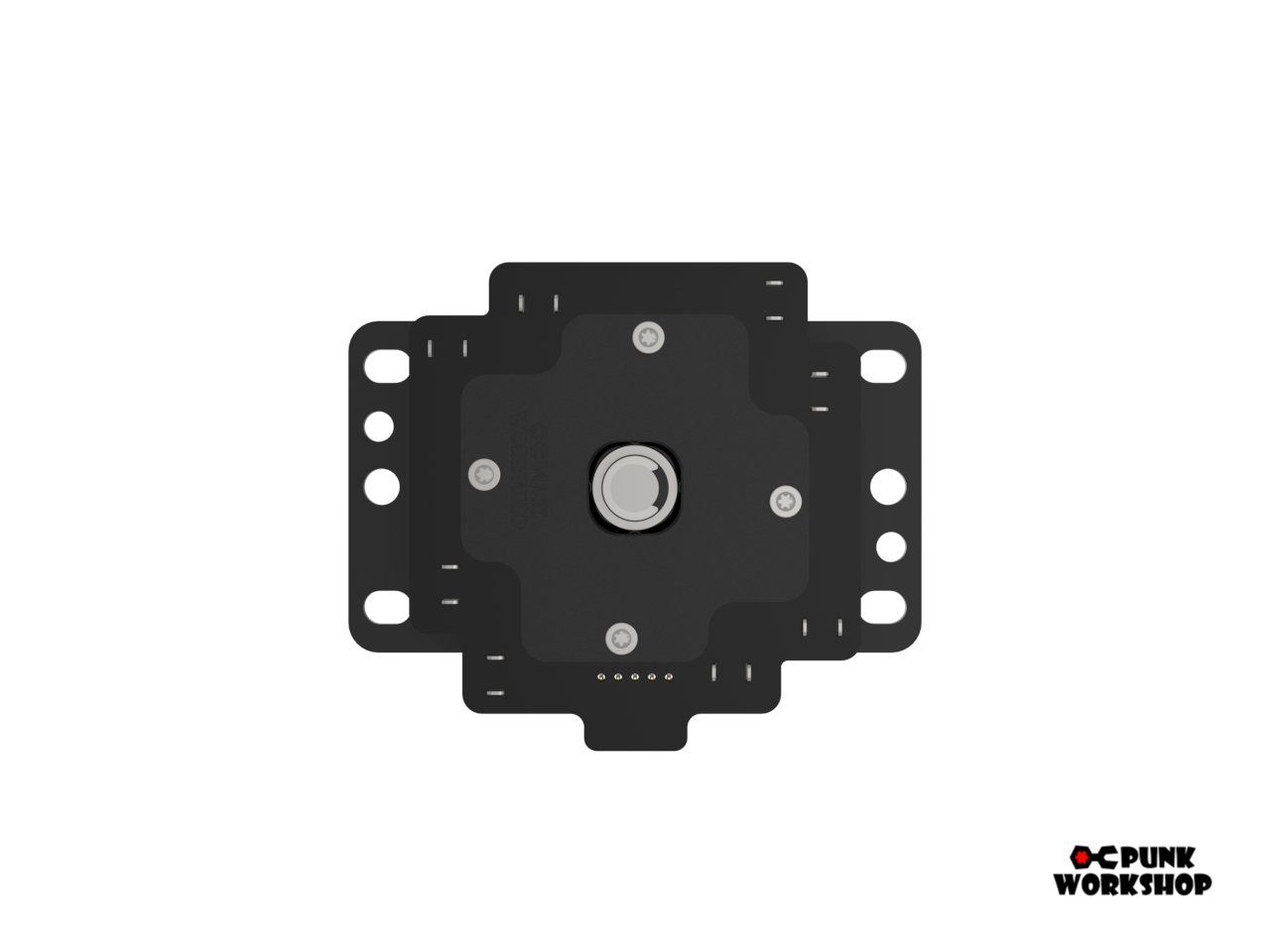

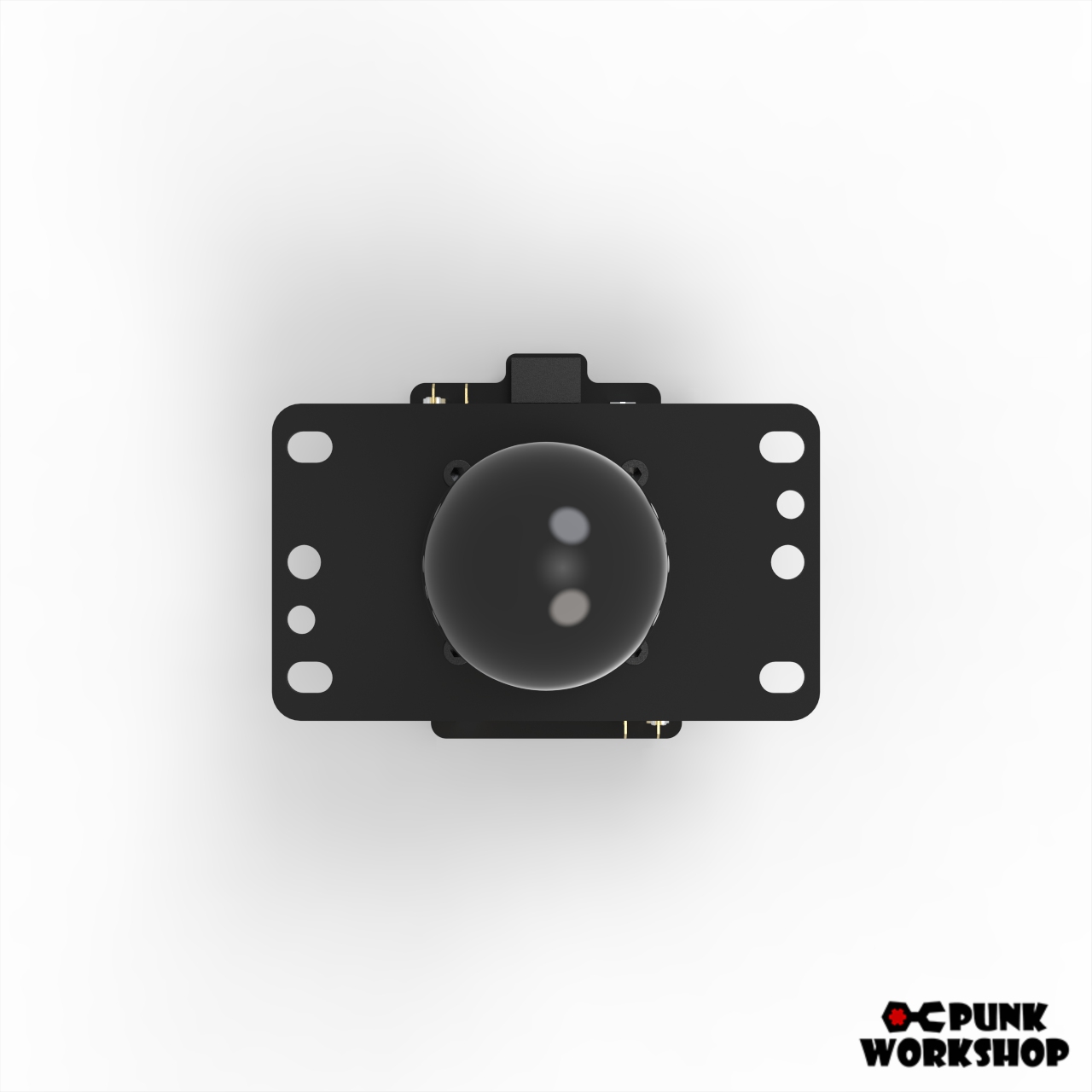

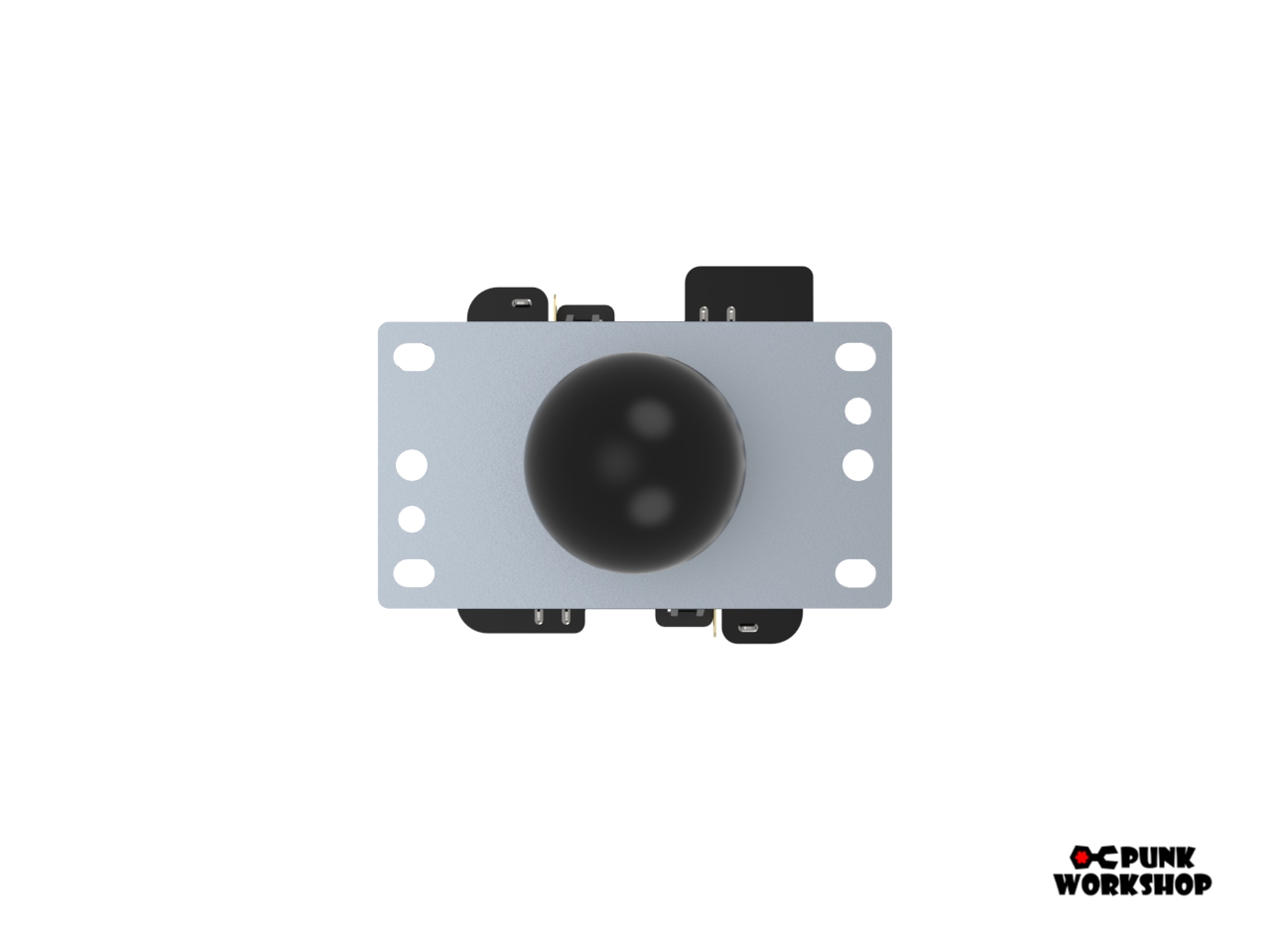

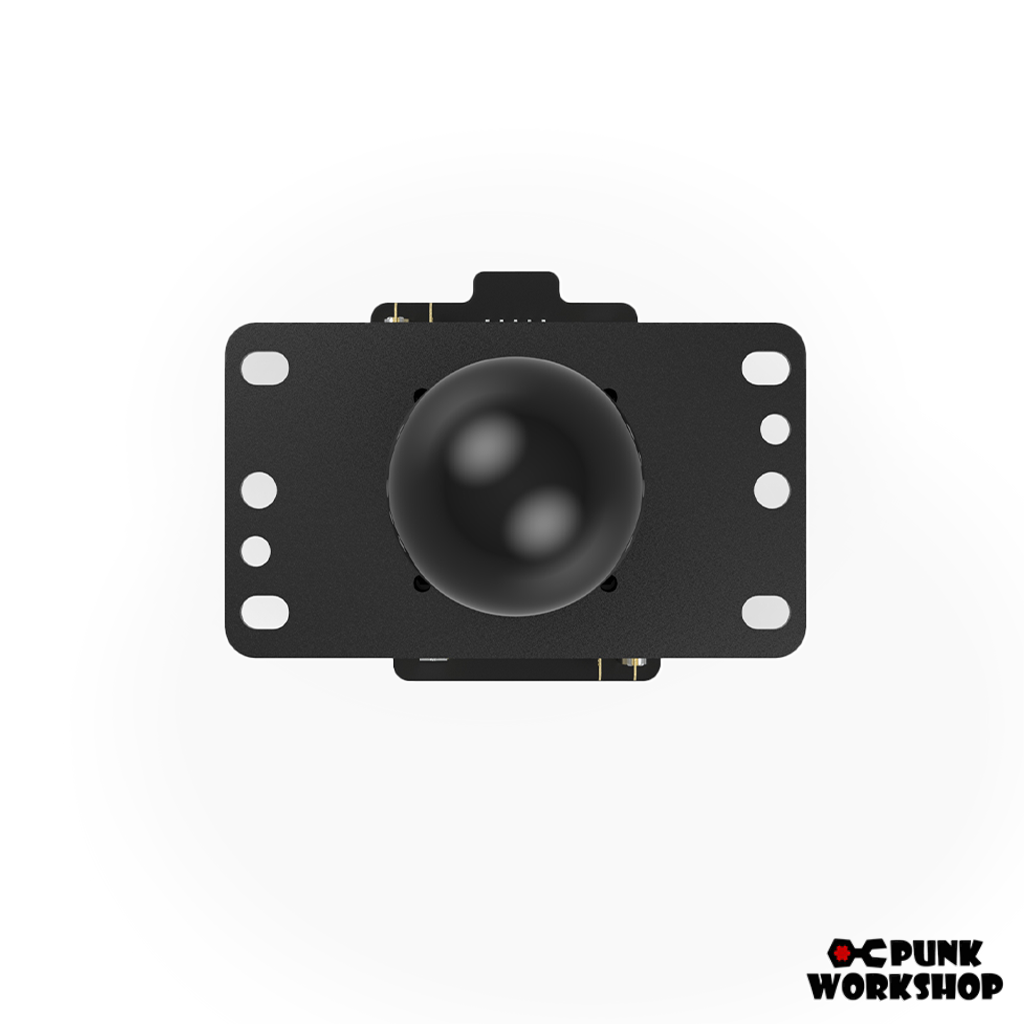

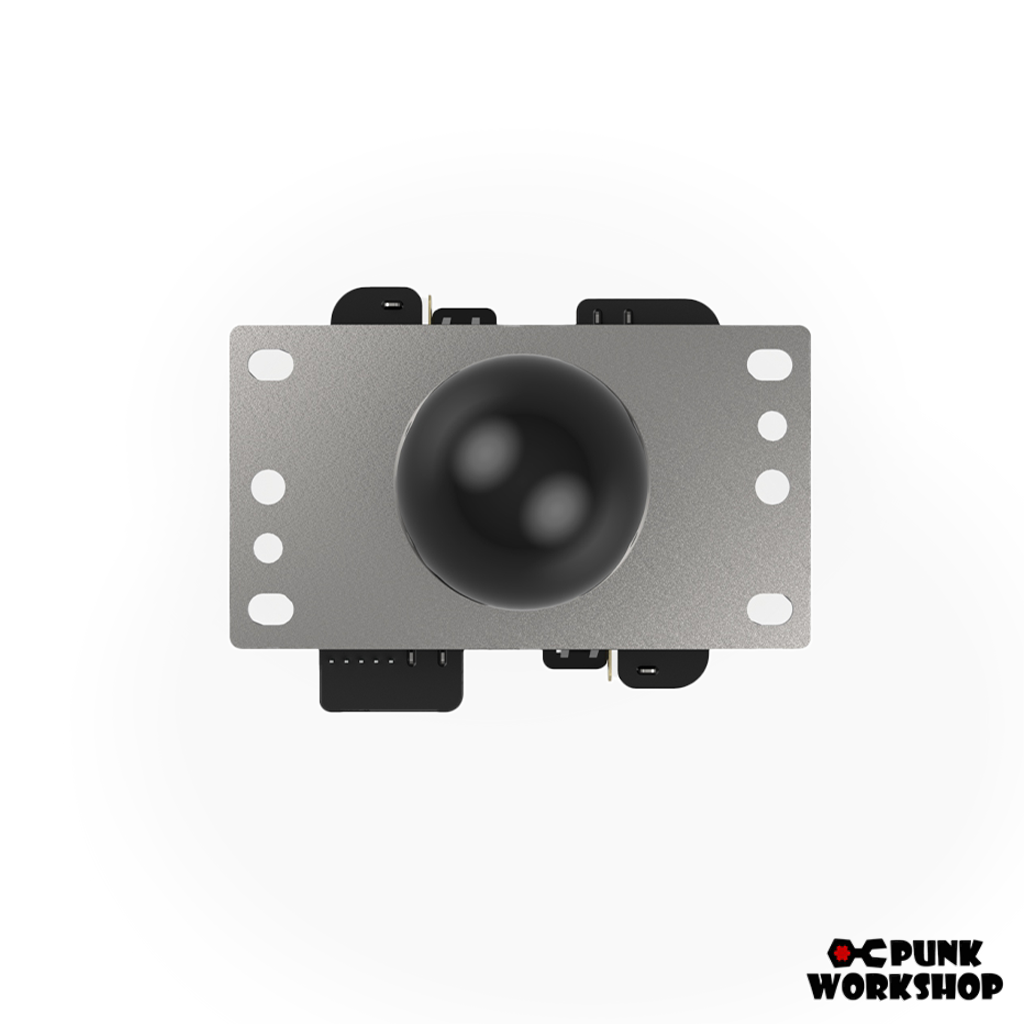

Insertion sequence (top view)

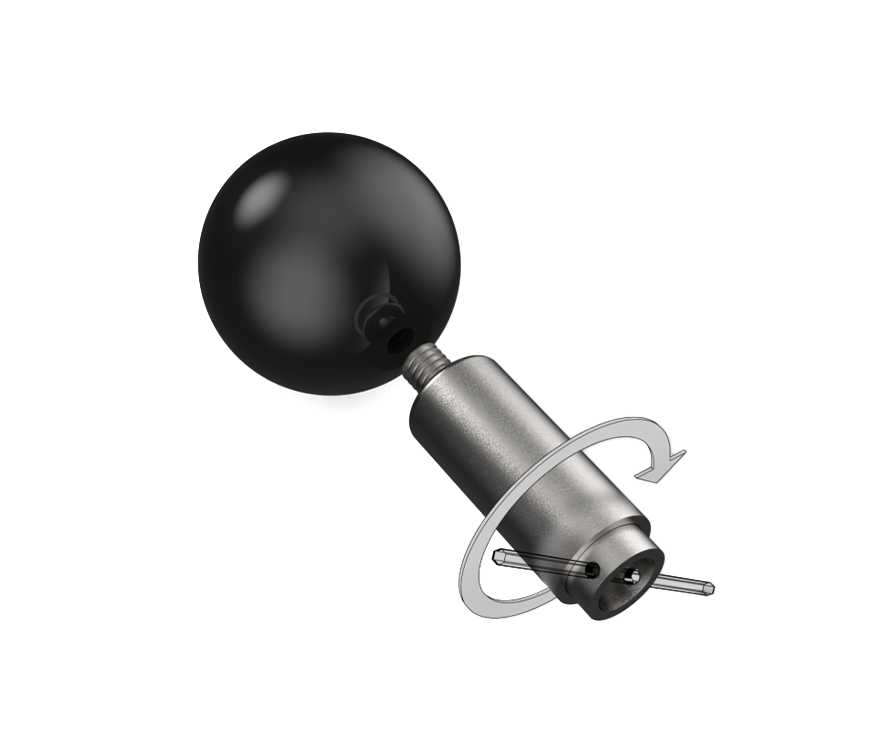

How to disassemble the Ball Top:
To disassemble the ball top, use a narrow metal tool to engage the release mechanism inside the joystick shaft and rotate leftwards.

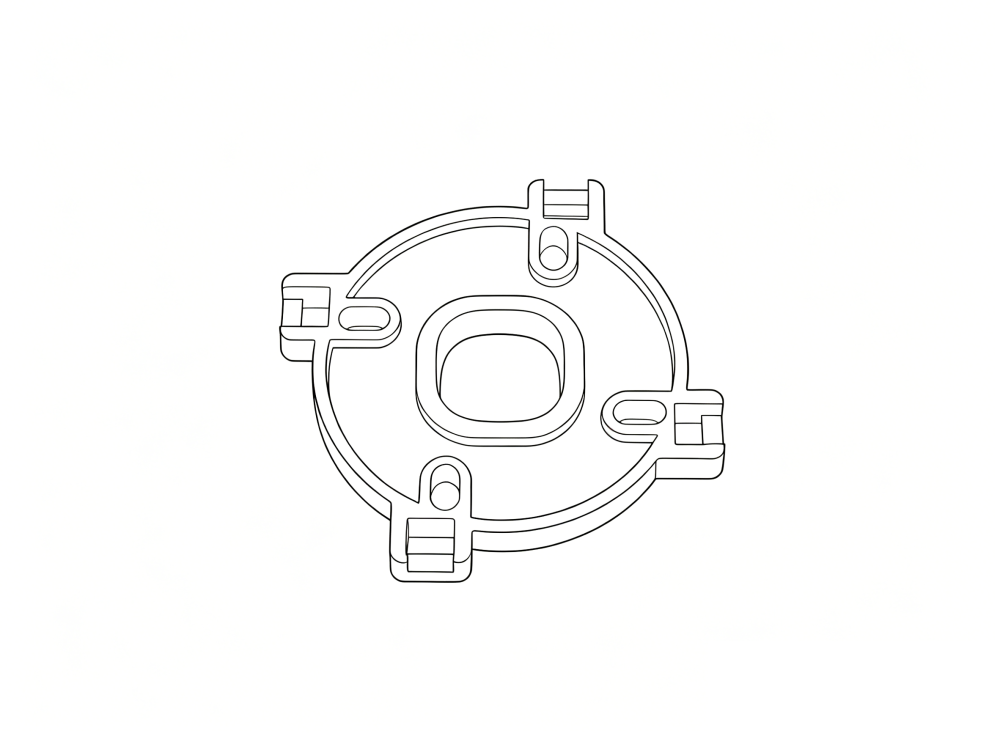

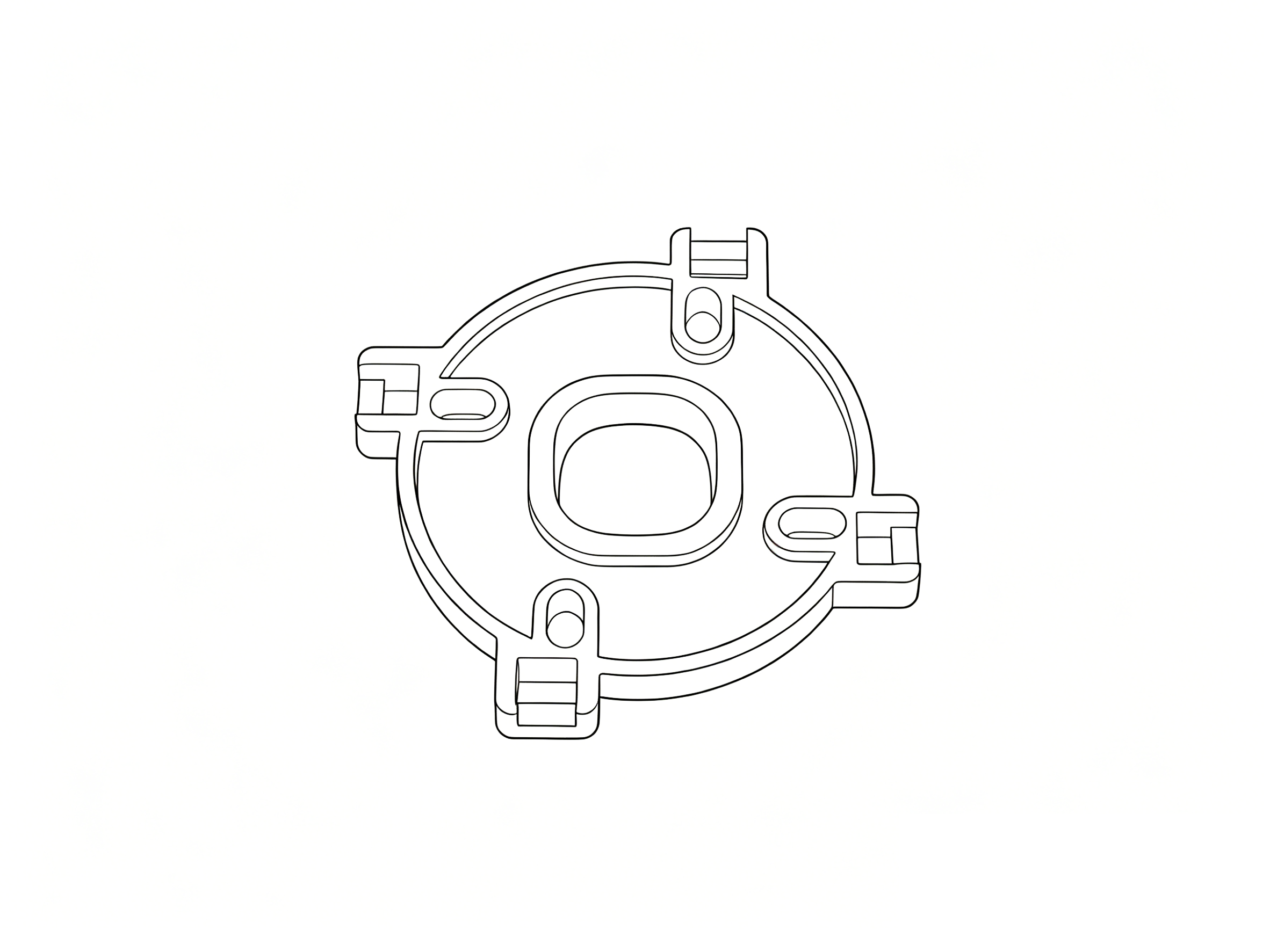

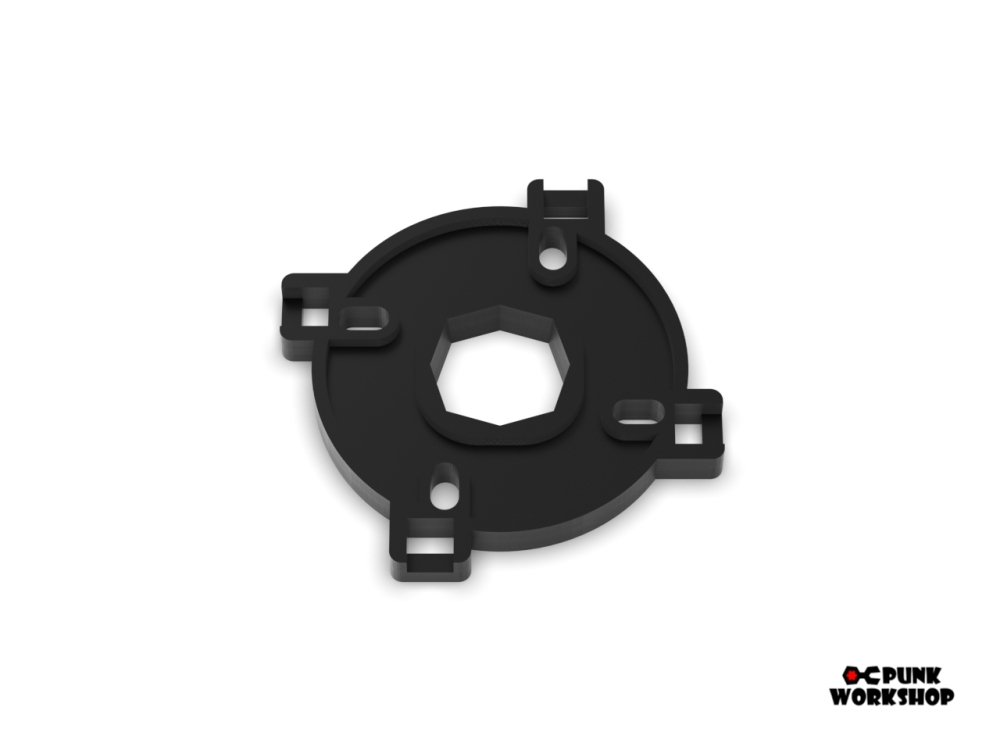

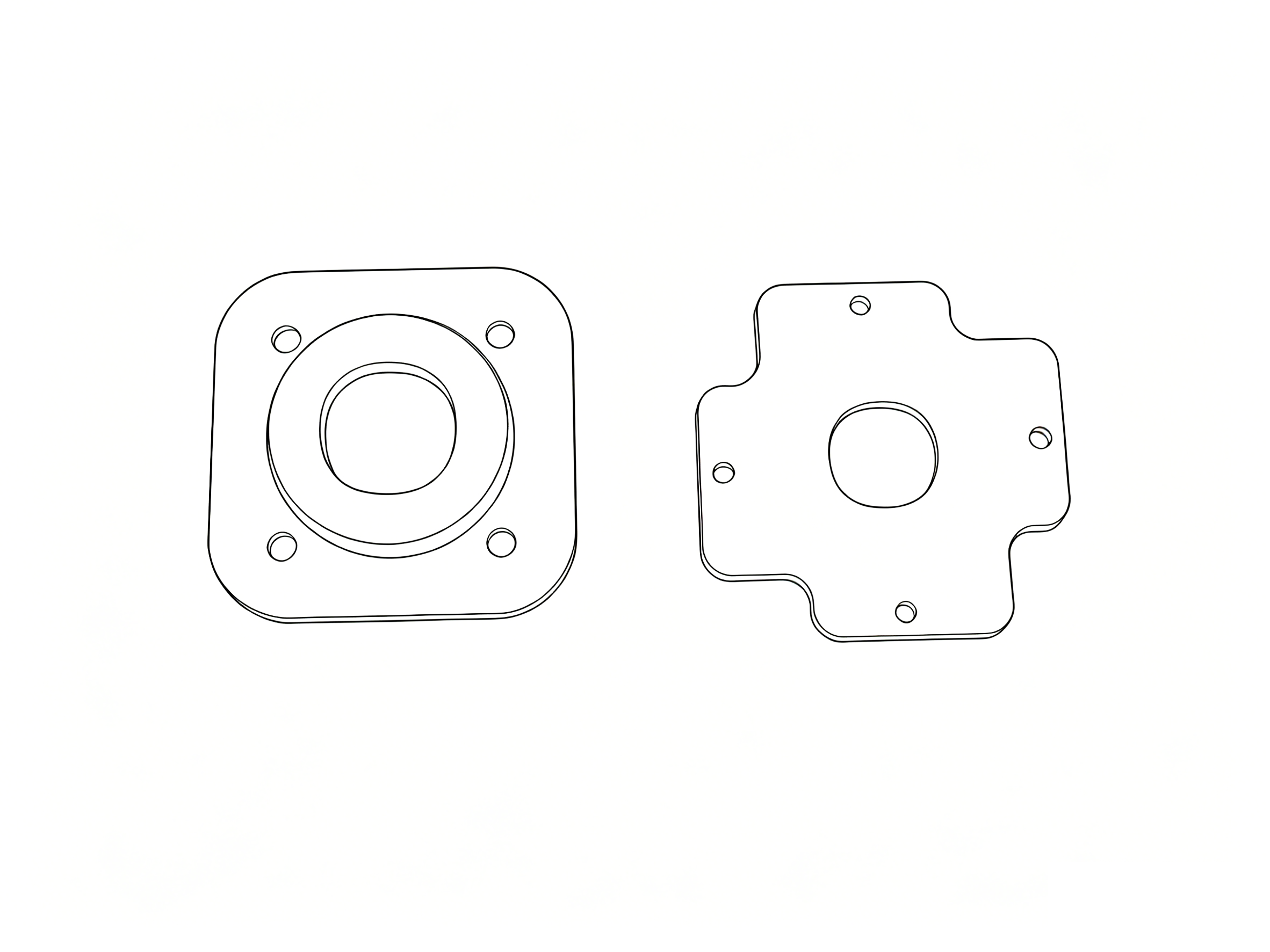

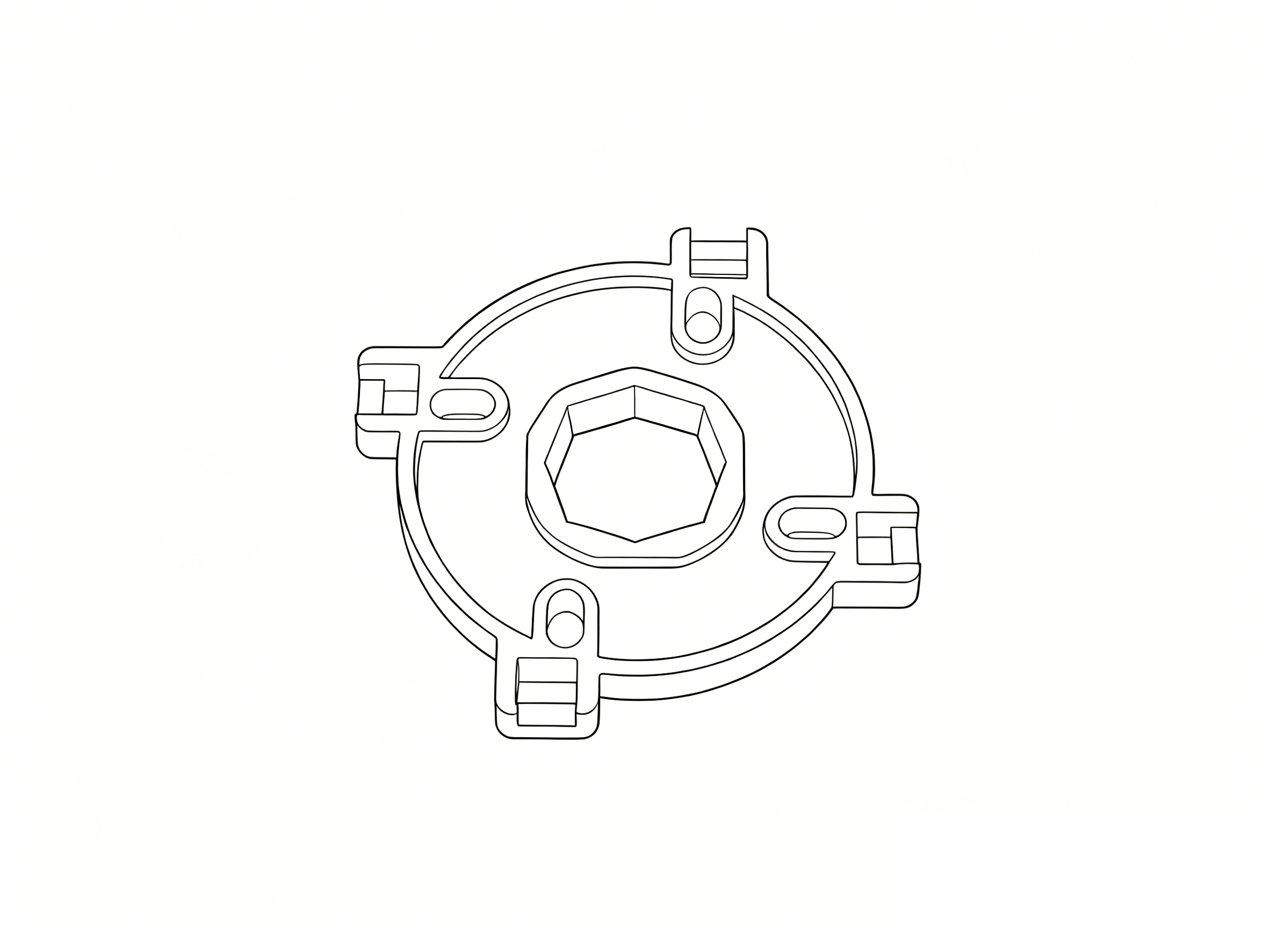

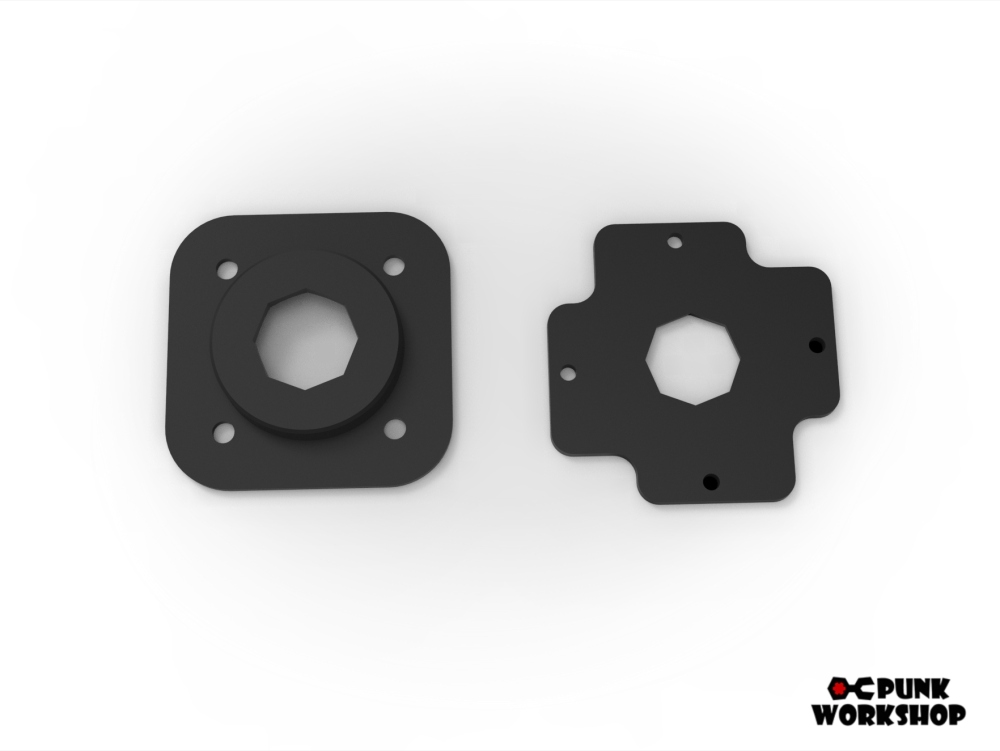

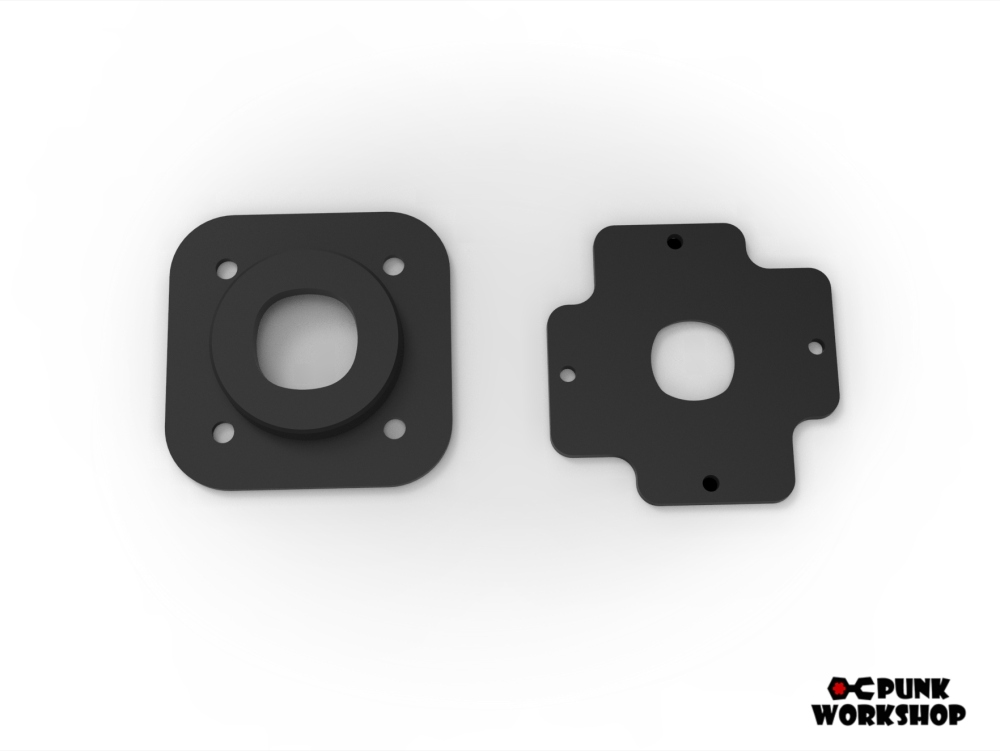

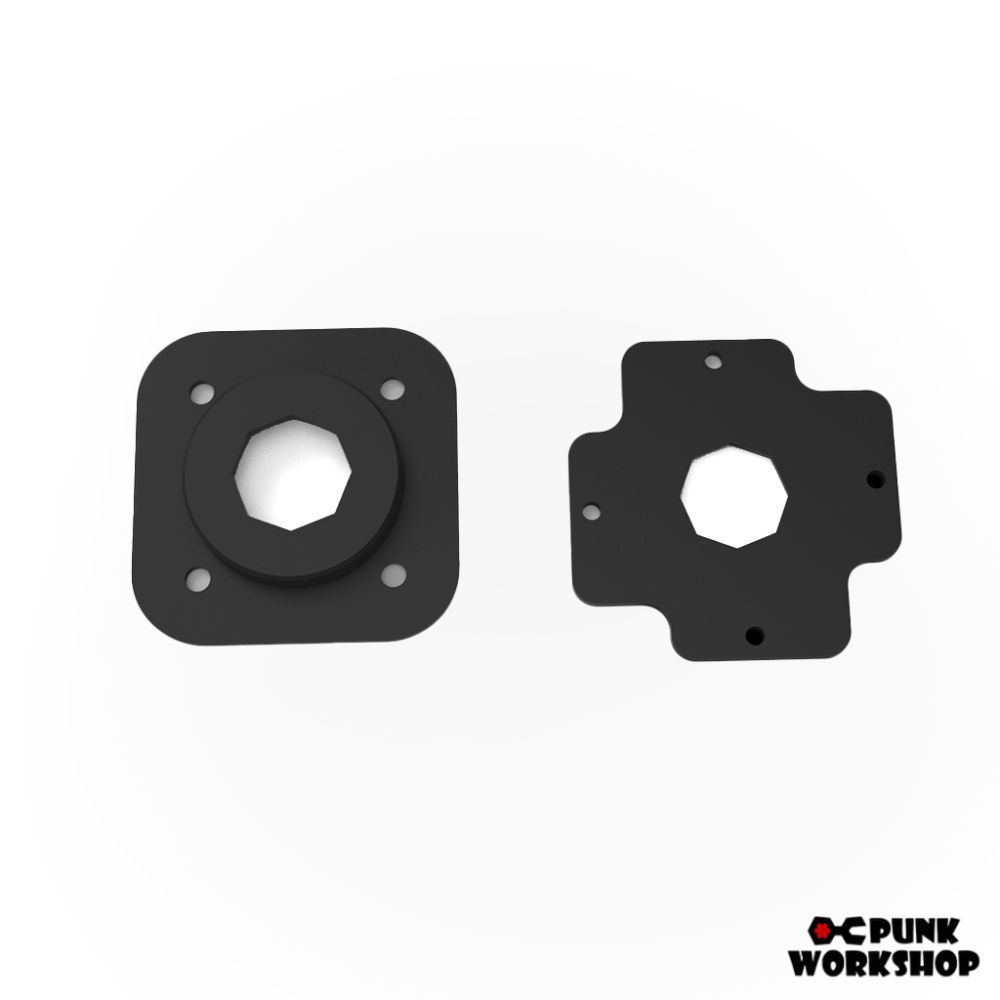

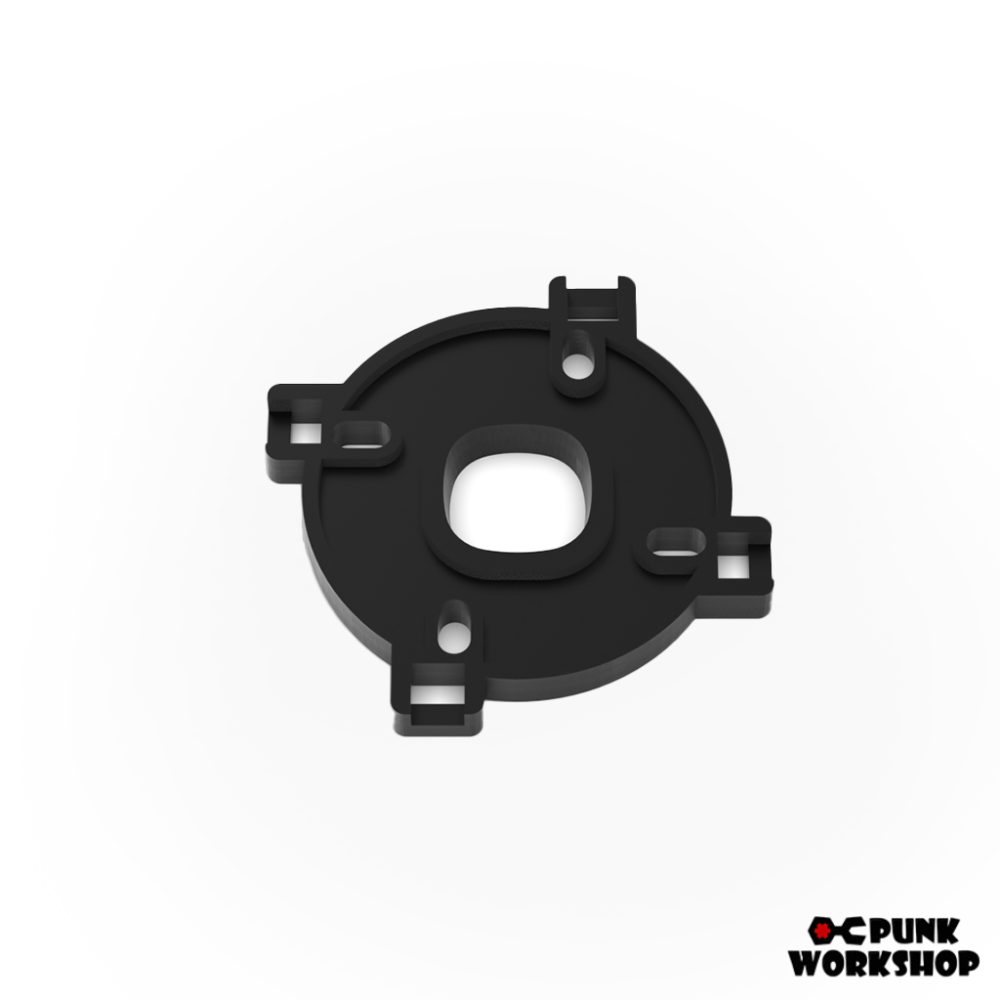

Gate Insert:
Made via 3D printing.
Only suitable for silicone rubber.

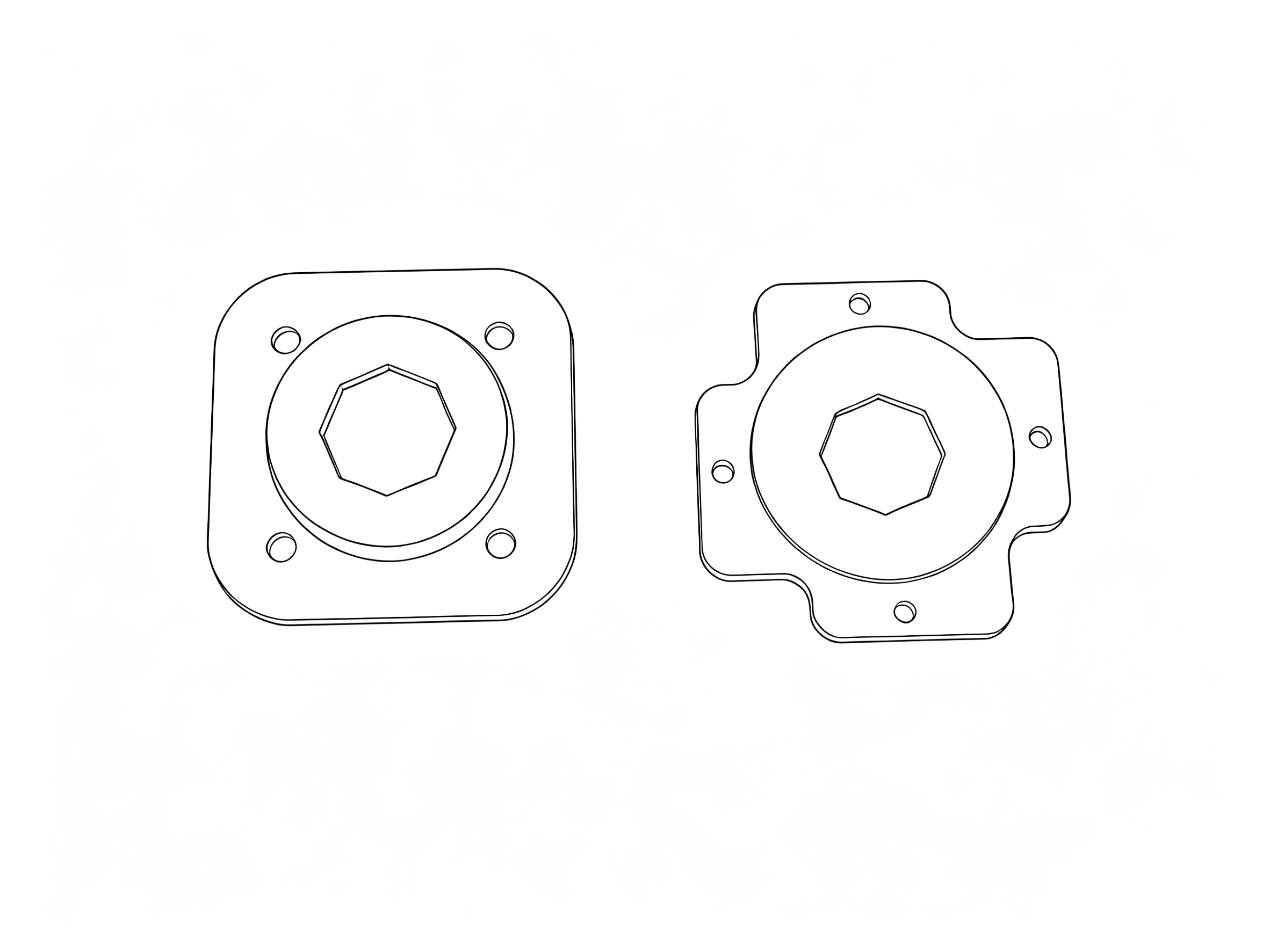

Square:	Octagonal:

Only suitable for spring.

Square:	Octagonal:

Joystick replacement tutorial:


1.Open the magnetic cover of the PWS FightStick;	2.Unplug the connecting cable;	3.Use a 2.5mm hex screwdriver or T10 Torx screwdriver to remove the screws;

4.Take out the old joystick;	5.Place the new joystick onto the mount, making sure to align the direction correctly;	6.Reinstall the screws and reconnect the cable. (Note: Ensure the wire sequence of the connecting cable is correct.)
