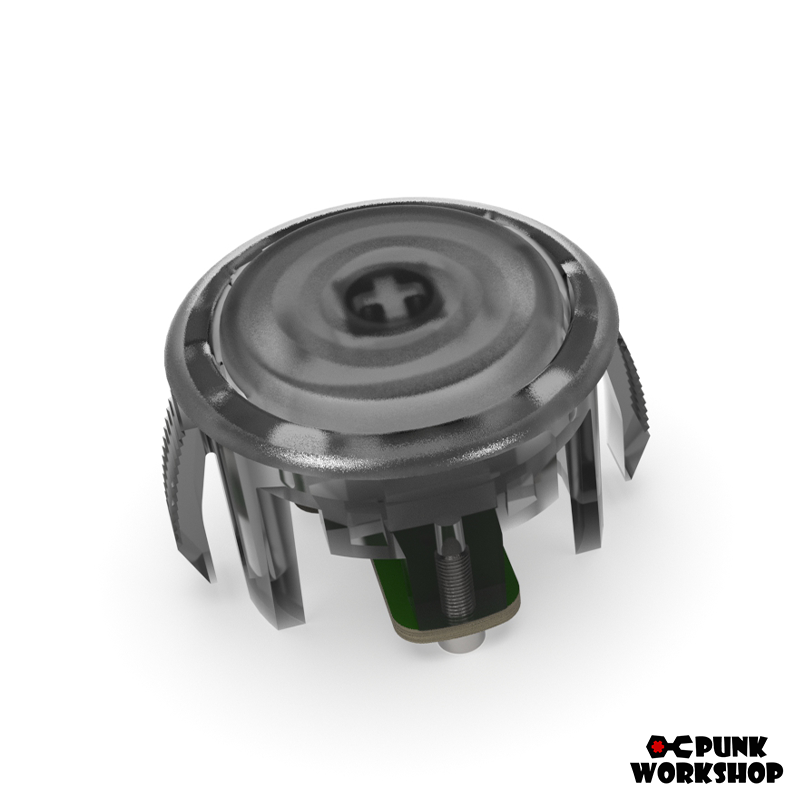

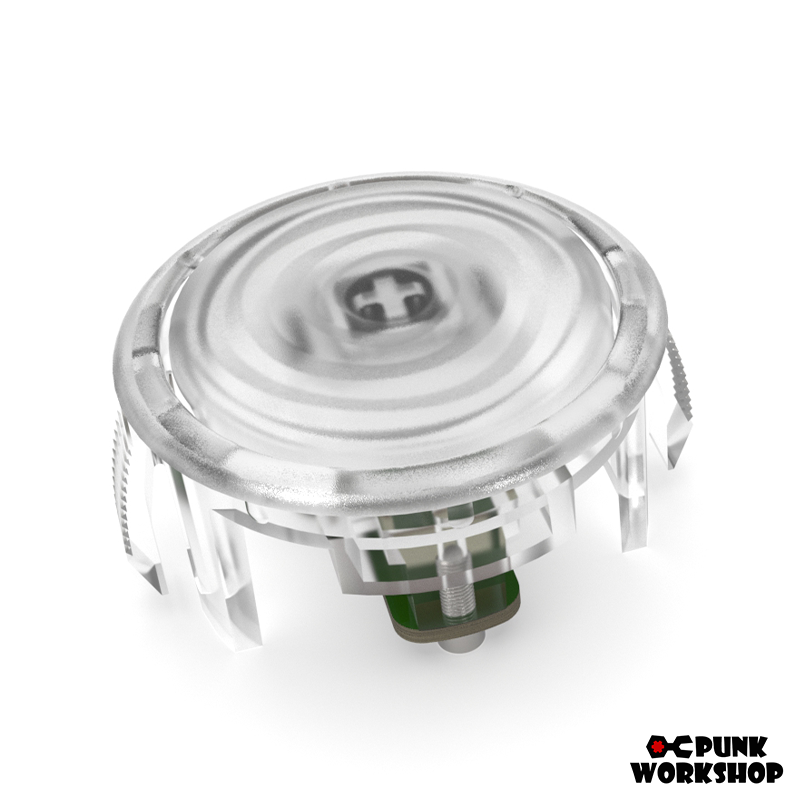

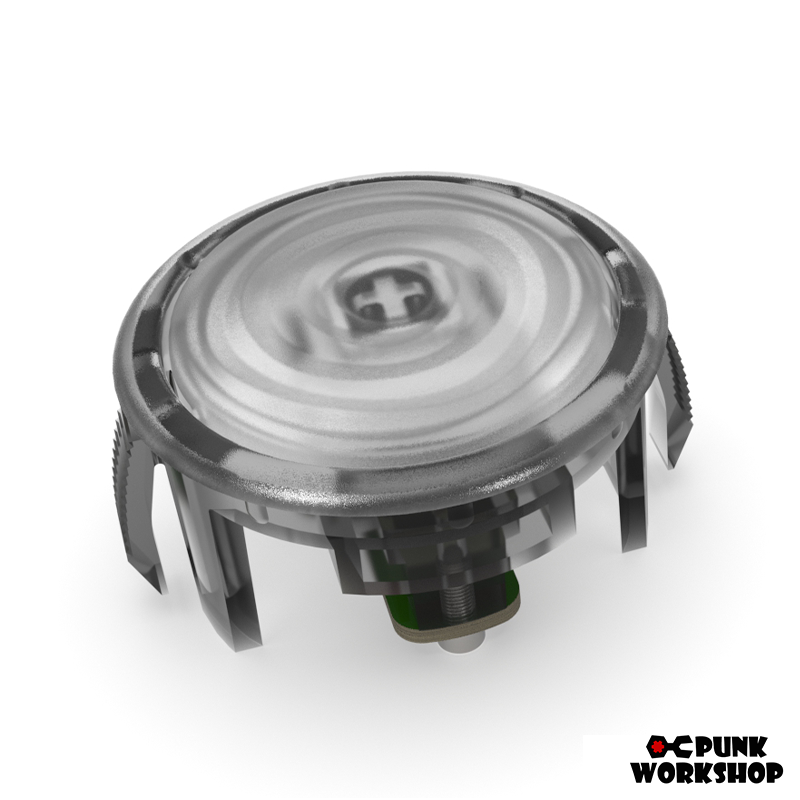

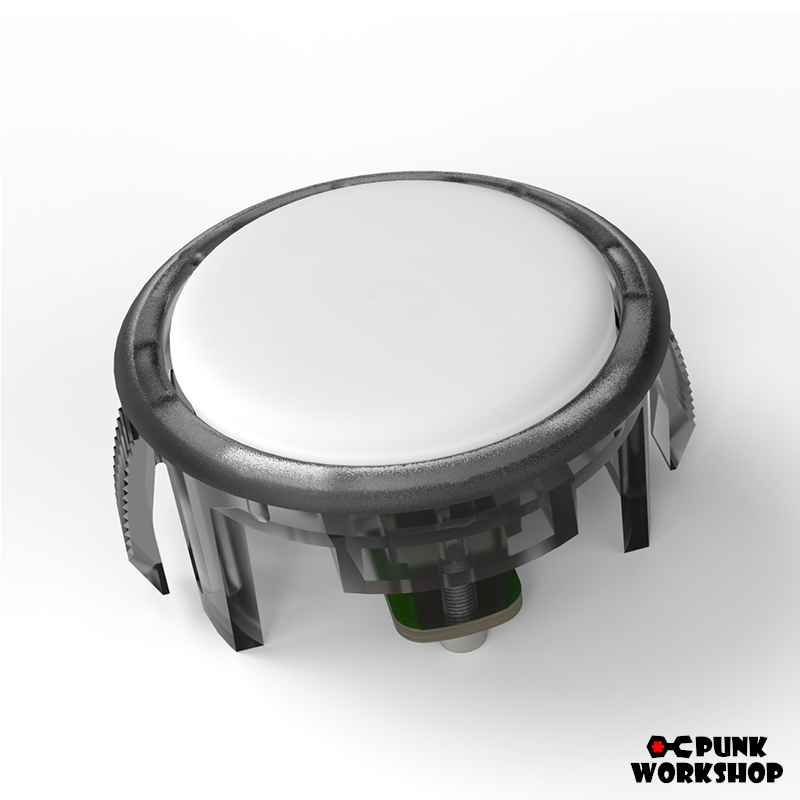

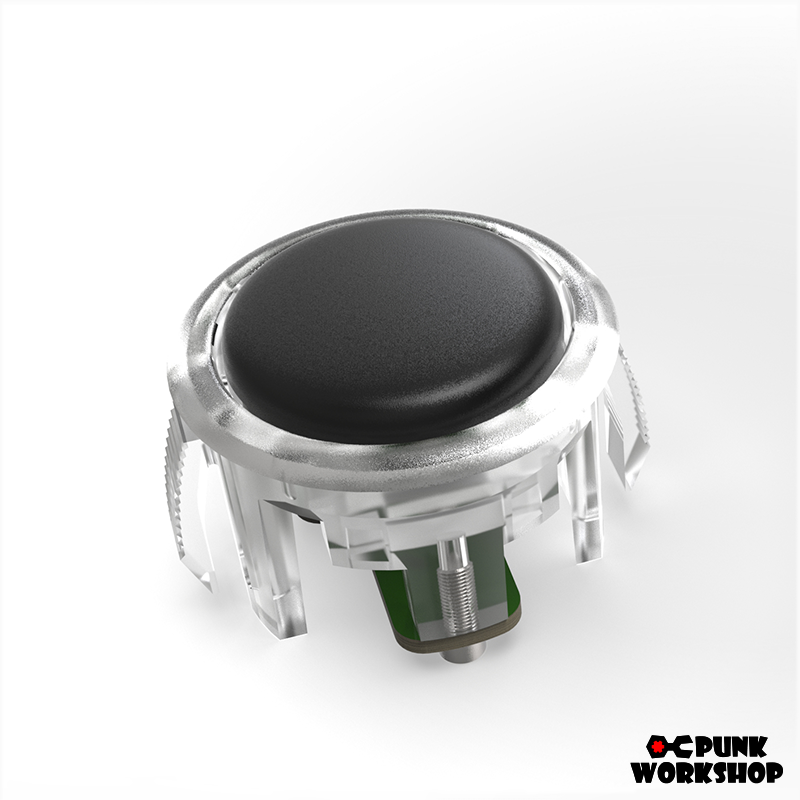

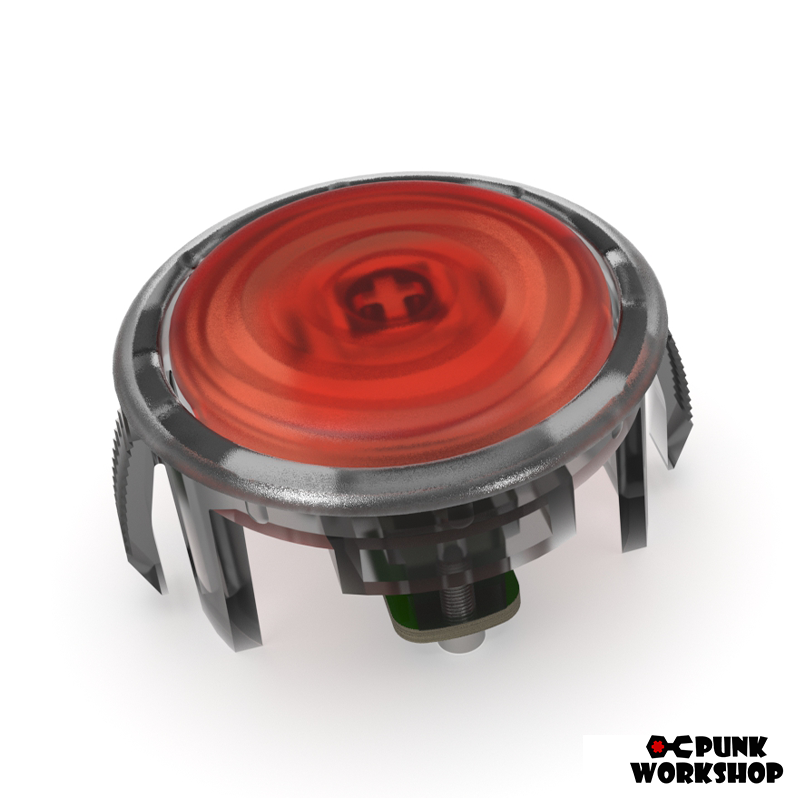

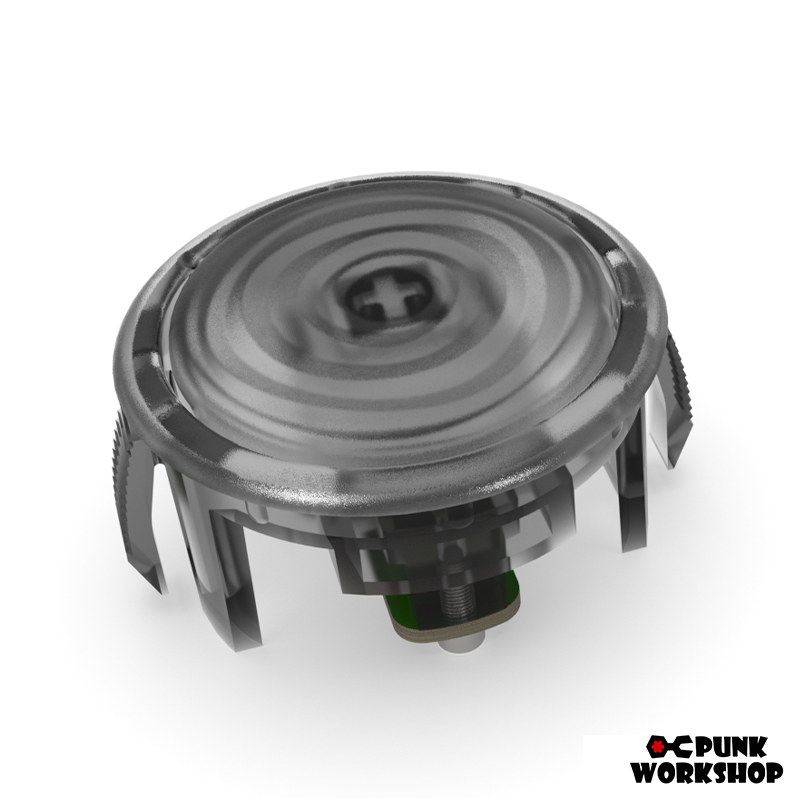

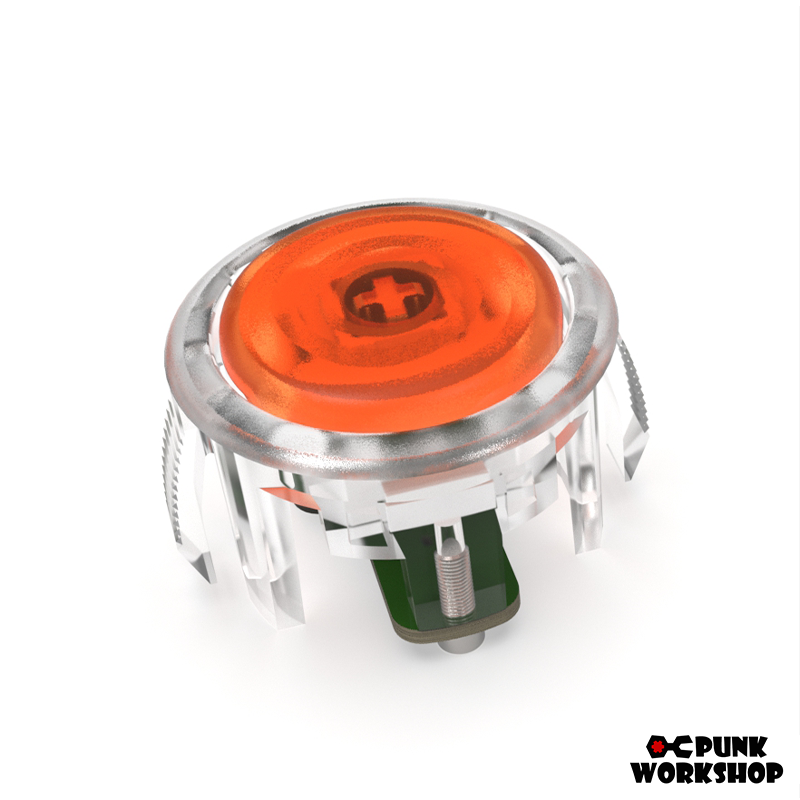

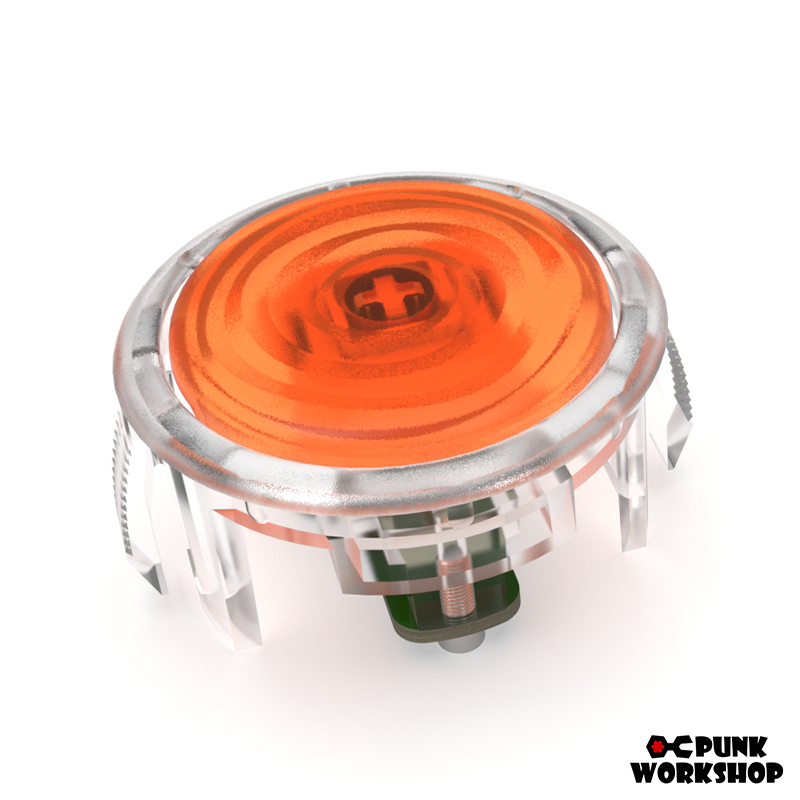

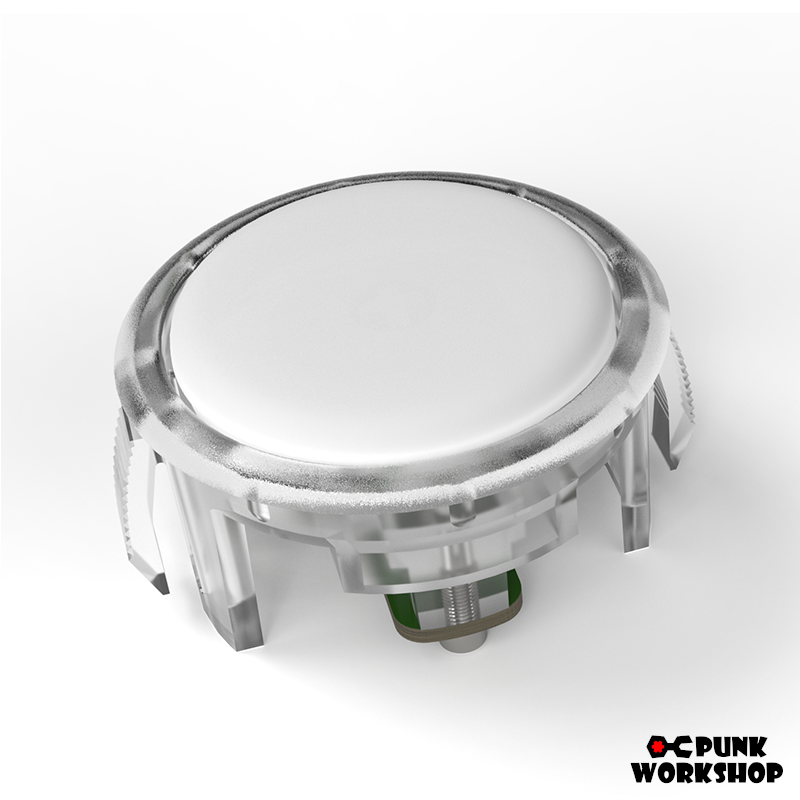

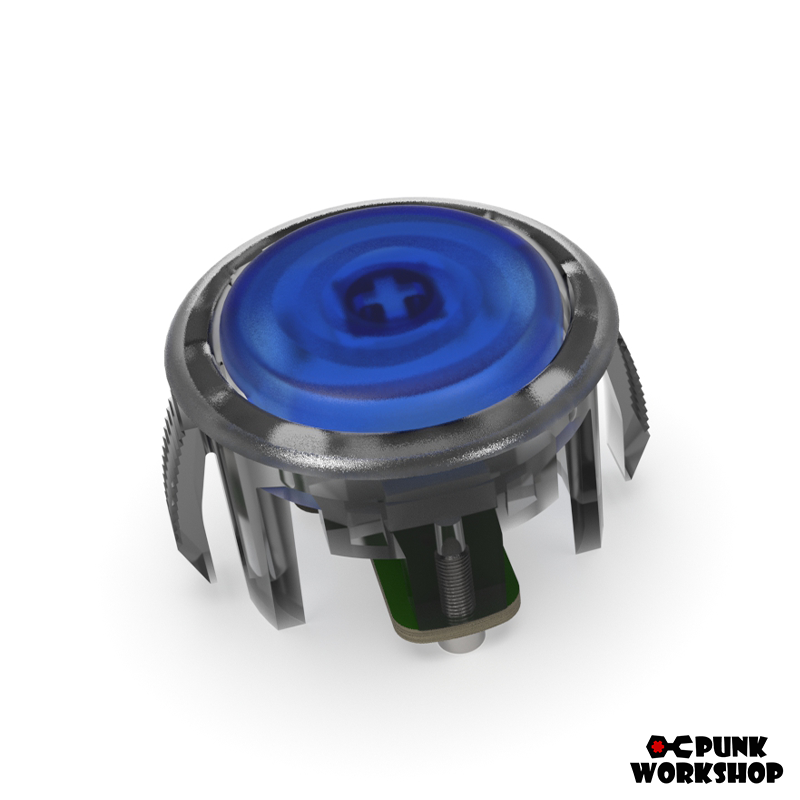

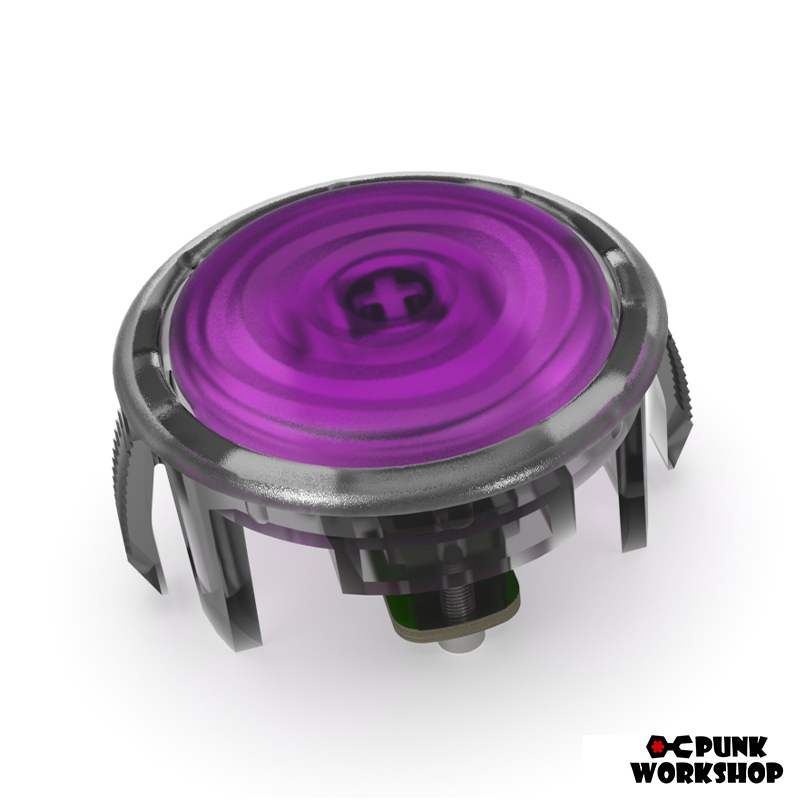

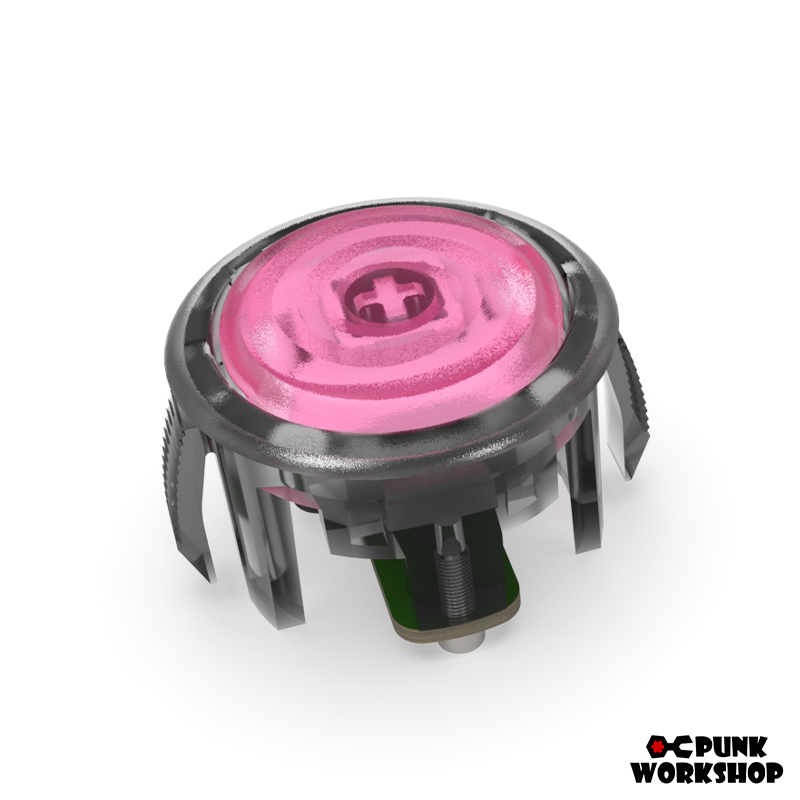

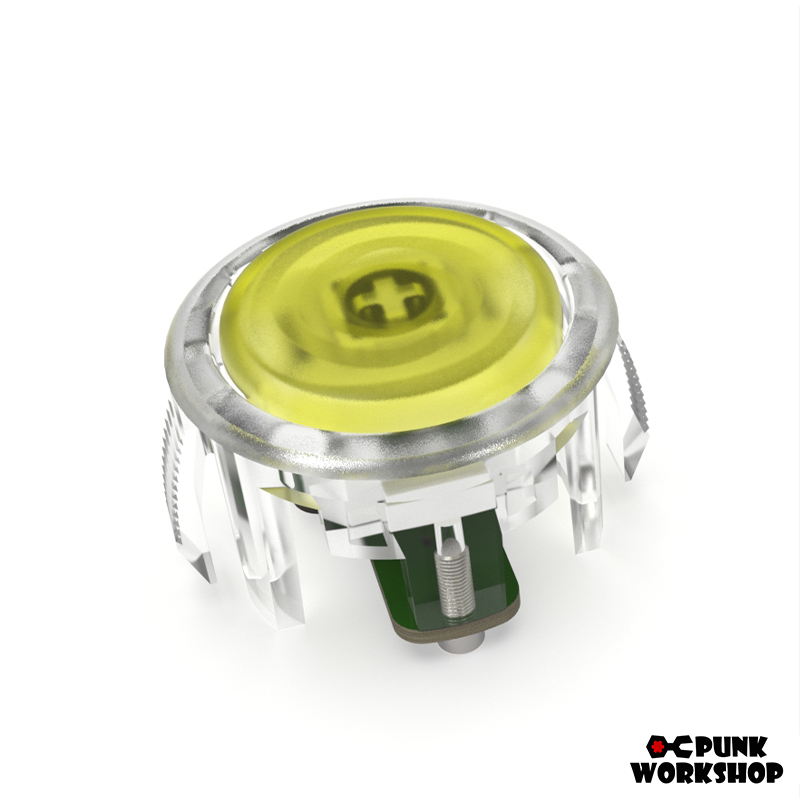

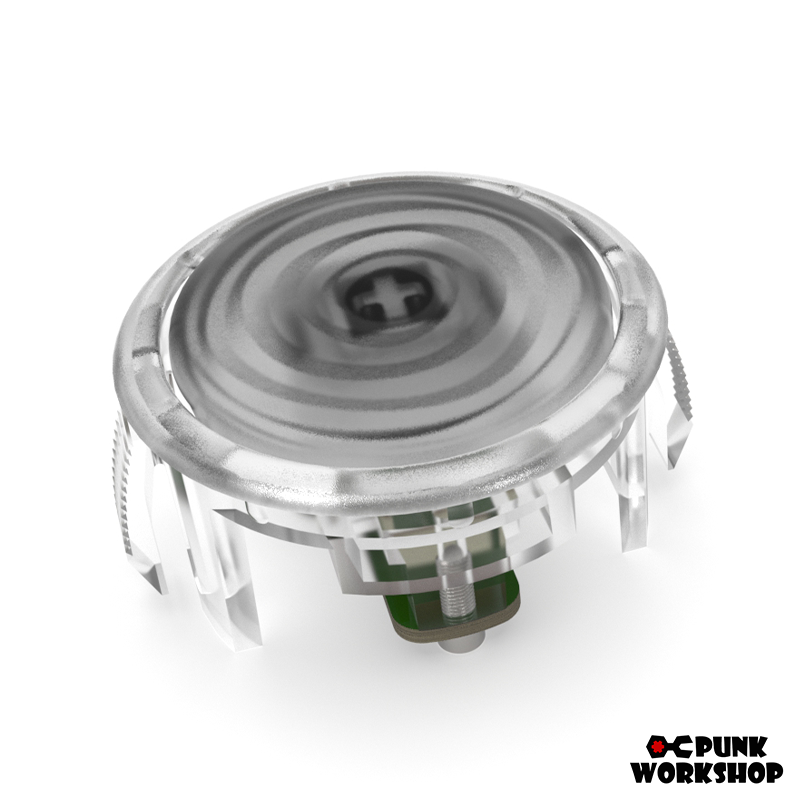

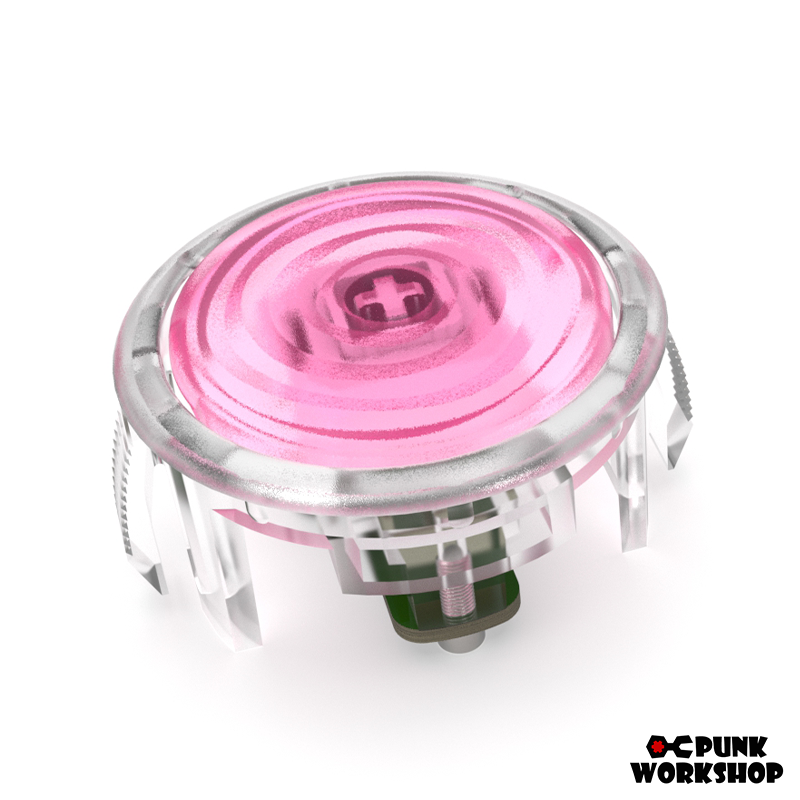

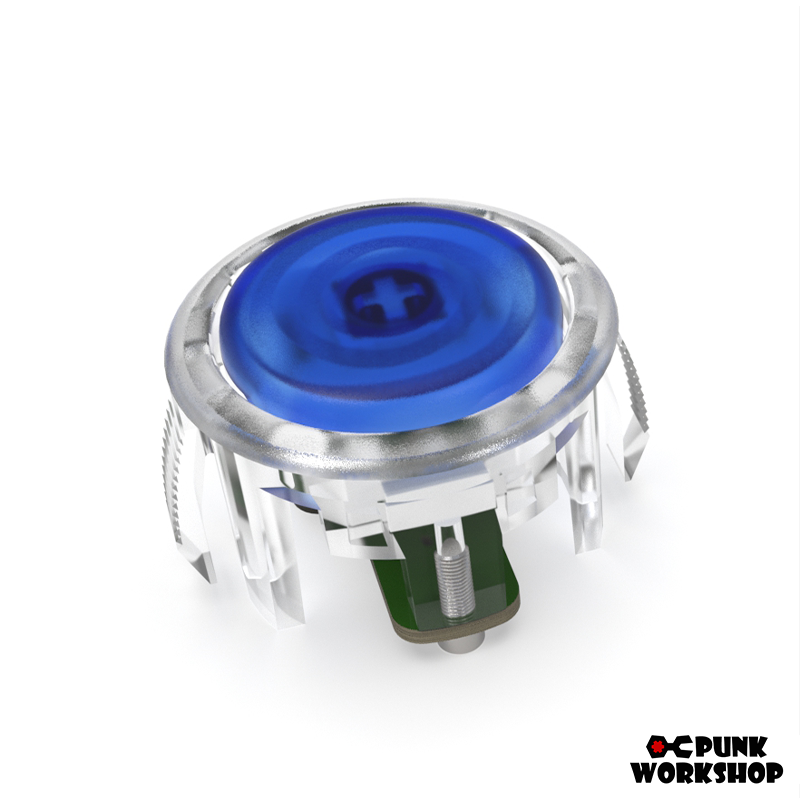

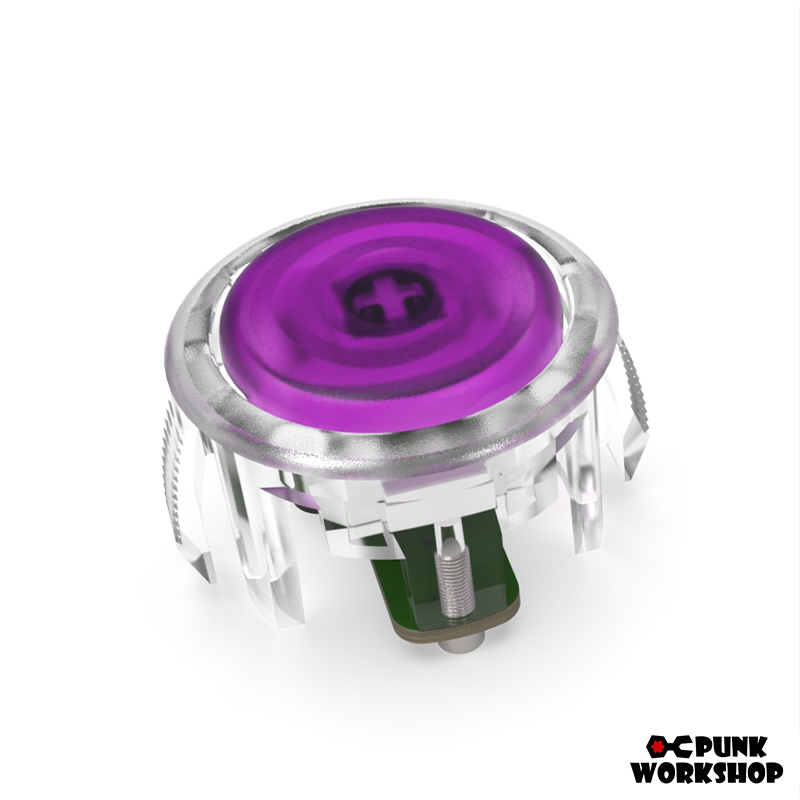

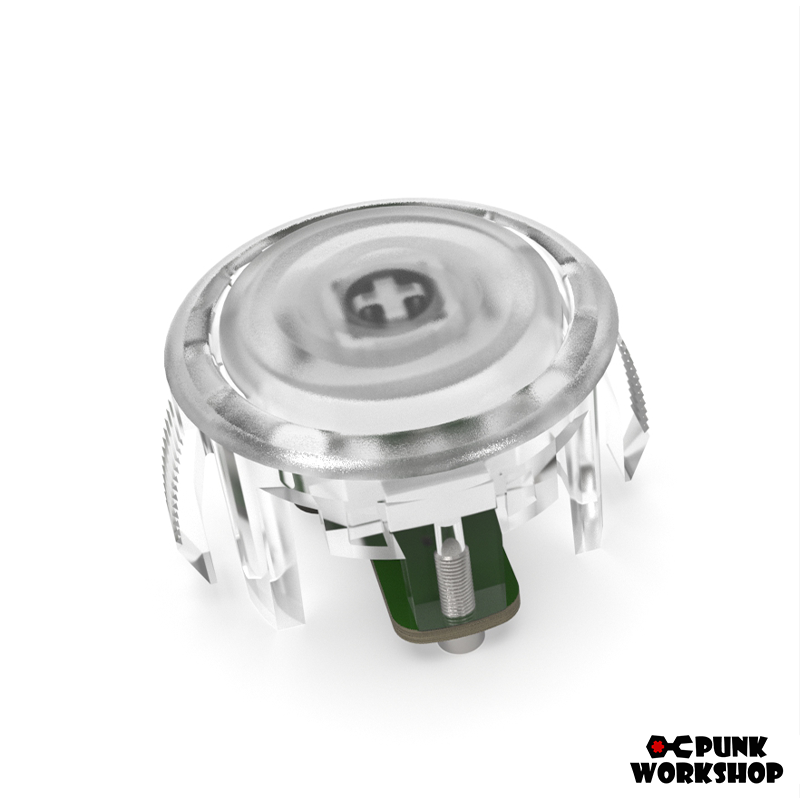

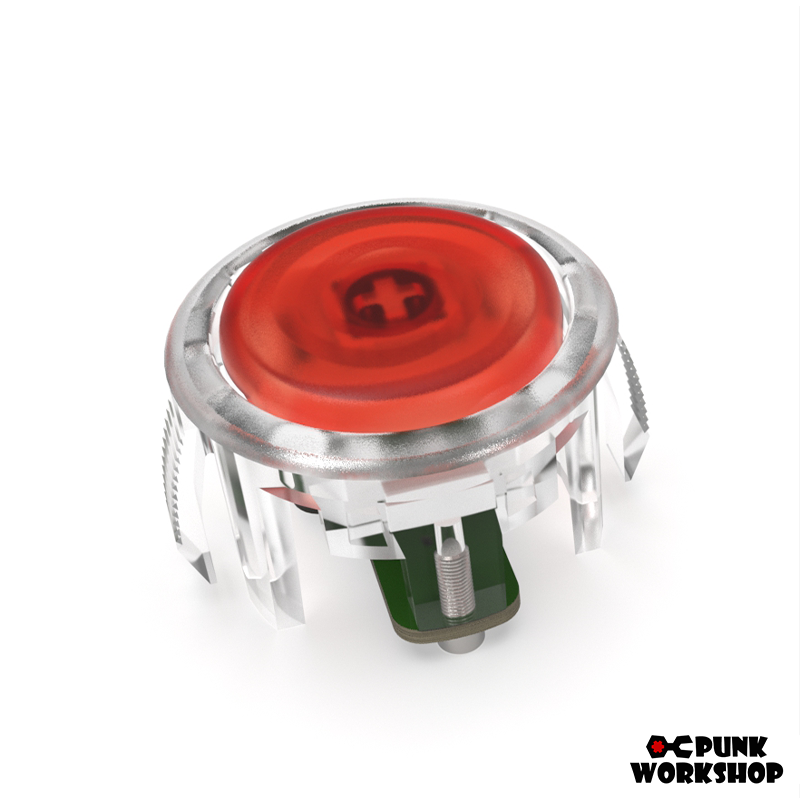

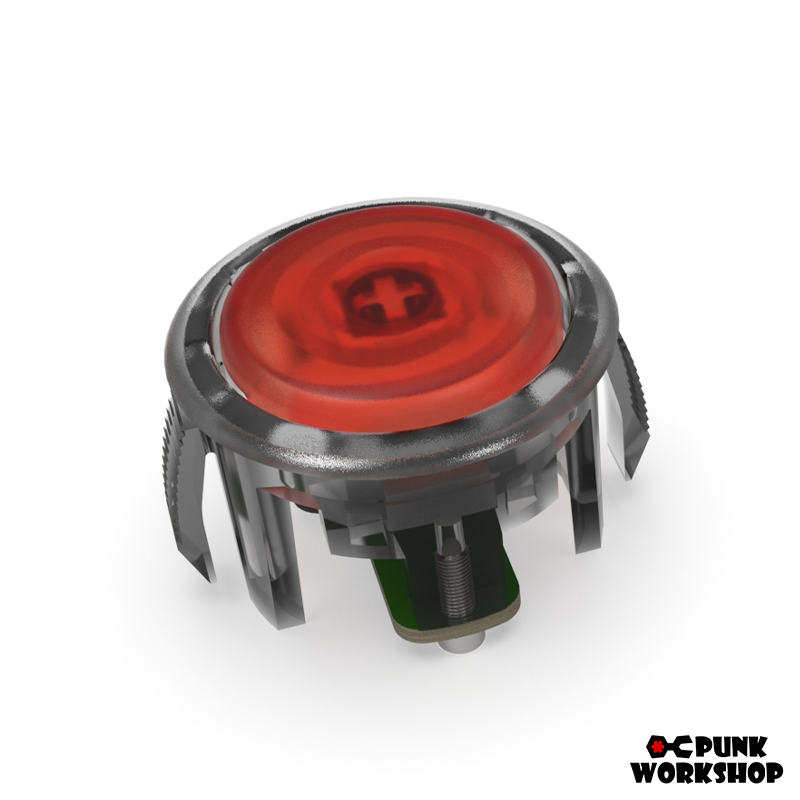

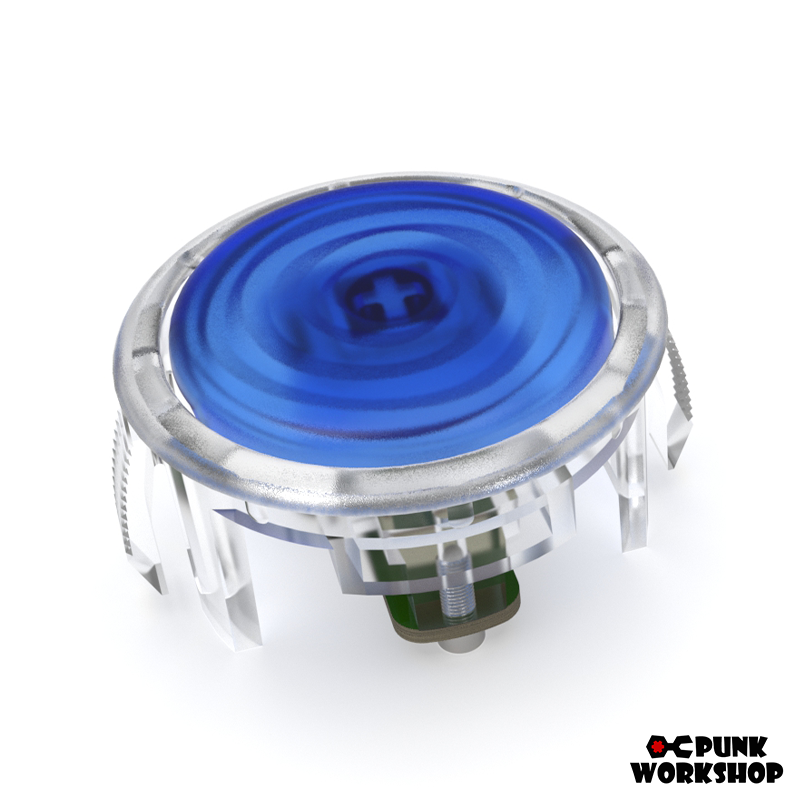

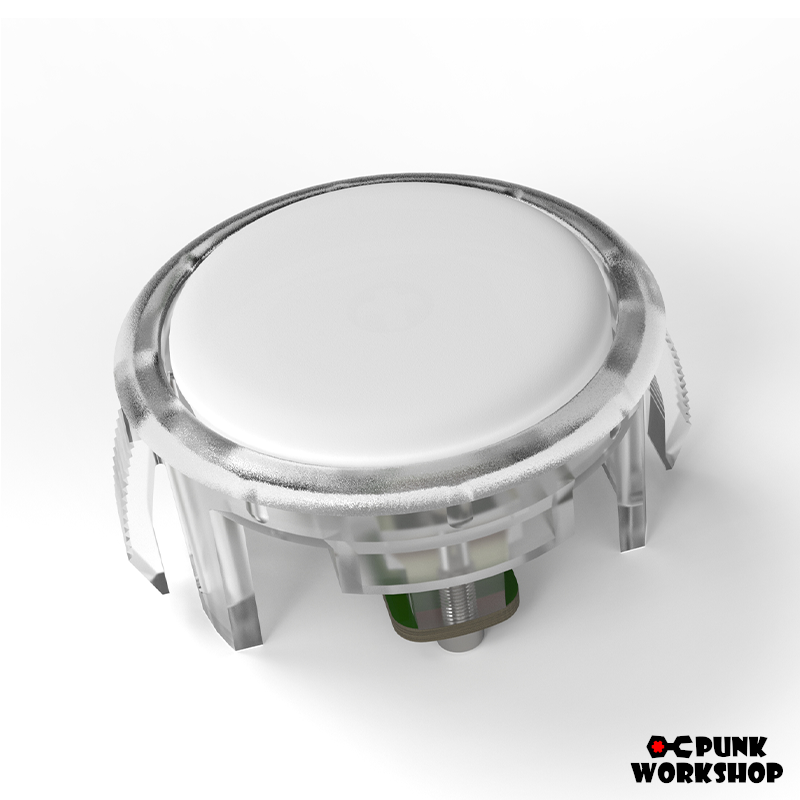

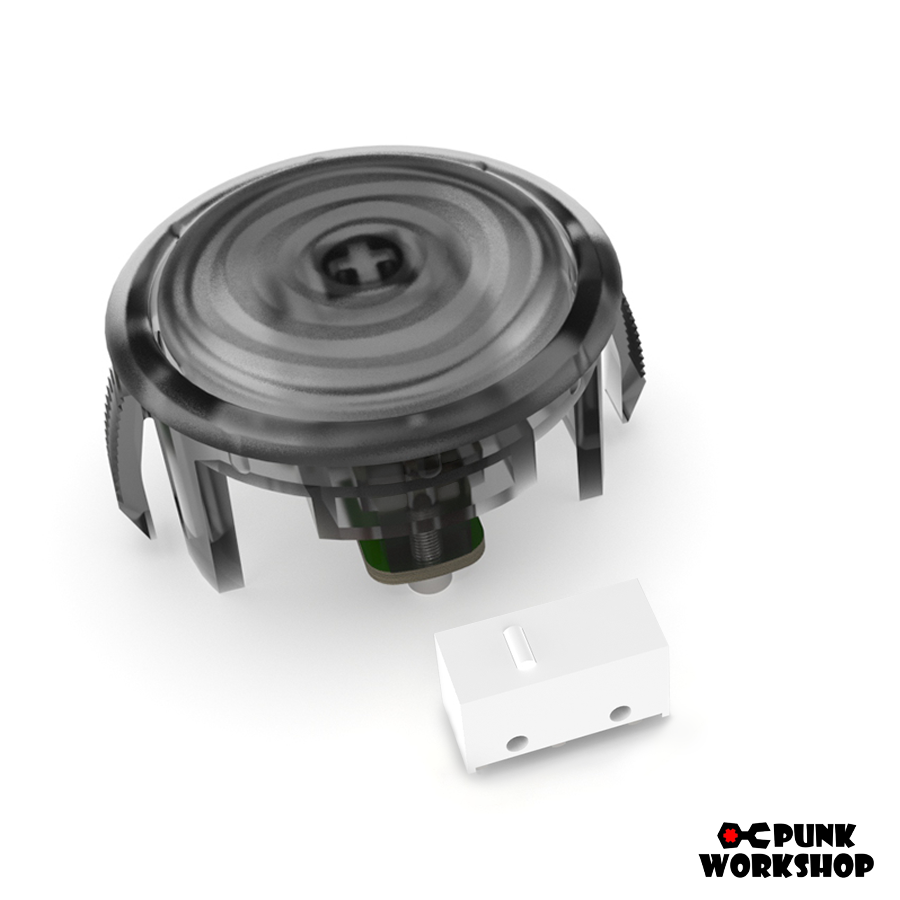

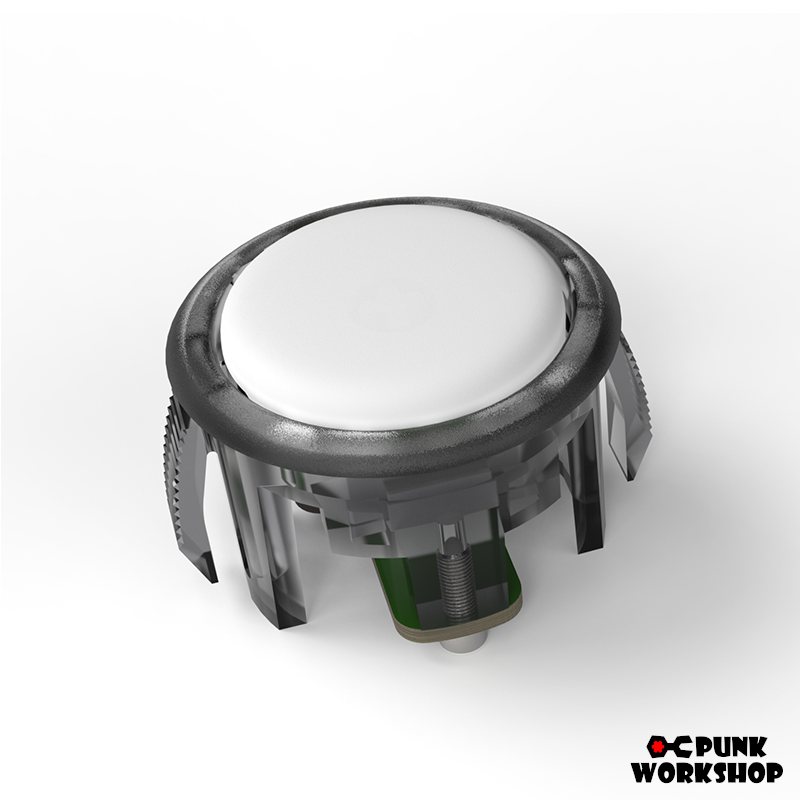

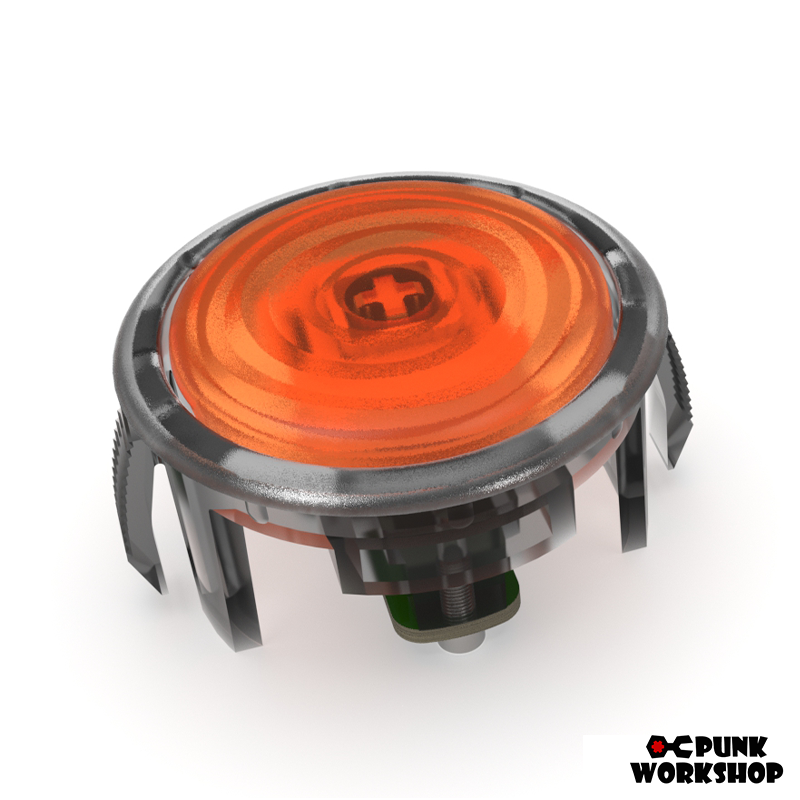

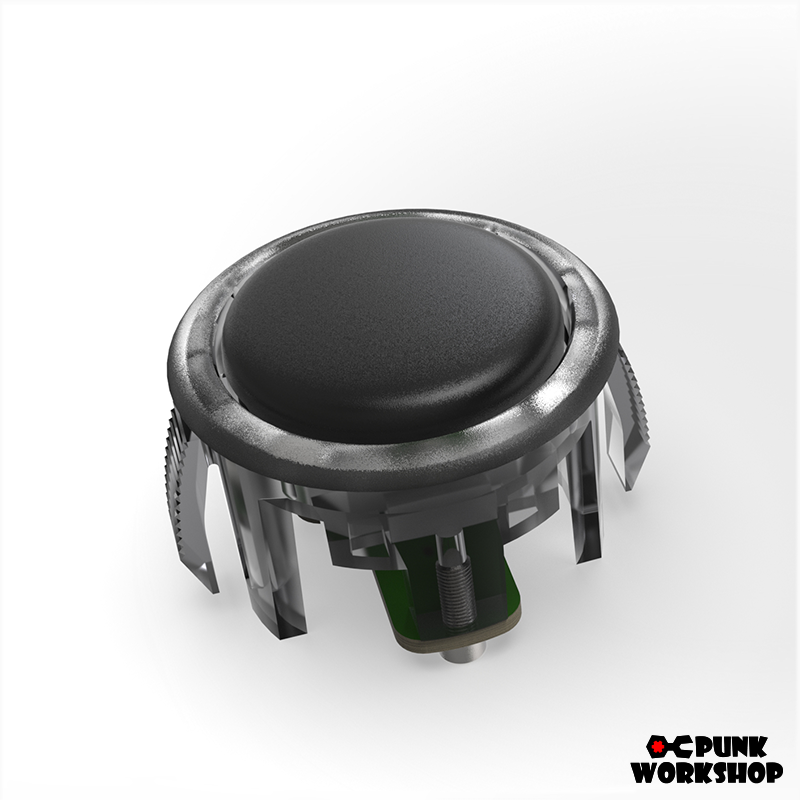

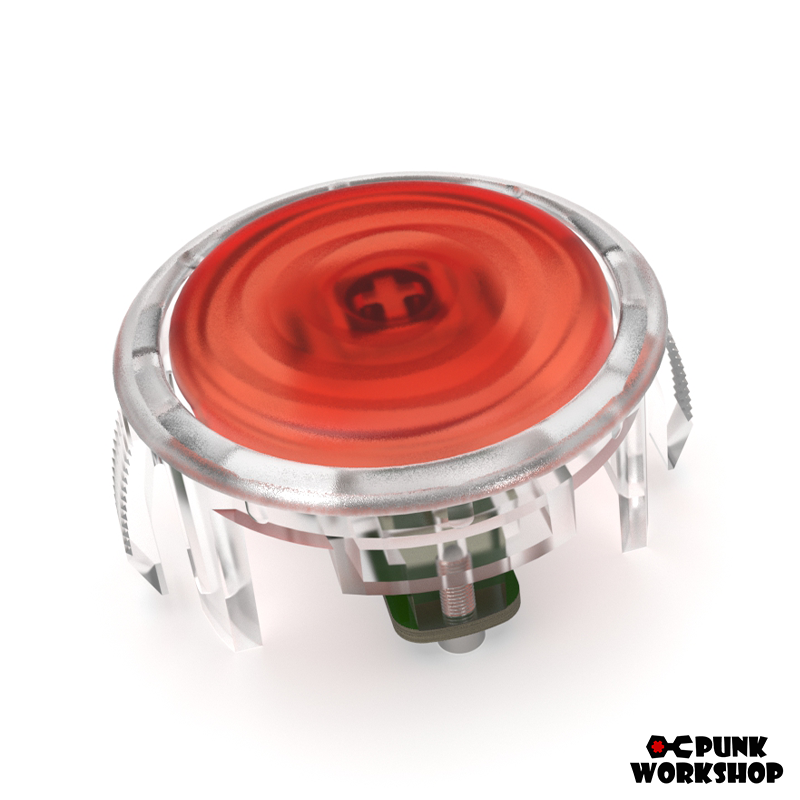

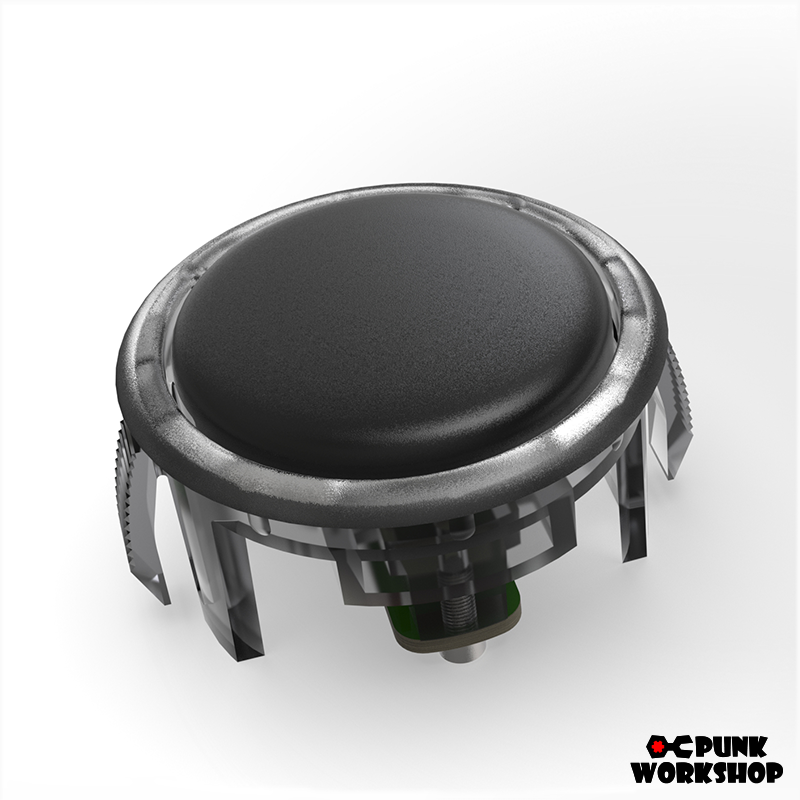

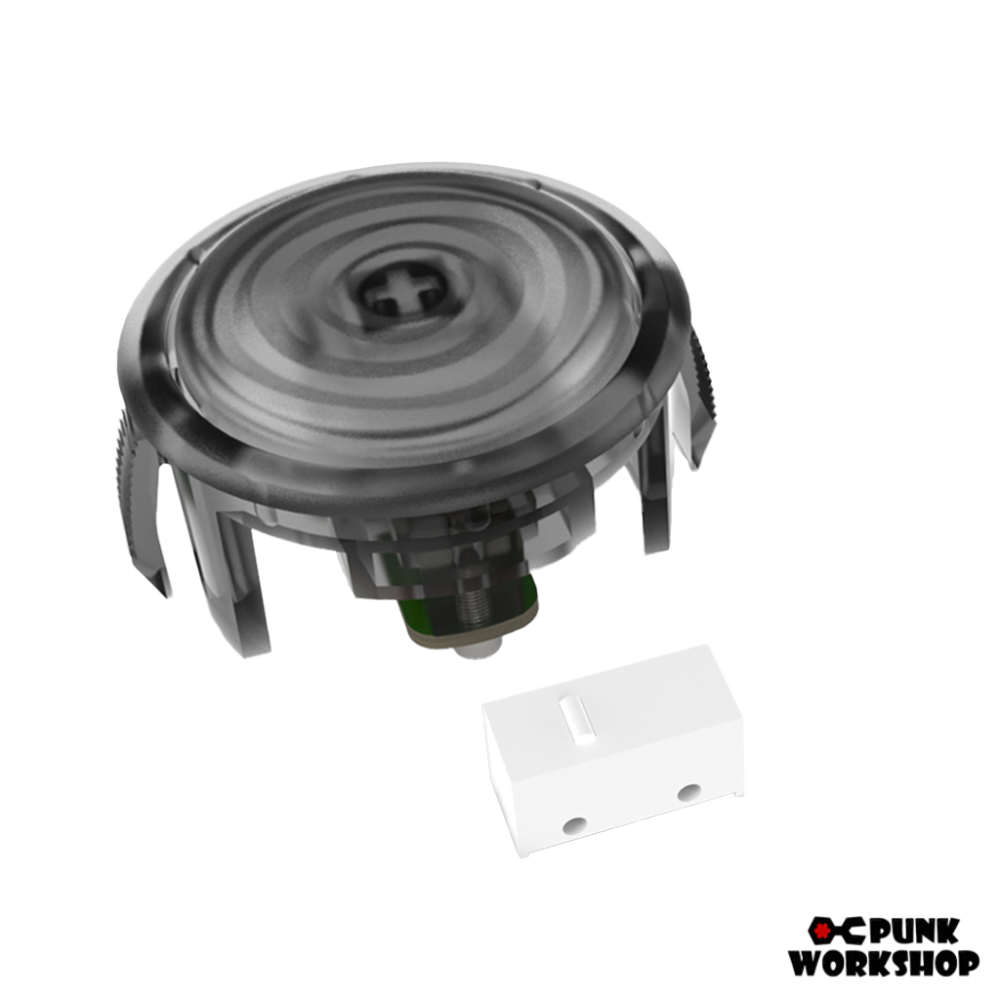

PWS Blaze button
$2.50
Discount
- GET 5% OFF ON ORDERS OVER $300.00
- GET 10% OFF ON ORDERS OVER $500.00
- GET 15% OFF ON ORDERS OVER $1,000.00
1/1

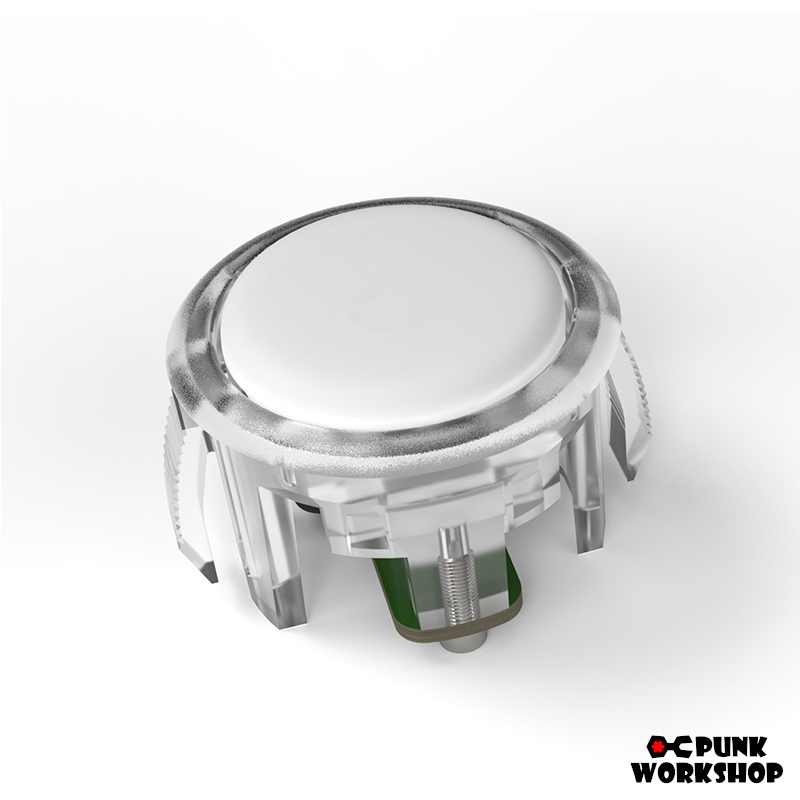

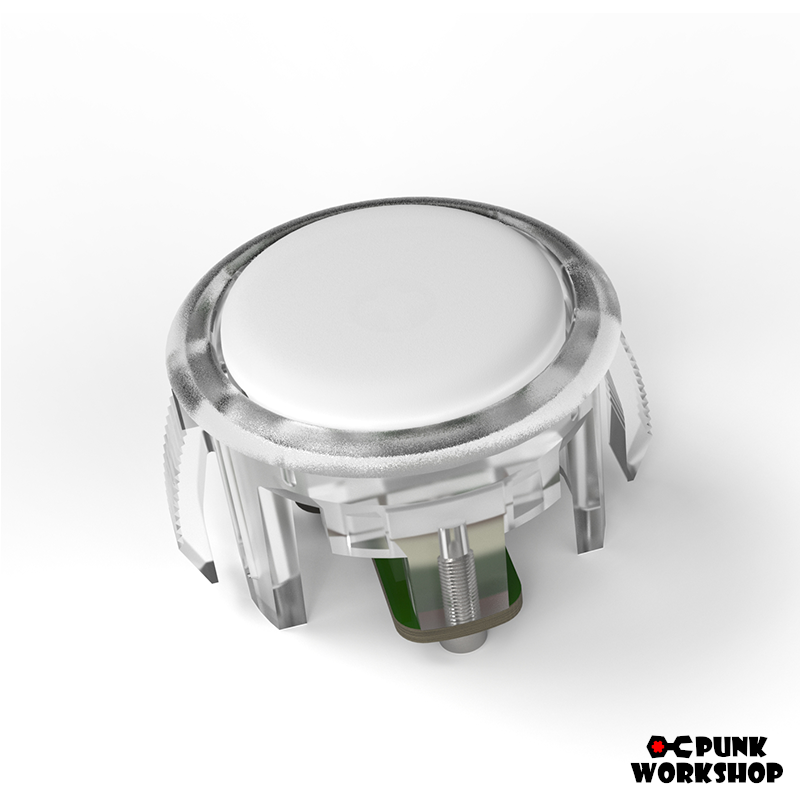

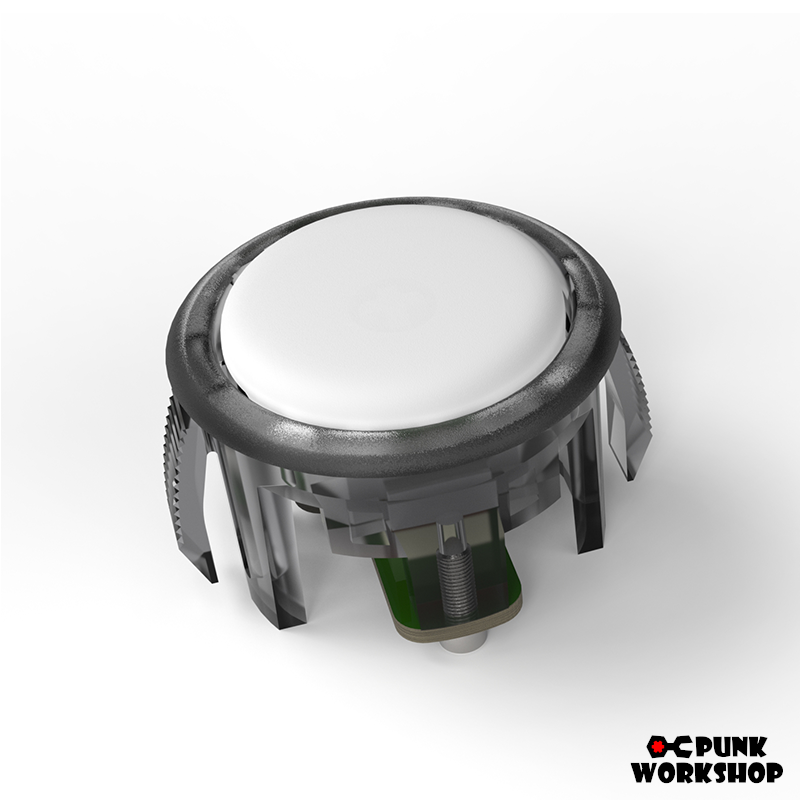

| silent (mute) | spark (unmute) | ||
| size | total travel | size | total travel |

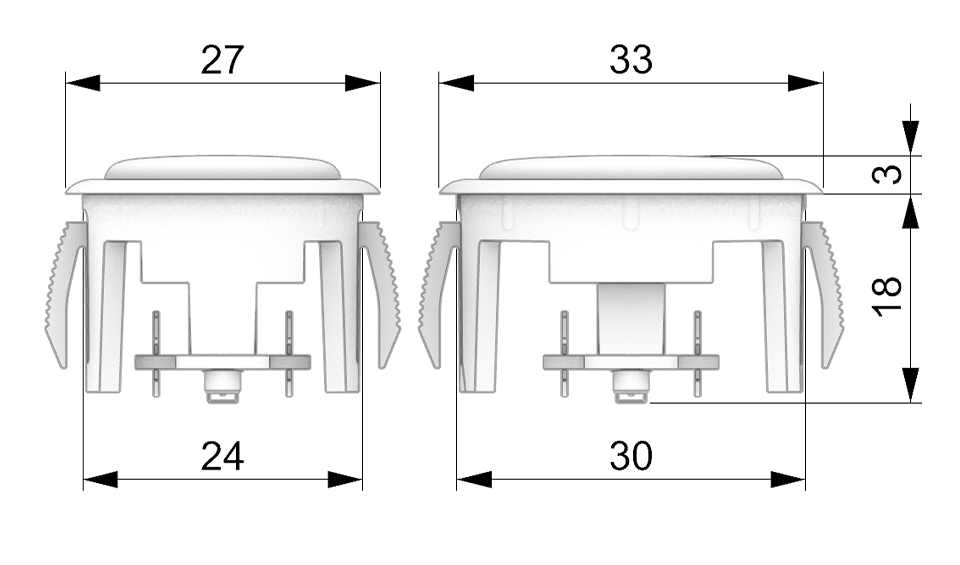

| 24mm/30mm | 0.5mm | 24mm/30mm | 0.5mm |
| actuation force | Installation method | actuation force | Installation method |

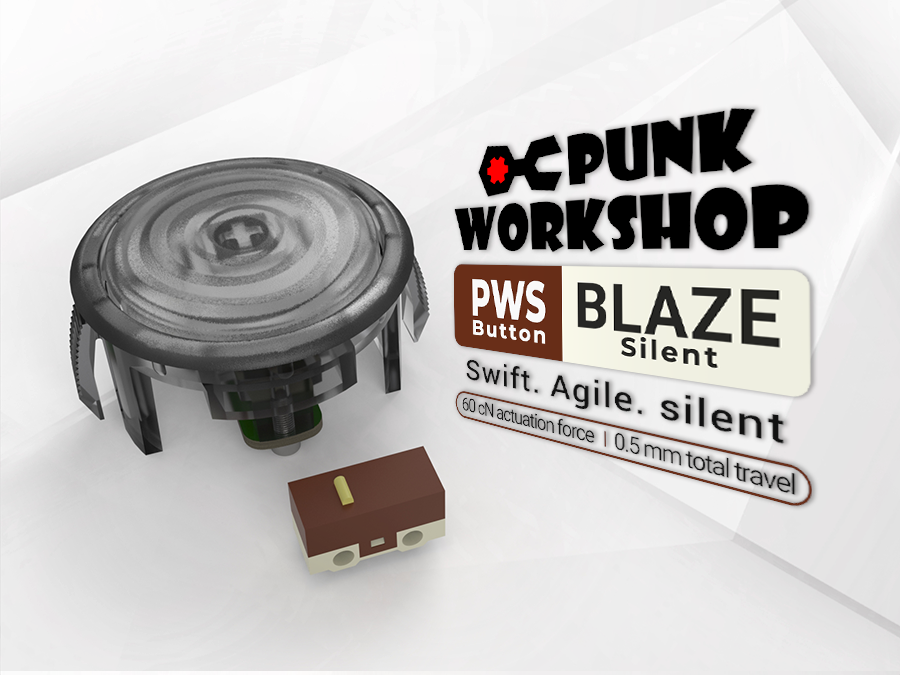

| 60 cN | snap-in | 45 cN | snap-in |
![]() |
![]() |
![]() |

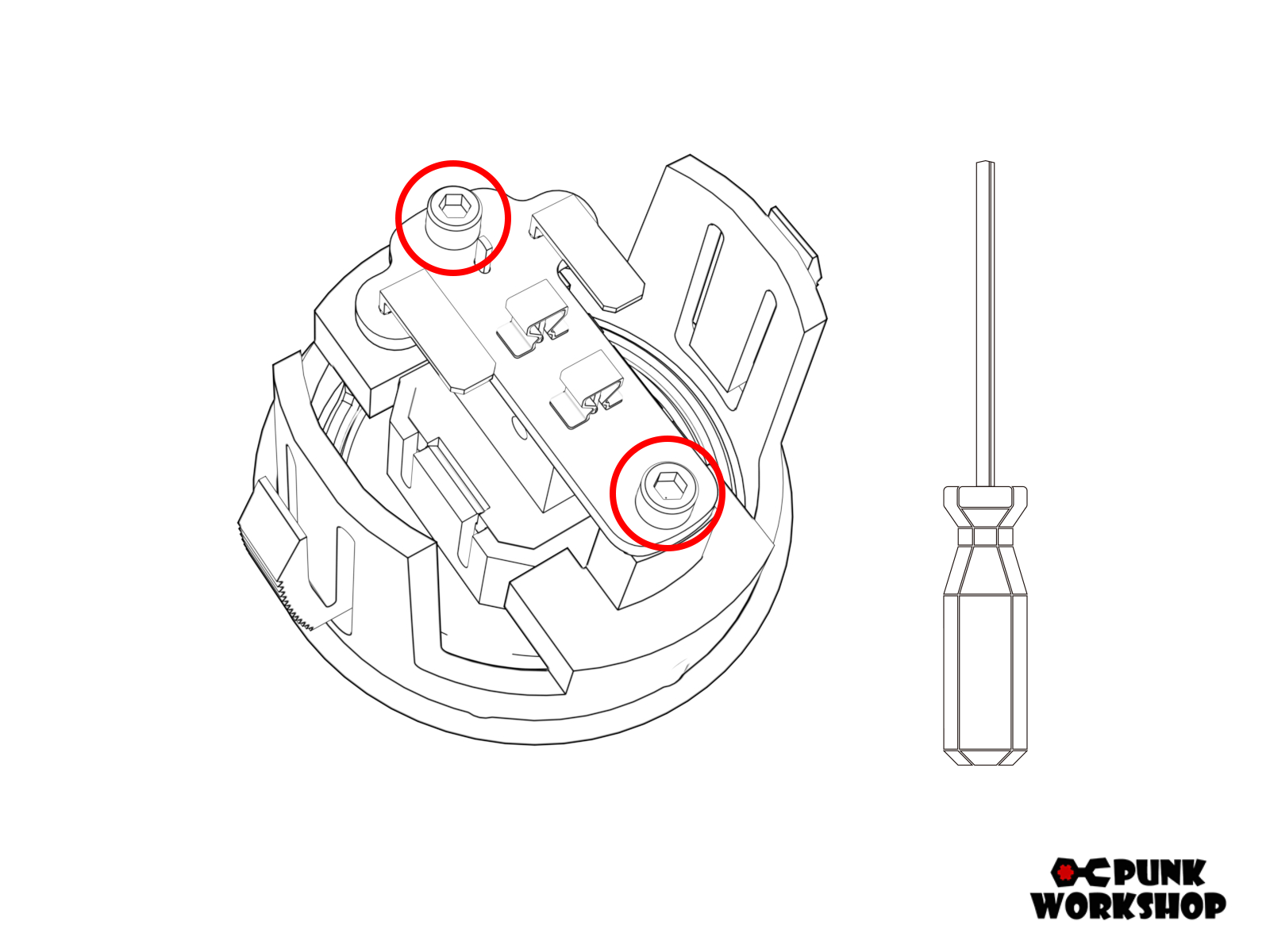

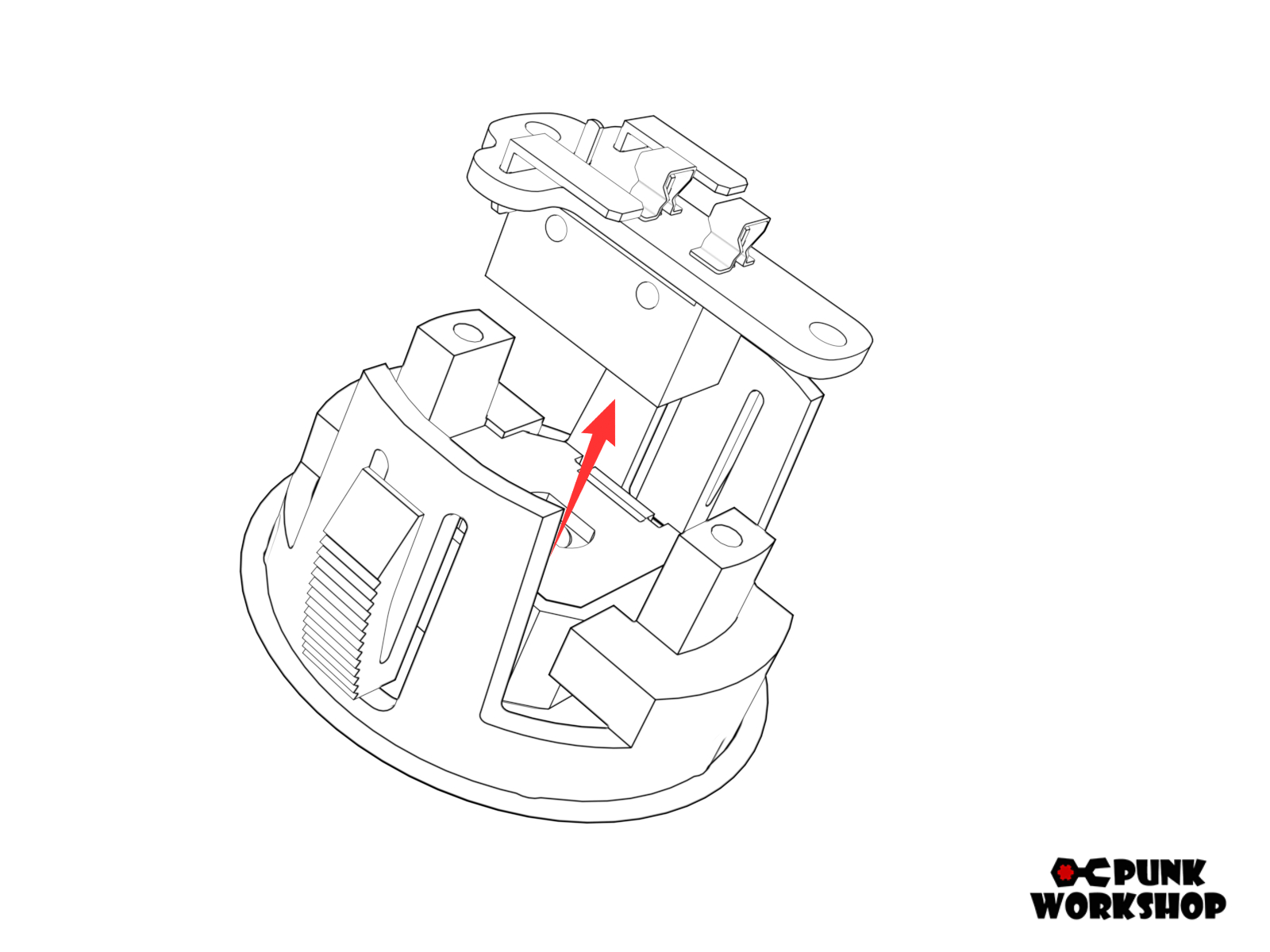

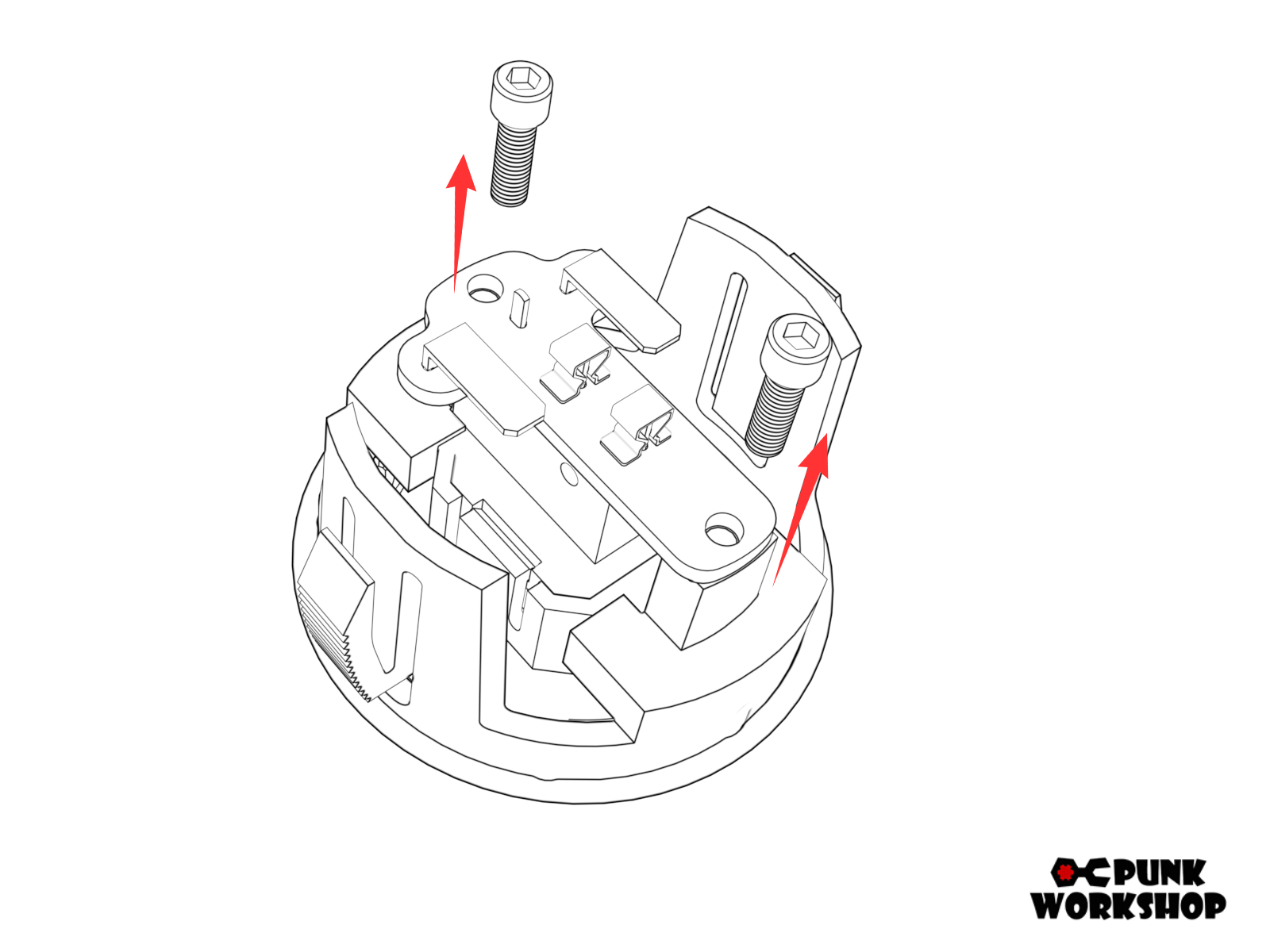

| 1. Locate the two screws at the bottom of the blaze button and use a 1.5 mm hex screwdriver. | 2. Remove the two screws. | 3. Take the button's PCB board off. |
![]() |
![]() |
![]() |

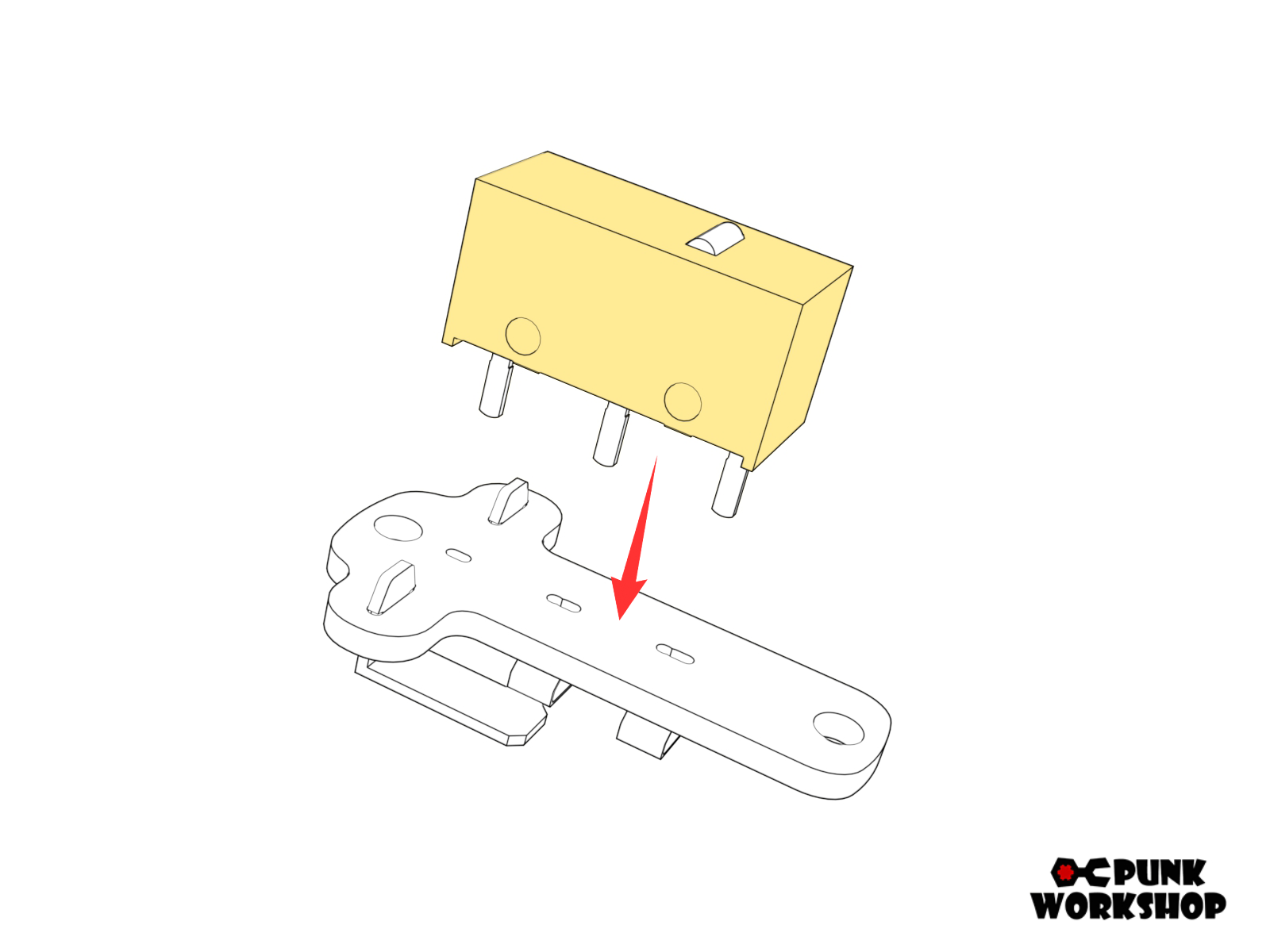

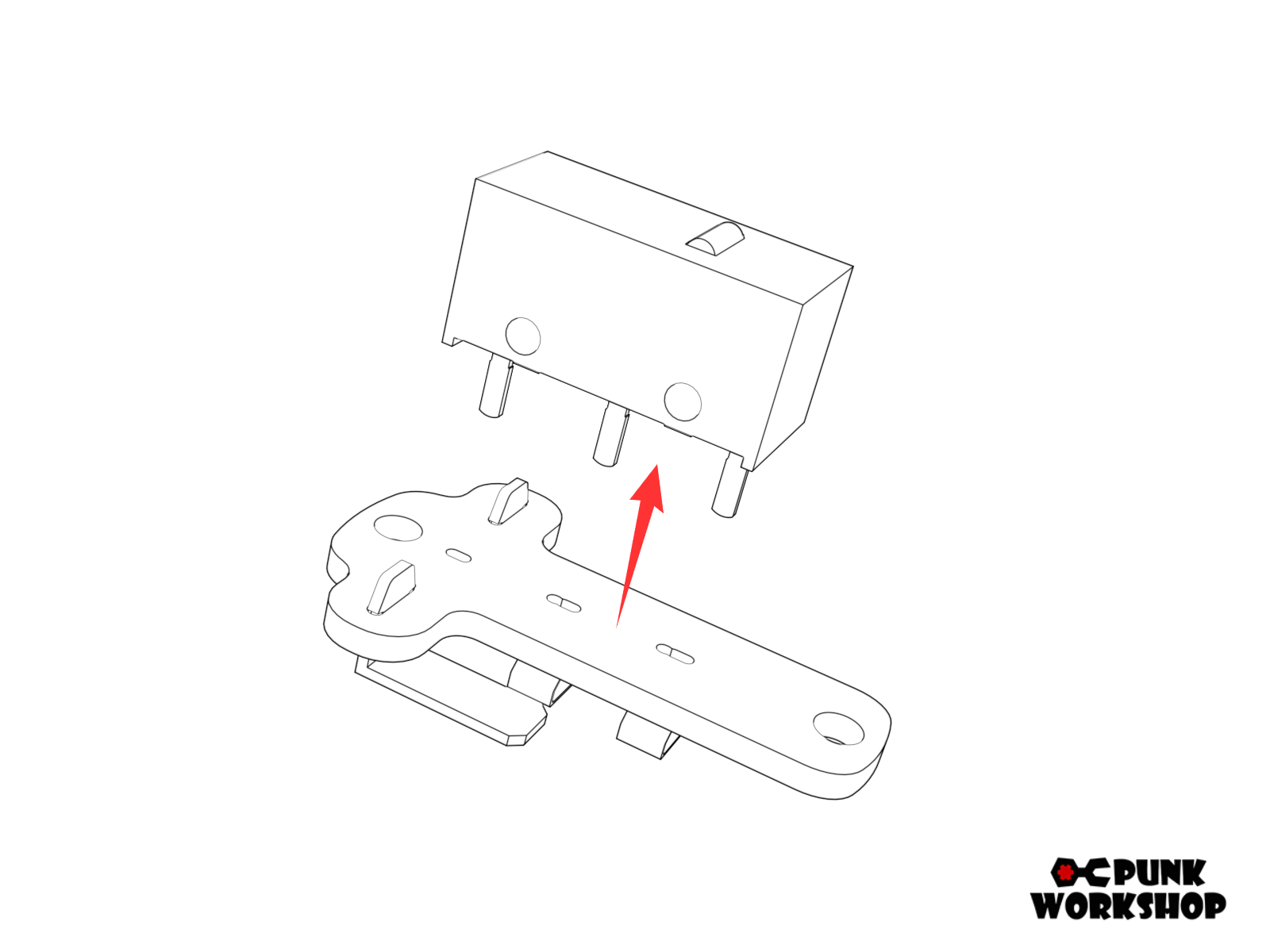

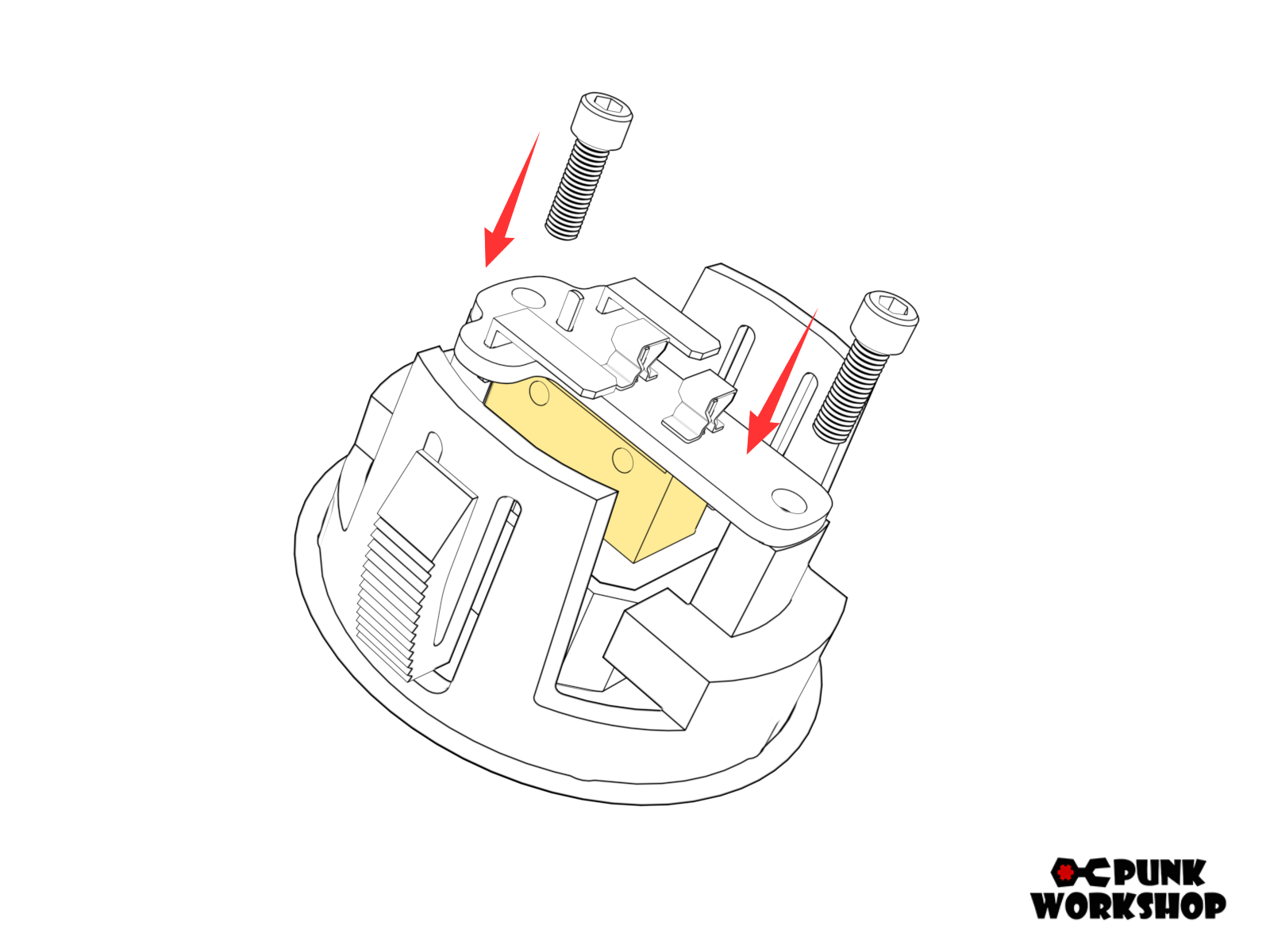

| 4. Remove the old microswitch from the PCB board. | 5. Install the new microswitch by inserting its pins into the holes on the PCB board. Note the orientation of the microswitch relative to the PCB board! | 6. Mount the PCB board with the replaced microswitch back onto the button, then reinstall and tighten the two screws. |
| Notice Please be sure to check the color and size you want to buy before purchasing. Please note that generally, we do not offer exchanges if you purchase the wrong version. When placing an order, please be sure to check that your delivery address and contact information are correct. Please note that an incorrect delivery address will result in the goods not being delivered. |
